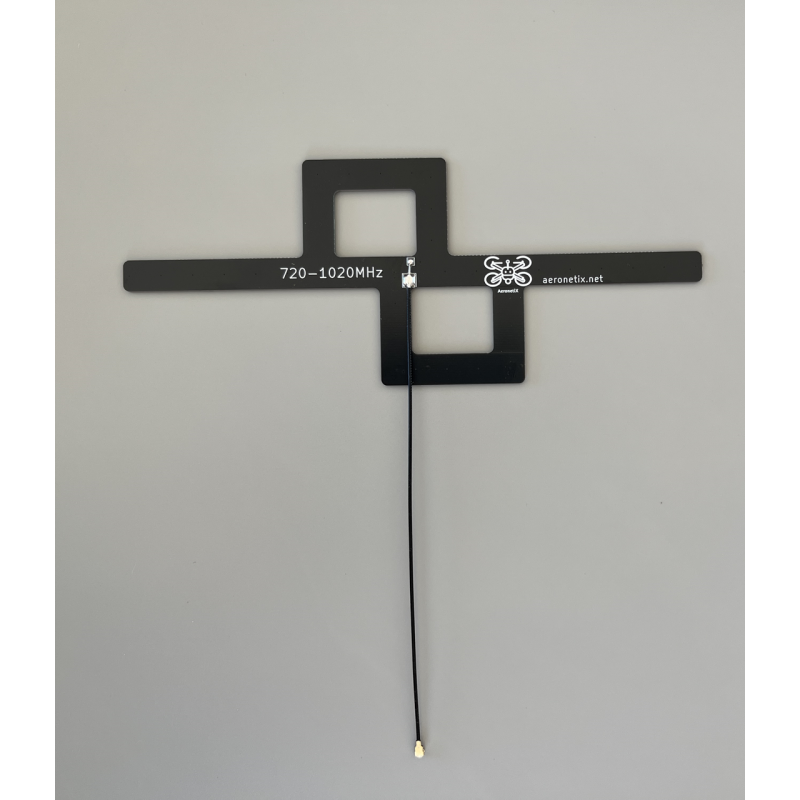

FPV Drone Control Receiving Dipole Antenna 700-1060 MHz (10cm cable) — Aeronetix

This compact and lightweight dipole antenna from Aeronetix is designed for receiving FPV drone control signals and compatible radio receivers. It is ideal for ground receivers and control systems where low weight and neat integration into equipment housing are important. The product belongs to the category: Antennas > Dipole Antennas, SKU in the database: 18351.

Technical Specifications

• Frequency Range: 720-1060 MHz (700-1060 MHz stated in title)
• Gain: 2 dBi
• Dimensions: 185x73x1.5 mm
• Weight: 12 g
• Connector: IPEX1
• Cable Length: 80 mm (10 cm cable mentioned in title)

Additional Technical Parameters

• Length: 9.0
• Weight, kg: 0.100
• Height: 1.0
• Width: 17.0

All the above characteristics are taken from the official description and product attributes. Minor discrepancies between values in the title and the specifications block (700 MHz vs 720 MHz, 10 cm cable vs 80 mm) may be due to rounding or different production batches; this should be taken into account when selecting compatible equipment.

The antenna has a low profile and small mass, which simplifies its integration into controller and ground receiver housings. With a gain of 2 dBi, it provides stable reception at short and medium distances, making it suitable for hobby flights, sports competitions, and amateur FPV flights. The standard IPEX1 connector allows easy connection of the antenna to most controllers and receivers, but it is recommended to check connector compatibility with your equipment before installation.

Usage recommendations: install the antenna vertically for optimal dipole radiation pattern; avoid strong metallic obstructions near the mounting location, as they may reduce reception quality; when replacing or upgrading, consider the dimensions 185x73x1.5 mm and weight 12 g.

Manufacturer: Aeronetix. The product is suitable for FPV ground receivers and control systems where compactness, low weight, and ease of installation are important.
