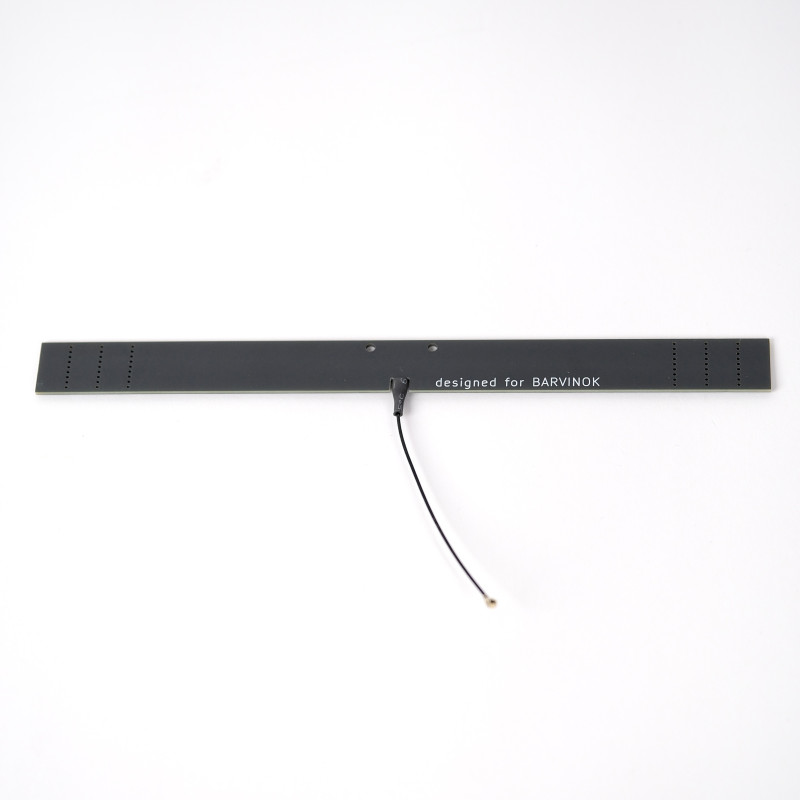

Aeronetix FPV Drone Control Receiving Dipole Antenna 475 - 700 MHz

We offer the Aeronetix receiving dipole antenna for FPV drone control across a wide frequency range. This model combines compact dimensions with a lightweight design, ensuring easy mounting on a quadcopter or in ground-based receiving nodes. The antenna is designed for stable signal reception and is compatible with popular receiving modules thanks to its IPEX1 connector.

Key Technical Specifications

• Manufacturer: Aeronetix
• Product Type: Antennas > Dipole Antennas
• Frequency Range (per manufacturer's description): 425 - 700 MHz
• Range specified in title: 475 - 700 MHz

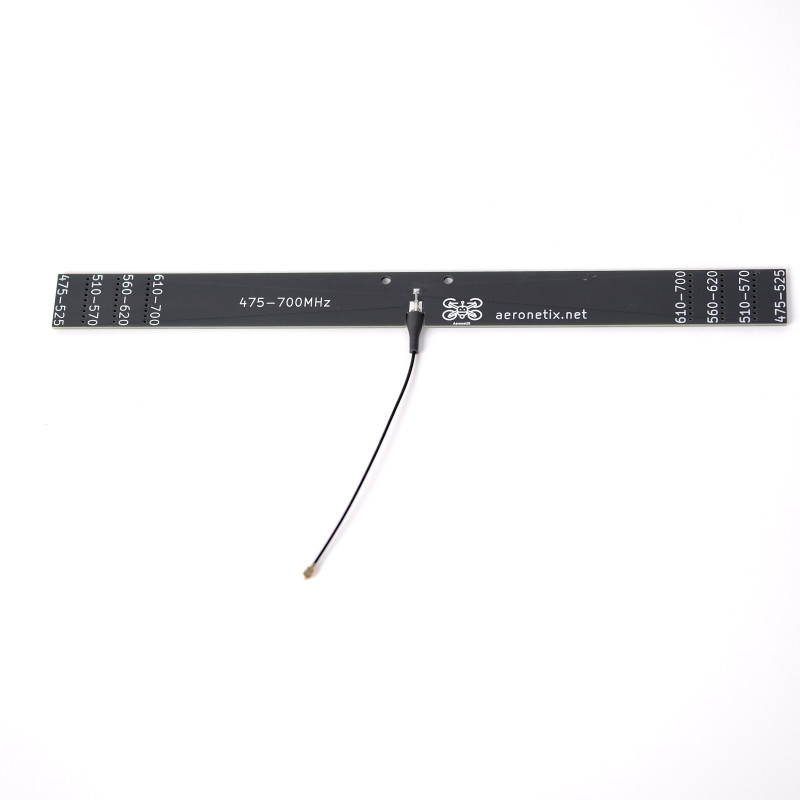

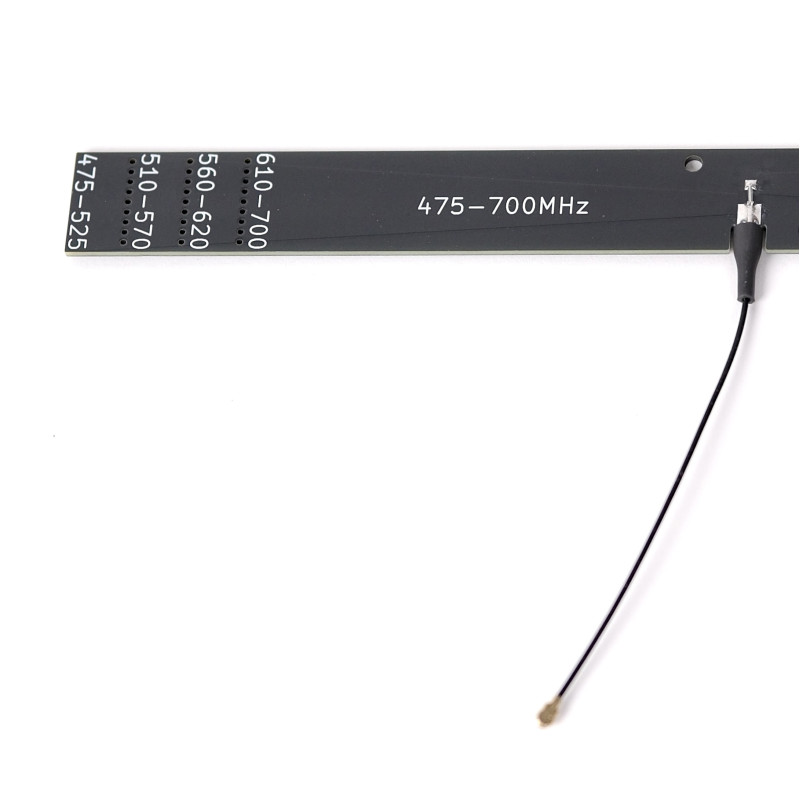

• Sub-band and center frequency: for 475-525 MHz, center frequency 500 MHz (based on VSWR readings)
• Gain: 2 dBi

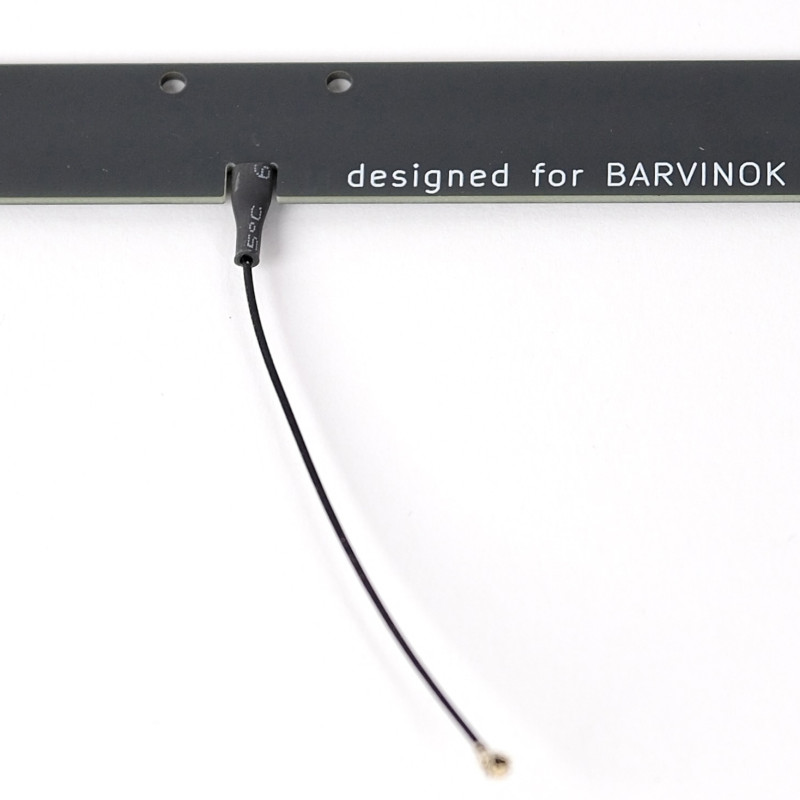

• Connector: IPEX1
• Cable Length (per description): 80 mm
• Cable Length (in title): 15 cm (150 mm) — note the difference in data sources
• Dimensions (per description): 245x20x1.5 mm
• Weight (per description): 10 g

Additional Parameters (Product Attributes)

• Length (attribute): 24.0
• Weight, kg (attribute): 0.100
• Height (attribute): 1.0
• Width (attribute): 2.0

The product description contains several values for dimensions and weight: on one hand, dimensions of 245x20x1.5 mm and a weight of 10 g are provided, and on the other, attributes indicating Length 24.0, Weight 0.100 kg, Height 1.0, and Width 2.0. We recommend referring to the official manufacturer's labeling or clarifying the exact units of measurement with the seller if this is critical for selecting the antenna for your setup.

The dipole design ensures stable reception within the operating range and good compatibility with typical FPV receivers. With a gain of 2 dBi and low weight, the antenna is easy to mount on a quadcopter without significantly increasing the platform's weight. The IPEX1 connector makes connection simple to modules used in drone control systems.

The Aeronetix model, supporting 425–700 MHz, offers versatility for various application scenarios, while the presence of specified sub-bands (e.g., 475–525 MHz with a center frequency of 500 MHz) will help optimize reception in a given frequency segment. If a specific cable length is important for your system, note the discrepancy between 80 mm and 150 mm in different sources and clarify the final configuration with the seller.

The technical data provided above includes all known parameters from the given description: frequency ranges 425-700 MHz and 475-700 MHz, center frequency for the 500 MHz sub-band, gain 2 dBi, dimensions 245x20x1.5 mm, weight 10 g, IPEX1 connector, cable length 80 mm (with a note about 150 mm in the title), as well as additional attributes: Length 24.0; Weight 0.100 kg; Height 1.0; Width 2.0. If precise measurements are needed for a specific installation or for pairing with a particular receiver — please clarify with the seller.
