Drone Control Antenna (for Repeater) 940-1050 MHz Aeronetix

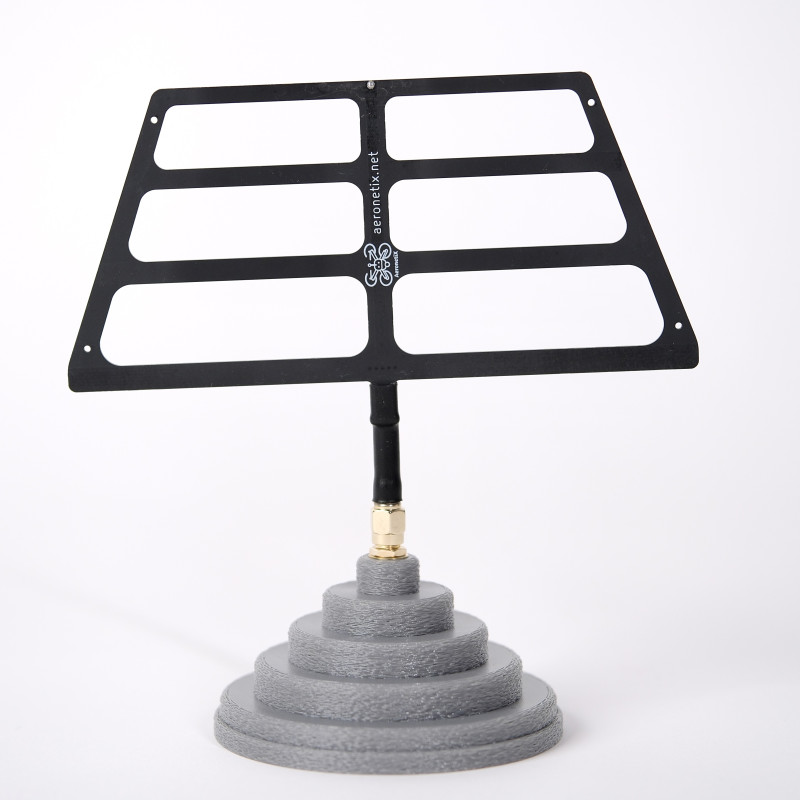

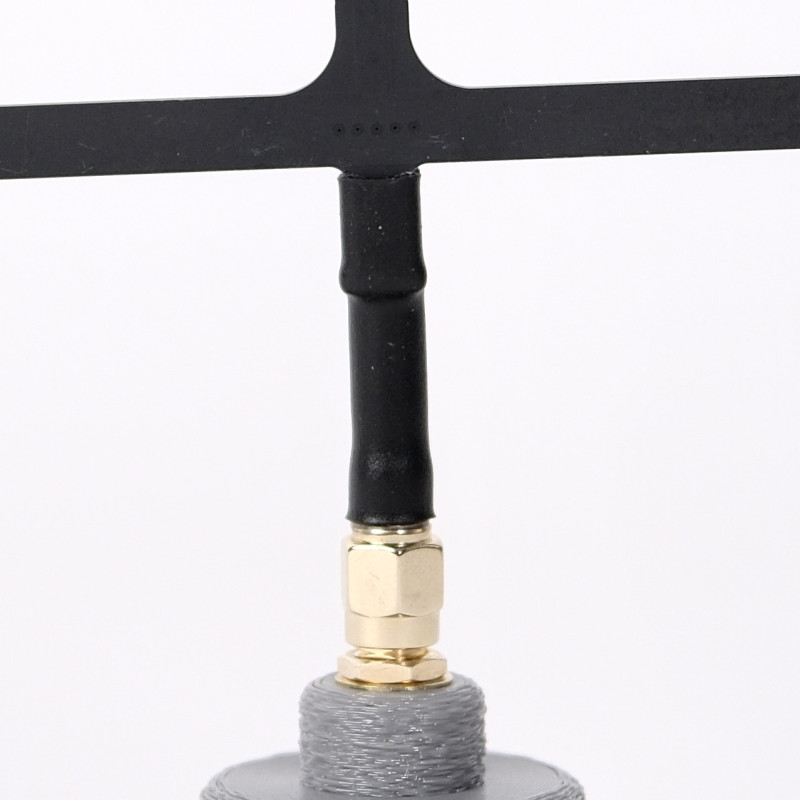

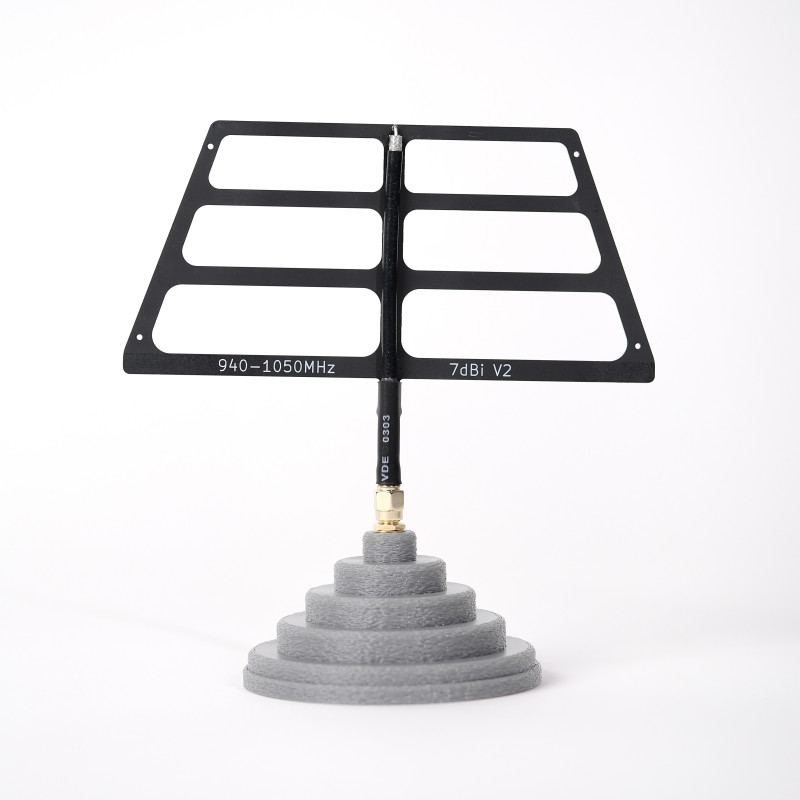

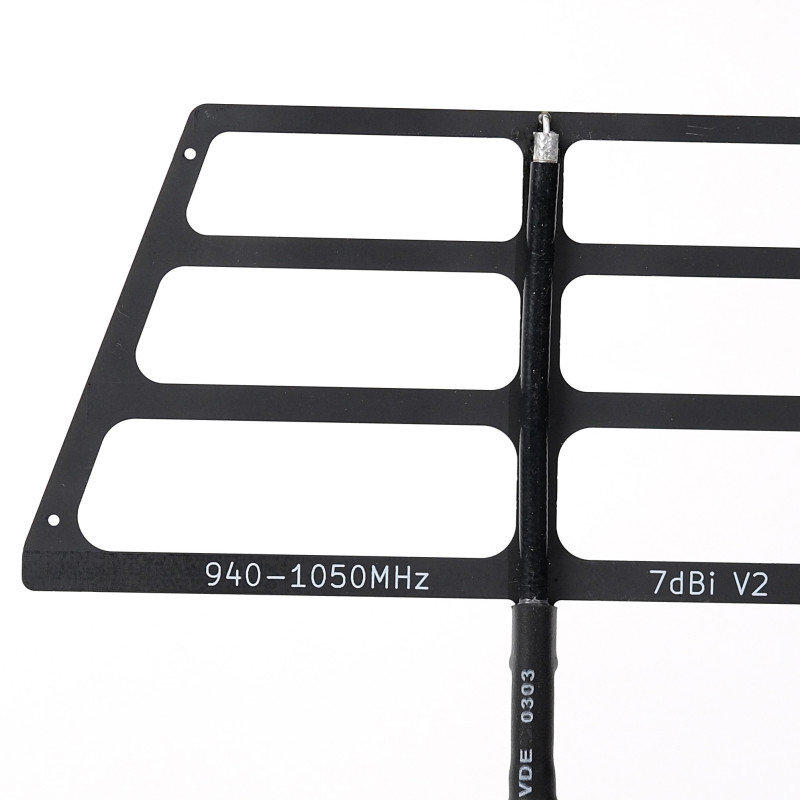

Aeronetix offers an efficient log-periodic antenna for drone control and repeater operation in the 940-1050 MHz range. This compact and lightweight module is designed specifically for FPV systems, repeater links, and other applications where stable communication over significant distances is crucial. The antenna combines broadband operation with directivity and increased gain, making it an ideal choice for amateurs and professionals.
Key Advantages
-
Wide Frequency Range: 940 - 1050 MHz ensures reliable operation in conditions of varying repeater frequencies and autonomous links.
-
Gain: 7 dBi increases signal range and quality compared to standard omnidirectional antennas.
-
Compact Dimensions: 145 × 70 mm (without cable) allow the antenna to be integrated onto the drone body or a repeater mounting bracket without excessive load.
-
Low Weight: 22 g contributes to minimal impact on the overall weight of the aircraft.

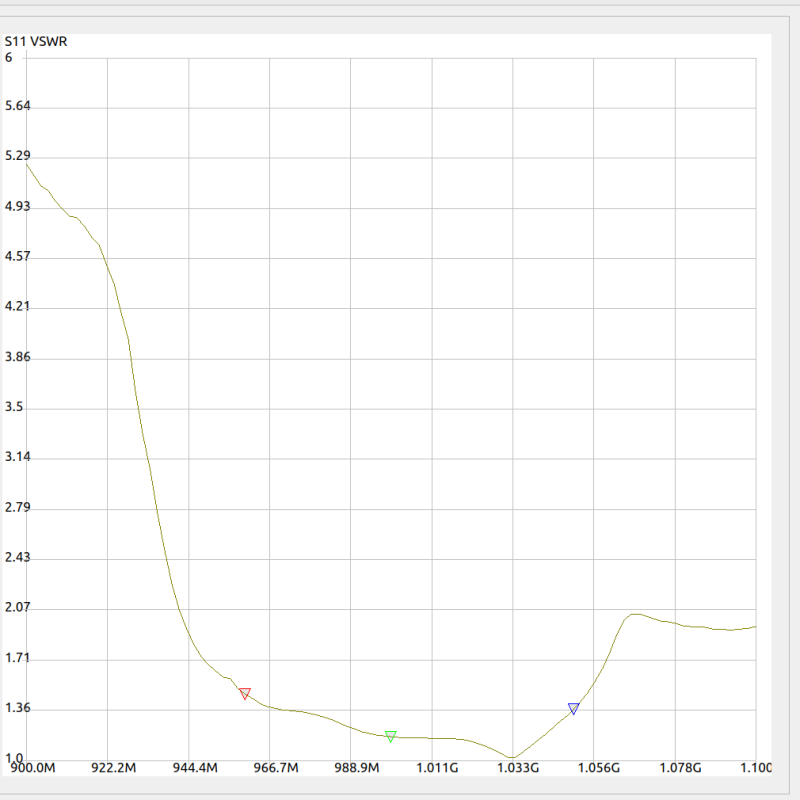

The log-periodic design provides a smooth frequency response without sharp dips within the stated range, which is important for stable FPV connections and repeater chains. The antenna performs well where a balance between weight, dimensions, and performance is required, and the manufacturing quality from Aeronetix guarantees long-term operation.
Product Technical Parameters
| Parameter | Value |
|---|---|
| Manufacturer | Aeronetix |
| Type | Antennas > Log-periodic antenna |
| Frequency Range | 940 - 1050 MHz |
| Gain | 7 dBi |
| Dimensions (without cable) | 145 × 70 mm |
| Weight | 22 g |
Additional Dimensions and Weight
| Attribute | Value |
|---|---|
| Length | 7.0 |
| Weight, kg | 0.100 |
| Height | 1.0 |
| Width | 15.0 |
These additional attributes help in planning installation, selecting mounts or adapters for installing the antenna on a repeater or drone body. Note that the dimensions 145 × 70 mm are specified without the cable, and the weight of 22 g is the physical weight of the antenna. When mounting with adapters or extenders, weight and size characteristics in kilograms and millimeters should be considered.
The antenna is suitable for field conditions where communication reliability, simple integration, and a wide operating frequency band are important. It provides improved directivity in the operating range, ease of installation, and structural durability — an optimal choice for FPV enthusiasts and professional communication systems.
