Aeronetix Log-Periodic FPV Video Control Antenna 1.7-2.7 GHz RP-SMA

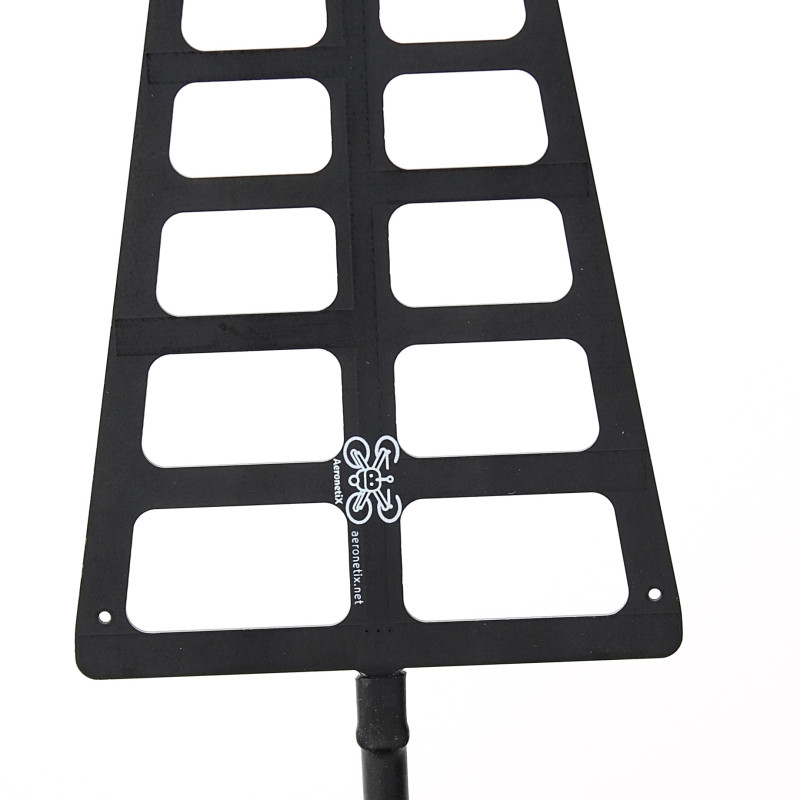

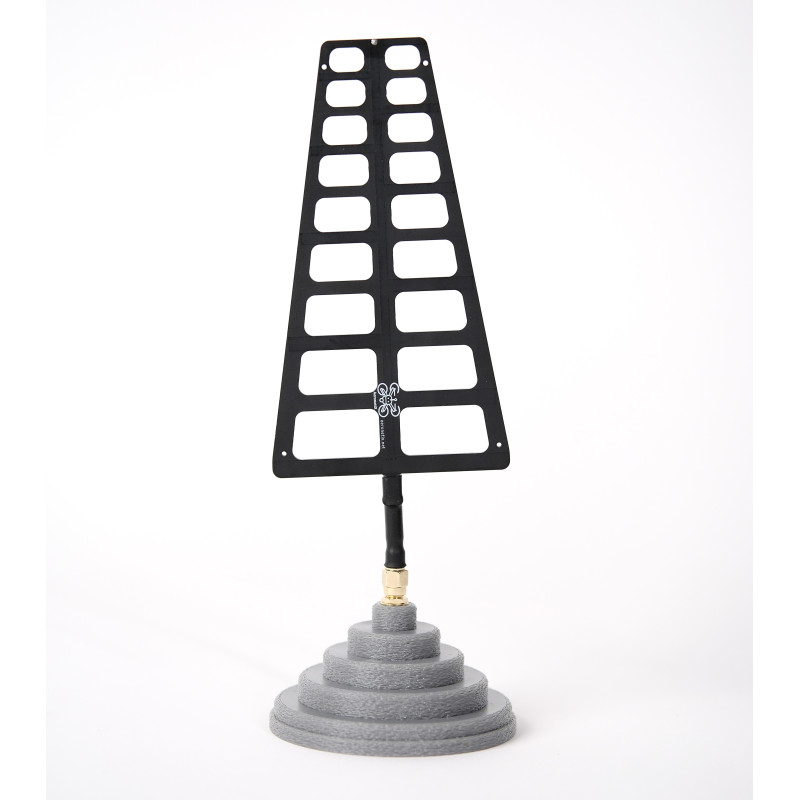

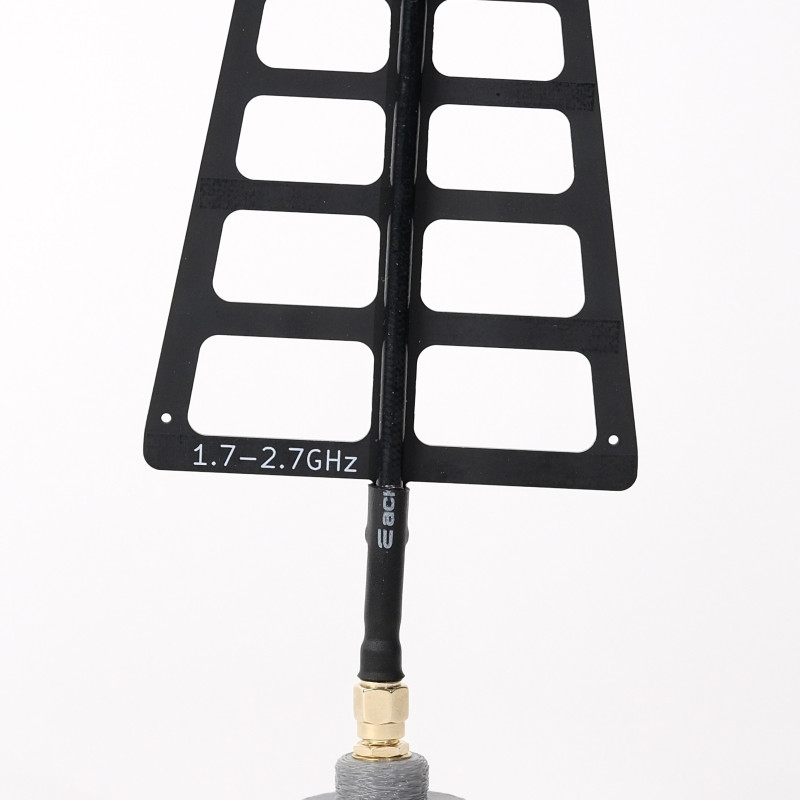

The Aeronetix brand antenna is designed for reliable FPV video channel control across a wide frequency range of 1700-2700 MHz. This log-periodic antenna combines compact dimensions with high gain, making it an optimal choice for amateur and professional FPV systems. The universal RP-SMA connector ensures easy integration with most transmitters and receivers for drones and video equipment.
Key Features
- Frequency Range: 1700-2700 MHz
- Gain: 9 dBi
- Beamwidth: 80°
- Dimensions: 152 × 52 × 15 mm
- Weight: 29 g
- Connector: RP-SMA
Additional Technical Data
For complete technical information, the associated product attributes in engineering units are provided below; please note that the source data specifies both a weight of 29 g and a value of 0.100 kg — both values are retained for accuracy.
Product Attributes
| Parameter | Value |
|---|---|
| Length | 15.0 |
| Weight, kg | 0.100 |
| Height | 2.0 |
| Width | 6.0 |
This model demonstrates high directivity and signal stability across the entire 1.7-2.7 GHz operating range, ensuring high-quality video transmission and FPV control. The 9 dBi gain combined with an 80° beamwidth provides an optimal balance between range and coverage, while the compact dimensions of 152 × 52 × 15 mm and low weight (29 g) allow the antenna to be mounted on light platforms without significant load.
The antenna is suitable for use in field conditions, for long-distance flights, and in situations where signal quality and ease of connection are important. The model is compatible with equipment featuring an RP-SMA connector and meets the requirements of users seeking a reliable solution for video transmission in the 1700-2700 MHz range. The product belongs to the category: Antennas > Log-Periodic Antenna and is manufactured by Aeronetix, which confirms attention to quality of execution and durability.
Key advantages: compact dimensions, light weight, high gain of 9 dBi, wide operating range of 1700-2700 MHz, universal RP-SMA connector, and resistance to electrical interference. This antenna will be useful for both FPV beginners and experienced pilots who require stable video communication.
