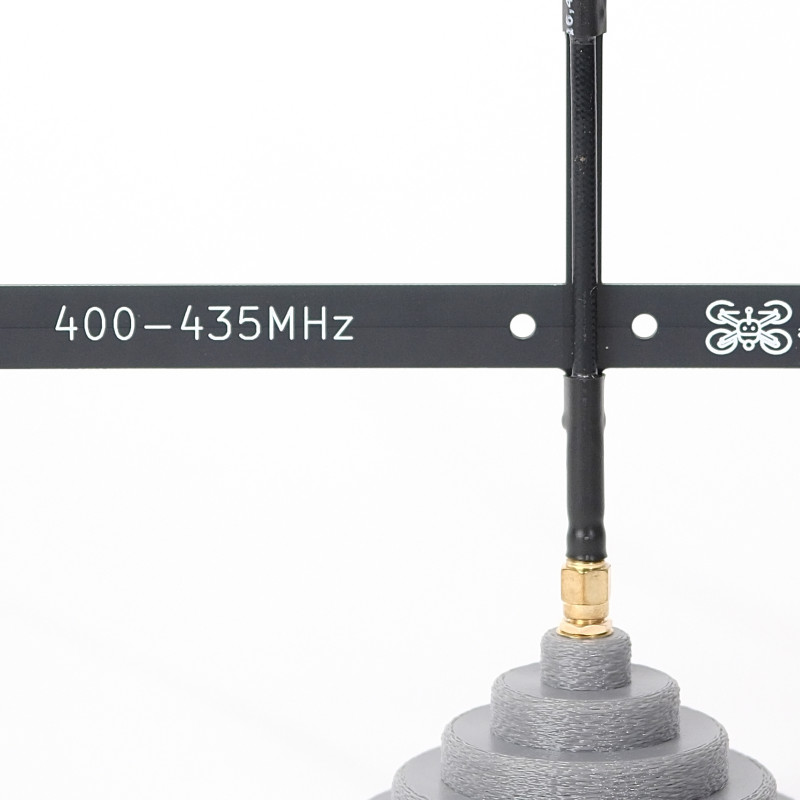

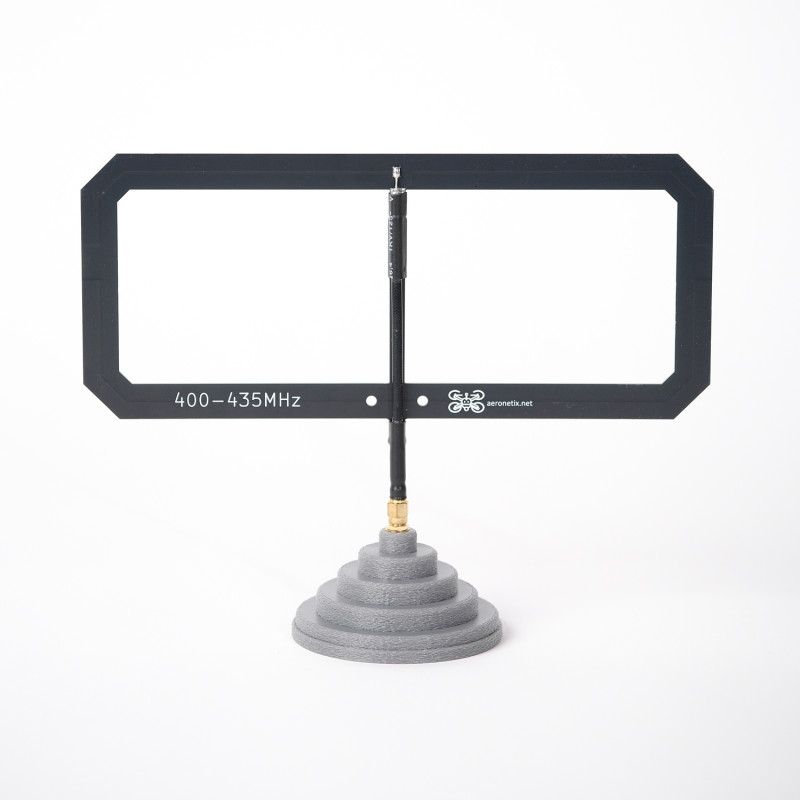

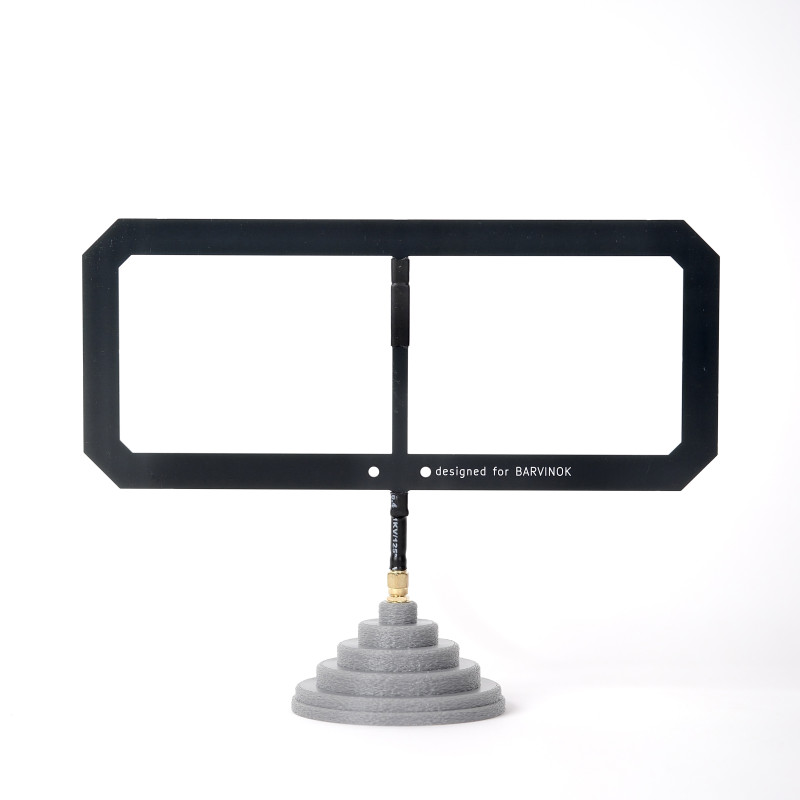

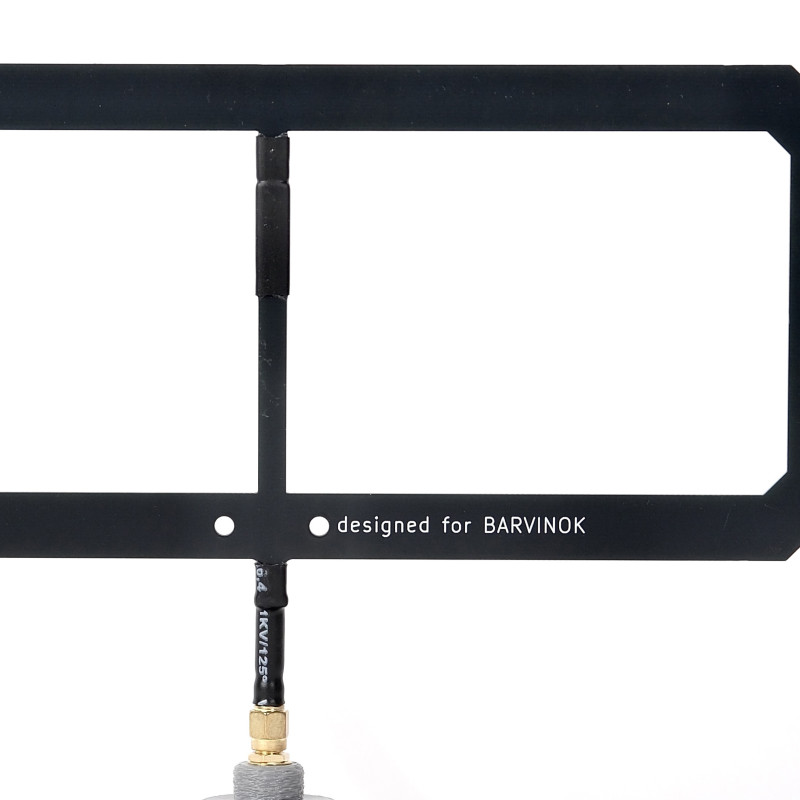

FPV Drone Control Transmitter Antenna (400 - 435 MHz) Aeronetix

Aeronetix offers a compact and reliable antenna for FPV and radio equipment, optimized for transmitting control and video signals in the 400 - 435 MHz range. This model is ideal for use on drones, UAV systems, and other radio equipment where stable reception, signal directionality, and minimal weight are important. Product category: Antennas > Moxon Antenna.

Key advantages of the model: universal compatibility with SMA connector, optimal gain for increased range and link stability, slim dimensions and low mass that minimally affect drone maneuverability. The design provides a balance between beam directionality and coverage in flight scenarios of varying complexity.

Technical specifications:

• Frequency range: 400 - 435 MHz
• Gain: 5–6 dBi
• Beamwidth: 90° / 120°
• Dimensions (with cable): 246 × 135 × 10 mm
• Connector: SMA
• Mass (in description): 35 g

In addition to the main parameters, the technical attributes provide additional values that may be needed when selecting an antenna for a specific project. Please pay attention to the additional indicators below to accurately calculate the balance and load on the drone.

• Length: 17.0
• Weight, kg: 0.100
• Height: 5.0
• Width: 25.0

Note: the original description states a mass of 35 g, while the additional attributes include a weight value of 0.100 kg. The difference may be due to different measurement methods or packaging considerations; be sure to take this discrepancy into account when planning the balance and load on the drone frame.

Compact dimensions of 246 × 135 × 10 mm (with cable) make the antenna convenient for mounting on the drone frame or in external mounts without significantly increasing the overall mass. A gain of 5–6 dBi provides an optimal balance between directionality and coverage width, and beamwidths of 90° / 120° allow for a stable signal in most flight scenarios. The SMA connector ensures compatibility with a wide range of transmitters and receivers used in the FPV community.

This antenna from Aeronetix is an excellent choice if you need a model for FPV drone control transmission in the 400–435 MHz range with a harmonious combination of weight, dimensions, and gain. It is suitable for field conditions and guarantees stable operation during use.
