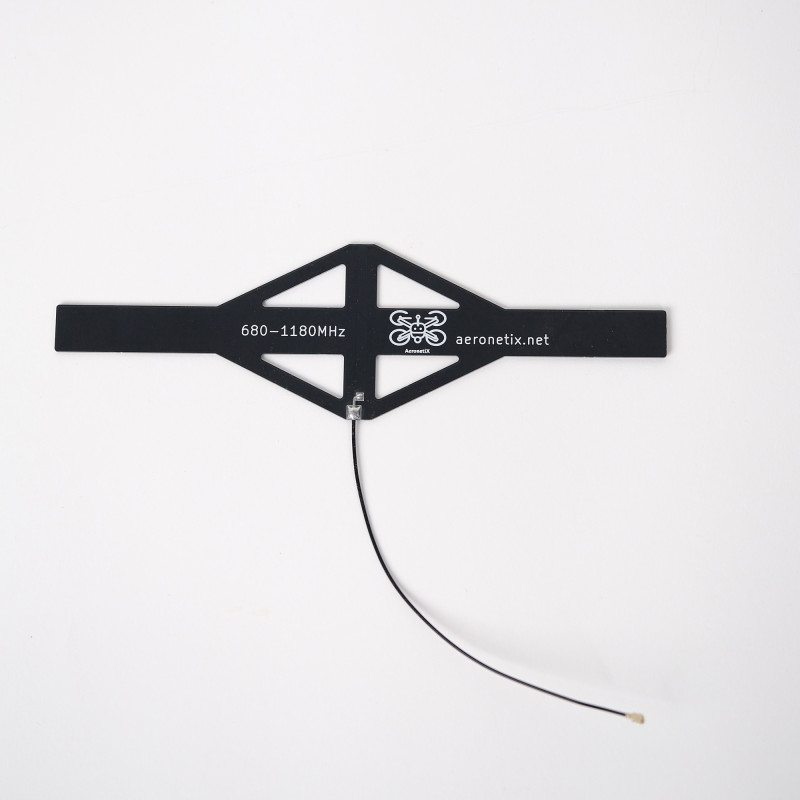

Aeronetix 680-1180 MHz FPV Drone Control Receiver Broadband Dipole Antenna
We offer a high-quality receiver broadband dipole antenna from Aeronetix for FPV drone control. This model is designed for stable and reliable signal reception in the 680-1180 MHz range, combining compactness, light weight, and ease of integration. The antenna is ideal for both amateurs and professionals who need an effective solution for upgrading or replacing the receiver part of a quadcopter control system.
Key Features
Main parameters:
- Frequency range: 680-1180 MHz
- Gain: 2 dBi
- Connector: IPEX1
- Cable length: 100 mm (10 cm)
- Housing dimensions: 190x56x1.5 mm
- Weight (in description): 18 g
The antenna has an optimized design for uniform reception coverage in the specified frequency range. Compact dimensions of 190x56x1.5 mm and light weight make it convenient for mounting in the drone's body or on the receiver board without significantly affecting the model's balance. The 100 mm cable length allows flexible positioning of the antenna inside the aircraft or on the board's landing pads.
Technical Parameters and Additional Data
| Parameter | Value |
|---|---|
| Model | FPV Drone Control Receiver Broadband Dipole Antenna 680-1180 MHz |
| Manufacturer | Aeronetix |
| Frequency range | 680-1180 MHz |
| Gain | 2 dBi |
| Connector | IPEX1 |
| Cable length | 100 mm |
| Dimensions (in description) | 190x56x1.5 mm |
| Weight (in description) | 18 g |
Below are additional metric attributes of the product that will help with antenna selection and installation. Please pay attention to the provided values for more precise planning of device installation.
| Attribute | Value |
|---|---|
| Length | 6.0 |
| Weight, kg | 0.100 |
| Height | 1.0 |
| Width | 19.0 |
Please note: the original description states a weight of 18 g, while the attributes indicate 0.100 kg; please consider both values when planning installation and model balancing. The antenna is compatible with equipment using an IPEX1 connector, and thanks to its 100 mm cable length, it can be conveniently placed in the device's body or on the receiver board. Product type: Antennas > Dipole Antennas.
This Aeronetix model is suitable for users seeking reliable reception in the 680-1180 MHz range with compact dimensions and ease of integration. It ensures stable communication between the control panel and the quadcopter, which is especially important for medium and long-distance flights, as well as during competitions and filming. If you need an antenna for FPV receiver modernization or as a spare part — this dipole is an effective and economical solution.
For additional technical questions or assistance with selecting compatible equipment, please contact our store consultants. Guaranteed quality from the manufacturer Aeronetix and compatibility with popular FPV receivers make this antenna a practical choice for your project.
