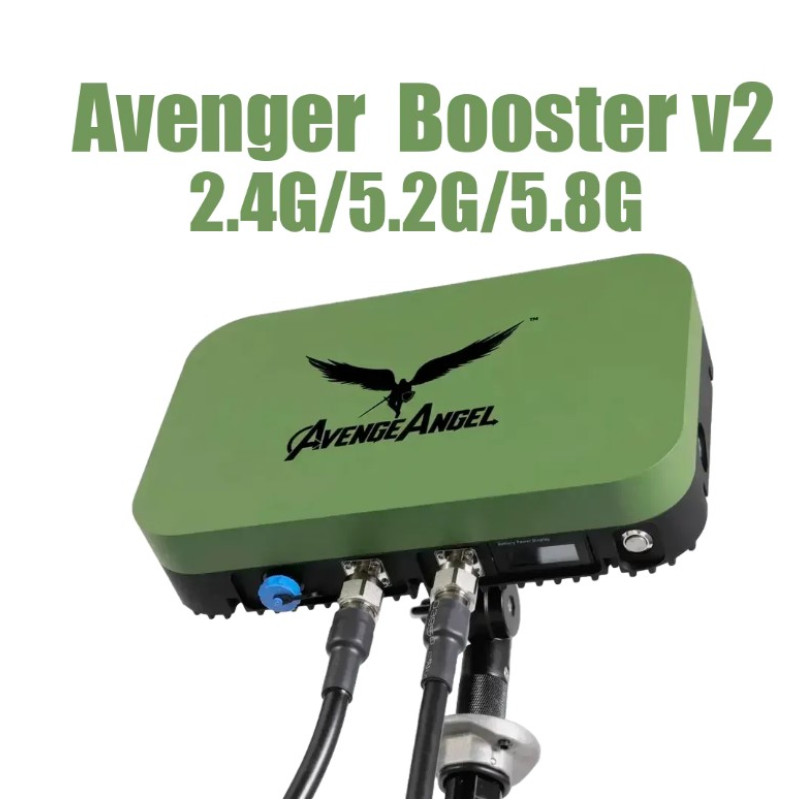

External Antenna AVENGER Booster v2 2.4G/5.2G/5.8G — Avenger Booster Big Hulk

Avenge Angel presents the tri-band external antenna-booster Avenger Booster Big Hulk — a professional solution for drone operators, videographers, and technical units who require stable control and video communication over long distances. The device combines operation in the 2.4G, 5.2G, and 5.8G bands and is compatible with a wide range of FPV equipment and controllers, ensuring reliability in field conditions.

Description and Purpose

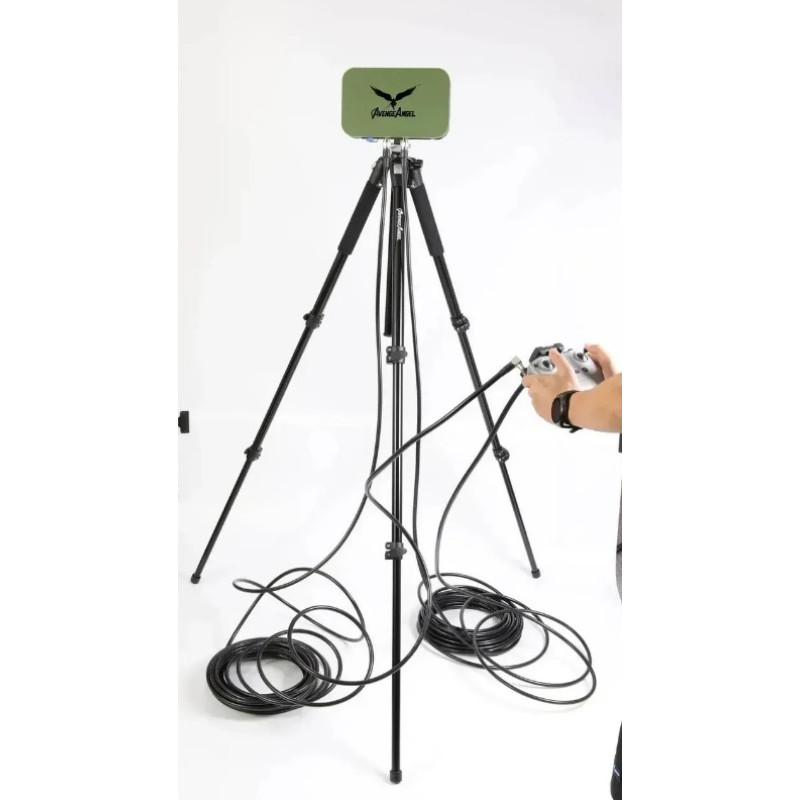

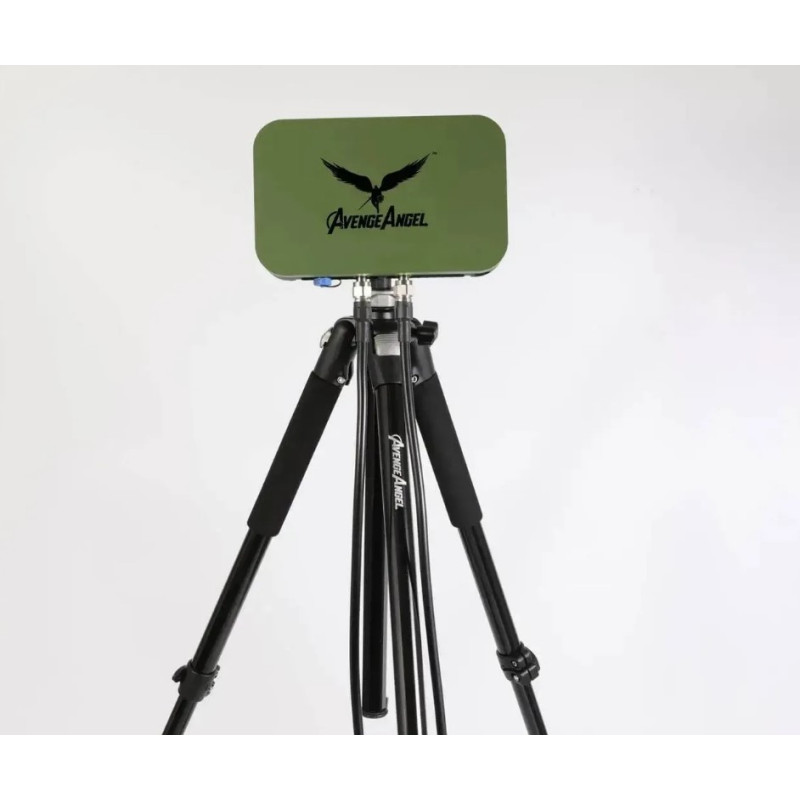

Avenger Booster Big Hulk — is a combat field system designed for remote antenna placement from the pilot, which is especially important when operating in conditions of active electronic warfare. The device is based on high-performance solutions and adapted for use in complex climatic and tactical conditions. Brand: Avenge Angel. Category: Ground Relay Stations.

Technical Specifications

• Frequencies: 2400–2500 MHz, 5000–5875 MHz

• Transmit Power: 2 × 10 W (40 dBm)

• Signal Gain: 20–22 dB

• Transmission Coefficient: 18–20 dB

• Noise Figure: 52.5 dB

• Antenna Gain: 15 dBi ±1 (2.4G), 18 dBi ±1 (5.8G)

• Coverage Angle: 65° horizontal / 20° vertical

• Operating Time: up to 12 hours of continuous operation

• Power Supply Voltage: 6–12V

• Battery: 7.4V 5000mAh

• Connector: N-K Female

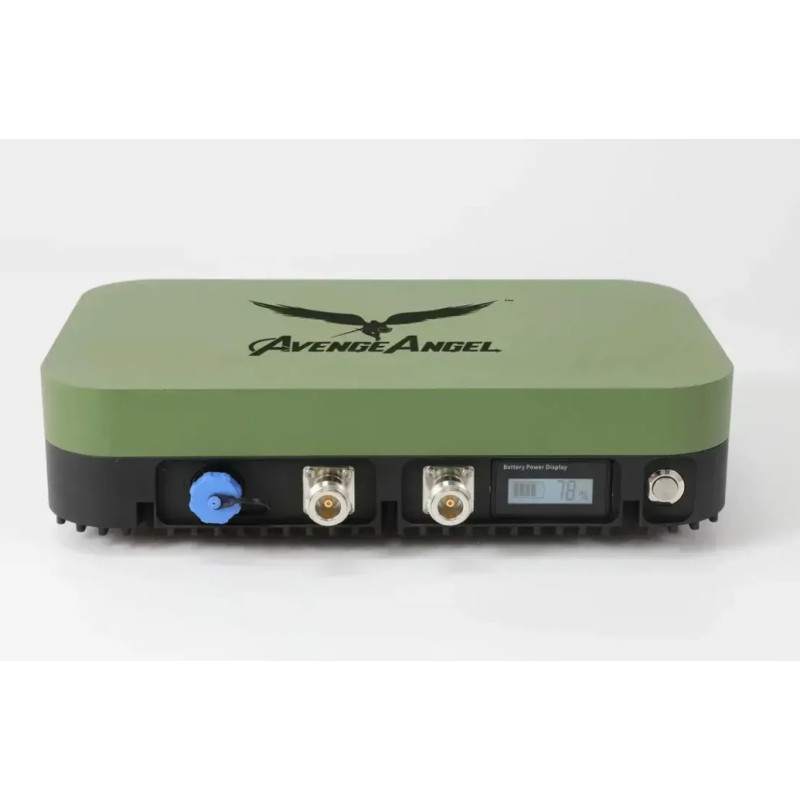

• Indication: LCD display shows charge level

Compatibility

Suitable for popular models and controllers:

• DJI Mavic Series: Pro, Air, Mini, Classic, Platinum, Enterprise

• Phantom: 3/4, Advanced, Pro, RTK

• Inspire: 1 / 2

• Matrice: 100 / 200 / 210 / 300 / 600

• Autel: EVO / EVO II / EVO PRO

• Parrot: Anafi

• DJI controllers: RC-N1, DJI RC, RC PRO, Smart Controller, Cendence

• and other FPV drones and Wi-Fi devices

Advantages of Use

• Significant increase in flight range — tested with DJI Mavic 3: distances over 20 km.

• Stable communication even in the presence of active EW jammers.

• Protected housing (IPX68) — withstands rain, snow, and dusty conditions.

• Protocol support: Wi-Fi, OcuSync, IEEE 802.11 B/G/N/AC.

• Compatibility with transmission standards: DSSS, OFDM, TDD.

Package Contents

• Tri-band antenna Avenger Booster Big Hulk

• Charger

• User manual

Avenger Booster v2 2.4G/5.2G/5.8G — is the choice for those who value maximum range, communication reliability, and the ability to operate in extreme conditions. The solution is suitable for professional operators, technical teams, and units requiring proven equipment for drone control and video transmission over long distances.
