Aeronetix FPV Drone Control Transmitter Antenna (600 - 670 MHz)

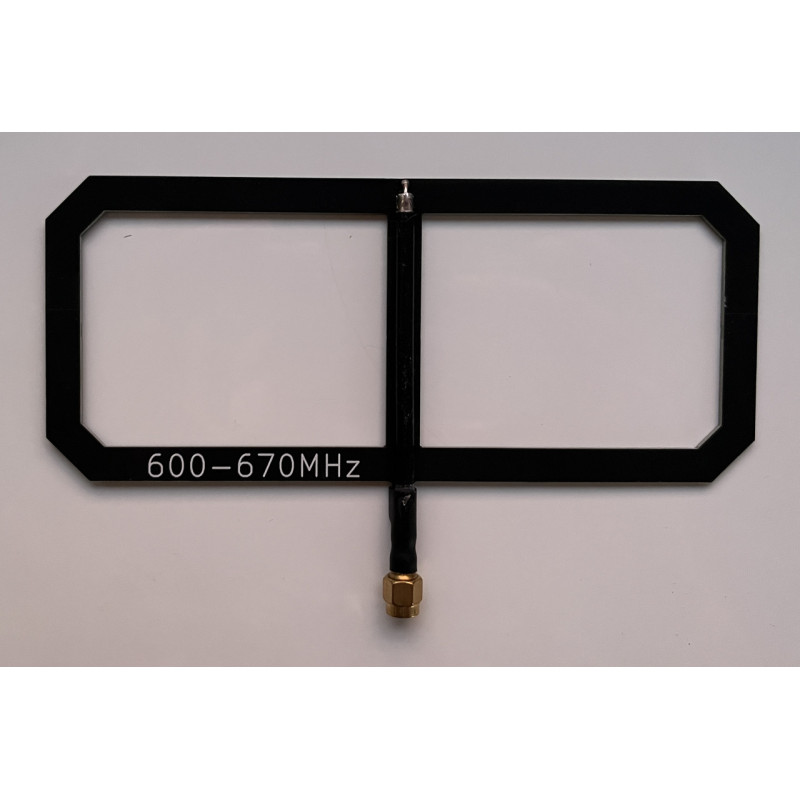

Product Description: The compact and lightweight Aeronetix antenna is designed for FPV transmitters and related radio equipment in the 600-670 MHz range. This antenna combines moderate gain, low weight, and a convenient SMA connector, making it an excellent choice for drone pilots and professional users who require reliable control without significantly increasing equipment weight.
Key Features
- Frequency Range: 600-670 MHz
- Gain: 5-6 dBi
- Beamwidth: 90° / 120°
- Dimensions (with cable): 165 × 100 × 10 mm
- Cable Length: 30 mm
- Connector: SMA
- Weight (in description): 17 g
The antenna is designed for use with FPV drone control transmitters and other devices where compact size and a stable radio signal are important. The SMA connector ensures simple connection to most transmitters and modules; if necessary, SMA adapters or extensions can be used for compatibility with your equipment.
Physical Parameters and Additional Information
Despite its compact dimensions of 165 × 100 × 10 mm (with cable), the antenna's design provides an operational angular energy distribution of 90° or 120° depending on the mounting configuration. The 30 mm cable length allows for convenient placement of the SMA connector near the transmitter, and its 17 g weight makes this antenna almost unnoticeable for the total weight of the quadcopter.
| Parameter | Value |
|---|---|
| Manufacturer | Aeronetix |
| Frequency Range | 600-670 MHz |
| Gain | 5-6 dBi |
| Beamwidth | 90° / 120° |
| Dimensions (with cable) | 165 × 100 × 10 mm |
| Cable Length | 30 mm |
| Connector | SMA |
| Weight (description) | 17 g |
Specifications from Technical Attributes
Additional parameters are specified in the product's technical attributes, which are also important to consider when selecting an antenna for a specific design or installation:
- Length: 16.0
- Weight, kg: 0.100
- Height: 1.0
- Width: 10.0
Please note the discrepancy in weight values: the description states 17 g, while the technical attributes indicate a weight of 0.100 kg (100 g). This difference should be considered when planning the total weight of the equipment and mounts. It is recommended to check the compatibility of the SMA connector with your transmitter before installation and use appropriate adapters or extensions if necessary.
The Aeronetix antenna demonstrates a good balance of compactness and 5-6 dBi gain, making it a versatile solution for FPV enthusiasts and professional radio equipment applications where weight, dimensions, and connection reliability are important.
