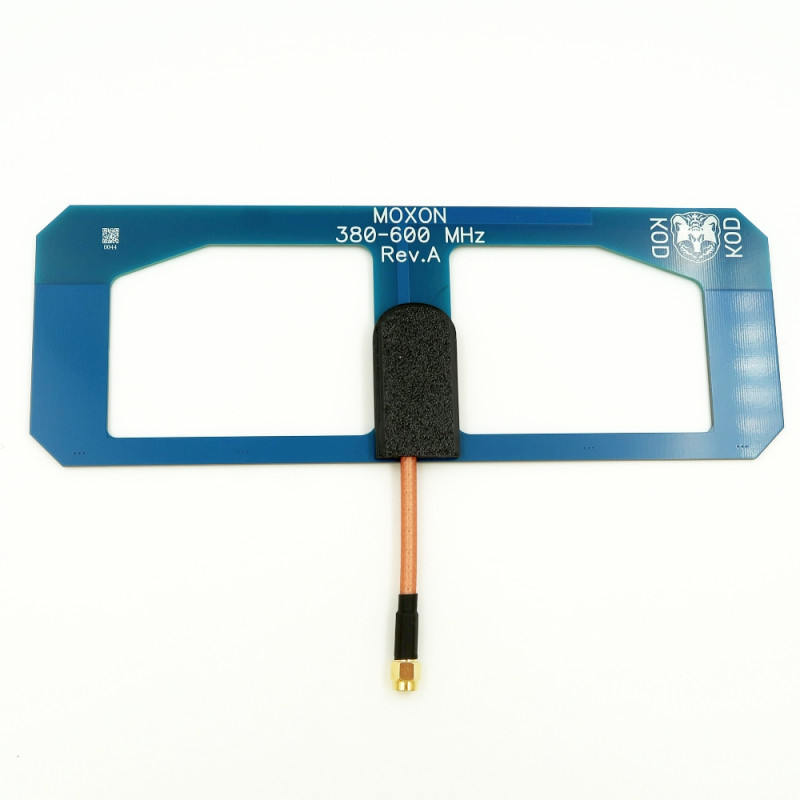

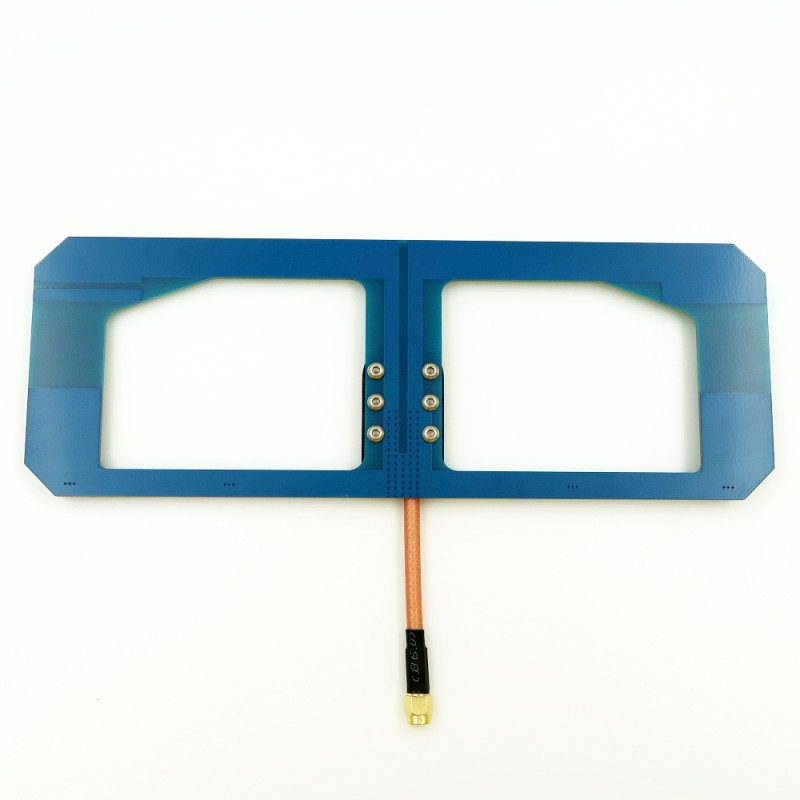

Moxon Antenna 380-600 MHz (textolite) by — compact directional antenna with high efficiency

The Moxon Antenna by [brand] is designed for operation in the 380-600 MHz frequency range and combines ease of installation, low weight, and stable transceiver characteristics. Product type: Antennas > Moxon Antenna. The body material is textolite, which ensures structural strength with minimal weight and a long service life.

This model has compact dimensions of 233*150*8 mm and weighs only 58 g, making it an ideal choice for mobile applications: mounting on small drones, in motorcycle or pedestrian communication systems, as well as in stationary temporary antenna systems in the field. Thanks to its directionality, the antenna is easy to orient for maximum signal without complex setup.

Practical advantages and applications

The Moxon Antenna demonstrates an optimal balance between size and technical performance, allowing it to be used in both domestic and semi-professional or specialized tasks. The model is well-suited for amateur radio communication, wireless data transmission systems, and for applications in challenging conditions, including military operations, where reliability and signal stability are important.

• Operating frequency range: 380-600 MHz — versatility for various communication systems.
• Beamwidth: 180° — provides directionality with a wide coverage area in one plane.
• Gain: 4.5-5.0 dBi — optimal gain for a compact antenna.
• Connector: SMA — compatibility with many radio devices and transmitters.

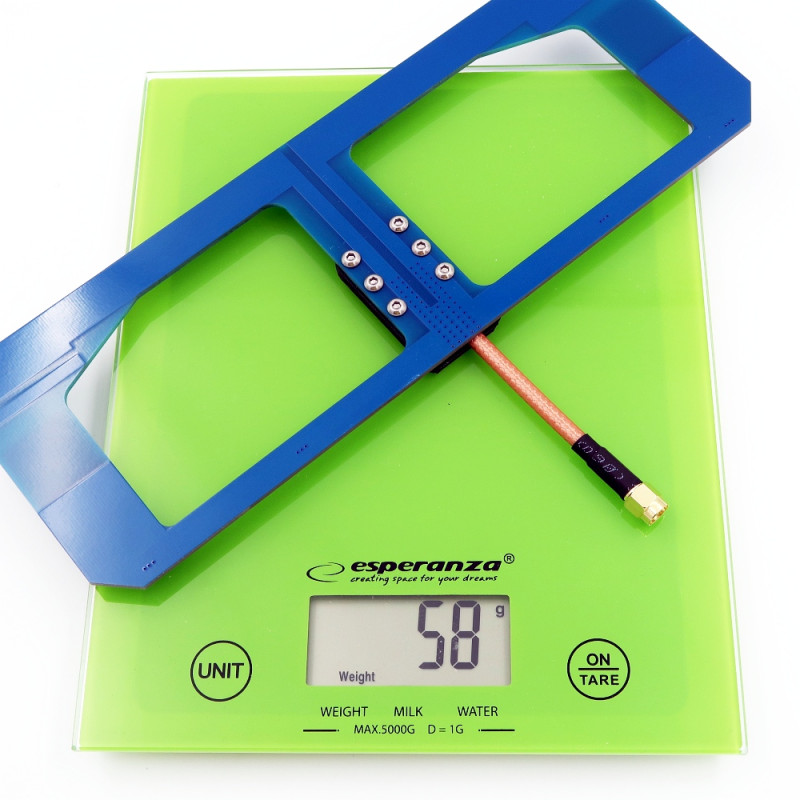

• Material: textolite — strength with low weight (58 g); dimensions: 233*150*8 mm.

The Moxon Antenna by [brand] is easy to mount and does not require special tools for setup: simply orient the directional part correctly to achieve maximum signal level. With a gain of 4.5-5.0 dBi and a wide operating range of 380-600 MHz, this antenna is suitable for data transmission over medium distances with good interference immunity.

Technical specifications

The Moxon Antenna is especially useful for users who value ease of operation, structural reliability, and mobility. Military and special users will appreciate its compactness and directionality for organizing communications in the field, while amateurs and engineers will find this model convenient for integration into various types of equipment.

You can buy a high-quality Moxon Antenna in the Flash Army online store — the model by [brand] is presented as a proven solution with technical support for selecting an antenna for your tasks. The product details are: brand — [brand]; product type — Antennas > Moxon Antenna; material — textolite; connector — SMA; operating range — 380-600 MHz; gain — 4.5-5.0 dBi; dimensions — 233*150*8 mm; weight — 58 g.
