FPV Drone Control Transmitter Antenna (560 - 620 MHz) Aeronetix

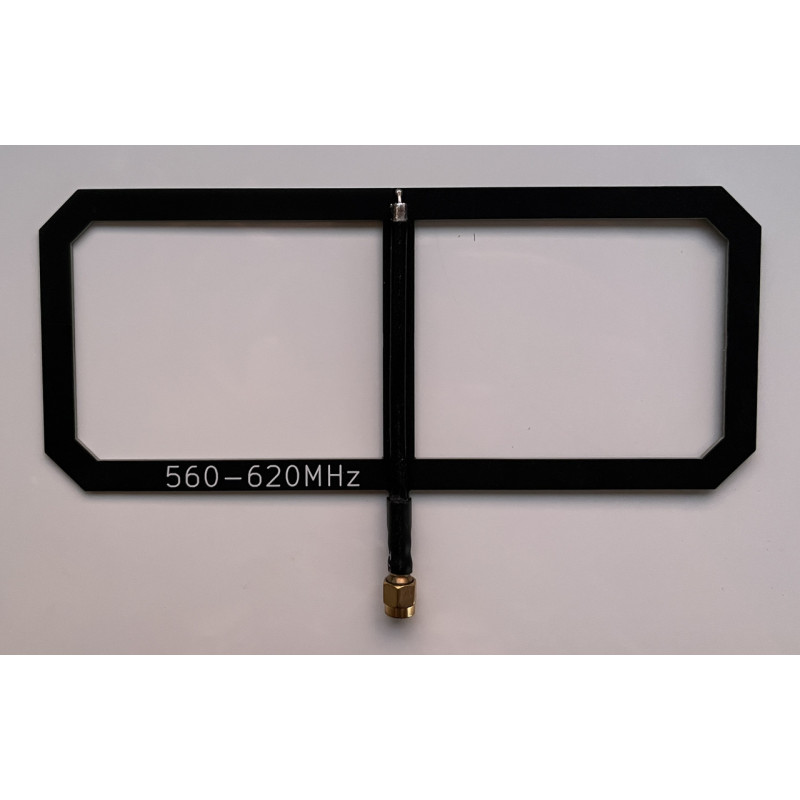

Brand: Aeronetix. This antenna is designed for FPV drone control transmission and use in radio equipment requiring a stable signal in the 560-620 MHz range. It combines compact dimensions, low weight, and sufficient gain for quality signal transmission over medium distances. Recommended for amateur and professional setups where mobility and connection reliability are important.

Description and Key Advantages

The antenna provides balanced operation in the 560-620 MHz frequency range with a gain of 5-6 dBi, making it suitable for FPV applications and professional control systems. The design features beam angles of 90° and 120°, allowing for optimized coverage depending on the installation configuration. It is designed with compactness and mobility in mind: dimensions (with cable) are 180 × 105 × 10 mm, and the connected cable length is 30 mm. The connector is SMA, ensuring convenient compatibility with a wide range of transmitters and receivers. The technical description states a mass of 19 g, while the product parameters show a weight value of 0.100 kg (100 g) — please note this discrepancy when selecting a kit, as it may affect the drone's balancing and weight category.

Specifications

• Frequency Range: 560-620 MHz
• Gain: 5-6 dBi
• Beam Angle: 90° / 120°
• Dimensions (with cable): 180 × 105 × 10 mm
• Cable Length: 30 mm
• Connector: SMA
• Mass (in description): 19 g

Technical Parameters (additional attributes)

The antenna is suitable for both amateur FPV systems and industrial solutions requiring reliable transmission in the specified range. Thanks to its compact size and standard SMA connector, installation and integration are quick: the antenna is compatible with most transmitters and receivers featuring an SMA interface. Before purchasing, carefully check compatibility in terms of frequency, mechanical dimensions, and mass, especially if using antennas in streamlined or weight-sensitive platforms.

Additional recommendations: during installation, ensure correct antenna orientation relative to the flight direction, consider the 90°/120° beam angles for improved coverage, and check the 30 mm cable configuration to ensure proper connection. If minimal weight is important to you, consider the 19 g mass stated in the description; if the value from the system parameters is critical, use the 0.100 kg weight for calculating total load.

Product Category: Antennas > Moxon Antenna. For ordering and viewing related models, refer to the product description and attached technical specifications.
