Aeronetix RP-SMA Log-Periodic FPV Video Control Antenna 1.6-2.2 GHz

Introducing the log-periodic antenna from Aeronetix for FPV systems: a compact, lightweight, and efficient transceiver element for video channels in the 1600–2200 MHz frequency range. This antenna is designed for stable reception and transmission of video signals, providing a directional coverage range with an 80° beamwidth and 7 dBi gain, making it an excellent choice for drones, video surveillance systems, and other FPV solutions.

Key Characteristics and Features

• Frequency Range: 1600–2200 MHz

• Gain: 7 dBi

• Beamwidth: 80°

• Dimensions (manufacturer): 75 × 70 × 15 mm

• Weight (manufacturer): 20 g

• Connector: RP-SMA

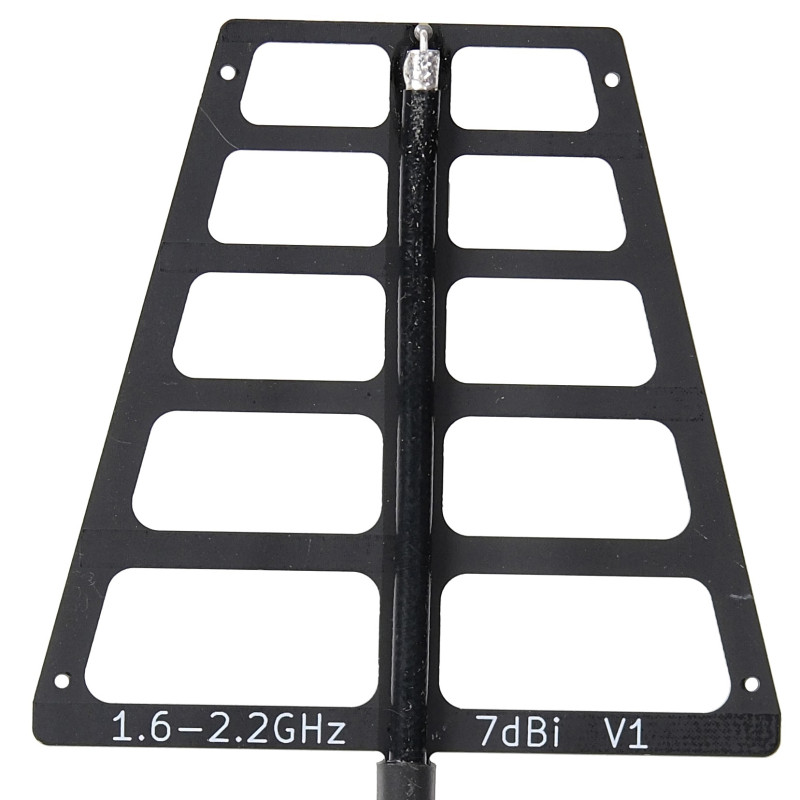

The antenna features a well-thought-out log-periodic design, ensuring broadband operation without significant interference in the coverage area. Its compact dimensions of 75 × 70 × 15 mm make it convenient for mounting on small platforms, and its 20 g weight minimizes impact on the overall mass of the device. The RP-SMA connector ensures compatibility with a wide range of transmitters and receivers, simplifying integration into existing systems.

Additional Technical Parameters and Dimensions

Please note: the manufacturer's original description specifies dimensions of 75 × 70 × 15 mm and a weight of 20 g, while additional parameters in the product characteristics include Length 6.0, Height 2.0, Width 6.0, and Weight, kg 0.100. Both sets of data are presented on the product page for complete information; if clarification of actual dimensions and mass is needed, we recommend contacting the seller or manufacturer.

The antenna is designed for users who value high signal quality and connection reliability: FPV flight enthusiasts, professional drone operators, and video solution integrators. The log-periodic design ensures stable operation across a wide frequency range, while the 7 dBi gain and 80° directional angle allow for clear video at medium distances without significant quality loss.

Brand: Aeronetix. Product type: Antennas > Log-Periodic Antenna. Connector: RP-SMA. It is recommended to check compatibility with your transmitter/receiver before installation.

Advantages of this antenna: reliable broadband reception, lightweight for use on multicopters, easy installation, and compatibility with popular RF modules thanks to RP-SMA. If you need stable video for FPV filming or long-duration drone transmission — this antenna will be a practical solution.
