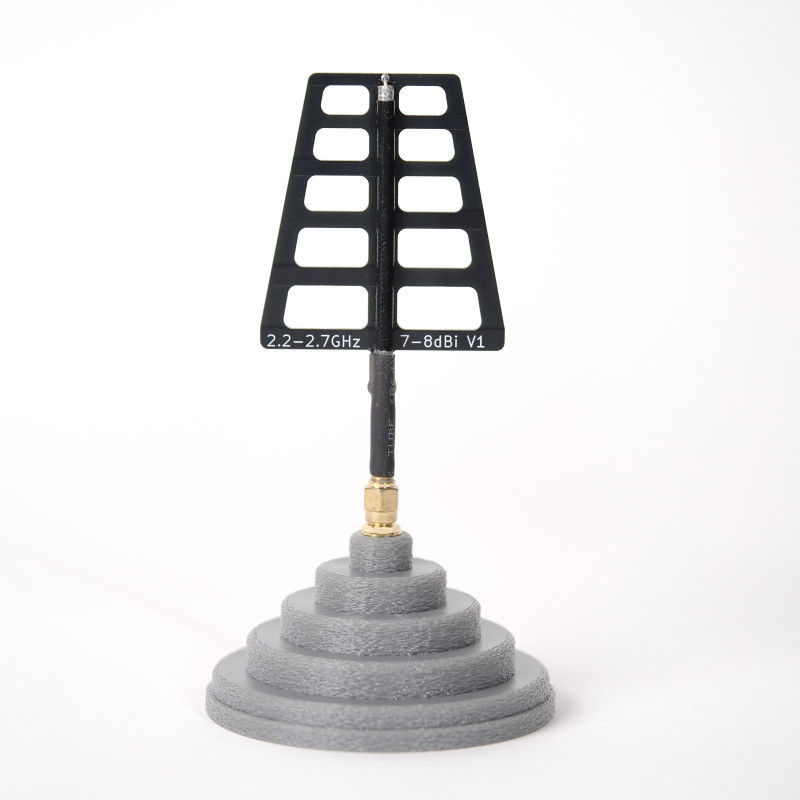

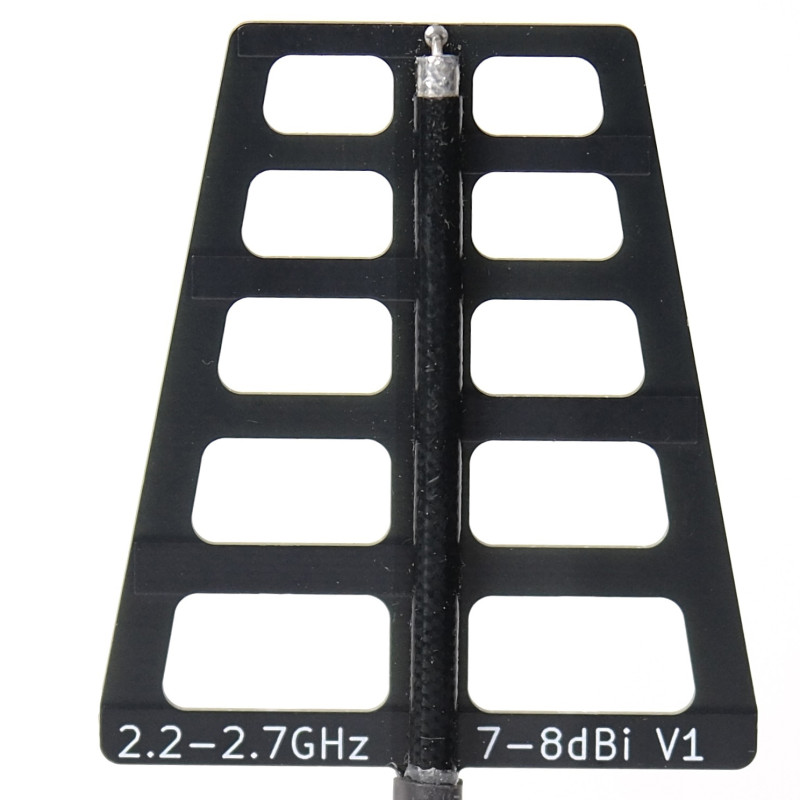

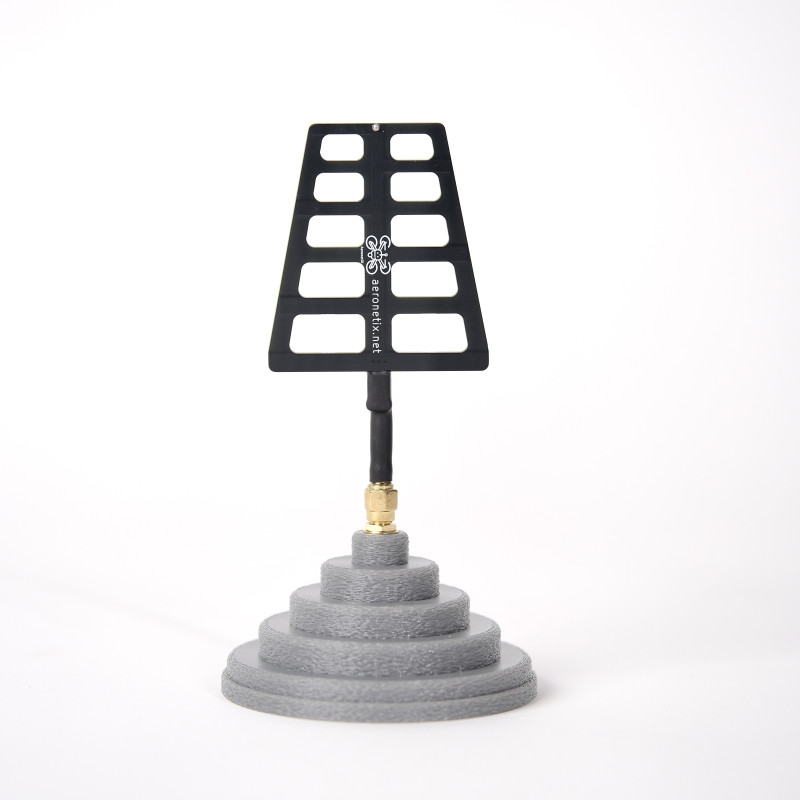

Aeronetix RP-SMA Log-Periodic Antenna for FPV Video Channel Control 2.2-2.7 GHz
The Aeronetix log-periodic antenna described is designed for stable video signal transmission in the 2.2-2.7 GHz range (2200-2600 MHz is also specified in the technical characteristics). This is a compact and lightweight solution for FPV systems, combining wide bandwidth and high directivity, which allows balancing communication range and coverage area. The antenna is ideal for installation on a quadcopter frame, on a ground receiving station, or for temporary installations during filming and testing.

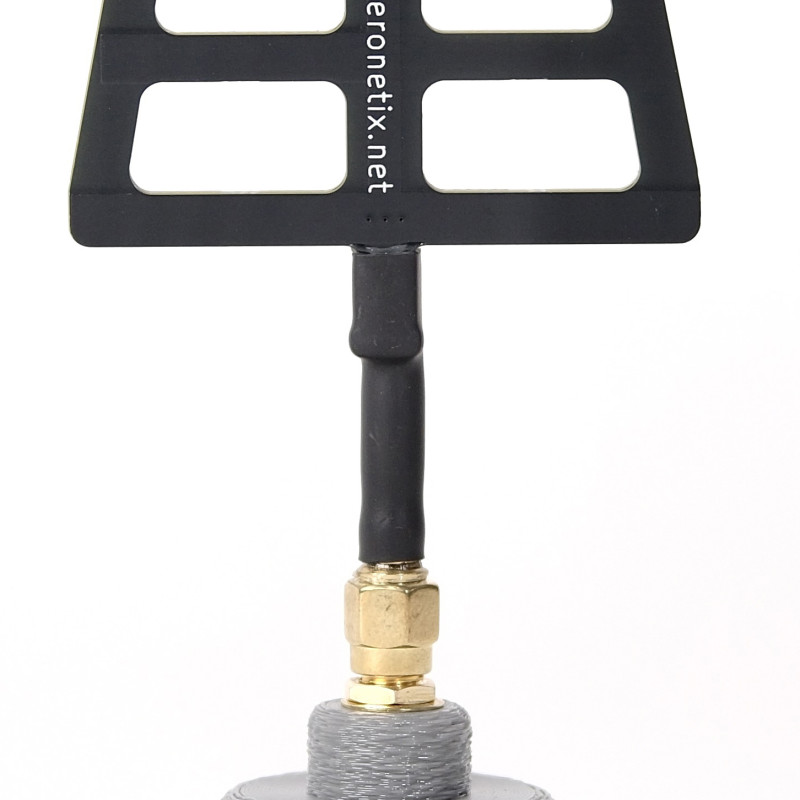

Key advantages of the Aeronetix model: high gain for improved signal quality in interference conditions, a clear radiation pattern with an 80° beamwidth, and a universal RP-SMA connector for quick connection to most FPV transmitters and communication modules. The lightweight design and compact dimensions simplify integration into various equipment configurations.
Applications: video transmission from UAVs, organization of ground receiving systems, field filming, testing communication channels, and other tasks where a balance between weight, size, and antenna gain is important.
Technical specifications:
- Frequency range: 2200-2600 MHz (also referred to as 2.2-2.7 GHz)
- Gain: 7 dBi
- Beamwidth: 80°
- Dimensions: 65 × 60 × 15 mm
- Weight: 14 g
- Connector: RP-SMA
| Parameter | Value |
|---|---|
| Length | 6.0 |
| Weight, kg | 0.100 |
| Height | 2.0 |
| Width | 6.0 |
Please note: the original description provides both measurements in grams and millimeters (weight 14 g, dimensions 65 × 60 × 15 mm), and attributes with values in other units (e.g., Weight, kg = 0.100; Length = 6.0; Height = 2.0; Width = 6.0). We have preserved all provided data for completeness of information; before purchasing, we recommend clarifying the required units of measurement and exact dimensions with a manager if this is critical for installation.
The antenna from the Aeronetix brand offers modern parameters for 2.2-2.7 GHz: 7 dBi gain, 80° directivity, and an RP-SMA connector for easy connection. Manufacturer: Aeronetix. Product category: Antennas > Log-periodic antenna. If you need consultation on compatibility or installation recommendations — contact store specialists to select the optimal configuration for your equipment.
