Aeronetix DP-700 Receiver Dipole Antenna for FPV Drone Control (680–1200 MHz)

We offer the compact Aeronetix receiver dipole antenna, designed for FPV drone control with a primary operating band of 700 MHz and extended coverage of 680–1200 MHz. This antenna is suitable for replacing or upgrading a control receiver, ensuring stable signal reception, reliable connection, and compatibility with popular controllers. If this specific model is unavailable, consider its analog: https://cs3899202.prom.ua/ua/p2254810499-priemnaya-dipol-antenna.html.

Key Features and Benefits

• Frequency Range: The primary operating range is specified as 730–800 MHz, with overall coverage of 680–1200 MHz, ensuring flexible use with various transmitters and receivers.
• Gain: 2 dBi — optimal for compact FPV solutions, balancing direct reception and beamwidth.

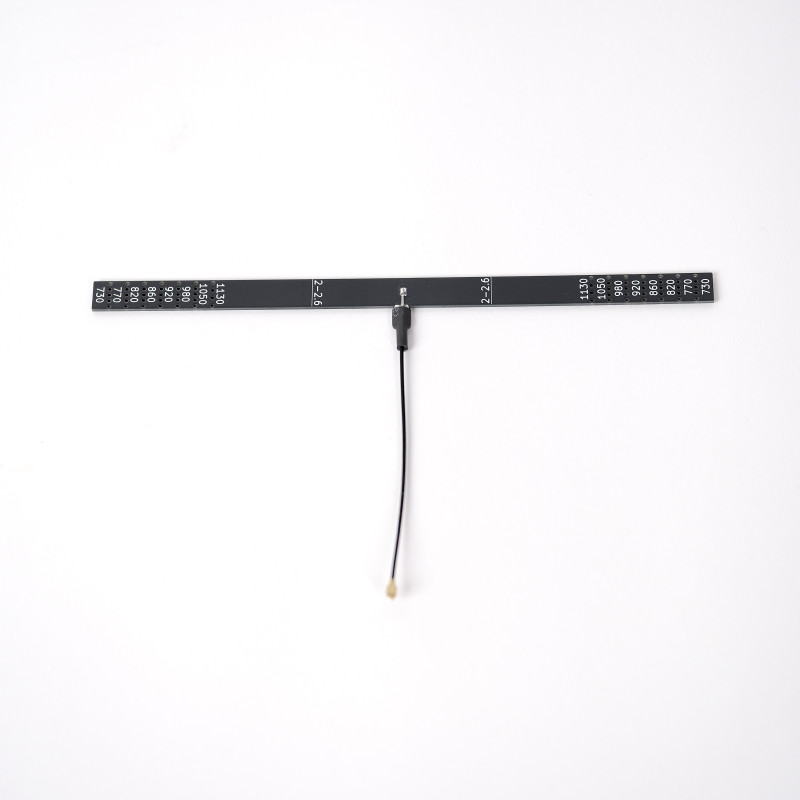

• Housing Dimensions: 170×20×1.5 mm — a thin and elegant design for neat integration into the drone's fuselage or mounts.
• Weight: Approximately 5 g — ultralight, minimizing load on the platform.

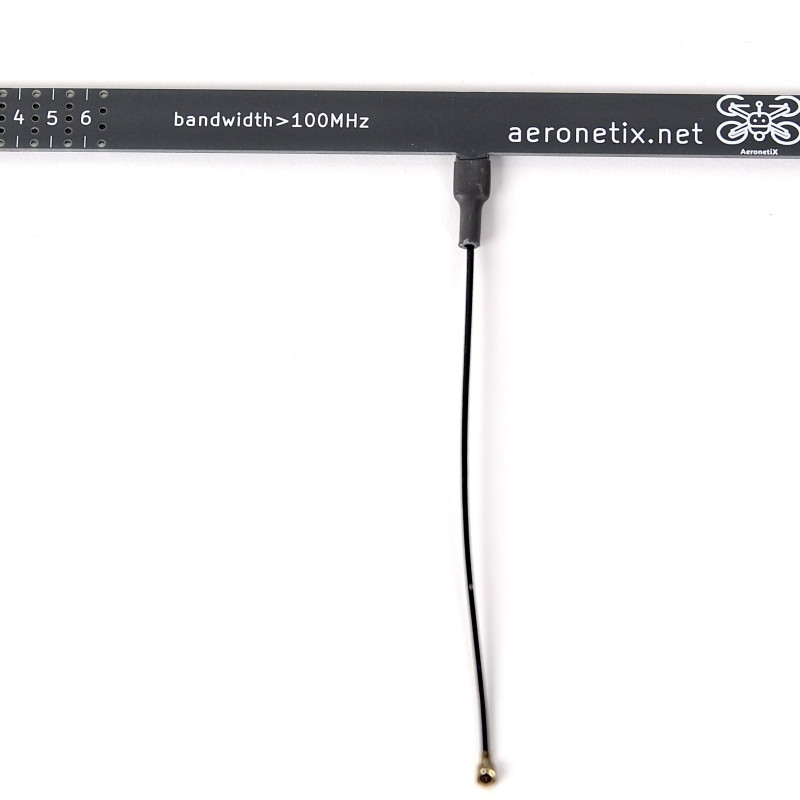

• Connector: IPEX1 — compatible with most video/control boards and modules, ensuring easy connection.
• Cable Length: 80 mm (approximately 10 cm) — a short cable reduces the risk of tangling and simplifies installation.

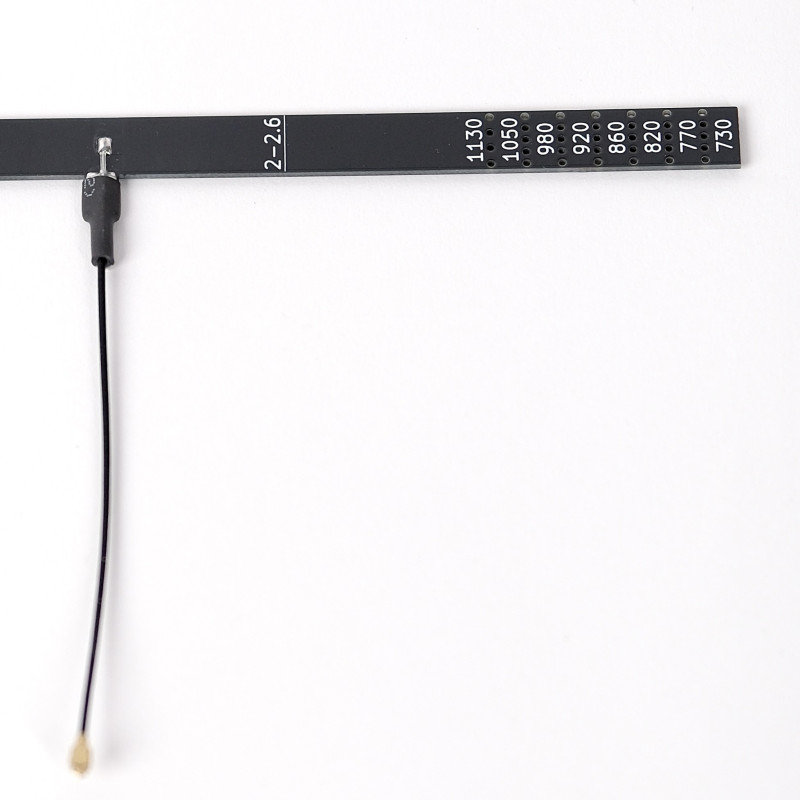

Band Division by VSWR 2

• 0 (730) — 680–780 MHz
• 1 (770) — 720–830 MHz
• 2 (820) — 760–880 MHz
• 3 (860) — 820–930 MHz
• 4 (920) — 860–990 MHz
• 5 (980) — 920–1050 MHz
• 6 (1050) — 980–1130 MHz
• (1130) — 1060–1200 MHz

Range by VSWR 3

• 2 — 2.6 GHz

Brand: Aeronetix. Product Type: Antennas > Dipole Antennas. The model name indicates a primary operating band of 700 MHz with extended coverage up to 1200 MHz, making it versatile for various transmitter and receiver configurations.

Technical Specifications

The technical description includes both millimeter dimensions for the housing (170×20×1.5 mm) and gram units (approximately 5 g), as well as product attributes in metric units (e.g., length 17.0, weight 0.100 kg). This allows for easy comparison of antenna parameters when planning installation on your platform.

The antenna features a compact and lightweight design, suitable for installation on small and medium FPV drones, ensuring convenient connection via IPEX1 and a short cable (80 mm / 10 cm), which reduces the risk of tangling and simplifies integration. The low gain of 2 dBi makes this model suitable for applications requiring a balance between reception stability and unintentional beam focusing.

If you need a reliable receiver antenna for drone control with operating frequencies in the 680–1200 MHz range, the Aeronetix DP-700 is a practical choice due to its ease of installation, low mass, and stable signal reception.
