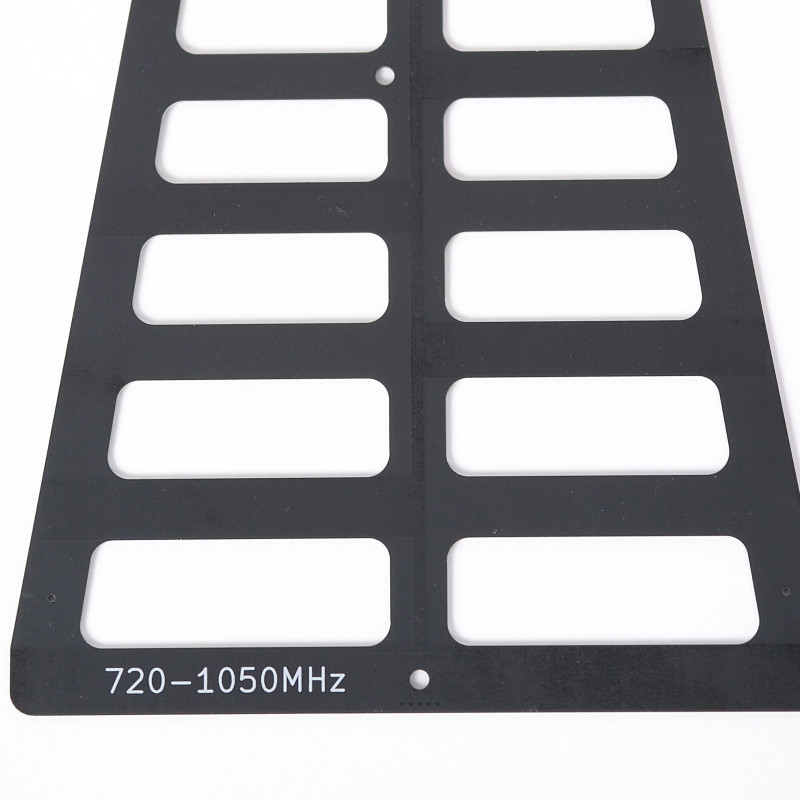

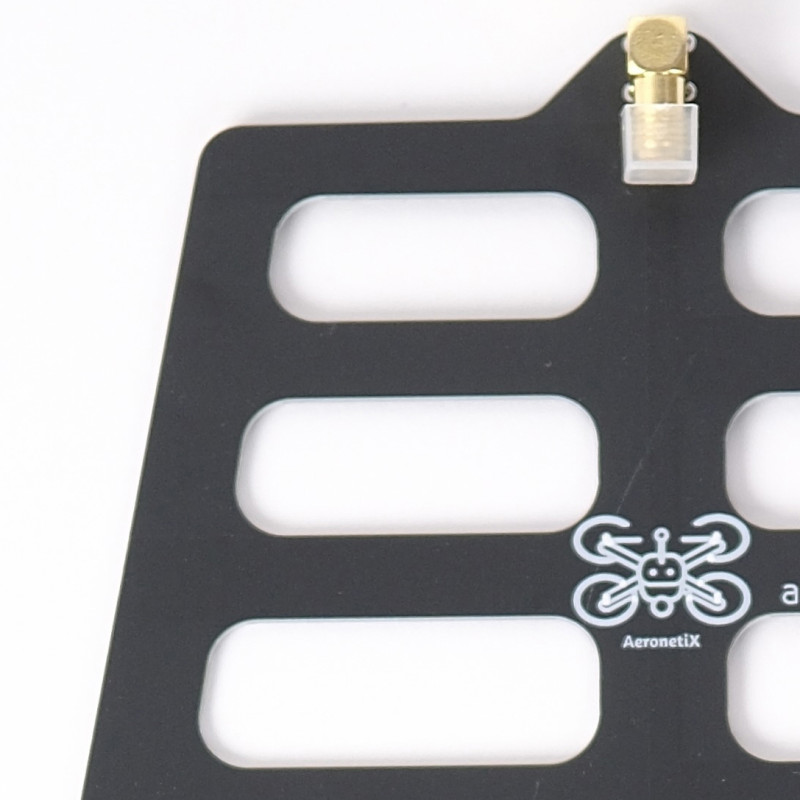

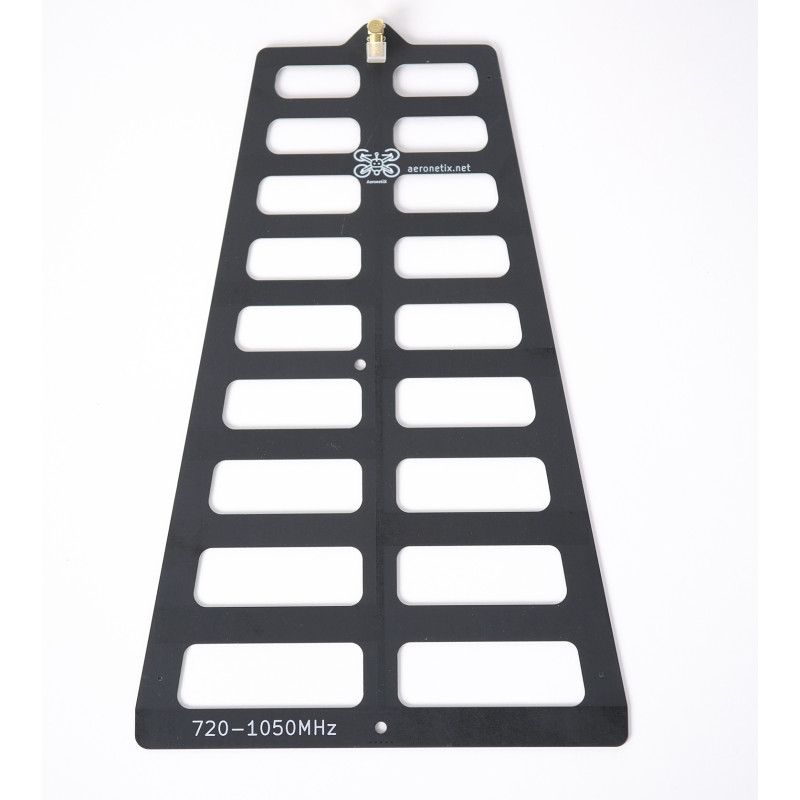

Aeronetix Log-Periodic Antenna for FPV Drone Control (720-1050 MHz)

Manufacturer: Aeronetix. Introducing a log-periodic antenna for FPV drone control with a wide frequency coverage of 720-1050 MHz, specifically designed for stable transmission of control commands and improved communication quality during flight. This antenna combines compact size with significant gain, making it an optimal choice for amateurs and semi-professionals.

Key Advantages and Purpose

The antenna is designed for use in FPV remote control and video transmission systems. Its log-periodic design ensures broadband operation without the need for fine-tuning to a specific frequency, which increases compatibility with various transmitters and receivers and allows for quick changes in operating frequencies without loss of efficiency.

Key Characteristics

• Frequency Range: 720-1050 MHz
• Gain: 8-9 dBi
• Beamwidth: 80° / 55°
• Dimensions: 280 × 185 × 15 mm
• Input Power: 10 W
• Weight: 70 g

Physical Parameters and Packaging

The antenna has compact dimensions of 280 × 185 × 15 mm, which facilitates its integration on operating platforms, brackets, or antenna masts. Its low weight of 70 g makes installation and transportation simple and convenient. The technical attributes also include additional values: Length: 20.0, Weight, kg: 0.200, Height: 3.0, Width: 26.0, which will help assess packaging parameters and space for storage or transportation.

Practical Features

The 8-9 dBi gain combined with a beamwidth of 80°/55° allows for increased control range and reduced interference in dense RF environments. The maximum input power of 10 W supports operation with small transmitters and ensures system reliability. The antenna's design focuses on ease of installation and durability, making it suitable for field operating conditions.

Compatibility and Recommendations

The Aeronetix antenna is perfectly suited for operators seeking a broadband solution without the need for frequency tuning. It is recommended to check the compatibility of connectors and mounts with your equipment before installation. For selecting the optimal mounting location, pay attention to the additional packaging dimensions and weight specified in the technical attributes.

This product belongs to the category: Antennas > Log-Periodic Antenna. If you need an antenna with 720-1050 MHz frequency coverage, 8-9 dBi gain, compact dimensions of 280 × 185 × 15 mm, and durability for field conditions — the Aeronetix log-periodic antenna will meet these requirements.
