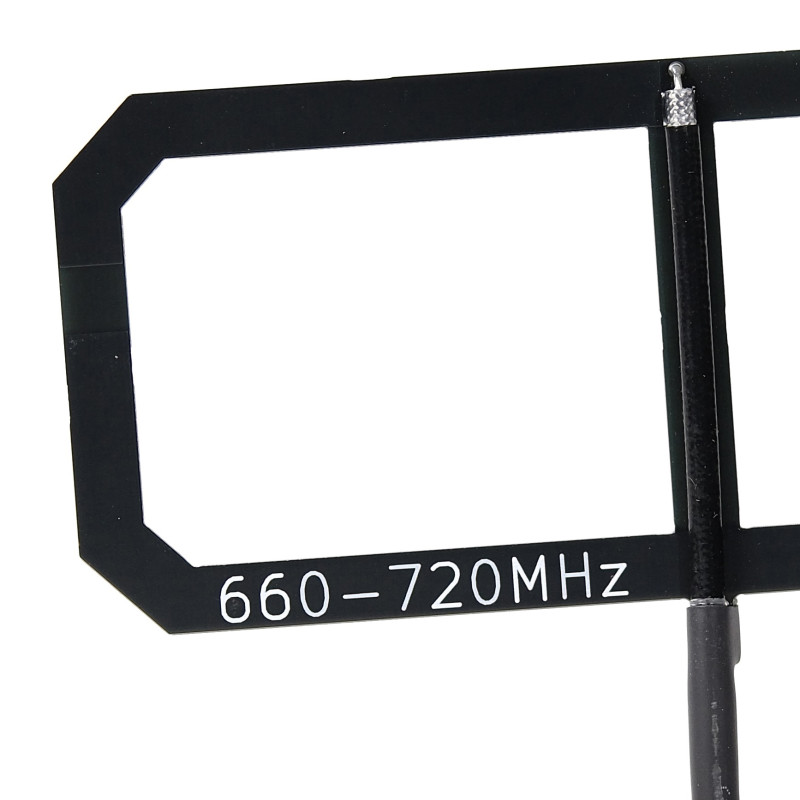

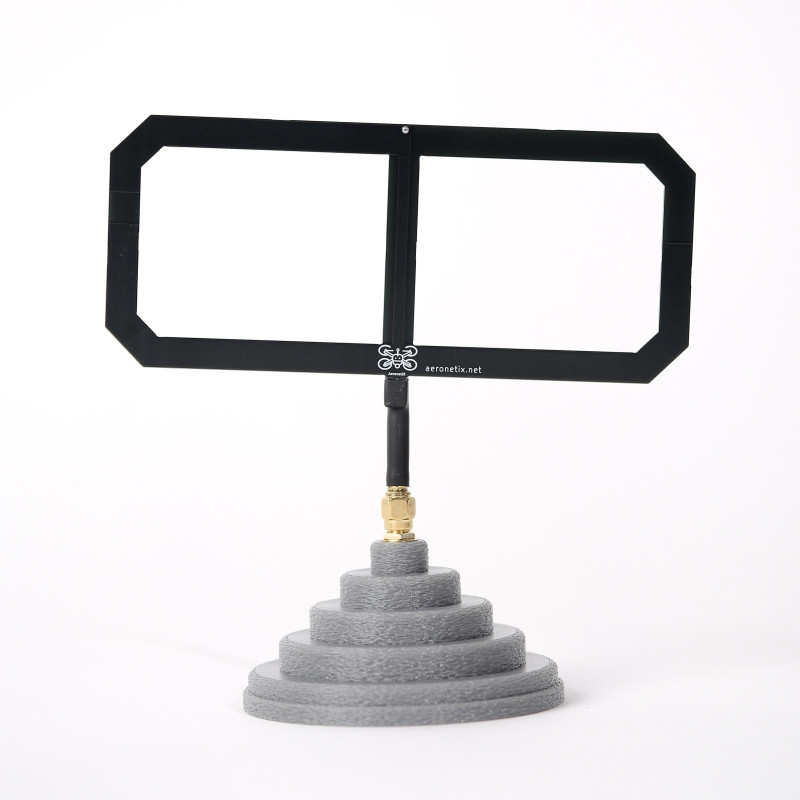

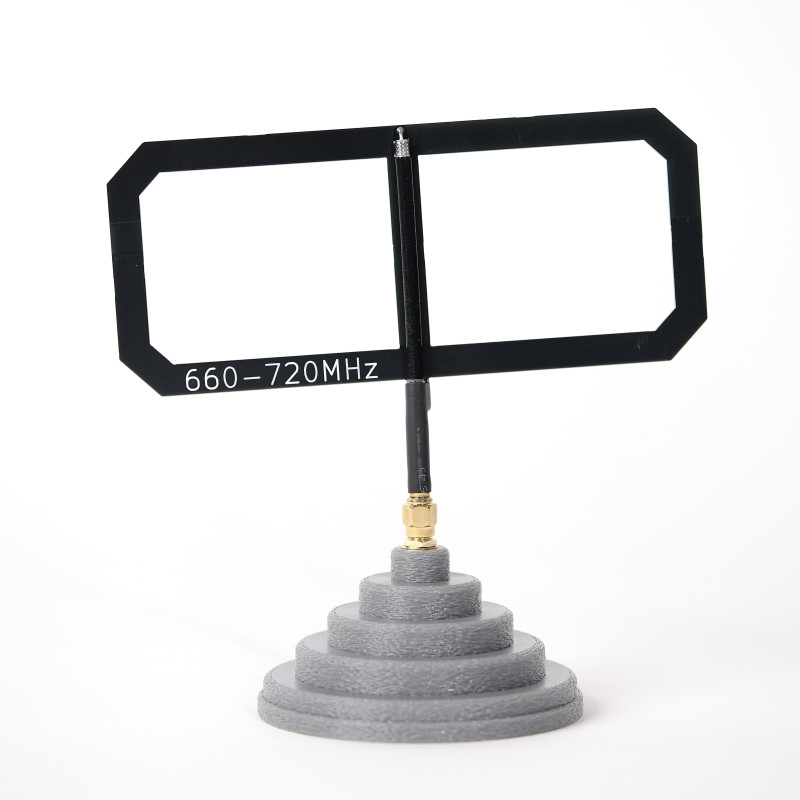

Aeronetix FPV Drone Control Transmitter Antenna (660 - 720 MHz)

Overview: The compact and high-performance Aeronetix antenna for FPV and radio equipment is designed for stable signal transmission in the 660–720 MHz range. Its design provides 5–6 dBi gain, enhancing communication reliability over medium and long distances. The antenna is optimized for use in FPV drone control systems and compatible RF equipment where compactness, low weight, and a reliable SMA connector are crucial.

Key Features:

• Frequency Range: 660–720 MHz
• Gain: 5–6 dBi
• Beamwidth: 90° / 120°
• Dimensions (with cable): 150 × 95 × 10 mm
• Cable Length: 30 mm

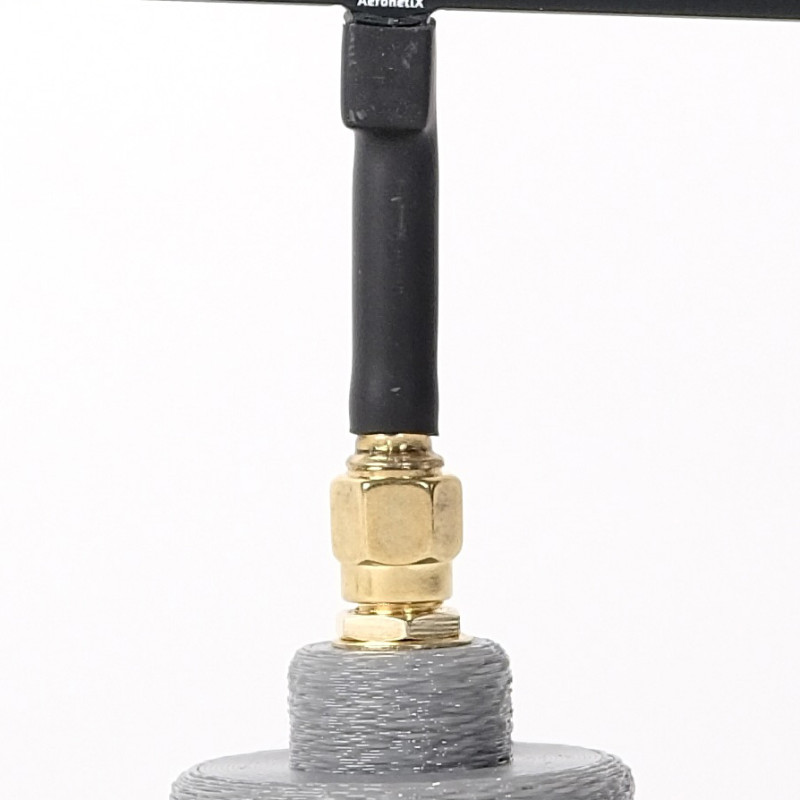

• Connector: SMA
• Weight: 16 g

Additional Technical Parameters (according to specifications):

Purpose and Compatibility: With its 660–720 MHz frequency coverage and universal SMA connector, this antenna is compatible with most FPV control and video transmitters operating in the specified range. Its compact dimensions of 150 × 95 × 10 mm and low weight make the device convenient for mounting on multicopters and light platforms without significantly increasing overall weight. The technical table also provides values that can aid in comparison: length 15.0, height 1.0, width 10.0, weight 0.100 kg.

Advantages:

• 1) Enhanced 5–6 dBi gain for extended range;
• 2) Optimal beamwidths of 90° / 120° for better spatial coverage;
• 3) Lightweight and compact design — only 16 g, minimally impacting platform weight;
• 4) Reliable SMA connector for quick and secure connection.

Installation Recommendations: Install the antenna so that the housing and cable are not pinched or twisted. Check frequency compatibility and connector type with your transmitter before mounting. For best signal strength, position the antenna in direct line of sight with the control remote or receiver, avoiding metallic obstructions in close proximity. Following these simple recommendations will help maximize the 5–6 dBi gain and ensure stable communication over long distances.

Brand: Aeronetix

Product Type: Antennas > Moxon Antenna

Other important parameters and specifications are listed above — they include dimensional characteristics in mm, cable length of 30 mm, and weight values in kilograms for convenient comparison when selecting components.
