750MHz RX Dipole Antenna (tunable to any frequency from 500 MHz to 2.8 GHz)

Introducing the BombAss series dipole antenna, a model designed for reception at 750 MHz with the option of manufacturing and precise tuning to any frequency in the range from 500 MHz to 2.8 GHz. This antenna is designed to provide stable signal reception in a narrow frequency band, features a robust design with increased moisture resistance, and is easy to integrate into various communication and radio reception systems. Manufacturer: BombAss. Product type: Antennas > Dipole Antennas. Product ID: 18167. TG: BombAssFPV.

The 750MHz RX Dipole Antenna features balanced characteristics that make it suitable for FPV applications, telemetry, radio receivers, and other systems where quality reception and minimal losses are important. Specific features and benefits of the antenna are listed below.

Key Features

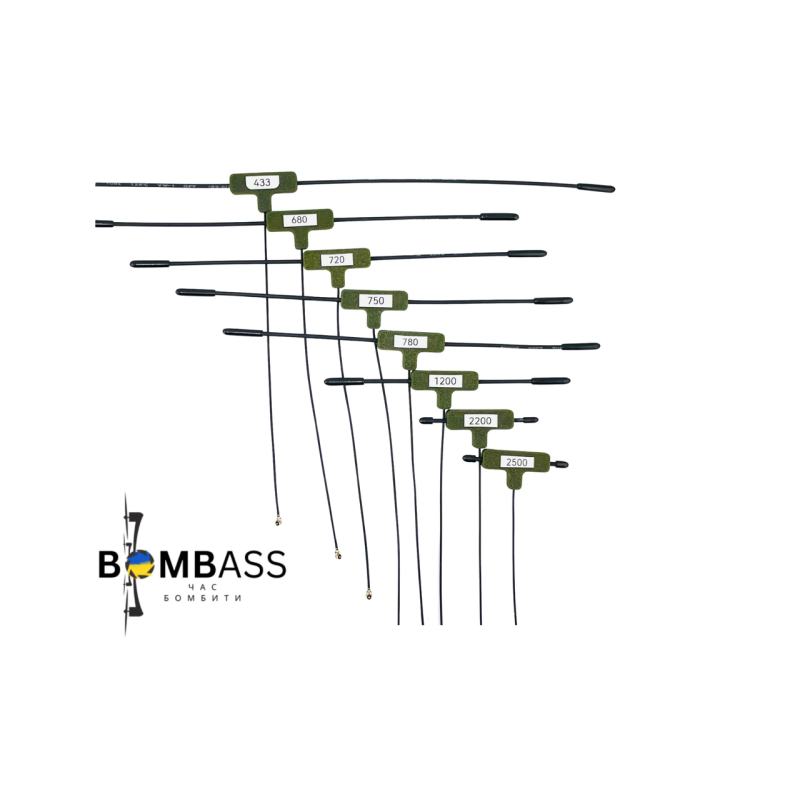

• Frequency Range: from 500 MHz to 2.8 GHz (manufactured and tuned to the required frequency).
• Type/Model: 750MHz RX Dipole Antenna.

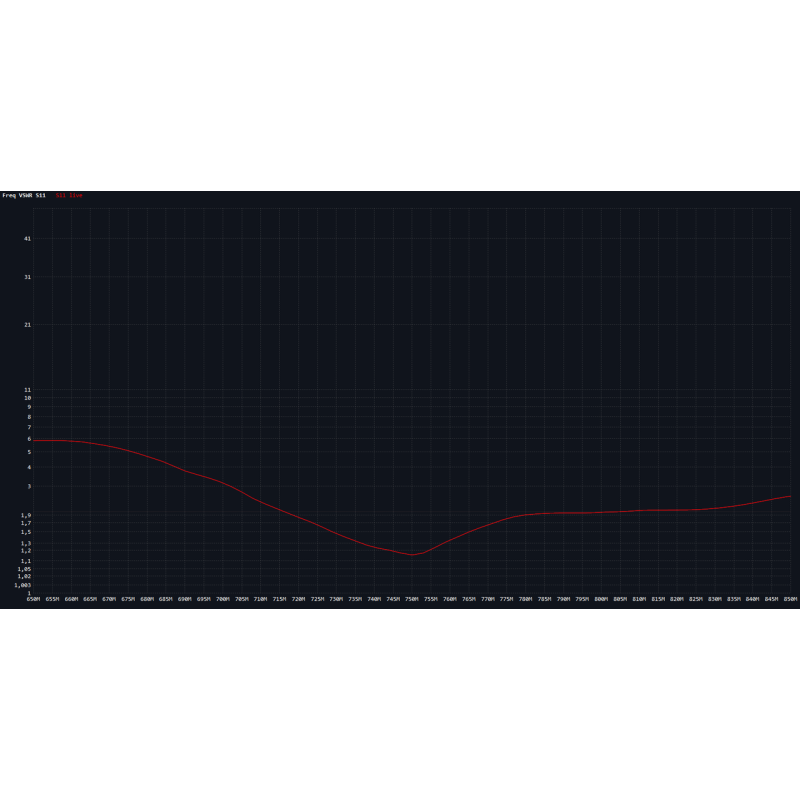

• Bandwidth: 40 MHz (VSWR less than 1.5), ensuring stable signal transmission in the operating range.
• Connector Type: IPEX1 (1.13 mm) for compact and reliable connection to receivers and transmitters.
• Cable Length: available in 10 cm or 15 cm options for convenient installation and placement in the device.
• Radiation Pattern: toroidal (torus-like shape), providing uniform reception in the horizontal plane and contributing to signal stability in various antenna positions.
• Gain: 2.15 dBi — an optimal balance between sensitivity and compact design.
• Moisture Resistance: IP65 protection rating, allowing the antenna to be used in conditions of high humidity and dust, including outdoor and field applications.

Each antenna is individually tuned to the desired frequency using a vector analyzer, which guarantees optimal VSWR and gain values within the specified band. This approach reduces parameter deviations, increases reception stability, and minimizes interference even in complex radio communication conditions.

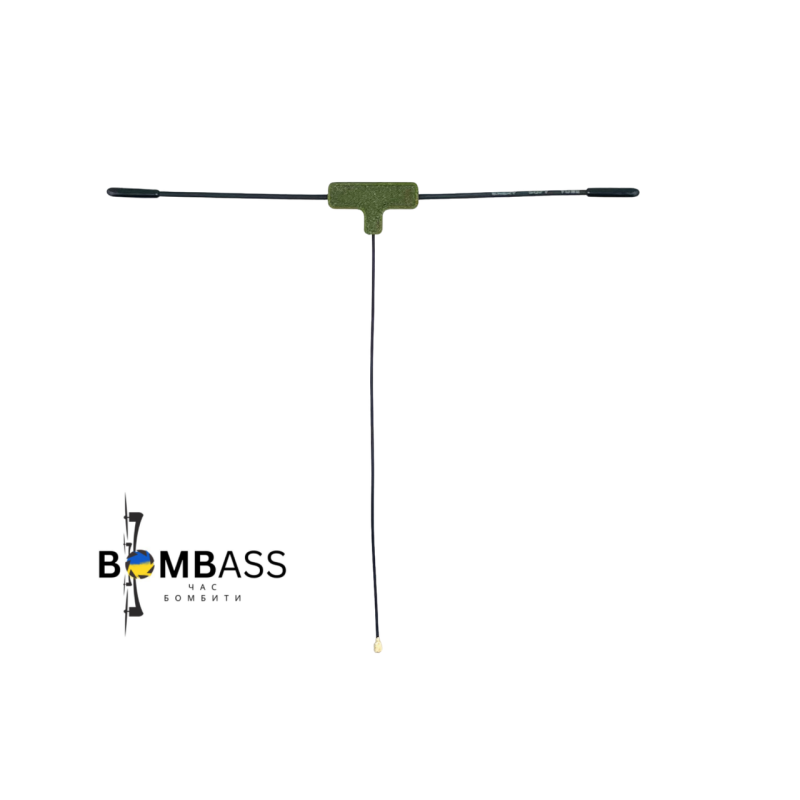

The dipole design ensures easy installation and compatibility with various receivers thanks to the compact IPEX1 (1.13 mm) connector and a short cable length of 10 or 15 cm. This makes installation quick and reliable, and also allows easy integration of the antenna into equipment enclosures or FPV equipment carriers.

Thanks to IP65 protection, the antenna is suitable for use in field conditions where dust or moisture is present, which increases its operational reliability in long-term projects and outdoor installations. The toroidal radiation pattern provides good reception in the horizontal area, which is critical for many FPV and telemetry applications.

The antenna is ideal for FPV solutions, telemetry systems, radio receivers, and other applications requiring a high-quality receiving antenna with low VSWR and stable gain. We offer custom manufacturing for the exact operating frequency and consultation on integrating the antenna into your system — contact us for individual technical solutions and order customization.

If you need a modification for a different frequency or additional accessories, we will select the optimal solution and perform the setup according to your technical requirements.
