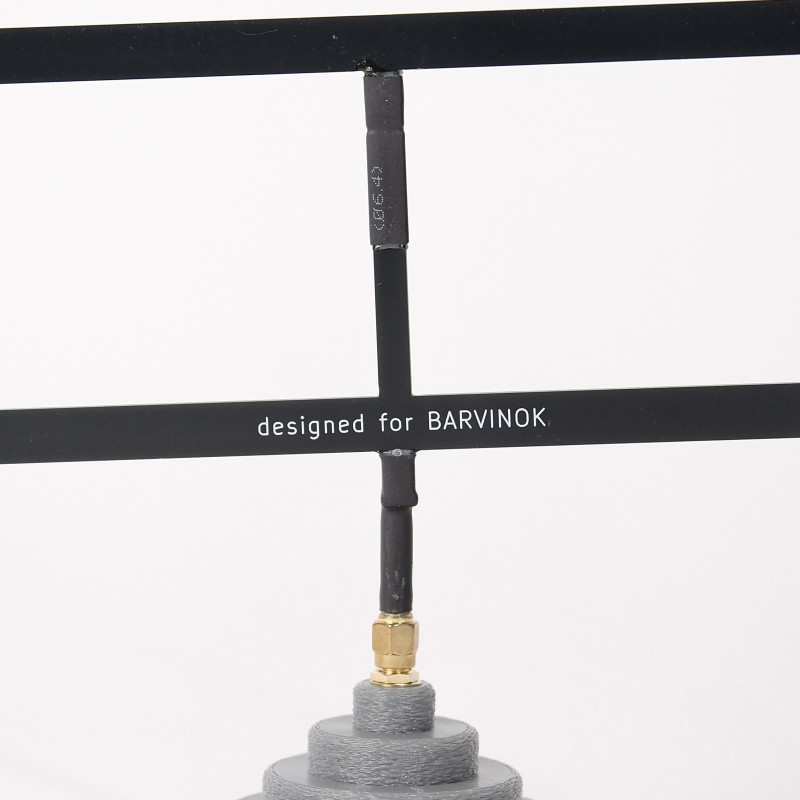

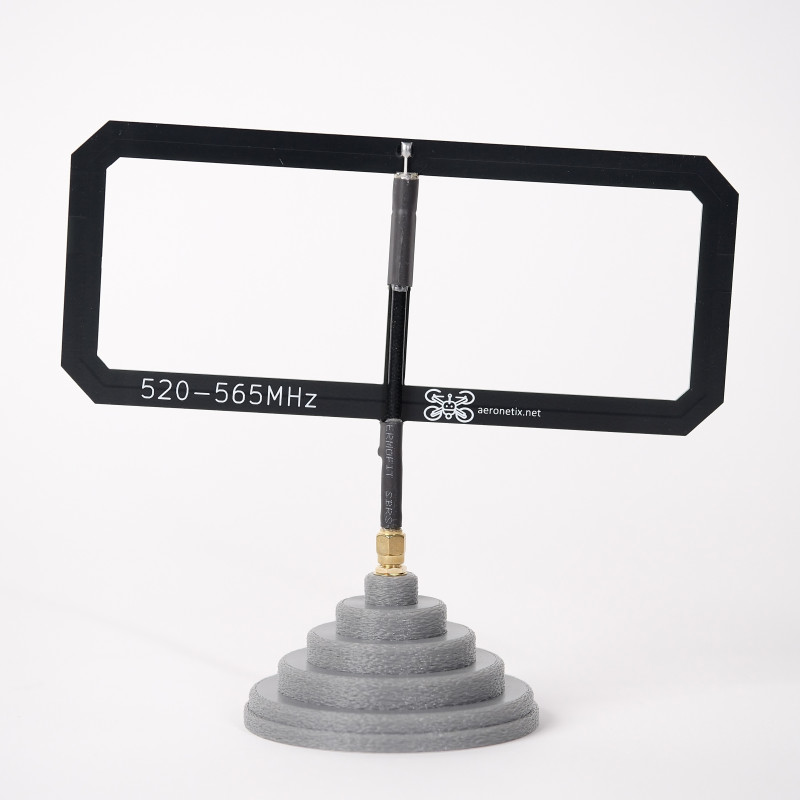

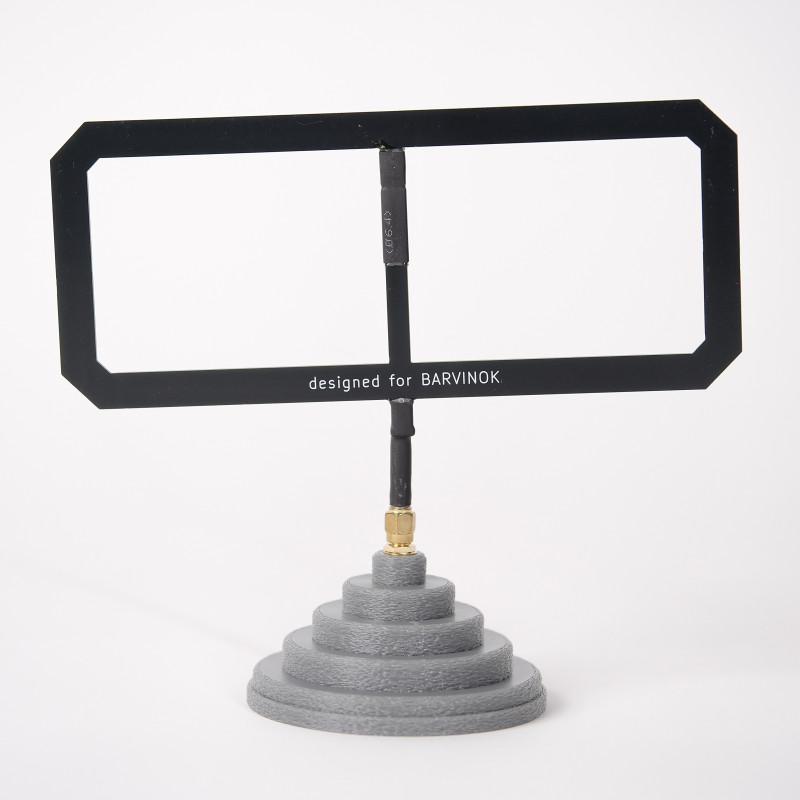

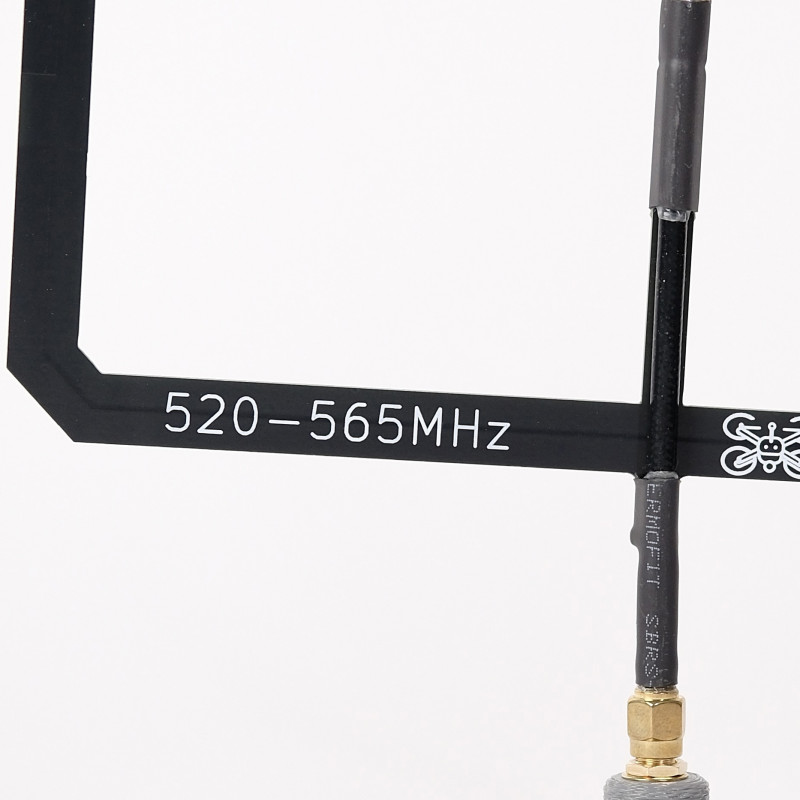

FPV Drone Control Transmitter Antenna (520 - 565 MHz) Aeronetix

Antenna for FPV and radio equipment from Aeronetix — a compact and efficient solution for improving signal quality in the 520-565 MHz range. This model is designed for integration into drone control systems, video transmitters, and other radio modules where stable communication, small dimensions, and low weight are critical.

Key advantages: 5-6 dBi gain provides greater range and transmission stability compared to standard antennas; a beamwidth of 90°/120° allows adjusting the coverage sector to the aircraft's configuration; a weight of only 28 g and compact dimensions allow mounting the antenna on the chassis or inside the body without significantly affecting the drone's aerodynamics and balance.

Technical specifications are presented below and include all parameters for selection and installation.

• Frequency range: 520-565 MHz

• Gain: 5-6 dBi

• Beamwidth: 90° / 120°

• Dimensions (with cable): 185 × 115 × 10 mm

• Cable length: 80 mm

• Connector: SMA (check compatibility with your transmitter)

• Weight: 28 g

Additional factory attributes also state: Length: 17.0; Weight, kg: 0.100; Height: 5.0; Width: 13.0. These parameters reflect the dimensions of the packaging and complete set.

Installation and Compatibility Recommendations

The antenna features an SMA connector, making it compatible with many transmitters and modules. During installation, we recommend checking the antenna's orientation to achieve the optimal coverage angle (90° or 120°) depending on the drone's configuration and flight direction. Thanks to its compact dimensions of 185 × 115 × 10 mm with cable and a cable length of 80 mm, it is easy to integrate into the chassis or transmitter body, preserving the aircraft's aerodynamics.

The antenna belongs to the category Antennas > Moxon Antenna and is suitable for both amateur and semi-automated FPV systems. The manufacturer Aeronetix guarantees stable operation in the specified frequency range and good mechanical strength for field use. By purchasing this antenna, you get an optimal balance of compactness, weight, and signal quality — essential for drone control and real-time video transmission. Before installation, check the compatibility of the SMA connector with your transmitter and the availability of necessary adapters, if required.
