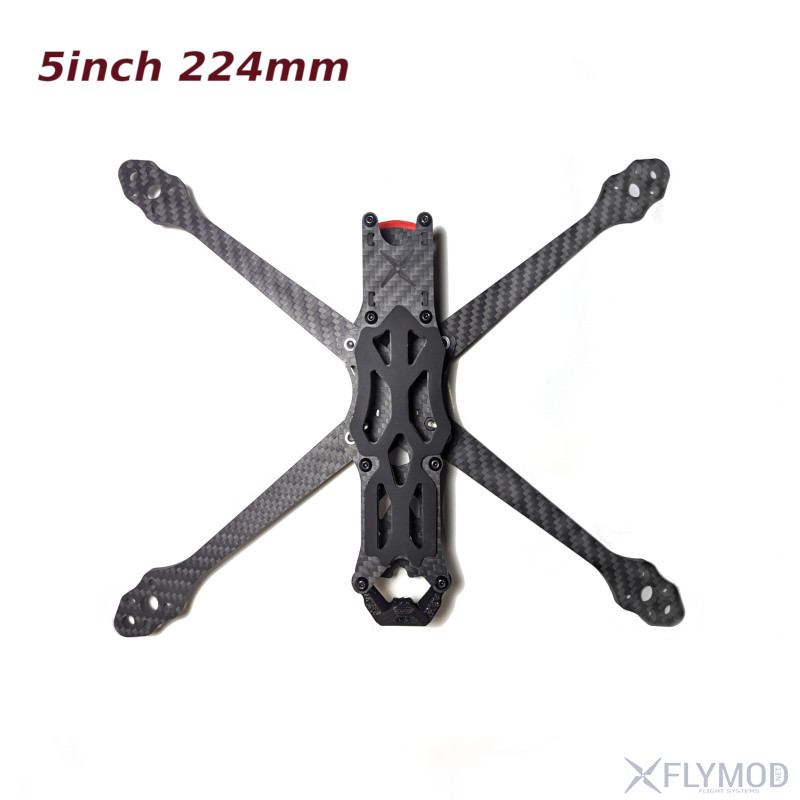

APEX HD 5/7/8/9/10 inch Carbon Fiber Frame Flymod Edition
Product Code: FA103-17067-103
In Stock
1 149 UAH
This product has a minimum quantity of 3
Buy this product in 1 click:
Main specifications
Beam thickness:
5.5 mm
Bottom Plate:
2.5 mm
Camera mount size:
Mini 22 mm / Micro 19 mm (via spacer)
Central mounting diagram:
20×20 mm (M3), 30.5×30.5 mm (M3)
Compatibility:
FPV Drones 5”, 7”, 8”, 9”, 10” (V1/V2 versions)
All specifications
We will deliver this product:
Payment
Bought together with
Motor for Drone ThrustNova TN3115 KV900
1 200 UAH
970 UAH
TBS Source X 15-17 inch carbon fiber FPV quadcopter frame bottom plate
1 399 UAH
1 240 UAH
Description
*** Minimum order - 3000 UAH! Shipping from a remote warehouse. Delivery times 2-5 days.
A high-quality and affordable carbon frame APEX HD, a modified Flymod Edition version - a reliable option for 5"/7"/8"/9''/10'' inch quadcopter builds (see options for selection). The frame has excellent diagonal stiffness along the arms, which ensures easy drone setup and quality flight. The delivery set also includes a 3D model for antenna mounting (up to 2 pcs.). A 30x30mm mounting bracket has been added to the rear stack.
In the V2 version, a hole has been added to the top plate for vertical capacitor mounting.
Specifications
- Frame size by motor axes (specified in option):
- V1 versions: 224mm (5 inches) / 315mm (7 inches) / 362mm (8 inches) / 407mm (9 inches) / 457mm (10 inches)
- V2 versions: 315mm (7 inches) / 362mm (8 inches) / 407mm (9 inches) / 457mm (10 inches)
- Arm thickness: 5.5 mm
- Top plate: 2 mm
- Bottom plate: 2.5 mm
- Side plates: 2 mm
- Camera mounting size: mini 22mm / micro 19mm (via included spacer)
- Central mounting pattern: 20x20 M3 / 30.5x30.5mm M3
- Rear mounting pattern: 20x20 M2 / 30.5x30.5mm M2
- Weight (with all parts, including 3D):
- 7-inch version (295mm): 160g
- 8 inch (8 inch V2): 181 g
- 10 inch (10 inch V2): 222 g
Specifications
Beam thickness
5.5 mm
Bottom Plate
2.5 mm
Camera mount size
Mini 22 mm / Micro 19 mm (via spacer)
Central mounting diagram
20×20 mm (M3), 30.5×30.5 mm (M3)
Compatibility
FPV Drones 5”, 7”, 8”, 9”, 10” (V1/V2 versions)
Kit Contents
APEX HD Flymod Edition carbon frame, camera standoffs, 3D antenna mounts (up to 2 pcs), 30×30 mm rear mount, mounting hardware
Materials
Carbon fiber (plates and structural elements), 3D-printed mounts
Motor-to-motor diagonal size
depending on the version (224–457 mm)
Mount type
Bolt mount + 3D-printed elements
Product type
Carbon Frame for FPV Drone APEX HD 5/7/8/9/10 inch
Rear Mounting Diagram
20×20 mm (M2), 30.5×30.5 mm (M2)
Top Plate
2 mm
Type of Construction
Modular Carbon X-Frame (Flymod Edition V2)
Weight
7” — 160 g;
8” — 181 g;
10” — 222 g.
Size
5” — 224 mm;
7” — 315 mm;
8” — 362 mm;
9” — 407 mm;
10” — 457 mm.
