Horn Antenna | Horn antenna RHCP 4.9-6.0 GHz (plastic)

Manufacturer:. Product type: Antennas > Horn antennas. This RHCP 4.9-6.0 GHz horn antenna is designed as a highly directional module for transmitting video and command signals in challenging RF environments. The device is optimized for FPV systems, repeaters, and drones where maximum range and communication stability are critical.

The design combines plastic and metal elements, ensuring enhanced mechanical strength and reliability in field conditions. Thanks to its narrow beamwidth and high gain, the antenna is used for building ground control stations, relay points, and ensuring long-range communication in areas with intense interference.

Application

Suitable for military and civilian FPV drones, video signal repeaters, stationary and mobile control points, and field communication nodes. Compatibility with modern 1.2–5.8 GHz video systems allows flexible integration of the antenna into various equipment configurations, especially when there is a need to enhance communication range and improve video stream quality.

Advantages

• Ideal for military FPV drones and repeaters where directionality and range are crucial.
• High gain — 18 dBi — ensures a stable signal over long distances.
• Narrow directionality minimizes the impact of external interference sources.
• Wide compatibility with video systems and repeaters (1.2–5.8 GHz in adjacent configurations).
• Reliable construction with plastic and metal elements for field operation.

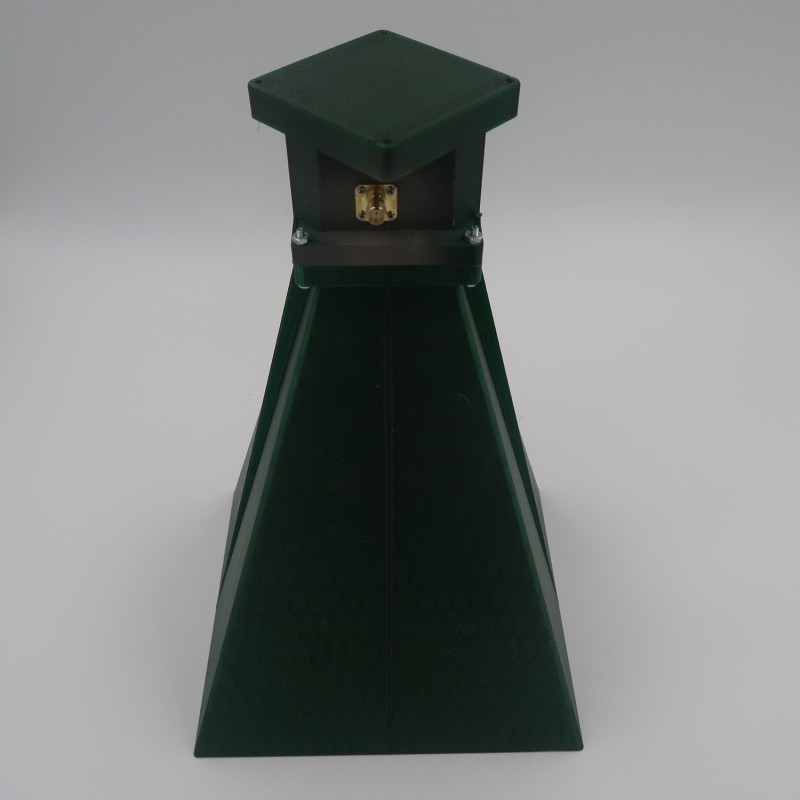

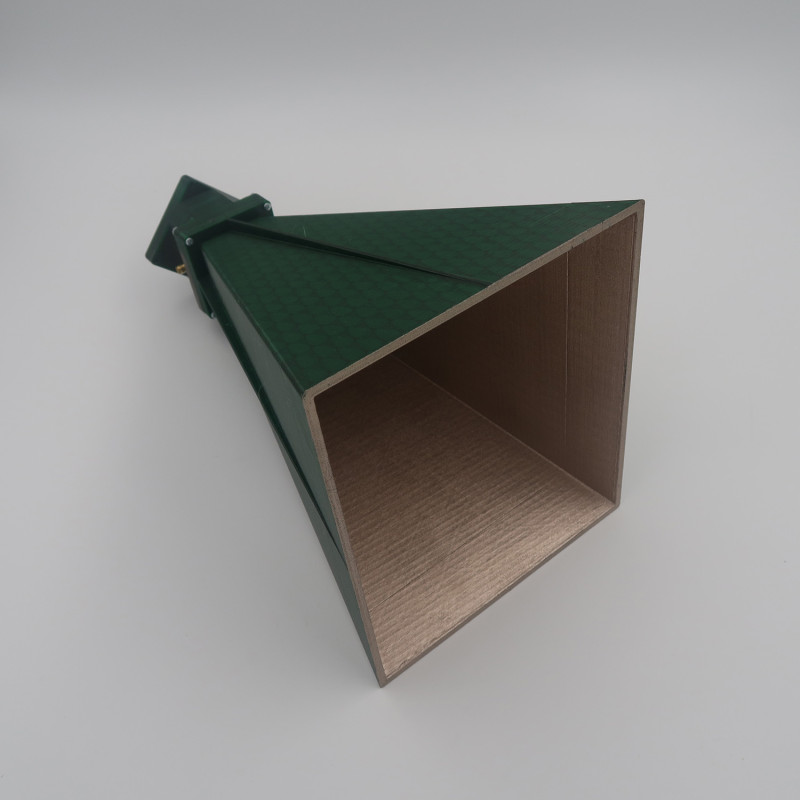

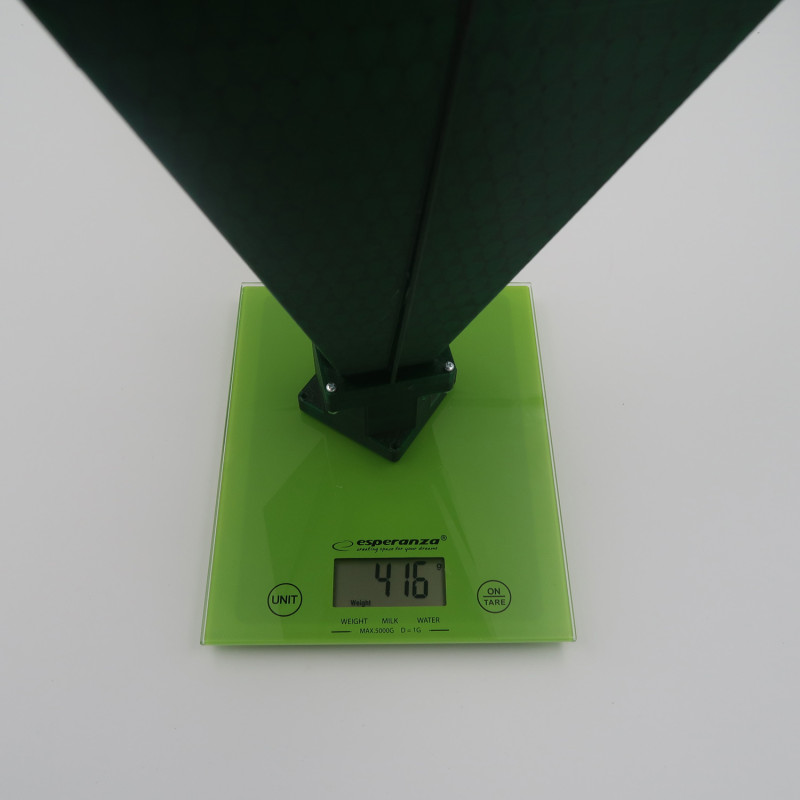

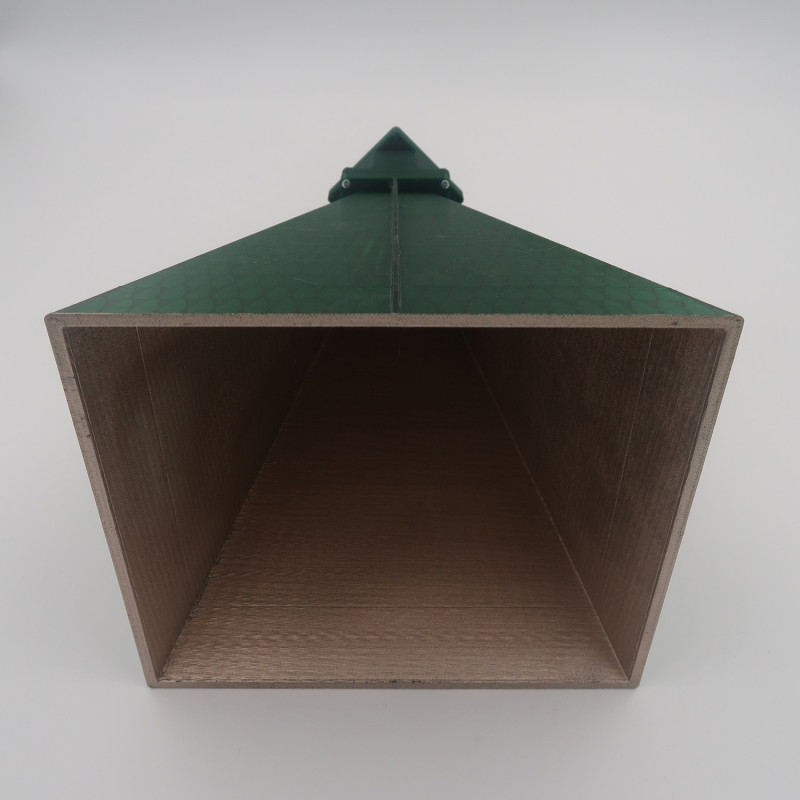

The antenna comes with an SMA connector (pigtail included), simplifying connection to equipment. Dimensions: 290*190*165 mm, weight: 466 g, polarization: Right-Hand Circular (RHCP). Frequency range: 4.9-6.0 GHz. Type: Horn antenna for FPV and repeaters.

This antenna provides concentrated energy radiation in the desired direction, which improves the quality of video and command communication without significantly increasing interference for adjacent systems. By using it as part of a ground station or repeater, you get an amplified and stable transmission channel even in a saturated radio frequency environment.

If you need additional technical details, compatibility questions with existing equipment, or delivery terms — please contact our store managers: we will help you choose the optimal antenna configuration for your tasks and operating conditions. The antenna is suitable for both field operations and professional communication tests where long-term reliability and precise signal directionality are required.

You can buy a horn antenna in our online store — a choice for those who value quality, reliability, and maximum efficiency in video and command communication transmission.
