Teletactica A1 Teletactica 750-6000 MHz Antenna
Teletactica A1 antennas from the Teletactica brand are a passive set of ultra-wideband antennas in the 750-6000 MHz range, designed to enhance drone communication reliability in conditions of intense electronic warfare jamming. They are intended for use with Autel drones, specifically Autel EVO MAX 4N/4T (with BOOM 18 firmware), Autel EVO Max 4T Protect+, and other UAVs operating across a wide frequency range. The antennas allow selection of six frequency bands without additional power, reduce the risk of EW suppression, and help maintain stable telemetry and control transmission.
- Frequency range: 750-6000 MHz (ultra-wideband design)
- Overall gain: approximately 9-11 dBi depending on the band
- Gain by frequency: 750 MHz ≥ 11 dBi; 3500 MHz ≥ 11.5 dBi; 6000 MHz ≥ 9 dBi
- Maximum input power: 100 W
- Protection rating: IP64 — sealed enclosure, resistant to rain, snow, and dust

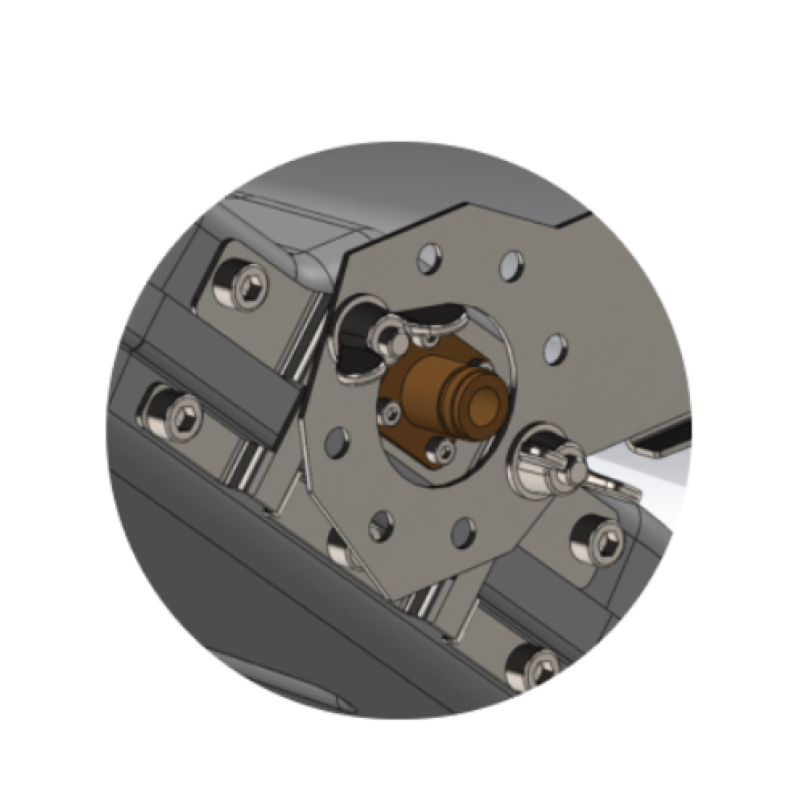

- Connector: N-type Female
- Operate without power — no batteries required
- Cable compatibility: connects with 20 m LMR400 cable and 25 m 1/2 feeder, allowing concealment 10-15 m from the mast

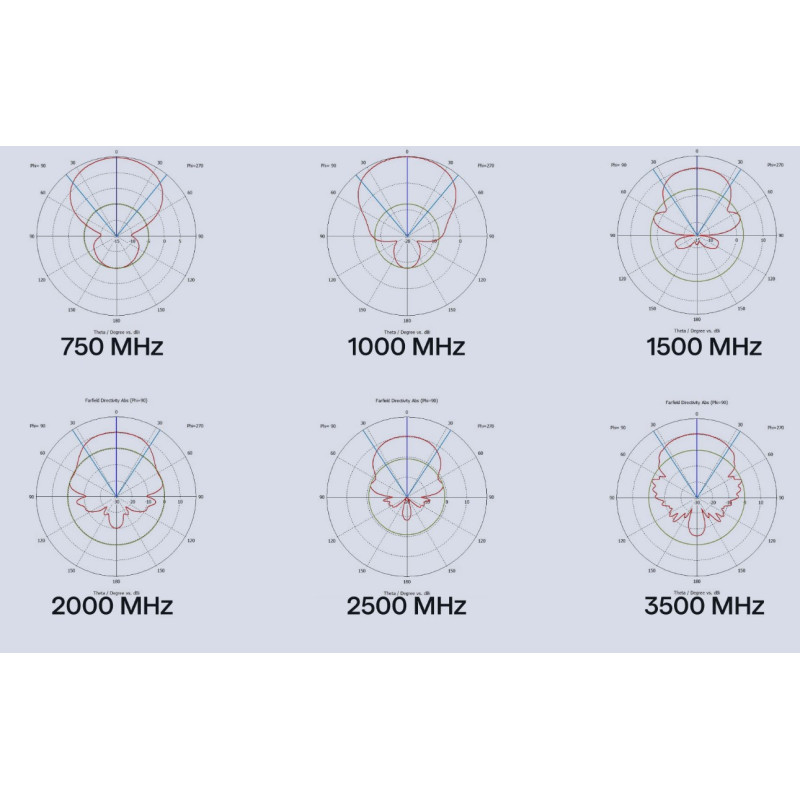

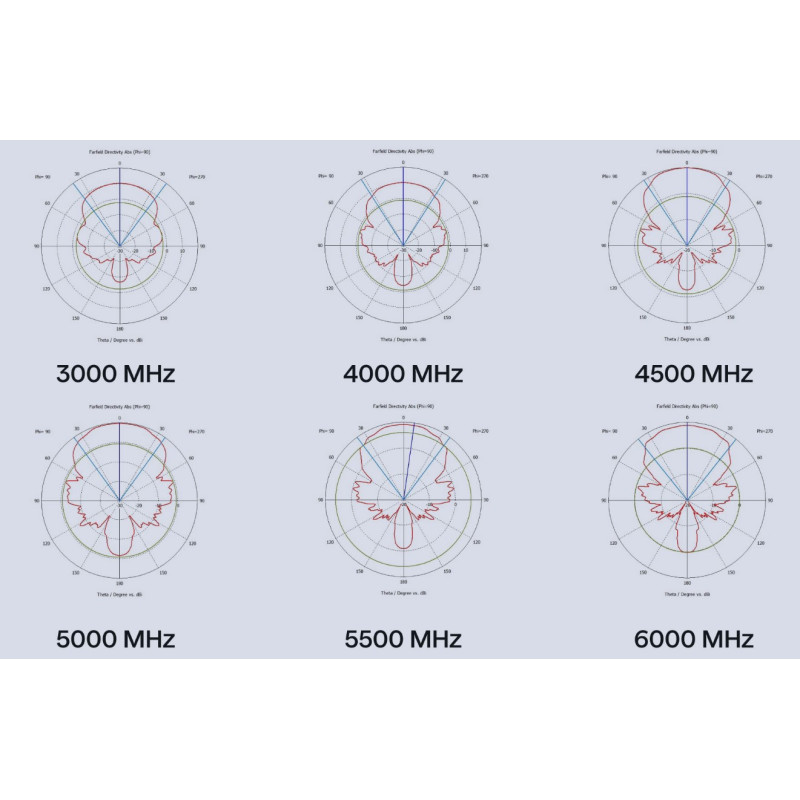

- Beam angle: 65-78°
- Do not heat up — reduced visibility to thermal imagers
Practical advantages: The Teletactica A1 kit allows the drone to quickly switch to bands with the least interference without additional amplifiers, ensuring stable communication over long distances. When installed on an 8-10 m mast in field conditions, the kit operates correctly at distances of 6-8 km, which is critically important for reconnaissance and telemetry transmission in high-responsibility missions.
Kit Contents and Installation

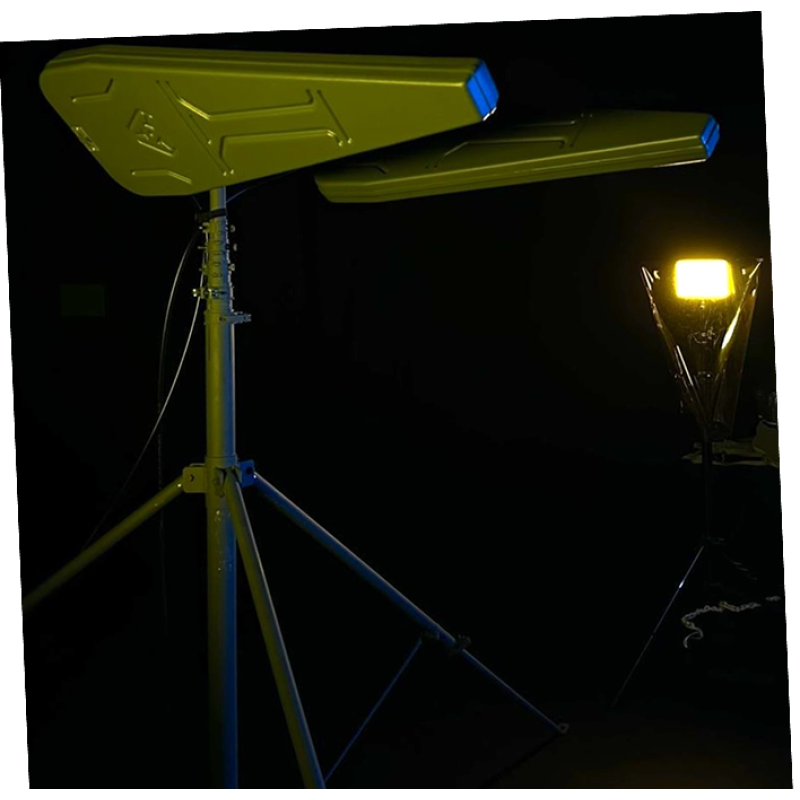

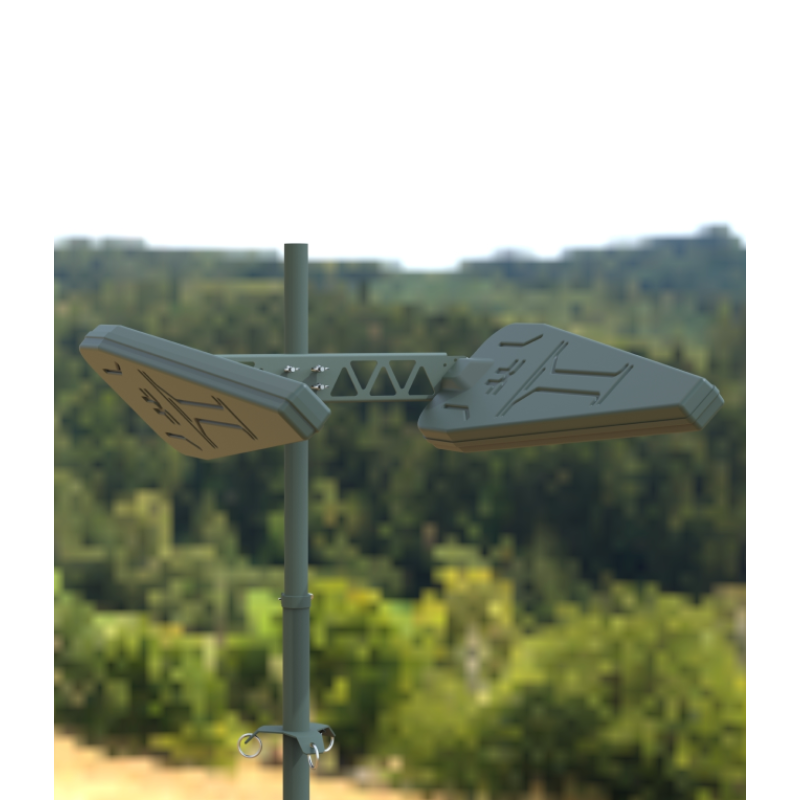

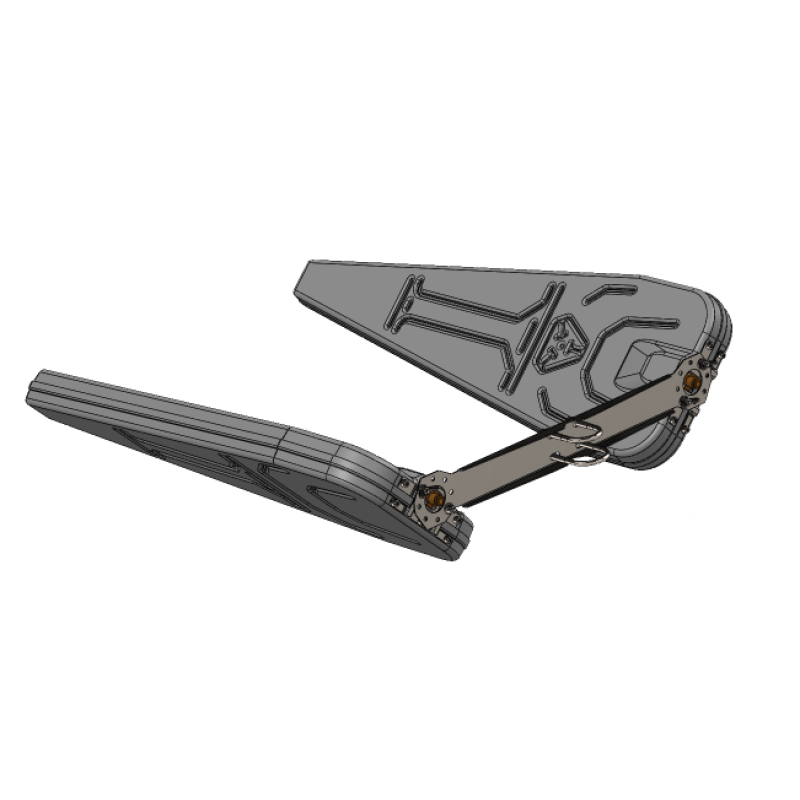

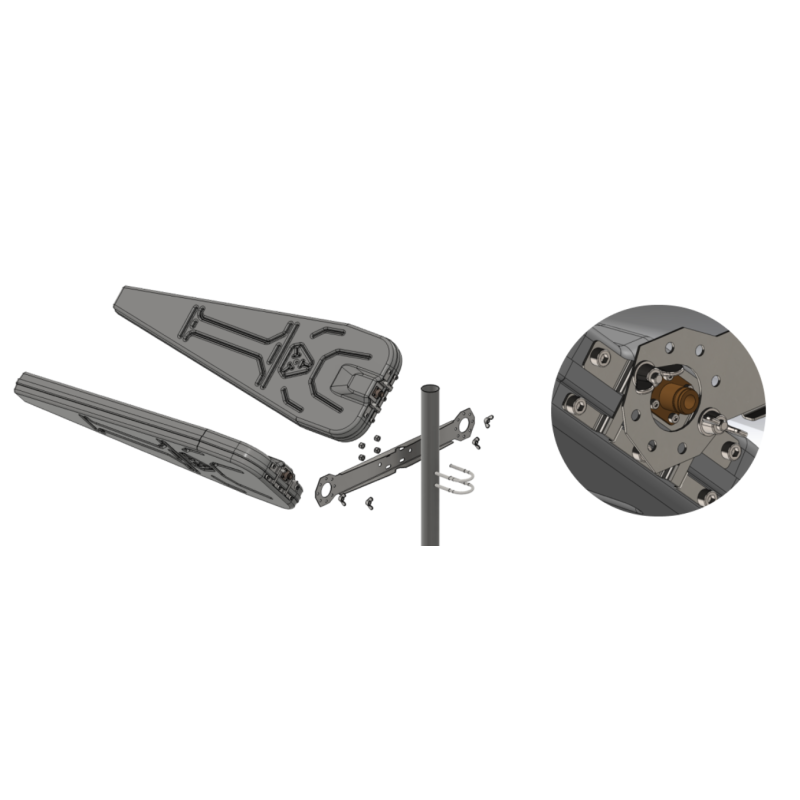

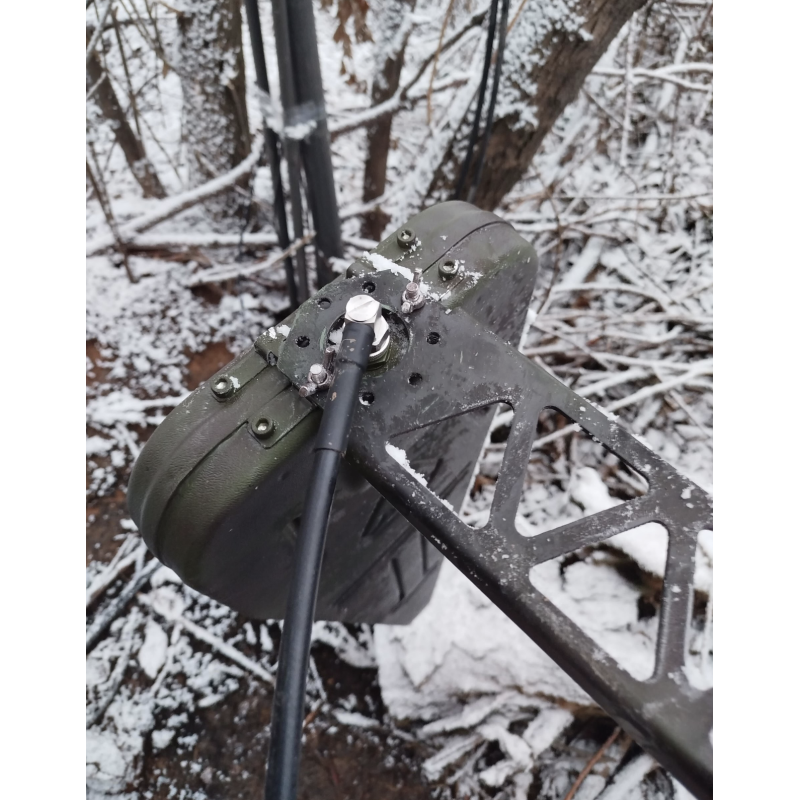

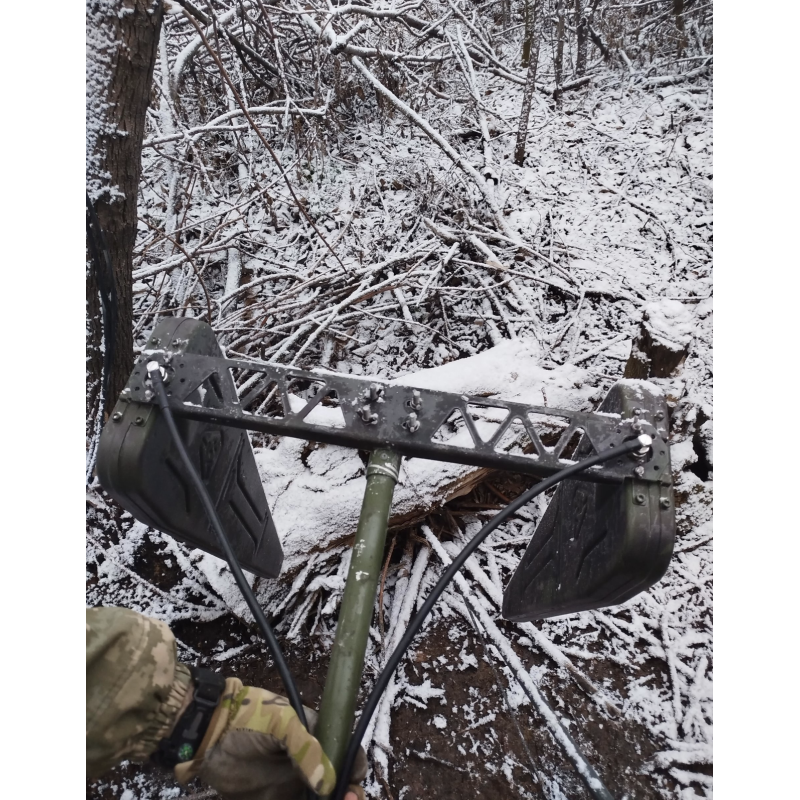

The kit includes a holder and two antennas. The main purpose is an additional antenna kit for Autel EVO Max 4T Protect+ drones or other UAVs operating across a wide frequency range. The antennas have mounts for mast placement; possible mounting options: vertically or at a 45° angle in a V-shaped configuration. Operational stability depends on the quality of cables and connectors used with the antennas.
Documentation and Certification
Official name in expenditure documents: "Kit of two Ultra Wideband antennas for telemetry data and control transmission (750-6000 MHz)". Product HS code: 8529106990. The antenna has undergone laboratory measurements to confirm its technical specifications; field trials and combat condition testing were also conducted — the kit is already being purchased directly by Ukrainian combat units.

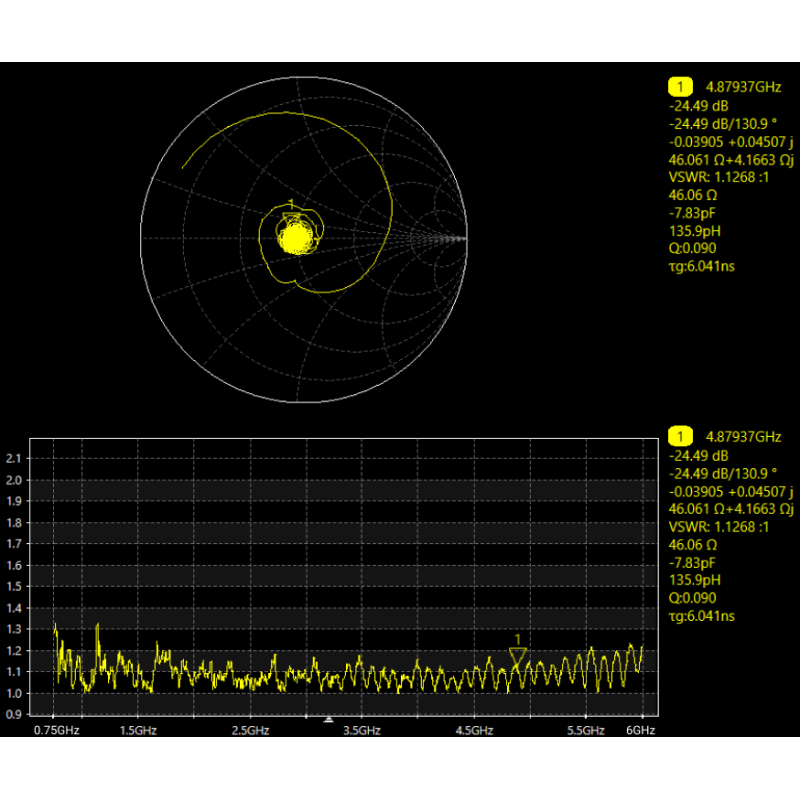

Voltage Standing Wave Ratio (VSWR): measurements and analyses were conducted to ensure compliance with parameters within the operating range; detailed reports are available upon request from the supplier.
Additional information: The antennas are equipped with a reliable N-type connector, a sealed enclosure, and are designed for intensive use in field conditions. They do not require power, do not create thermal signatures, are resistant to weather effects, and are easy to install with the recommended LMR400 cables or 1/2 feeder.
Product ID in catalog: 18802. Product category: Drones and Quadcopters > Drone Components > Drone Spare Parts > Drone Antennas.
If needed, we will provide additional measurements, reports, and recommendations regarding optimal distance and mast height to achieve specified characteristics under specific operating conditions.
