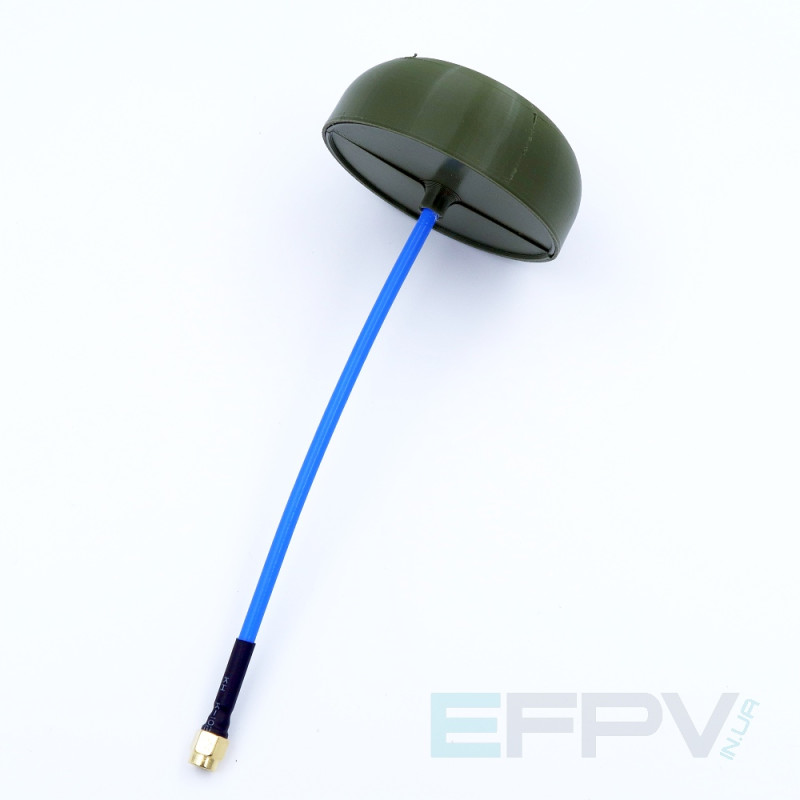

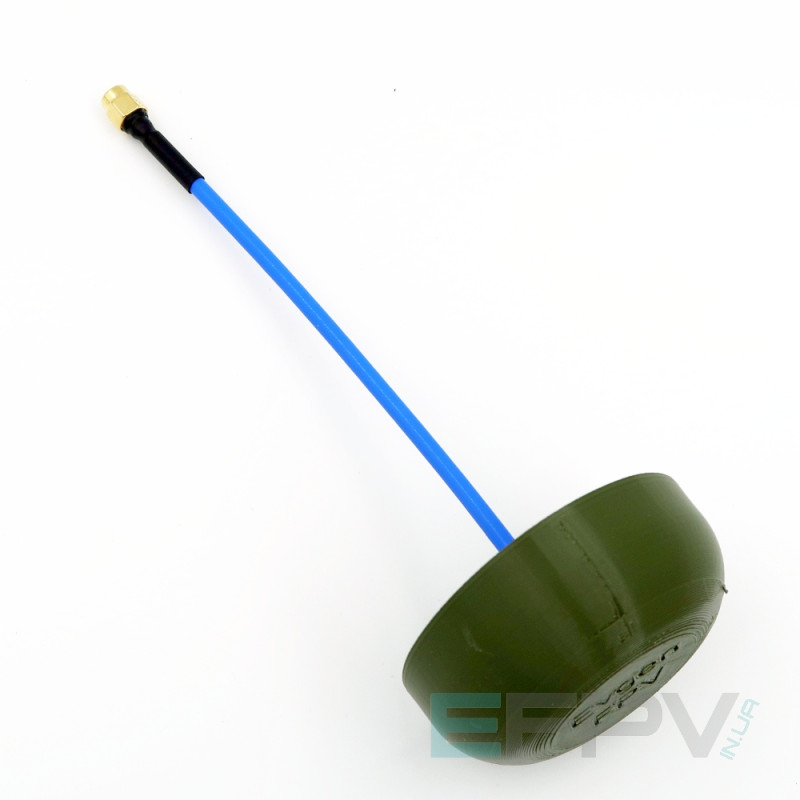

Clover / Mushroom RHCP 3.1-3.5 GHz Antenna
The Clover (Mushroom) type antenna from EFPV is a compact and reliable circular antenna designed for stable wireless communication in the 3.1-3.5 GHz range. With its distinctive shape resembling a three-leaf clover or a mushroom, this model combines ease of installation with durability for field use.
The model features right-hand circular polarization (RHCP), which minimizes signal loss during rotation and changes in transmitter or receiver orientation. Its omnidirectional coverage with a 360° beam angle makes the antenna a versatile solution where uniform signal reception/transmission in all directions is required. The housing is made of plastic, ensuring light weight and resistance to external influences.
Technical Specifications and Compatibility

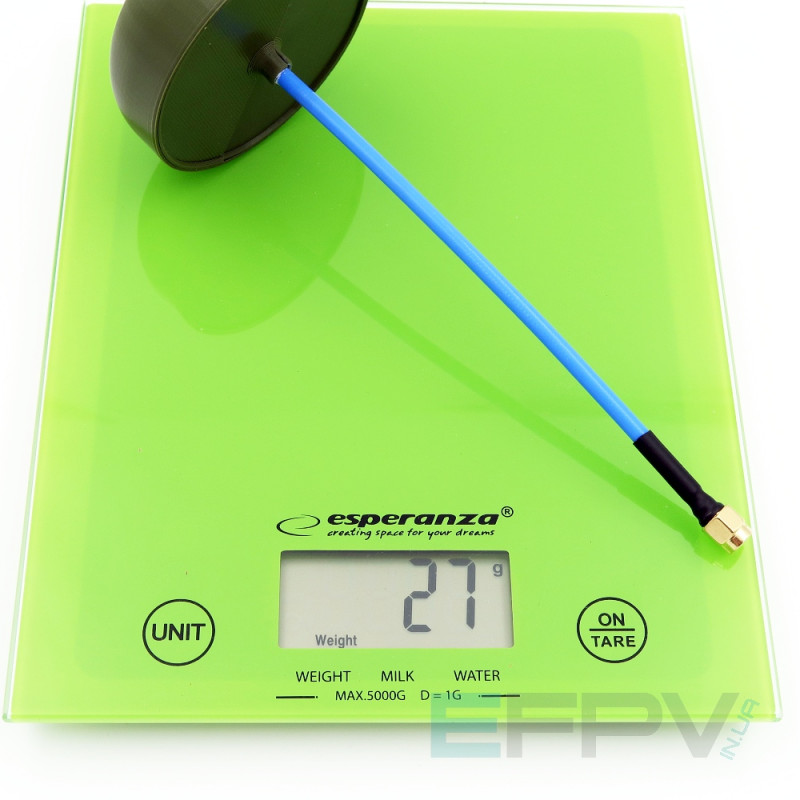

The antenna is equipped with an SMA connector, has a nominal gain of 3 dBi, and compact physical dimensions of 180*70*70 mm with a weight of 27 g. These parameters make it easy to integrate into drones, FPV systems, telecommunications equipment, and other wireless solutions where weight, dimensions, and ergonomics are important. Manufacturer: EFPV.
Key Advantages
- Operating range: 3.1-3.5 GHz — supports modern wireless standards.
- Right-hand circular polarization (RHCP) — stable connection with moving objects and changing orientation.
- Omnidirectional coverage with a 360° beam angle — uniform signal in all directions.
- Compact and lightweight: 180*70*70 mm, 27 g — ideal for drones and portable equipment.
- Universal SMA connector — wide compatibility with transmitters and receivers.
The antenna is designed for both amateur FPV systems and professional applications in civil and industrial sectors where reliable data transmission over medium and long distances is required. [Manufacturer] guarantees high manufacturing quality and durability, making this model an optimal choice for operators seeking a balance between size, weight, and signal characteristics.
| Parameter | Value |
|---|---|
| Frequency Range | 3.1-3.5 GHz |
| Polarization | Right-Hand Circular (RHCP) |
| Beam Angle | 360° |
| Connector | SMA |
| Material | Plastic |
| Gain | 3 dBi |
| Dimensions | 180*70*70 mm |
| Weight | 27 g |
| Manufacturer |
You can order Clover / Mushroom RHCP 3.1-3.5 GHz antennas in the Flash Army online store: fast delivery, consultation on compatible equipment selection, and post-purchase support. This model will be useful for drone operators, FPV enthusiasts, telecommunications network engineers, and anyone needing reliable omnidirectional coverage at 3.1-3.5 GHz frequencies.
