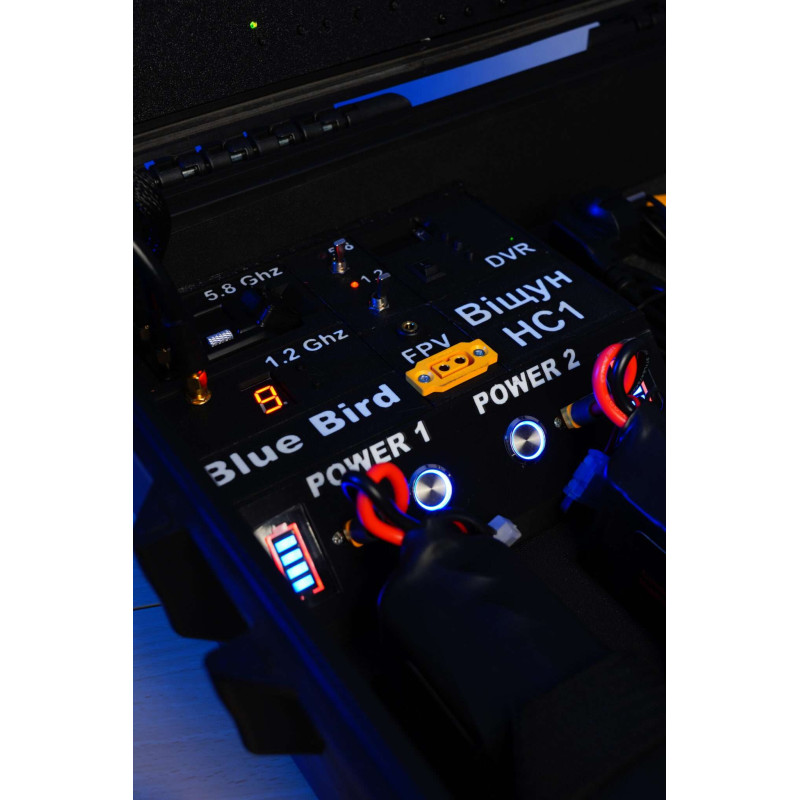

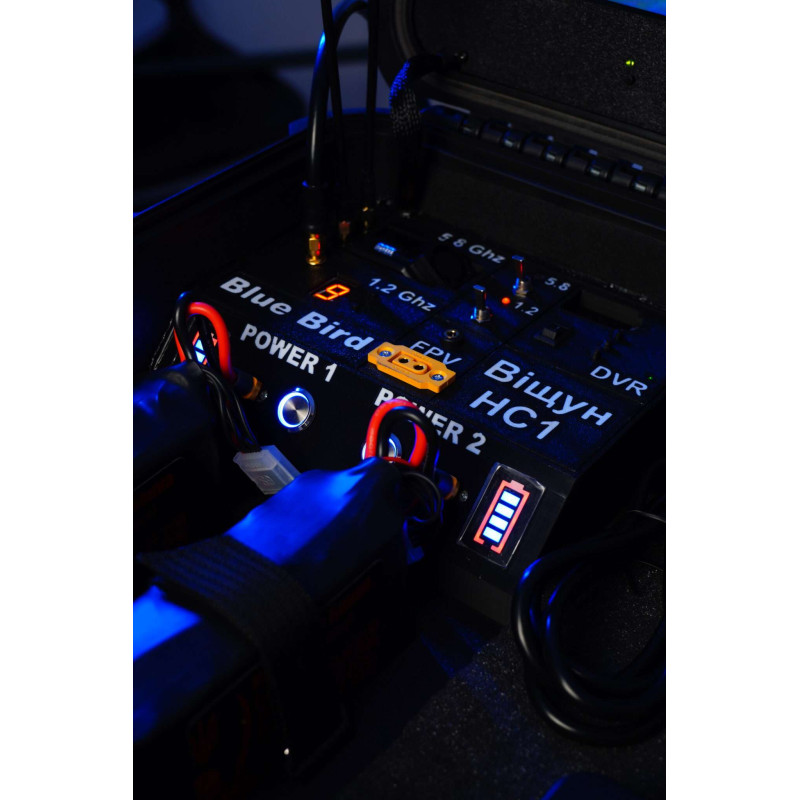

BlueBird «Vishchun» HC1 UAV Ground Control Station is a portable, autonomous system for receiving video signals and controlling unmanned aerial vehicles in the field. The system is designed for operation from cover (dugout, room, trench, or vehicle) thanks to remote antenna modules and a long cable, which increases the safety of the crew and operator.

Key Advantages at a Glance

• Pilot Safety: Remote antennas and mounts with SMA connectors allow antennas to be placed outside the risk zone.
• Ease of Control: A 19-inch monitor provides clear real-time video display; video can also be streamed to pilot goggles.
• Autonomous Power: Powered by two 6S2P batteries, guaranteeing up to 6 hours of continuous operation and the ability to charge controllers and mobile devices via powerful ports.

Technical Specifications

• Operating Time: Up to 6 hours thanks to two 6S2P batteries.
• Power Supply: Two 6S2P batteries for stable field operation.
• VRX Operating Frequencies: Supports 5.8 GHz with 48 channels and 1.2 GHz with 12 channels for compatibility with various video systems.
• Antenna Control: TBS with a maximum power of 0.5W for the remote antenna module.
• Remote Antenna Mount and Cable Length: Allows operation from a safe location, antenna cable length up to 15 meters.
• Connectors: SMA for reliable and quick connection of remote antennas.
• Compatibility: Supports all modifications of control units, universal integration into existing systems.
• Goggle Streaming and Power: AV and 6S out for video signal and goggle power; goggle cable length from 1 to 3 meters for comfortable pilot operation.

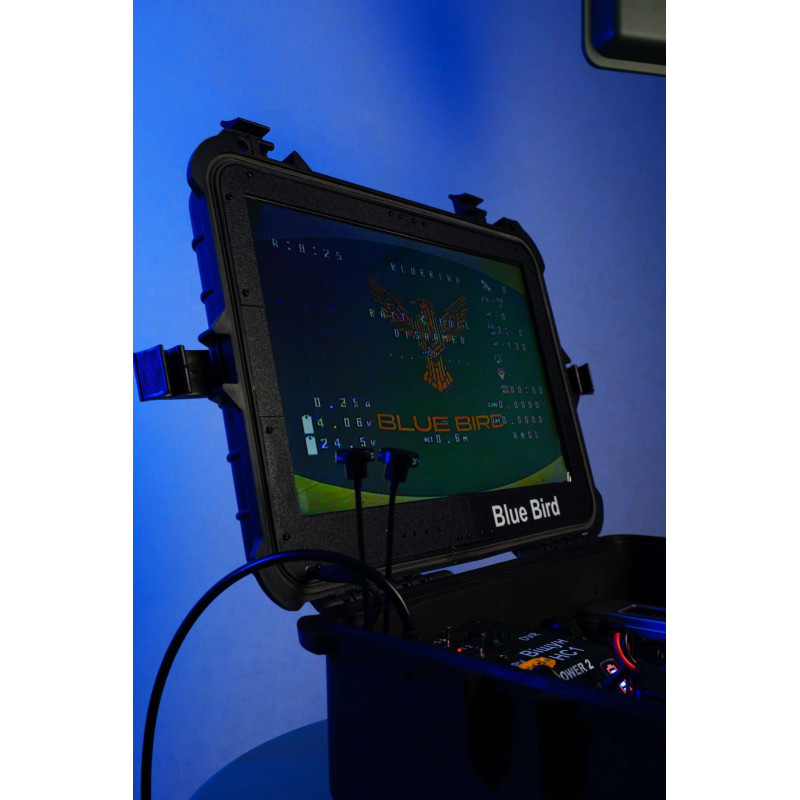

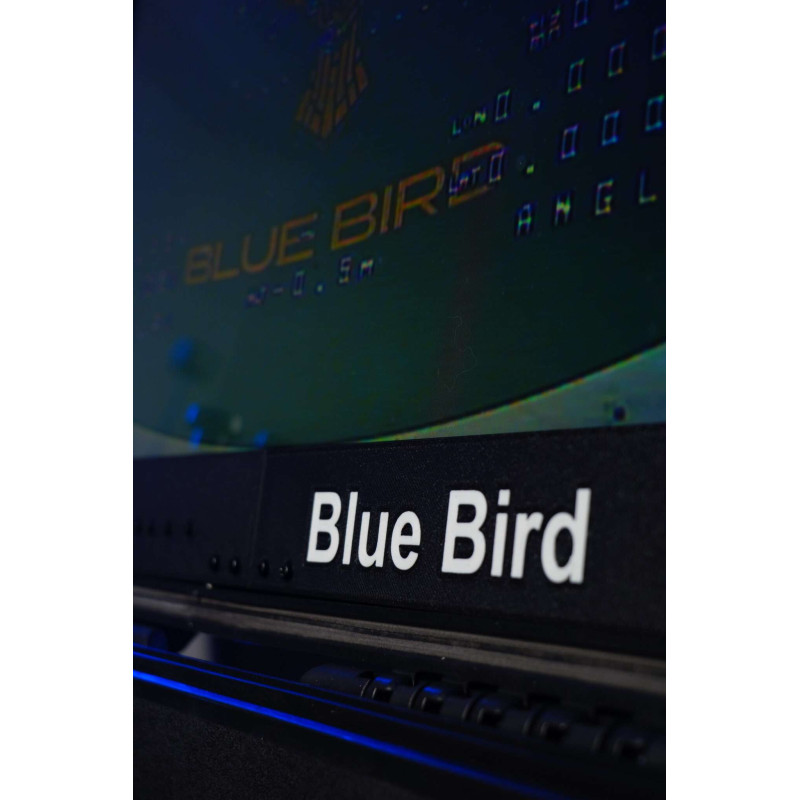

• Monitor: 19 inches for flight control and viewing recordings.
• DVR: Video recording to microSD card for subsequent analysis and reporting.
• Power/Charging Ports: Type-C 45W port for fast charging of controllers and mobile devices; USB 3.0 port — 18W for high-speed power; USB 2.0 as USB media for viewing media files.

Functionality Description

The «Vishchun» HC1 system combines remote UAV control and high-quality video signal reception with enhanced operator safety. Remote antennas, complete with SMA connectors and a cable up to 15 meters, allow the antenna system to be placed in a safe zone without loss of signal quality. The 19-inch monitor and DVR recording module provide real-time flight control and save recordings for post-operation analysis. Integrated Type-C and USB ports ensure fast power for controllers and gadgets in the field, while support for 5.8 GHz (48 channels) and 1.2 GHz (12 channels) frequencies guarantees compatibility with various video systems. The TBS antenna control module with a maximum power of 0.5W and SMA connectors ensure stable signal transmission, and AV and 6S out options allow video and power to be streamed directly to pilot goggles (1–3 m cables).

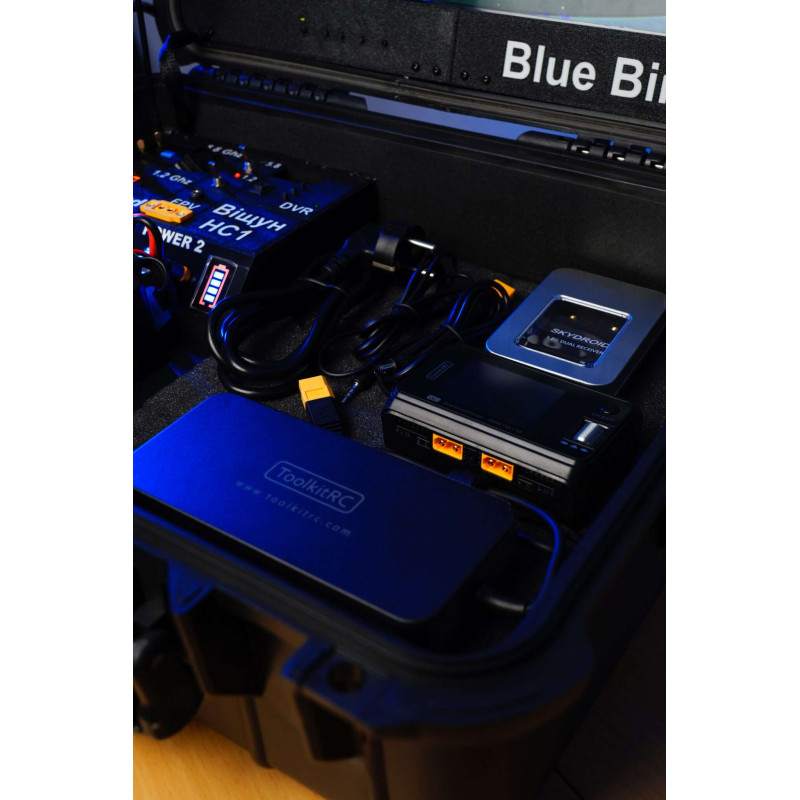

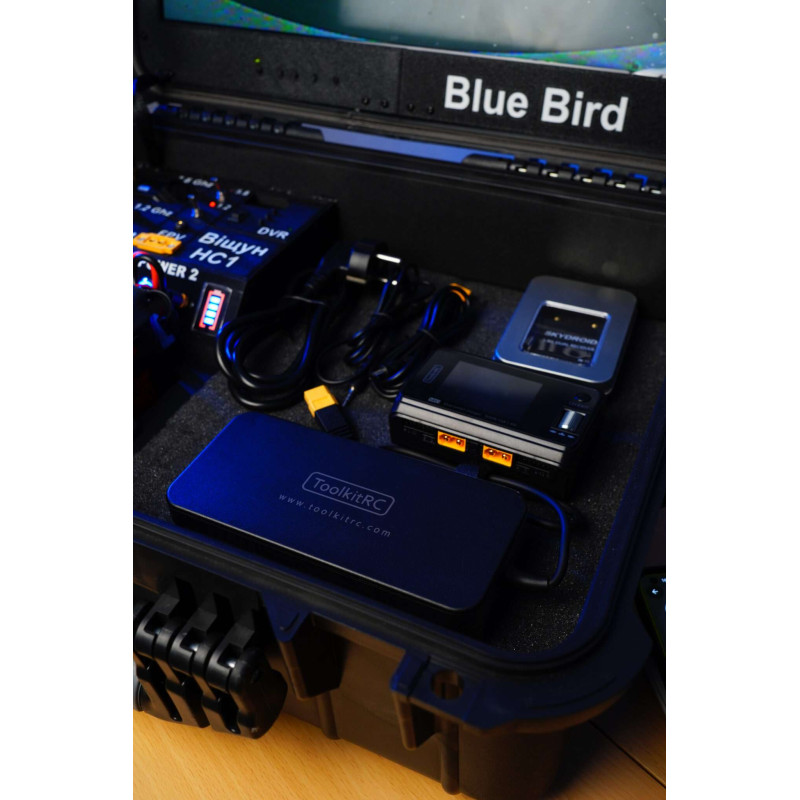

«Vishchun» HC1 Ground Control Station Package Contents

• 1. «Vishchun» HC1 Ground Station.
• 2. TrueRC 1280 V2 (RHCP Bottom) 1.9dBi 1.3GHz Antenna.
• 3. RHCP FOXEER Pagoda Pro 5.8Ghz, 3dBi Antennas — 2 pcs.
• 4. Remote antenna with controller connection module (15 m cable).
• 5. 15 m Antenna Cable.

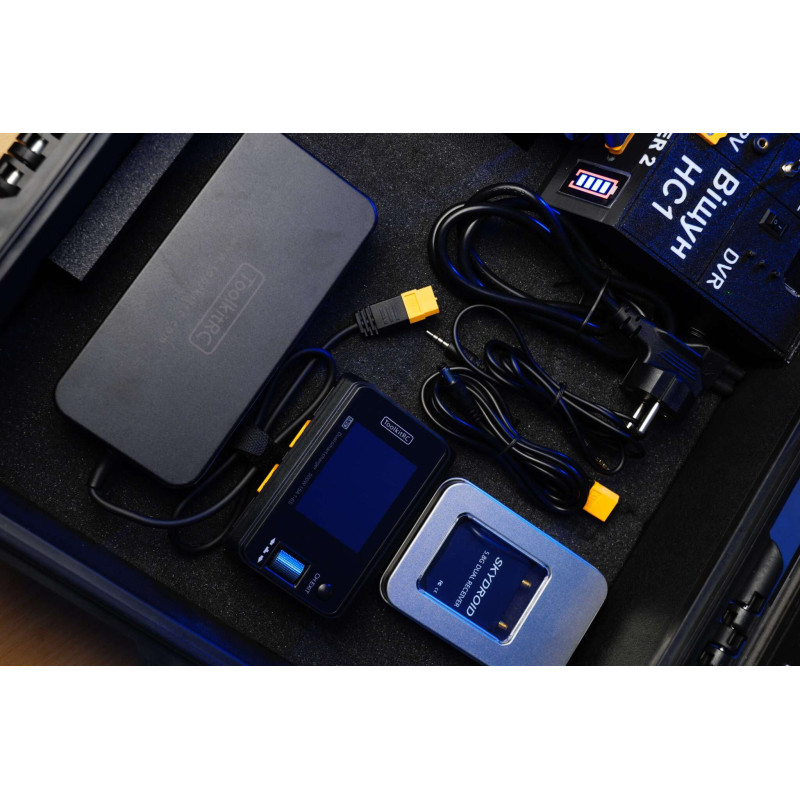

• 6. ToolkitRC M6D Charger with power supply.
• 7. SKYDROID 5.8 OTG receiver.

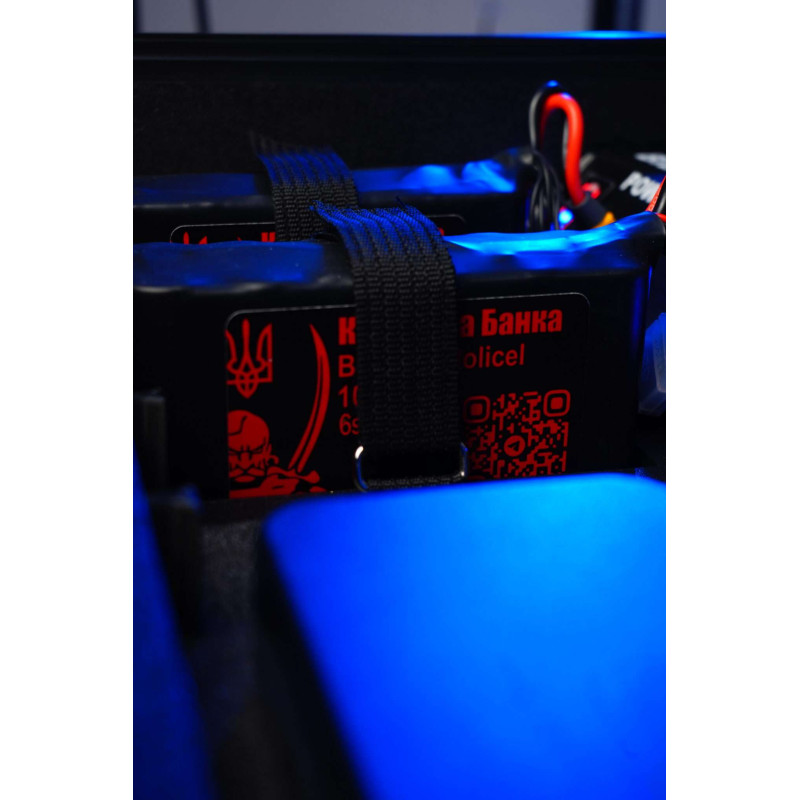

• 8. 6S Batteries — 2 pcs.
• 9. MicroSD Flash Drive — optional.
• 10. 18650 Batteries — 2 pcs.

The BlueBird «Vishchun» HC1 UAV Ground Control Station is a solution for professionals who require a combination of safety, autonomy, and broad compatibility with control and video transmission systems. Its constructive mobility, powerful charging ports, DVR, and streaming capabilities make the HC1 an ideal tool for field operations, reconnaissance, and analytics.

Product Type: Ground Relay Stations; Manufacturer: BlueBird; Model: «Vishchun» HC1.
