Wired Repeater TERRA Scream 4.9-5.8 GHz VYRIY
Manufacturer: Vyriy Drone
Product Type: Ground Repeater Stations

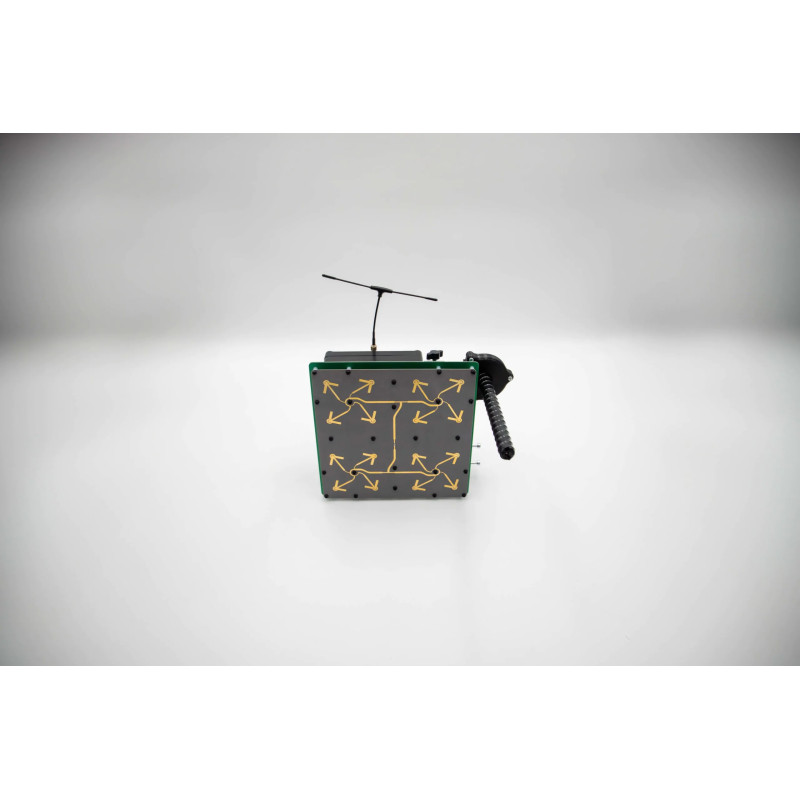

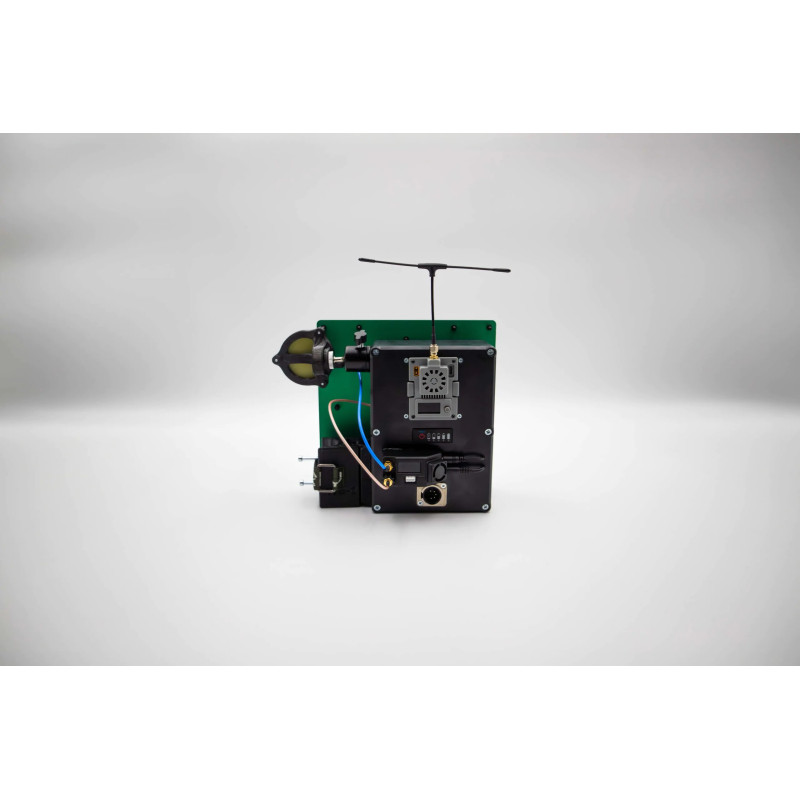

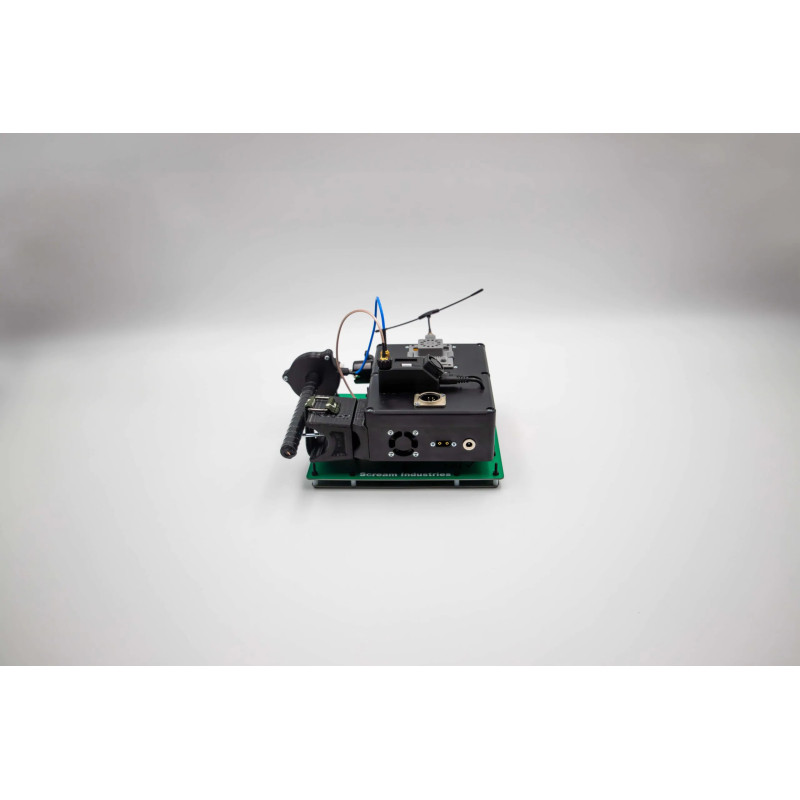

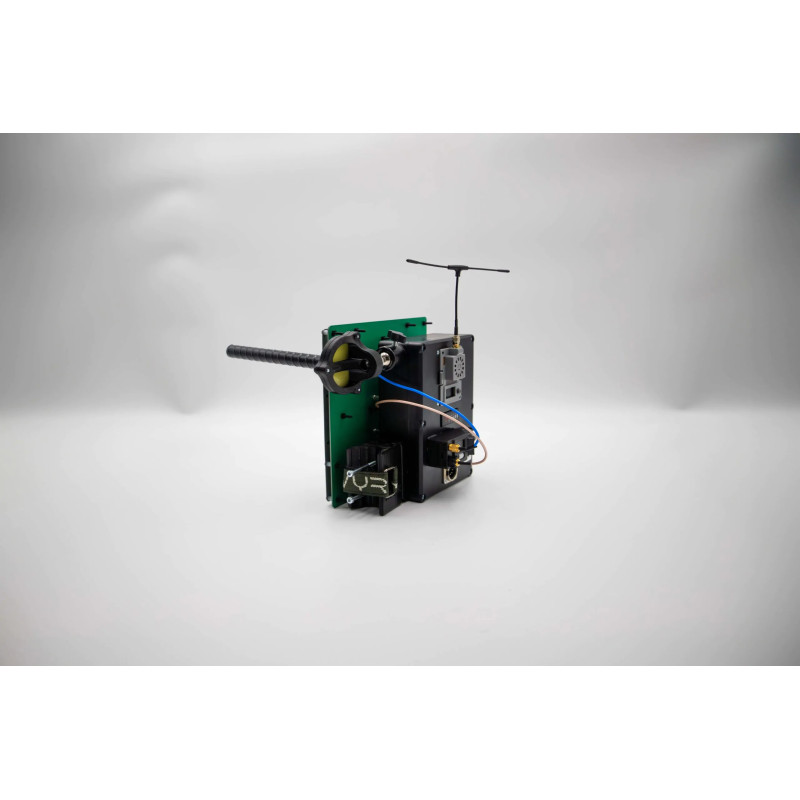

Product Description: The TERRA Scream wired repeater from Vyriy Drone is designed to provide reliable, stable, and secure communication with FPV drones in challenging weather conditions and difficult terrain. The device operates in the 4990-5949 MHz range and allows for clear video reception from the drone at distances up to 20 km. At the heart of the solution is a powerful 21 dBi circularly polarized patch antenna, as well as an additional 14 dBi helix antenna, which enhances reception quality and stability. The repeater features a quick-release mast mounting system for rapid installation and removal, a remote on/off function for power saving and control, and a built-in convenient wired connection module for control equipment with an additional output for goggles and a 5.8 GHz video transmitter for local wireless transmission within a shelter or dugout. The kit includes a charger and a 50m connection cable for remote placement of the repeater from the operator. *price without mast*
Key Advantages
- Support for popular communication modules: ELRS and TBS Crossfire.
- Video signal reception range 4990-5949 MHz, operating in L and X bands.
- 21 dBi circularly polarized patch antenna and an additional 14 dBi helix for enhanced signal reliability.
- Wired communication channels for control equipment and video signal transmission ensure maximum channel protection against interference and jamming.
- Quick-release mounting mechanism for rapid mast installation and removal.
- Built-in 3x21700 LiIon battery with up to 6.5 hours of autonomy and the ability to connect an external battery via XT-60 connector (supports 3s to 6s).
- The included 50m cable allows the repeater to be placed at a safe distance from the operator to improve coverage area.
Technical Specifications:
| Supported Communication Modules | ELRS, TBS Crossfire |
| Repeater Communication Frequency | Quick-change module (735 frequency included). Supported frequencies: |
| Video Signal Reception Range | 4990-5949 MHz (L and X bands) |
| Antennas | 21 dBi patch antenna (circular polarization); additional 14 dBi helix |
| Video Transmission Range | Up to 20 km |
| Power Supply | Built-in 3x21700 LiIon battery, operating time up to 6.5 hours; supports external battery via XT-60 (3s–6s) |

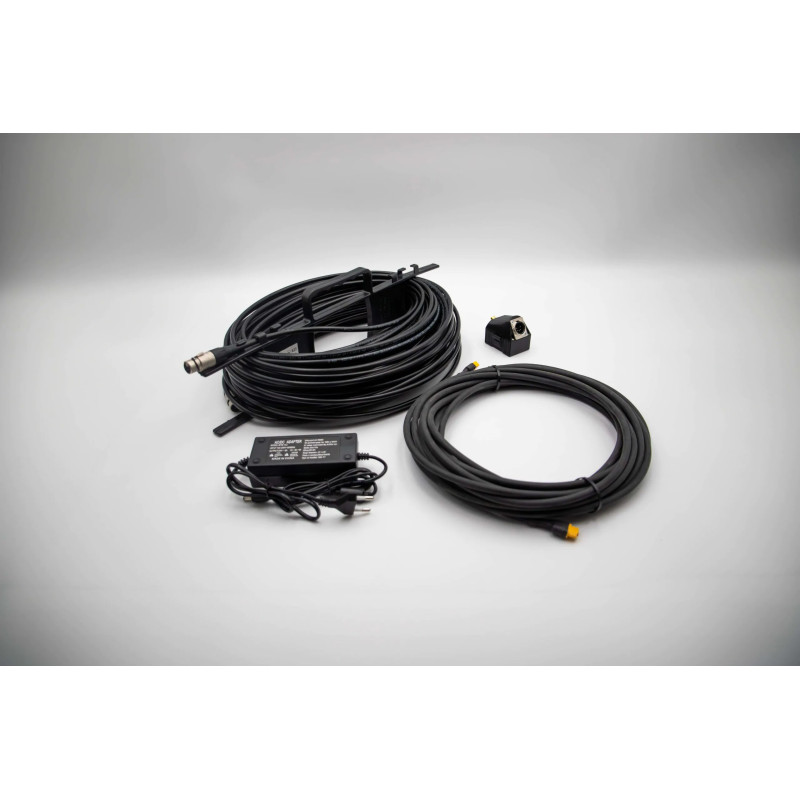

| Package Contents | Charger; wired connection module for control equipment with output for goggles and 5.8 GHz video transmitter; 50m cable |
| Mounting | Quick-release mounting method for mast installation |
| Additional Features | Remote on/off; wired communication channels for enhanced security |

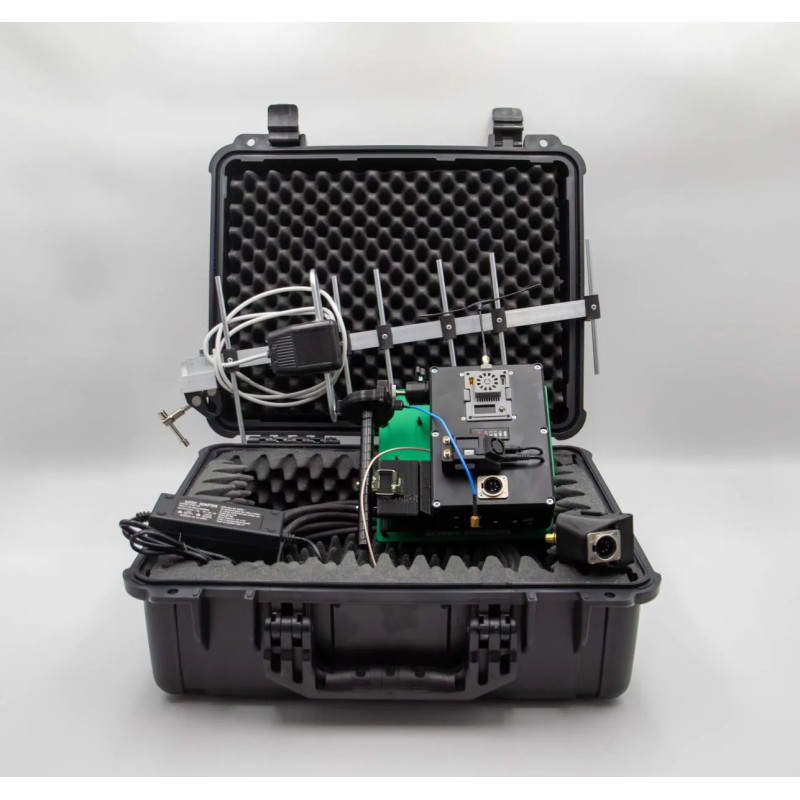

The purpose of this repeater is to provide FPV operators and professional teams with high-quality communication in conditions where a direct radio link is limited by obstacles or terrain. Integration with popular radio modules ELRS and TBS Crossfire makes TERRA Scream a universal solution for various control equipment configurations. Thanks to its complete package (50m cable, charger, module with output for goggles and 5.8 GHz VTX), the device is ready for immediate use at the training ground or in field conditions.
Other important advantages: the ability for long-term autonomous operation on the built-in battery, quick mast installation, and the presence of an additional wired control channel ensure that TERRA Scream will be a reliable communication element in your equipment kit.
