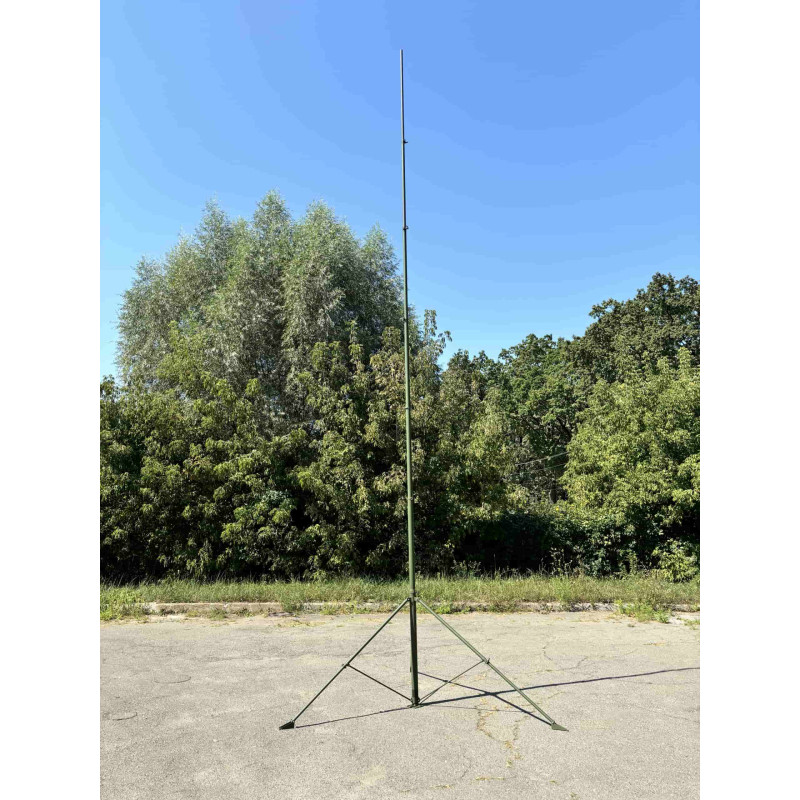

Telescopic Mast (Aluminum) from BlueBird is a versatile and reliable solution for mounting antennas, repeaters, surveillance cameras, and other transceiving equipment within Ground Relay Stations. This mast combines aluminum strength, moderate weight, and ease of transport, making it an optimal choice for both stationary and mobile deployments in field conditions.

General Characteristics and Purpose

Designed to improve communication quality, expand viewing range, and ensure security during telecommunication and security tasks. The mast allows various equipment to be placed at a height of up to 9 meters, ensuring reliable operation of antenna and video recording equipment.

Technical Specifications

Material: aluminum tube with a bottom section diameter of 63x3 mm. Nominal load: up to 7 kg. Maximum extension (height): up to 9 meters. Folded size: 2.15 meters. Product weight: 15 kg.

Functional Features

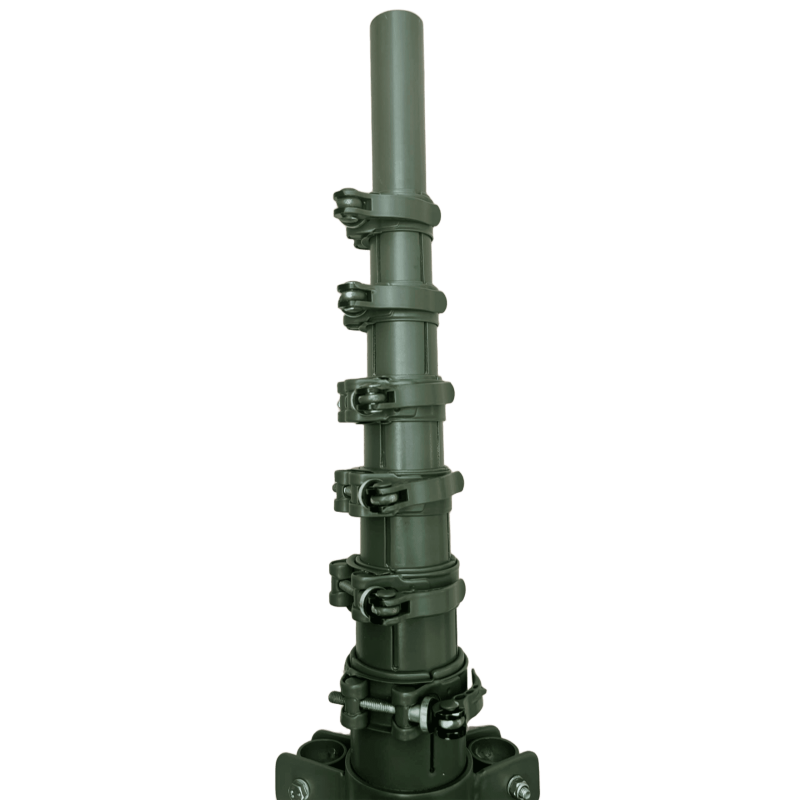

• Quick deployment and folding using special fasteners, taking only a few minutes and allowing for rapid ground station deployment.

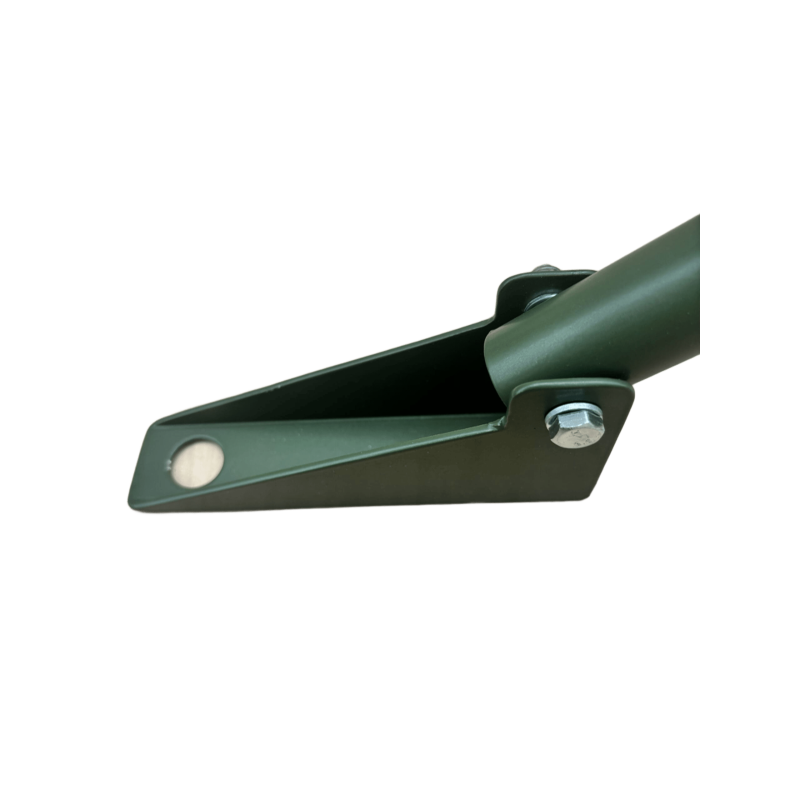

• Stability on uneven surfaces due to the ability to fix the legs, increasing installation reliability even in challenging field conditions.
• A nominal load of up to 7 kg allows for the installation of antennas, repeaters, cameras, and various sensors.
• Easy height adjustment with a maximum extension of up to 9 meters provides optimal coverage and area overview.
• Compactness when folded (2.15 m) allows for convenient transport of the mast in a pickup truck bed or other vehicle.
• Weight — 15 kg: the mast remains mobile without losing structural strength.
• The top attachment is easily removed along with the equipment, significantly speeding up the deployment and service process.

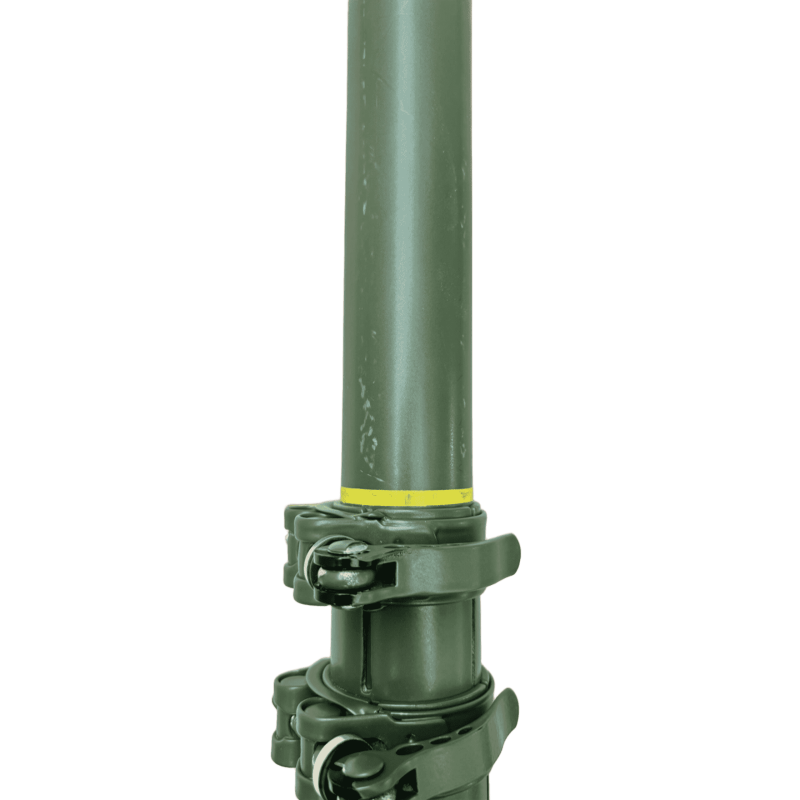

• A yellow line to prevent over-extension during deployment enhances operator safety during installation.

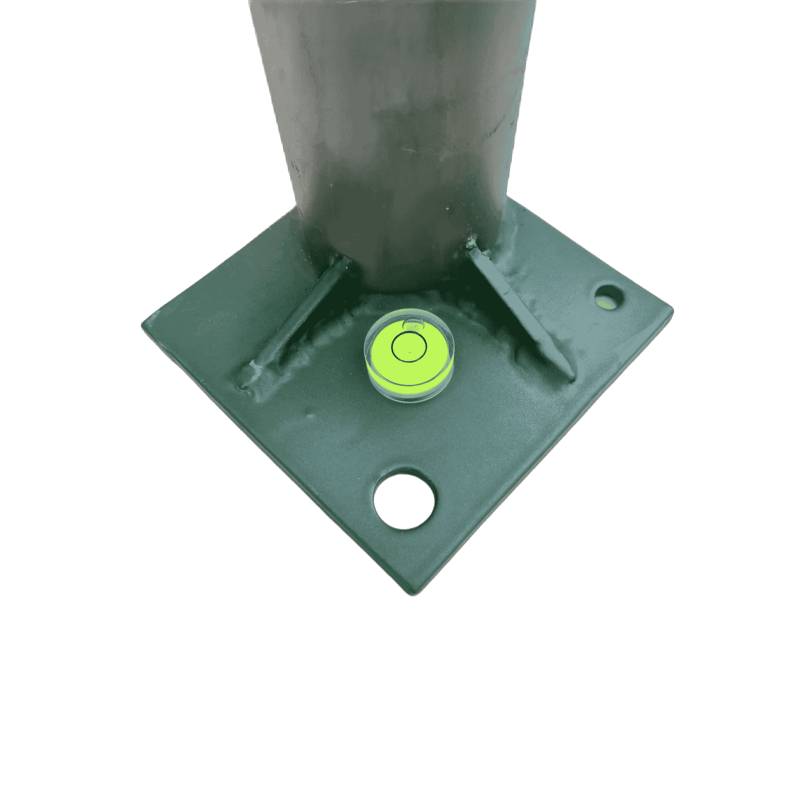

• A bubble level allows for precise vertical positioning of the mast for correct operation of the installed equipment.
• The ability to operate at a distance from the installed equipment increases personnel safety during maintenance and setup.
• Available in any color by pre-order (note: minor paint damage may occur during opening and closing).

Package Contents

• Mast (aluminum tube with a bottom section diameter of 63x3 mm) — 1 pc.
• Cables with wedges for stable installation and structural reliability in any conditions — set included.

The BlueBird Telescopic Mast (Aluminum) is an optimal choice for professional use in telecommunications, security, and mobile operations where deployment speed, reliability, and ease of transport are critical. It combines key technical parameters and functional capabilities that ensure efficient operation of ground relay stations and other field communication systems.
