UAV Control System «Vishchun K-1» by BlueBird

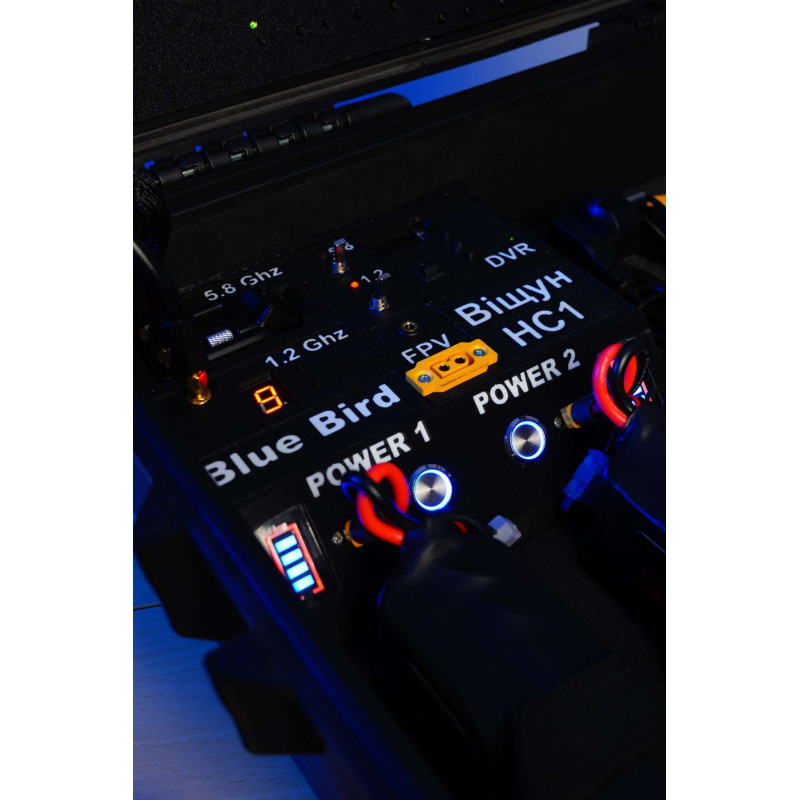

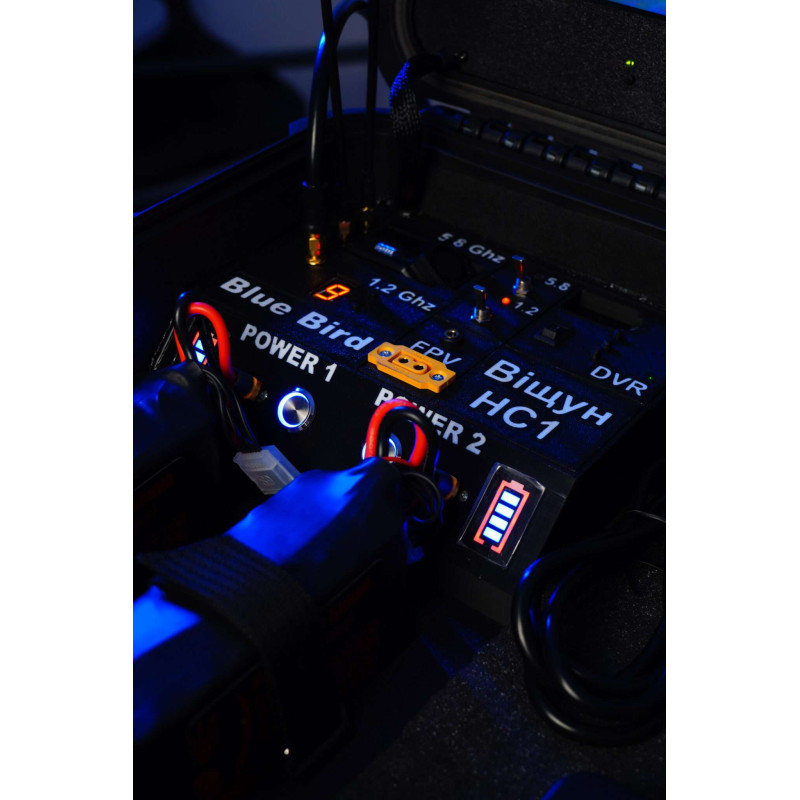

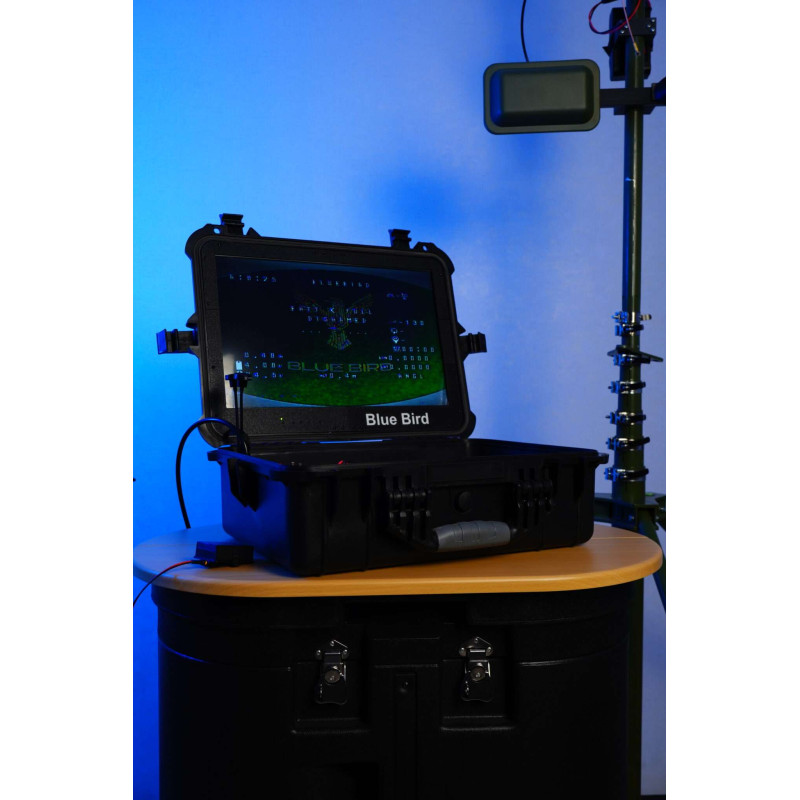

The «Vishchun K-1» UAV control system is a professional mobile solution from the BlueBird brand, designed for FPV drone control by operators and specialists in challenging conditions. At the core of the system is the «Vishchun-NS1» ground station, which ensures reliable video signal reception, video transmission to a built-in 19-inch monitor and goggles, and control command transmission. To enhance personnel safety, the system allows operation from cover (bunker, room, vehicle) using remote modules and antennas.
The «Vishchun-5.8» ground wireless repeater significantly increases the flight range of FPV drones — up to 25 km in favorable conditions, acting as an intermediate link between the operator and the aircraft. The device is mounted on a 9-meter high telescopic aluminum mast, allowing for quick installation of antenna systems, cameras, and other sensors for maximum visibility and communication stability.
System Purpose
The ground station enables the pilot and navigator to control drones from a comfortable and safe cover, maintaining flight control and receiving high-quality video transmission to the monitor and goggles. The repeater receives the video signal from the drone and transmits control commands, while the mast ensures optimal antenna placement to increase range and communication reliability.
Key Advantages of the «Vishchun» System
- Pilot Safety: ability to operate from cover thanks to remote antennas.
- Convenience: built-in 19-inch monitor and video transmission to goggles enhance control efficiency.
- Device Power: the station can power and charge all necessary devices.
- Wireless Communication: the pilot is not tethered by a cable, staying at a safe distance of up to 1 km from the mast with the repeater.
- Mobility and Autonomy: portable design and autonomous power for the repeater for quick setup.
- Long Range and Reliability: drone range up to 25 km depending on conditions.
- Quick Setup: easy installation thanks to quick-mount fasteners.
- High-Quality Components: premium components for maximum reliability.
- Operational Stability: maintains communication even in challenging conditions with interference.
Technical Specifications of the «Vishchun-NS1» Ground Station
| Parameter | Characteristic |
|---|---|
| Drone Video Reception | |
| VRX1 | 5.8GHz SKYZONE Steadyview X 5G (4.990–5.945GHz) |
| VRX1 Antennas | RHCP FOXEER Pagoda Pro 5.8GHz, 3 dBi |
| VRX2 | 1.2GHz (1.080–1.360GHz) |
| VRX2 Antenna | 1.3GHz TrueRC 1280 V2 (RHCP Bottom), 1.9 dBi |
| Receiver Sensitivity | –98 dBm ± 1 dBm |
| Drone Control Reception | |
| Remote Module for TX** | JR ERLS / TBS / Lora with autonomous power |
| Remote Module for VRX Antenna | SMA Female Connector |
| Cables for Antenna Connection | |
| TX Module Cable | 15 m (XT30 – XT30) |
| VRX Module Cable | 15 m (SMA Male – SMA Male) |
| Power Supply | |

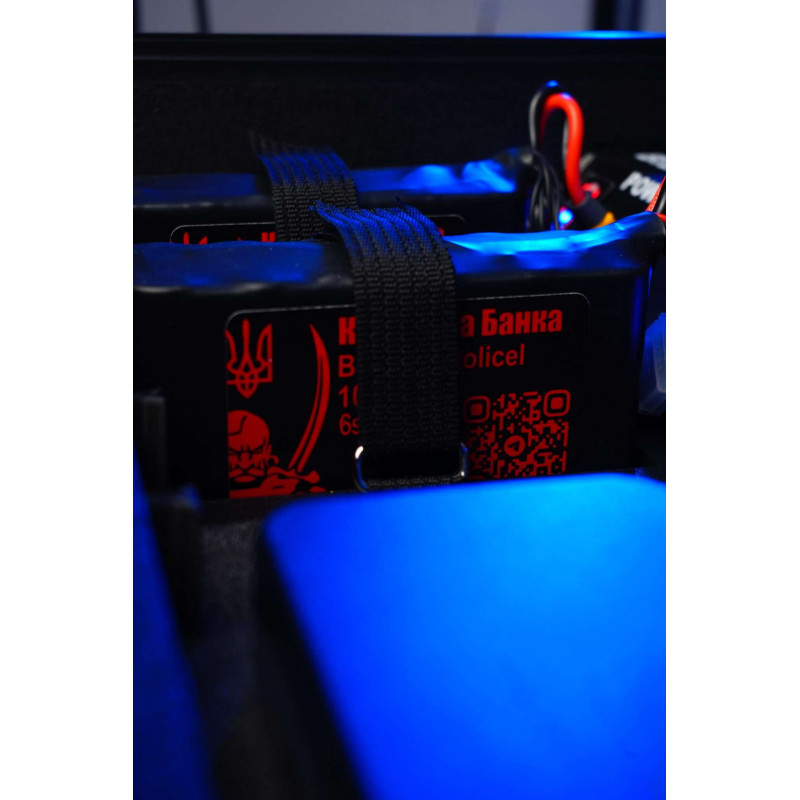

| Ground Station | Two 6S2P Batteries |
| Remote Module for TX | Two 18650 Batteries |
| Operating Time | |
| Ground Station | Up to 6 hours |
| Remote Antenna Module | Up to 6 hours |
| Pilot Goggles Connection | |
| Power | XT60 12V Connector |
| Video | 3.5 x 4pin Connector – 2 pcs. |
| Cables for Goggles Connection | |
| Power* | 1–3 m |
| Video* | 1–3 m |

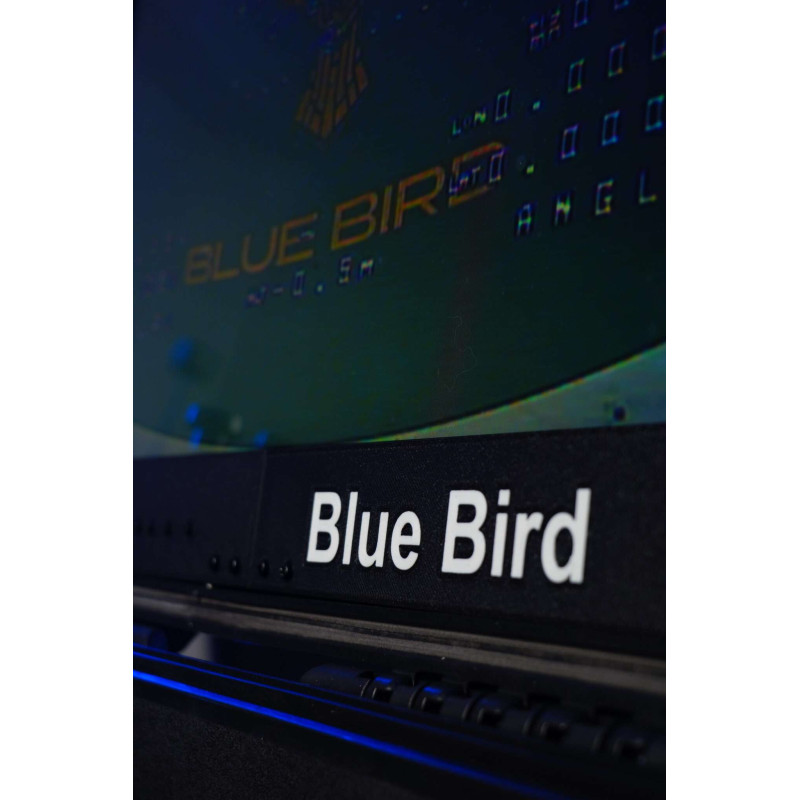

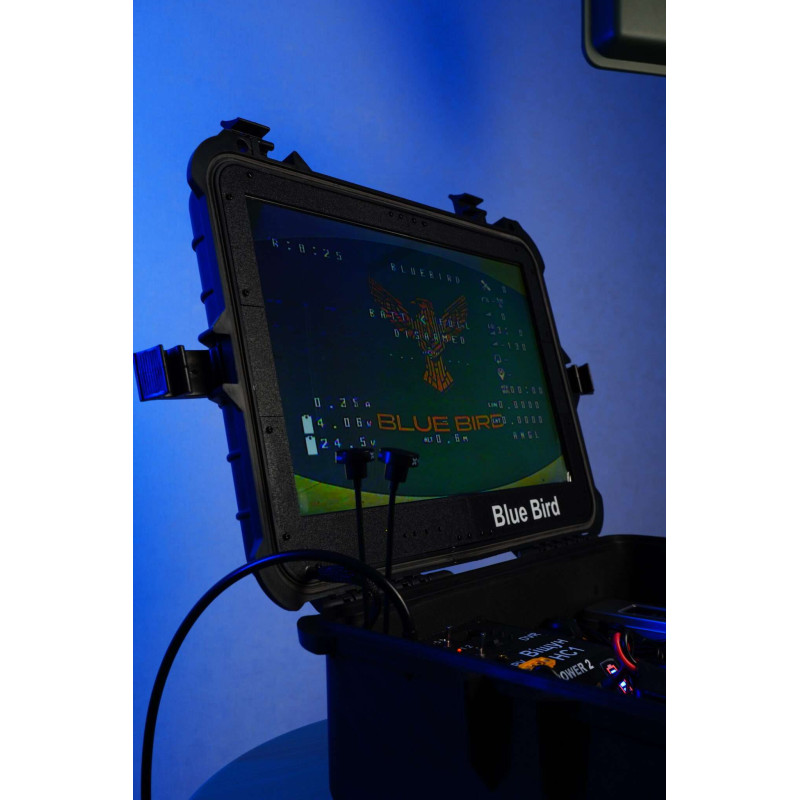

| Monitor | Built into case, 19″ |
| DVR | Recording to microSD with playback capability |
| Charging Ports | |
| Type-C | 45W QC |
| USB 3.0 | 18W QC |
| Weight | (not specified) |
| Dimensions | (not specified), case |
* Length chosen by customer
** Optional addition of TX ERLS/TBS/Lora (not included)
Technical Specifications of the «Vishchun-5.8» Wireless Repeater
| Parameter | Characteristic |
|---|---|
| Reception from Drone | |
| VRX | 5.8GHz SKYZONE Steadyview X 5G (4.990–5.945GHz) |
| Receiver Sensitivity | –98 dBm ± 1 dBm |
| TX** | ERLS / TBS / Lora – not included (max. 2W) |
| Antenna Connectors | SMA Female |
| Wireless Transmission to Operator | |
| VTX | ReadytoSky VTX 1.2G / 1.3G, 800 mW, 9 channels |
| VTX Antenna | TrueRC Singularity 1280 V2 (RHCP Bottom90), 1.9 dBi |
| RX | TBS Crossfire Nano |
| RX Antenna | TBS Diamond 915MHz, 2.88 dBi |
| Distance to Operator | Up to 1 km (with line of sight) |
| Power Supply | |
| Repeater | 6S2P Battery |
| Operating Time | Up to 8 hours |
| Weight | (not specified) |
| Dimensions | (not specified) |
Mast Technical Specifications
| Parameter | Characteristic |
|---|---|
| Height (folded) | 2.15 m |
| Height (unfolded) | 9 m |
| Weight | 15 kg |
| Dimensions | (not specified) |
The «Vishchun» UAV Control System includes:
| No. | Name | Quantity | Note |
|---|---|---|---|
| 1 | Ground Station «Vishchun-NS1» | 1 | |
| 2 | Antenna 1.3GHz TrueRC 1280 V2 (RHCP Bottom), 1.9 dBi | 2 | |
| 3 | Antennas RHCP FOXEER Pagoda Pro 5.8GHz, 3 dBi | 2 | |
| 4 | Remote Module for TX | 1 | |
| 5 | Remote Module for VRX Antenna | 1 | |
| 6 | Cable for VRX Antenna Module | 15 m | |
| 7 | Cable for TX Module | 15 m | |
| 8 | Goggles Connection Cable (video) | 1–3 m | To be specified |
| 9 | Goggles Connection Cable (power) | 1–3 m | To be specified |

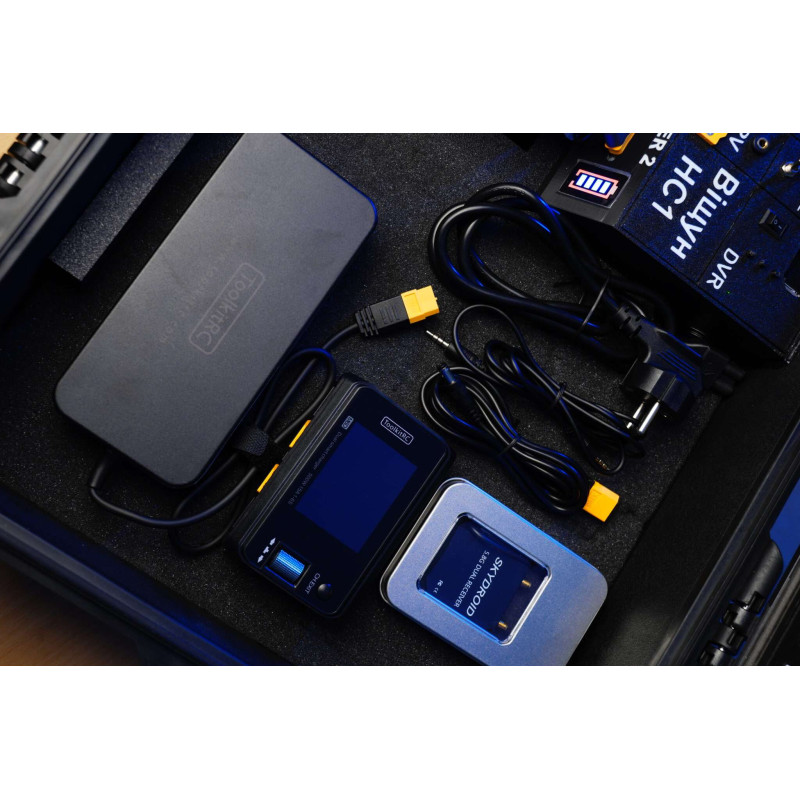

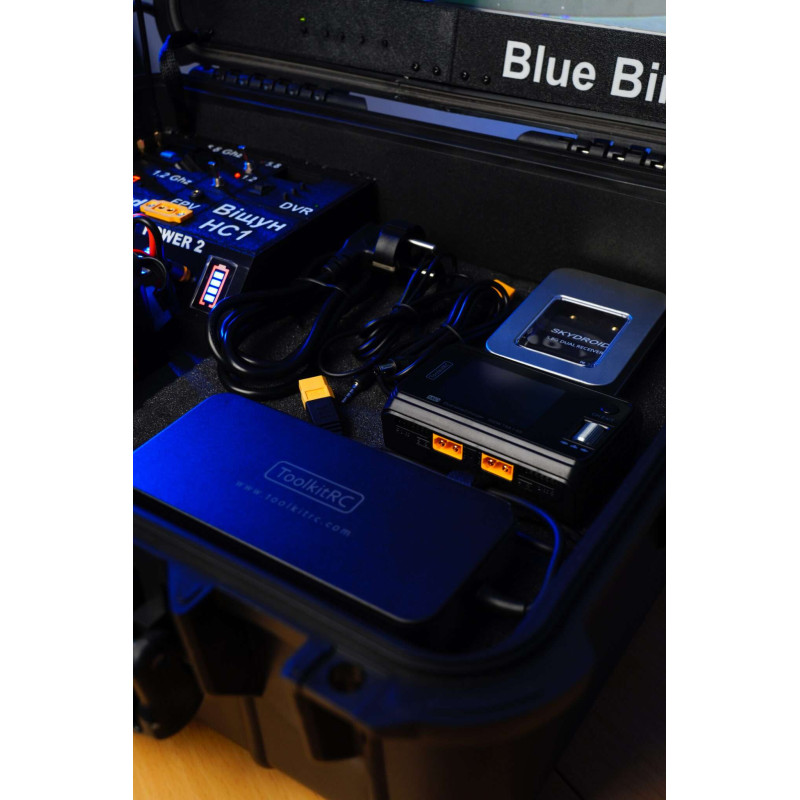

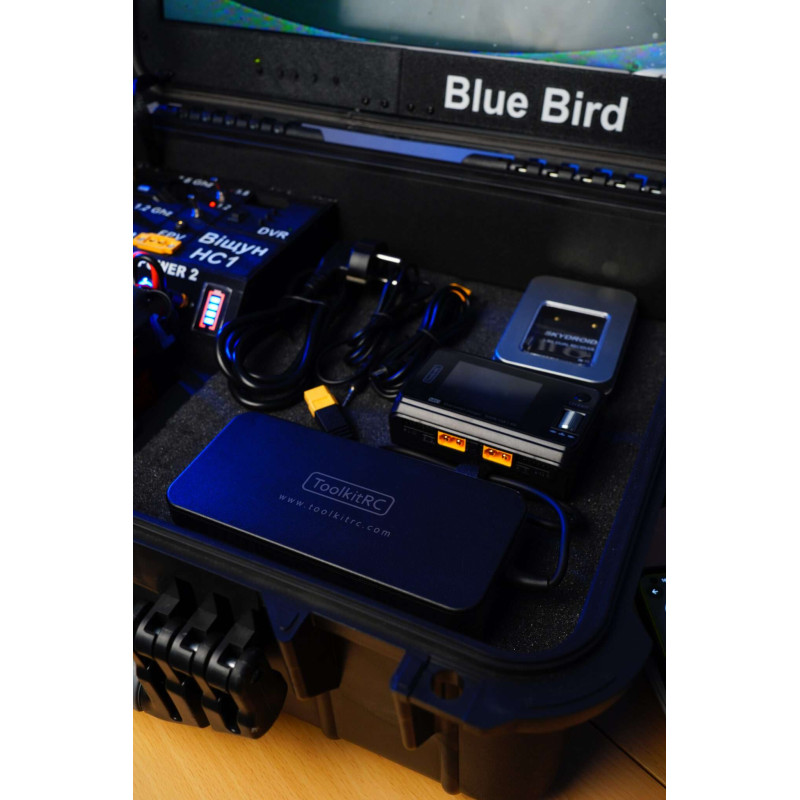

| 10 | ToolkitRC M6D Charger with Power Supply | 1 | |
| 11 | SKYDROID 5.8 OTG Receiver | 1 | |
| 12 | 6S2P Power Batteries | 3 | |
| 13 | 18650 Power Batteries | 2 | |
| 14 | microSD Flash Drive | 1 | Optional |
| 15 | Ground Wireless Repeater «Vishchun-5.8» | 1 | |
| 16 | Mast (9 m) | 1 | |
| 17 | Antenna TBS Diamond 915MHz, 2.88 dBi | 1 | |
| 18 | Battery Cable Extension | 1 | |
| 19 | Quick-Mount Fasteners for Mast (for φ40 mm pipe) | 5 | |
| 20 | JR TX (Transmitter) TBS Crossfire | 1 | |
| 21 | Battery Mount for Mast | 1 | |
| 22 | Patch Antenna RHCP 5.8GHz, 17 dBi | 1 | |
| 23 | Helical Antenna RHCP 5.8GHz, 15 dBi | 1 | |

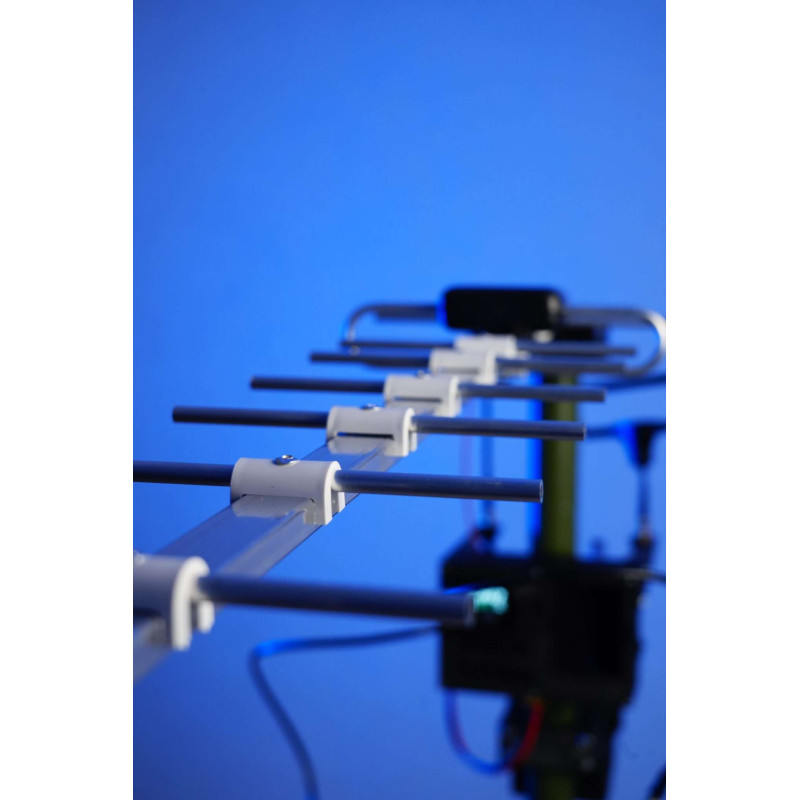

| 24 | Yagi Antenna 915MHz, 14 dBi | 1 | |
| 25 | Mini Mast | 1 | |
| 26 | Helical Cable Extension | 1 | |
| 27 | Patch Cable Extension | 1 | |
| 28 | Patch and Helical Mounting Bar | 1 |
The «Vishchun» UAV Control System by BlueBird is a reliable, mobile, and high-tech solution for professional FPV drone control in the most challenging conditions. The system combines powerful 5.8GHz and 1.2/1.3GHz receivers, high-gain antennas, autonomous power, and a user-friendly pilot interface with a 19-inch monitor and goggle connectivity, ensuring stable communication over long distances and operator safety.
