Vector Network Analyzer Hugen tinyVNA LiteVNA 64 50kHz 6.3GHz, SWR, Gain/Loss
Hugen tinyVNA LiteVNA 64 50kHz 6.3GHz Vector Network Analyzer, Frequency Response, SWR - is a compact and powerful device designed for analyzing radio frequency circuits. It is ideal for radio amateurs, engineers, and technicians working with radio frequency devices. This analyzer allows measuring frequency response, SWR, and other circuit parameters across a wide frequency range.
The device finds application in many areas, including the development and testing of antennas, filters, amplifiers, and other radio frequency components. It is also useful for debugging and maintaining radio electronic equipment. Thanks to its compactness and portability, the LiteVNA 64 can be used both in the laboratory and in the field. Its intuitive interface and powerful software make it accessible to users with varying levels of experience.
Key Features
| Characteristic | Value |
|---|---|
| Frequency Range | 50 kHz - 6.3 GHz |
| Dynamic Range | 70 dB (up to 3 GHz), 60 dB (up to 6.3 GHz) |
| Number of Measurement Points | Up to 101 points |
| Scan Speed | 400 points/s |
| Display Type | 4-inch Touch LCD |
| Connectors | SMA |
| Power Supply | USB Type-C |
| Dimensions | 165 x 105 x 55 mm |
| Weight | 180 g |
| Measurements | Frequency Response, SWR, Phase, Impedance, S-parameters |
| Calibration | Full calibration kit (short, open, load) |
| Software | LiteVNA Saver |
| Operating System | Windows, Linux, macOS |
| Frequency Accuracy | ±2.5 ppm |
| Output Power | -13 dBm |
| Input Impedance | 50 Ohm |
| PC Connection Interface | USB Type-C |
| Data Saving Capability | Yes |
| Data Export Capability | S1P, S2P, CSV |
| Operating Temperature | 0°C - 45°C |
| Storage Temperature | -20°C - 70°C |
Advantages of Hugen tinyVNA LiteVNA 64
- Wide frequency range: from 50 kHz to 6.3 GHz, allowing work with various radio frequency devices.
- Compactness and portability: convenient for use in the field and for on-site work.
- High measurement accuracy: ensures reliable and trustworthy results.
- Intuitive interface: easy to use even for beginners.
- Powerful software: LiteVNA Saver for detailed data analysis and processing.
- Affordable price: excellent value for money.
- Calibration capability: full calibration kit to ensure maximum accuracy.
- Fast scanning: 400 points/s for quick circuit analysis.
- Data saving and export capability: for further analysis and processing.
- Support for various operating systems: Windows, Linux, macOS.
Analyzer Features

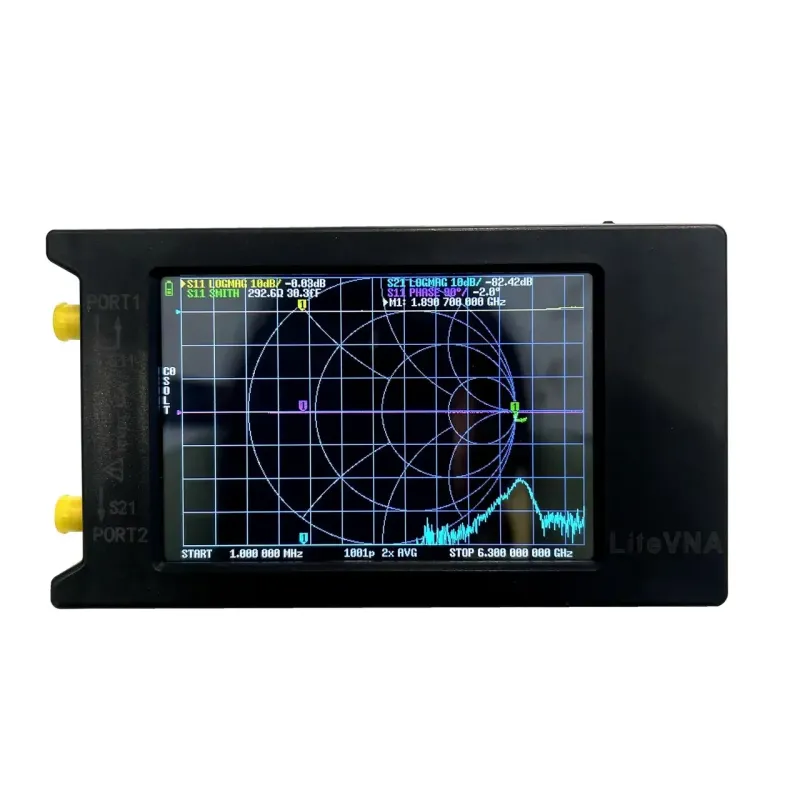

The LiteVNA 64 has a built-in 4-inch touch display, which provides convenient visualization of measurement results. It is also equipped with a USB Type-C port for power and connection to a computer. The analyzer supports a full calibration kit, allowing for high measurement accuracy.
Useful Functions
- Frequency response and SWR measurement
- Phase and impedance measurement
- S-parameter measurement
- Calibration (short, open, load)
- Data saving and export
- Fast scanning
- Display of results on the touch screen
Software Compatibility
The analyzer is compatible with LiteVNA Saver software, which supports Windows, Linux, and macOS operating systems. This allows users to analyze and process data on their preferred platform.

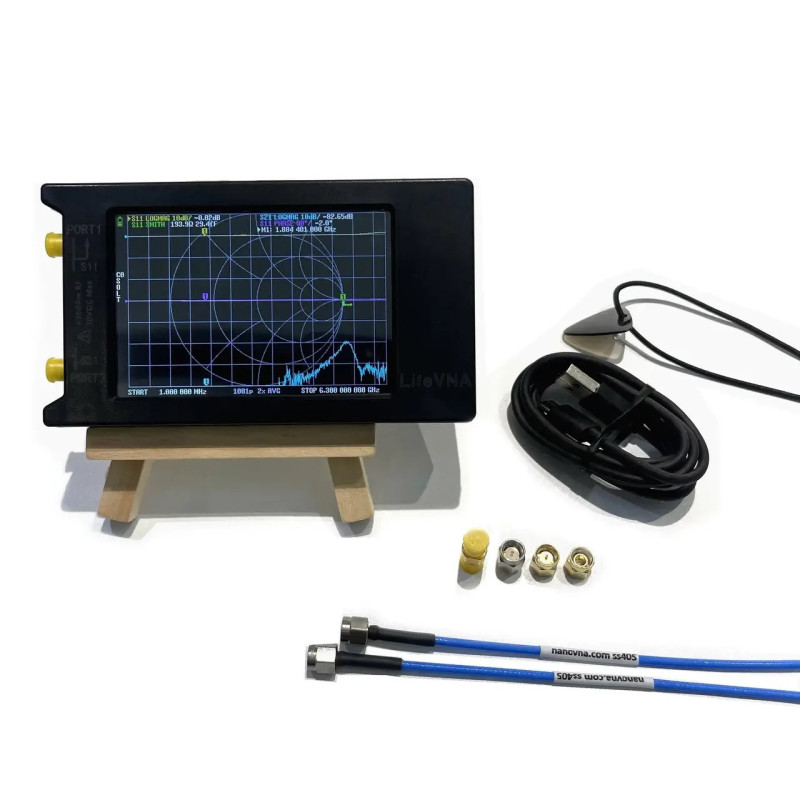

Package Contents
- Hugen tinyVNA LiteVNA 64 Vector Network Analyzer
- Calibration kit (short, open, load)
- USB Type-C cable
- User manual

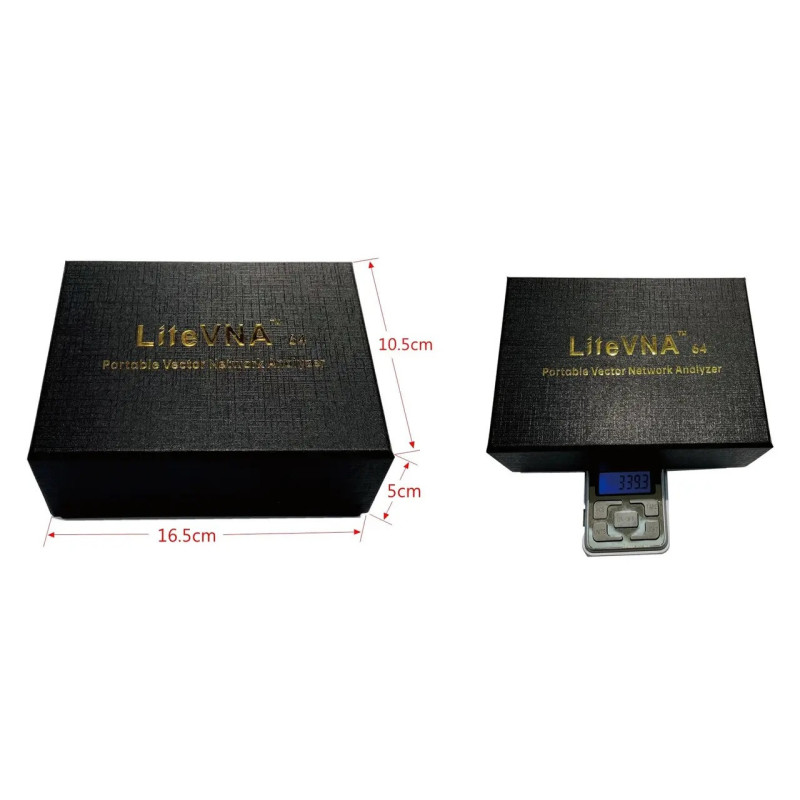

Packaging
The analyzer comes in a compact cardboard box, which provides reliable protection for the device during transportation. The inside of the box has special inserts to secure the analyzer and its components.
If you are looking for a reliable and portable vector network analyzer, the Hugen tinyVNA LiteVNA 64 is an excellent choice. It combines a wide frequency range, high measurement accuracy, and an affordable price. This analyzer will become an indispensable assistant for radio amateurs, engineers, and technicians.
