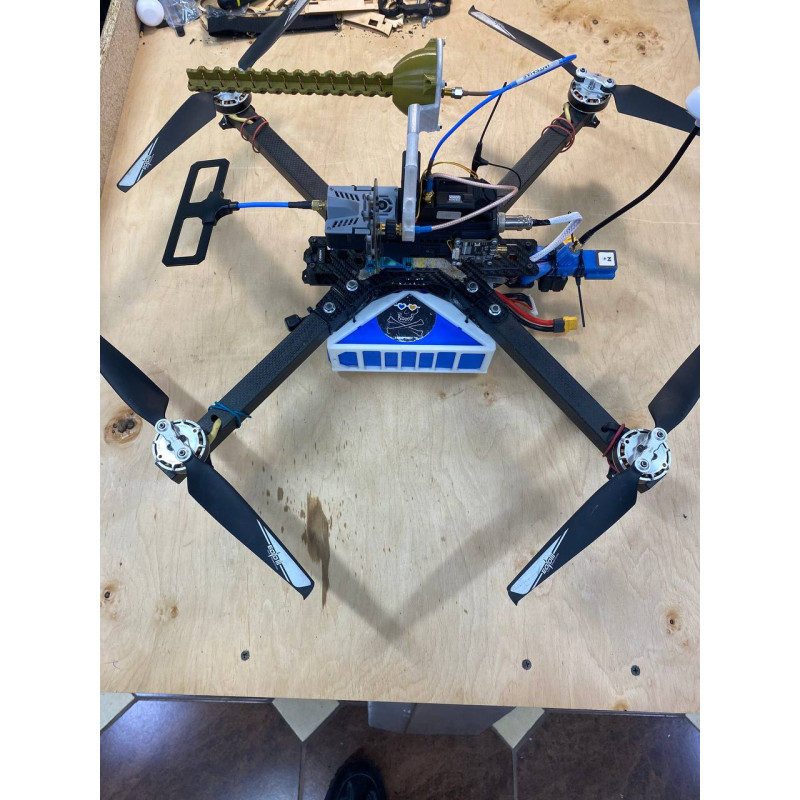

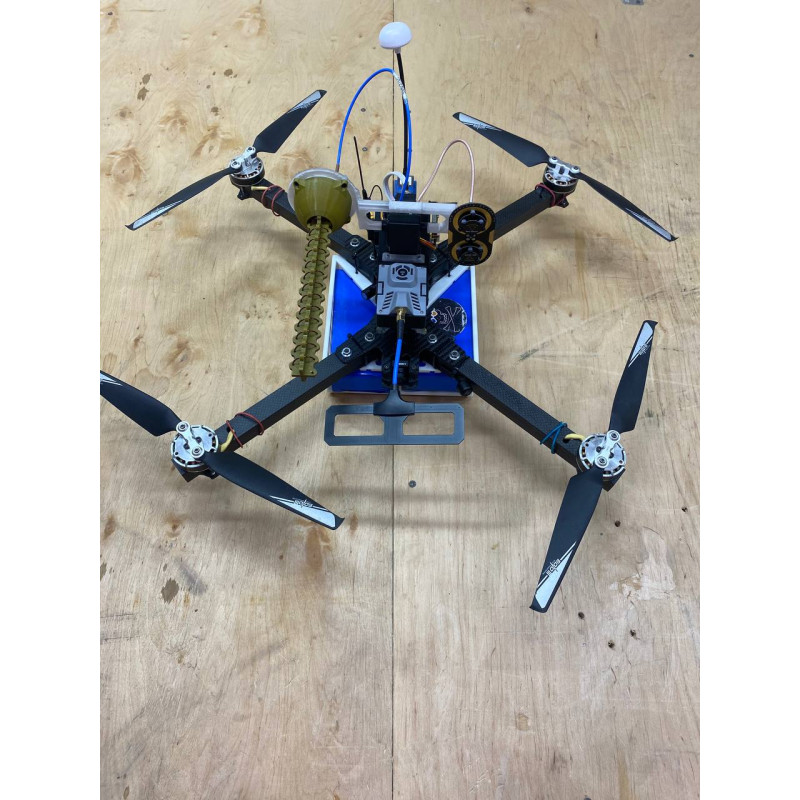

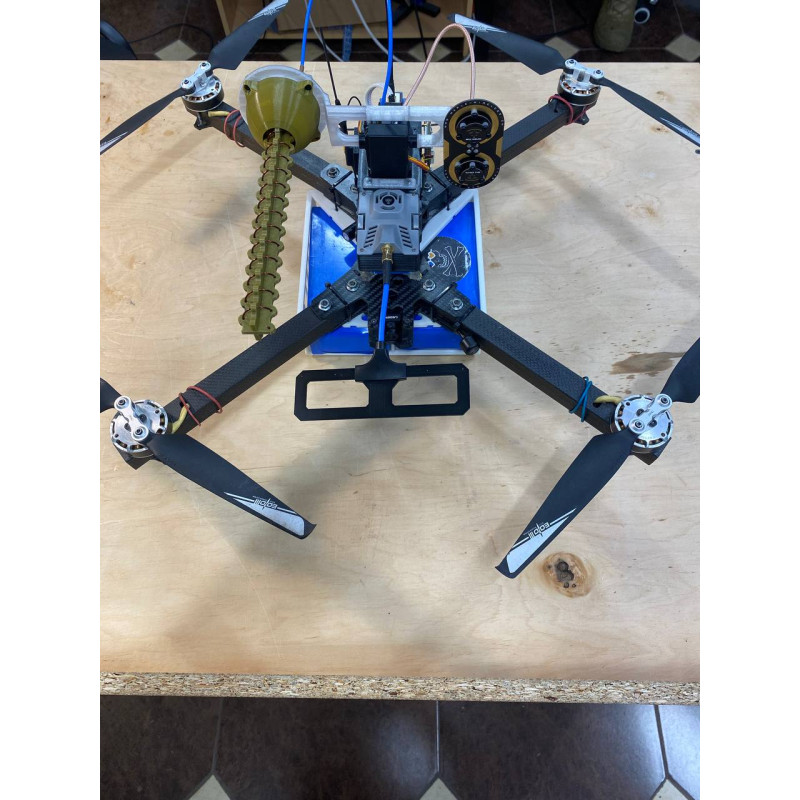

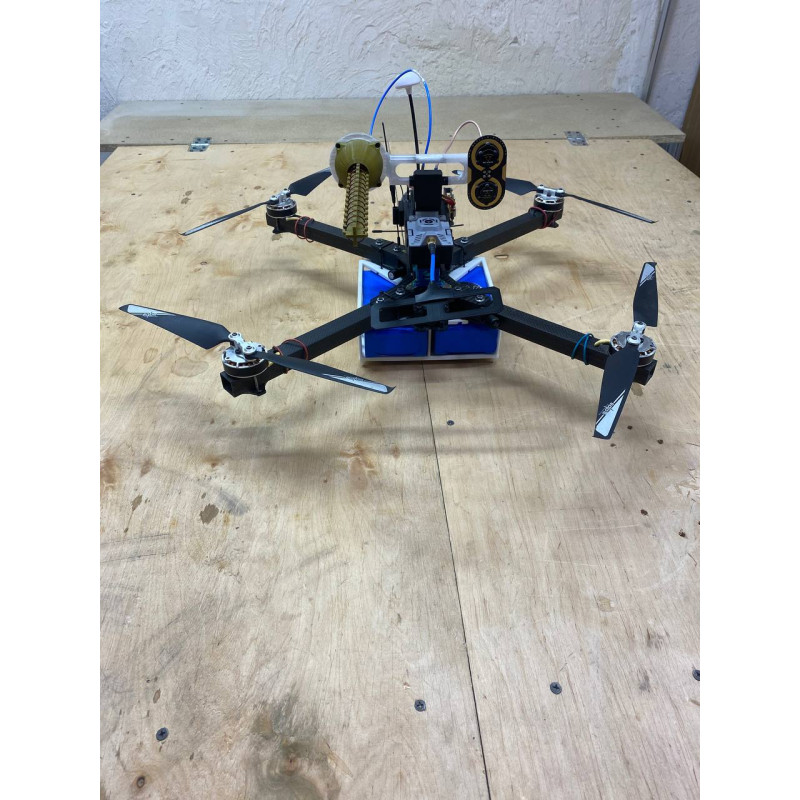

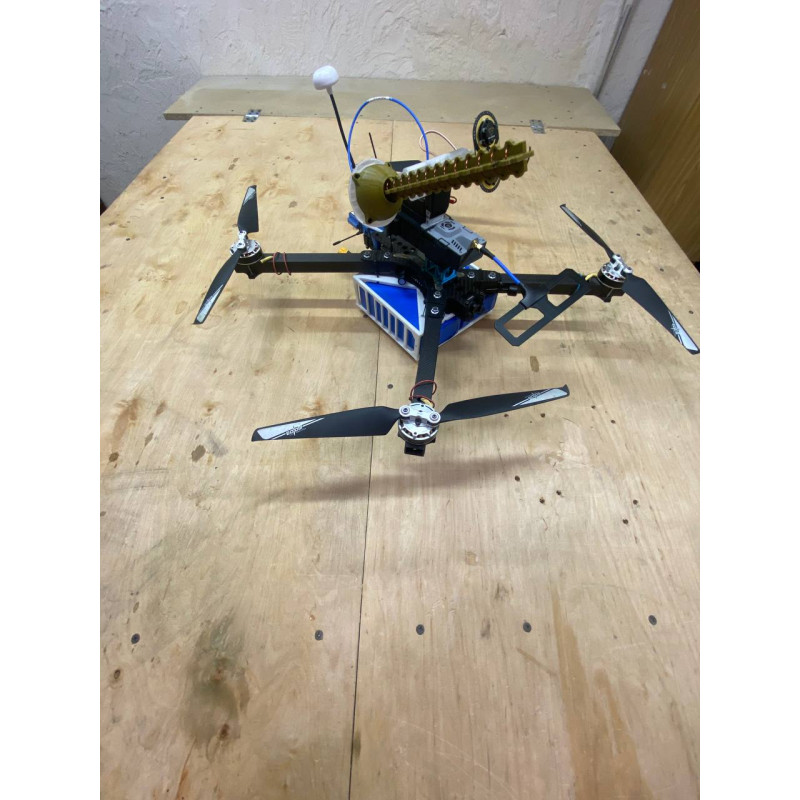

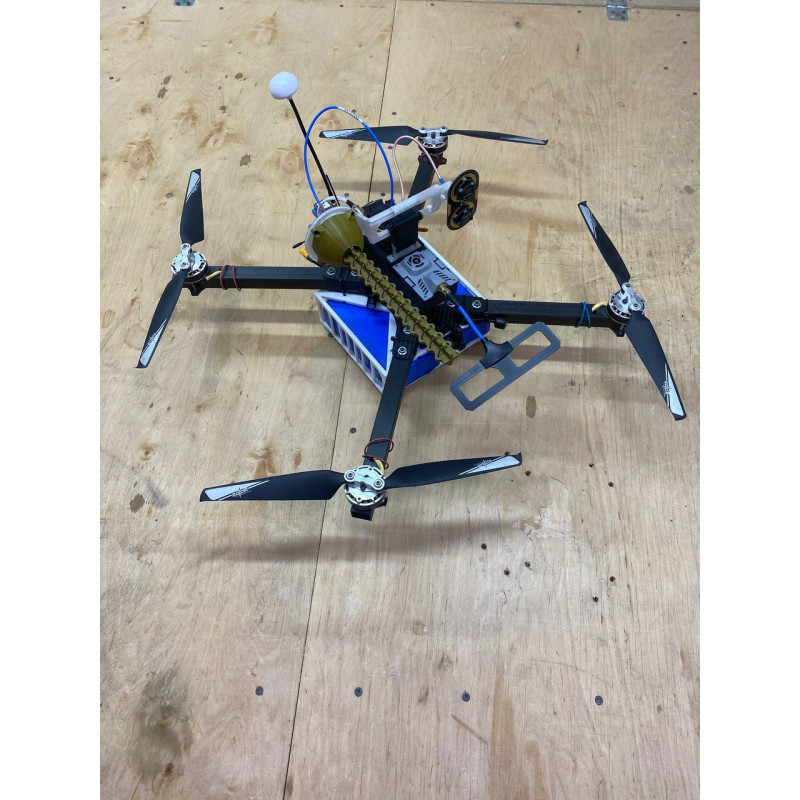

Promin 13 Repeater by BlueBird
The Promin 13 Repeater is a modern solution from the BlueBird brand, designed to provide reliable video and telemetry communication at distances up to 25 km. The model is based on an updated 13-inch platform, allowing for extended flight times of up to 60 minutes and operation in demanding conditions.
Key Features and Benefits:
• Optical Stabilization without GPS/GNSS
The system autonomously maintains altitude, heading, and position, ensuring stable flight at heights from 5 to 300 meters without reliance on satellite navigation.
• Extended Flight Time — up to 60 minutes
Thanks to a powerful propulsion system and a highly efficient 7S4P 20000 mAh battery, the Promin 13 operates twice as long as the previous version, significantly expanding the range of tasks and coverage areas.
• Swiveling Antennas with Precise Positioning
Adjustable antennas allow for maintaining a stable communication channel with the device even at long distances, increasing the reliability of video and data transmission.
• Removable Repeater Module
The entire communication system is compactly located inside a removable module, which can be detached to use the drone platform for other tasks or integrate other equipment.
• Areas of Application
The Promin 13 is ideal for professional FPV tasks, monitoring, reconnaissance, rescue operations, and any scenarios requiring stable and long-range communication in challenging conditions.
Technical Specifications:
Drone Technical Specifications:
| Parameter | Value |
|---|---|
| Motors | 4008 330KV |
| Flight Controller | SpeedyBee F405 V3 |
| Electronic Speed Controller (ESC) | SpeedyBee 60A |
| Video Transmitter (VTX) | RUSH SOLO TANK |
| Telemetry | ELRS HappyModels 915 MHz |
| Battery | 7S4P, 20000 mAh |
Repeater Specifications:
| Parameter | Value |
|---|---|
| Receiver (VRX) | Skyzone SteadyView X 5.8G |
| Video Transmitter (VTX) | Readytosky 1.2G 800 mW |
| Telemetry | TBS 915 MHz |
| Antennas | • Helix 5.8 GHz, 15 dBi (15 turns) • Maple Wireless 5.8 GHz, 11 dBi • Maple Wireless Moxon 915 MHz, 5.15 dBi |
The Promin 13 Repeater by BlueBird includes:
- 1. 13′ Drone with 7S4P, 20000 mAh battery.
- 2. Promin Repeater with antennas:
• Helix 5.8 GHz, 15 dBi (15 turns)
• Maple Wireless 5.8 GHz, 11 dBi
• Maple Wireless Moxon 915 MHz, 5.15 dBi
An 8s battery charger is required to charge the included batteries.
This comprehensive set of components and thoughtful design make the Promin 13 by BlueBird an optimal choice for operators who need long-lasting and stable video communication over long distances. Powerful electronics, reliable motors, a high-performance controller, and a repeater unit with professional antennas guarantee high transmission quality and flexible use.
