Vyriy MARA LITE Drone-Mounted Repeater
The MARA airborne repeater from Vyriy Drone is a specialized wireless module designed for mounting on a carrier drone (drone not included) to significantly enhance the reliability and range of video signal and control link transmission. The device is ideal for FPV flights in challenging terrain conditions where natural obstacles or elevation changes hinder a direct line of sight. Optionally, the repeater can be equipped with a BAYBAK protective enclosure for additional equipment protection. Note the special offer: *35000 UAH when ordering 10 units or more.
Briefly about purpose and advantages
- Reliable restoration of radio horizon in complex terrain conditions.
- Compatibility with popular ELRS and TBS Crossfire communication modules for flexible integration into existing systems.
- Ability to quickly replace the frequency module (735 MHz included) for operation in different regions and for specific tasks: supports 735, 750, 868, 915 MHz, and 2.4 GHz.
- Powerful 1 Watt control antenna ensures reliable communication with control equipment.
- Antenna kit for video reception — 21 dBi patch and 14 dBi Hellix — guarantees stable FPV stream over long distances.

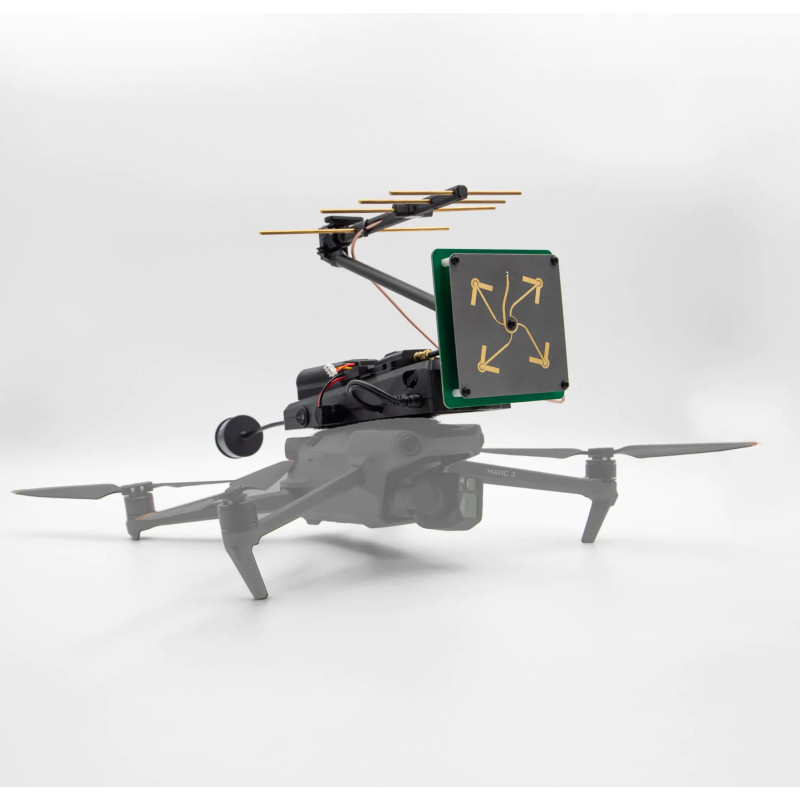

- Easy and quick attachment to the carrier drone using a Velcro patch, minimizing installation time in the field.

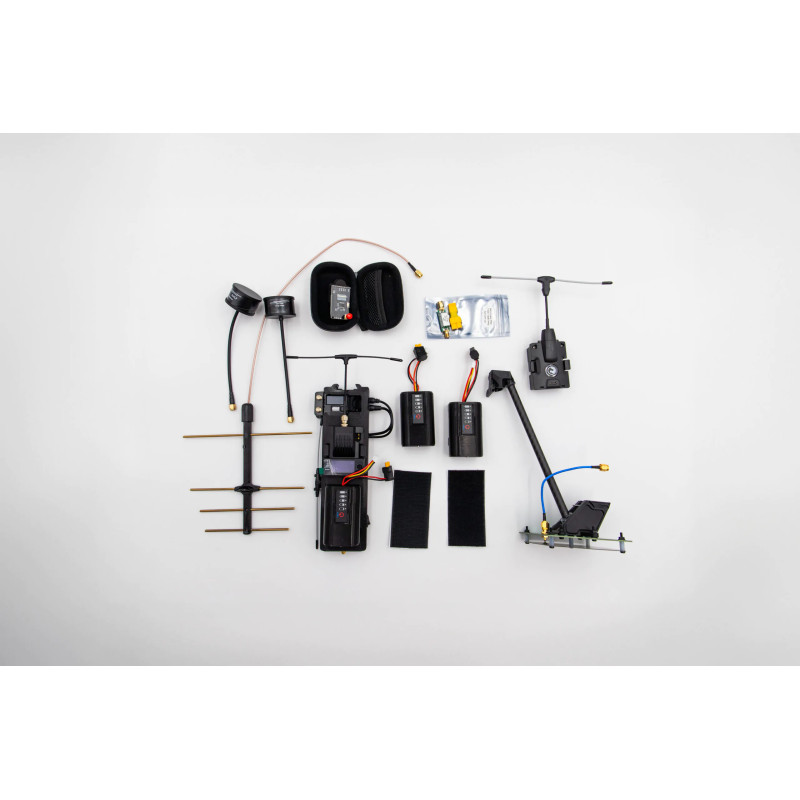

Technical specifications and kit contents
| Supports communication modules | ELRS, TBS Crossfire |
| Communication frequency with repeater | Quick-change module (735 MHz included) supported frequencies: 735, 750, 868, 915 MHz, 2.4 GHz * |
| Control antenna | 1 Watt |
| Video reception antennas | Antenna kit: 21dBi patch and 14 dBi Hellix |
| Video signal reception range from FPV drone | 4.9-6 GHz |
| Communication channel for control equipment | 915 MHz, Crossfire |
| Video signal transmission channel to drone operator | 1200 - 1280 MHz |
| Mounting method to carrier drone | Velcro patch |

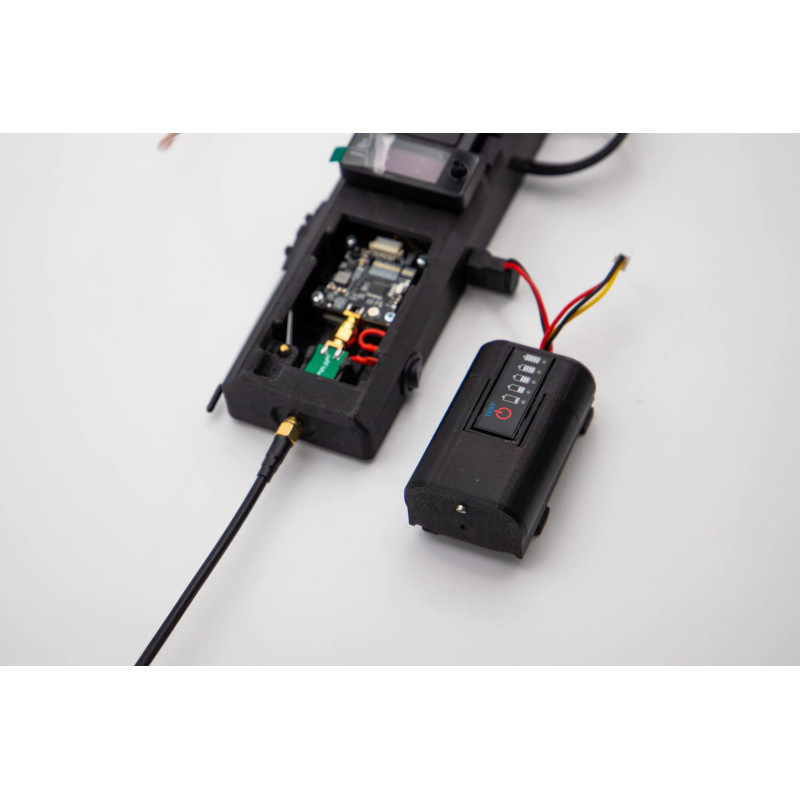

| Power elements | 18650 2S battery |
| Charger | Included |
| Operating time | 3 hours |
| Additionally included in the kit | 5.0 receiver patch antenna, 2 additional 18650 2S batteries |
| 5.8 receiving antenna gain | 14 dBi |
| Weight | 485 g |
The MARA VYRIY repeater provides redundant signal reserve thanks to specialized antenna kits and operation in the 4.9–6 GHz bands for video and 735–915 MHz for the control channel. The video signal transmission channel to the operator operates in the 1200–1280 MHz range, allowing for a stable image even in the presence of interference. Power is supplied by 18650 2S batteries; a charger is included, and typical operating time is about 3 hours in standard configuration. Its light weight (485 g) and Velcro mounting make installation on the carrier convenient and quick.
Area of application
The device is optimally suited for professional FPV flights, long-range video recording, search and rescue operations, inspection missions, and other tasks where communication link reliability is critical. The Vyriy Drone brand guarantees compatibility with popular ELRS and TBS Crossfire systems, as well as the ability to select a frequency module for specific operator requirements.
