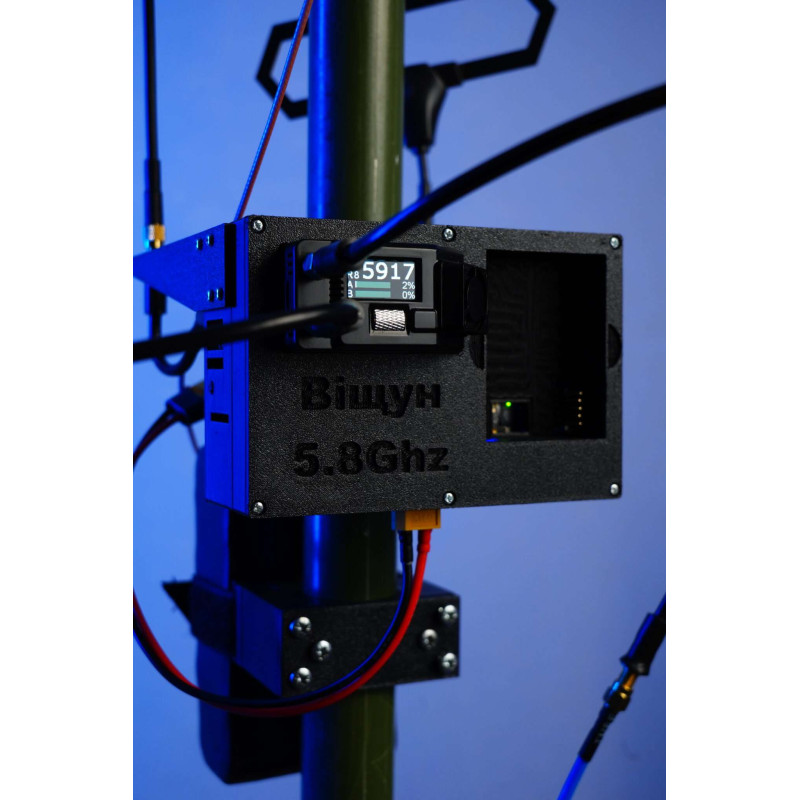

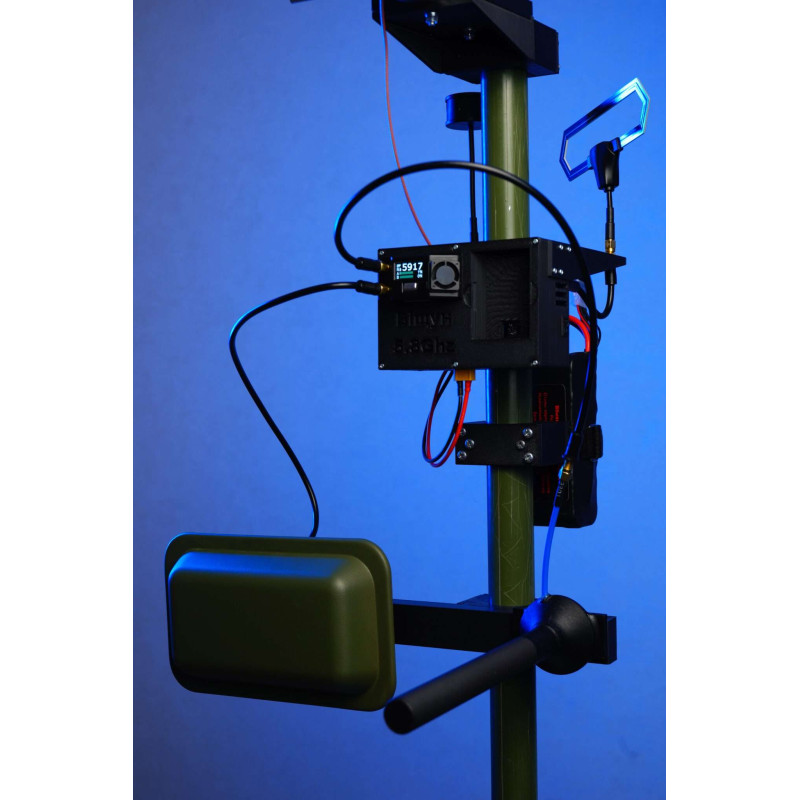

Wireless Repeater "Vishchun" 5.8 GHz from BlueBird is a portable, autonomous device from the Ground Relay Stations category, designed for reliable video signal relay and long-range UAV control. The device is mast-mounted and creates a stable connection between the UAV and the pilot, enabling control and video reception up to 25 km, depending on antennas and terrain conditions, while the pilot can be up to 500 meters from the mast with line of sight.

Key advantages of the "Vishchun" 5.8 GHz Repeater:

• Wireless connection to pilot: the pilot is not tethered by a cable, ensuring freedom of movement and increased safety during operations.
• Mobility and autonomy: portable design and autonomous power allow for quick deployment of the repeater on any mast.
• Long range and reliable communication: with high-gain antennas, the effective UAV flight range can reach 25 km.
• Fast installation: the kit includes quick-mount fasteners, allowing the system to be ready for operation in minutes.

The "Vishchun" repeater is ideal for a wide range of applications: monitoring, search and rescue operations, industrial inspections, and military operations where stable video transmission and reliable UAV control over significant distances are required, while ensuring pilot safety.

Technical Specifications:

• Operating time: 8 hours using 6S2P batteries.
• Power supply: 7-25 V.
• Operating frequency for video reception from UAV: 4.9 – 6 GHz, 56 channels.
• Operating frequency for video transmission from repeater to pilot: 1280 MHz.
• Operating frequency for UAV control: (ERLS or TBS), with maximum power up to 2 W (not included).
• Operating frequency for control transmission from repeater to pilot: 915 MHz (TBS).
• Distance from mast to pilot: up to 500 meters with line of sight.
• Connectors for external antennas: SMA.

The Wireless Repeater "Vishchun" 5.8 GHz includes:

• Blue Bird Repeater.

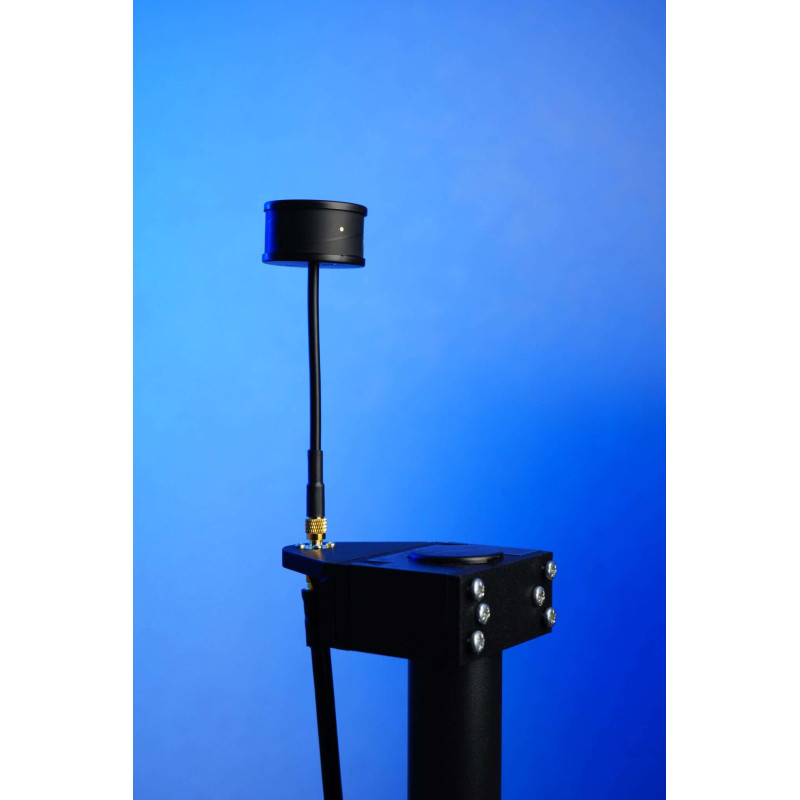

• Antenna 1.3 GHz TrueRC 1280 V2 (RHCP Bottom) 1.9 dBi.
• TBS Diamond 915 MHz 2.88 dBi.
• Battery extension cable.
• Quick-mount fastener for mast (for 35 mm pipe). Can be changed if needed.
• TBS Crossfire transmitter.

Mounting and configuring the repeater takes minutes: simply install the device on the mast, connect power (7-25 V) or a 6S2P battery for autonomous operation up to 8 hours, connect external antennas via SMA connectors, and set the required reception and transmission frequencies according to regional requirements. The device is compatible with ERLS and TBS control systems (control transmitter not included) and allows flexible configuration for your specific operation.

"Vishchun" from BlueBird is the optimal combination of mobility, autonomy, and high performance to ensure reliable communication in challenging conditions. If you need a relay system for professional tasks, this kit provides everything necessary for quick deployment and long-term operation.
