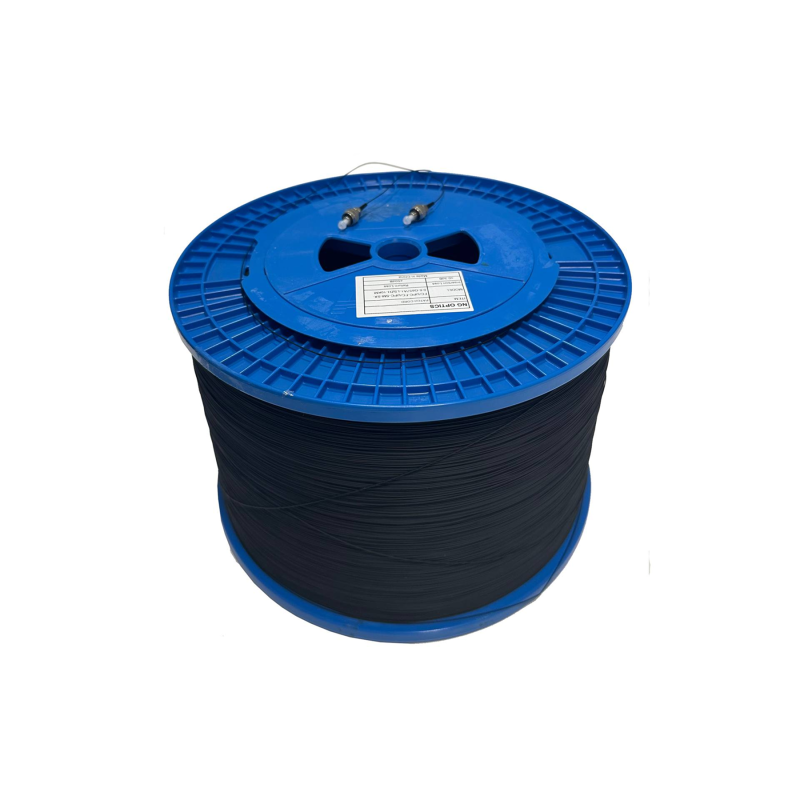

NG OPTICS FC/UPC – FC/UPC Optical Patch Cord for NRK

NG OPTICS FC/UPC - FC/UPC Optical Patch Cord from VideoLink is a high-quality single-mode connecting cable designed for transmitting optical signals with minimal loss over distances up to 10 km. FC/UPC - FC/UPC connectors on both ends with UPC (Ultra Physical Contact) polishing ensure connection stability, low insertion loss, and low back reflection.

The patch cord is made with G.657.A1 single-mode fiber, which has increased flexibility and improved bending characteristics, making it suitable for installation in confined spaces: cabinets, cable ducts, racks, and other installations. The buffer fiber has a diameter of 0.6 mm, ensuring compactness and ease of routing in dense cable runs. The outer jacket is made of LSZH (Low Smoke Zero Halogen) material, which does not emit toxic gases during combustion, so the cable is recommended for use in offices, data centers, educational institutions, and medical facilities with increased fire safety requirements.

The patch cord is of the simplex type (one fiber for transmission in one direction) and is ideal for connecting active network equipment, optical distribution boxes, patch panels, as well as for testing and installation work. The scope of application covers both infrastructure networks and specialized telecommunication solutions.

Specifications

• Cable type: tight buffer, 0.6 mm
• Number of optical fibers: 1
• Outer jacket type: LSZH (Low Smoke Zero Halogen)
• Outer jacket color: White/Yellow/Black
• Optical fiber type: Single Mode G.657A (G.657.A1)
• Cladding diameter: 125±1 μm
• Outer coating diameter: 245±5 μm
• Attenuation @1310 nm: ≤ 0.4 dB/km
• Attenuation @1550 nm: ≤ 0.3 dB/km
• Bend attenuation (10 mm radius, 1 ring): ≤ 1.5 dB @ 1625 nm
• Proof Test: ≥ 0.69 Gpa
• Connector type (side A): FC/UPC
• Connector type (side B): FC/UPC
• Connector insertion loss: ≤ 0.3 dB
• Connector return loss: ≥ 50 dB
• Operating temperature: -40 - +75 ℃
• Storage temperature: -45 - +85 ℃

Brand: VideoLink. Product category: Drones & Quadcopters > Drone Accessories. This is a reliable solution for installation teams and engineers who value compactness, fire safety of materials, and stable optical characteristics when working with dense cable routing. The patch cord combines the high flexibility of G.657.A1 fiber and a safe LSZH jacket, making it a versatile choice for internal networks and specialized installations.

If you need a compact, durable, and safe single-mode patch cord with low insertion loss and high return loss, the NG OPTICS FC/UPC - FC/UPC from VideoLink meets these requirements and is ready for use in a wide range of conditions.
