Vyriy MARA PRO VYRIY Drone-Mounted Repeater
The MARA PRO professional wireless drone-mounted repeater from Vyriy Drone is a reliable solution for extending communication range and stability in challenging weather and terrain conditions. The device is designed for integration with DJI platforms (including DJI Mavic) and is compatible with Matrice 30 mounts, allowing for quick module installation without additional configuration. Operating time on a single charge is approximately three hours, ensuring long flights without frequent battery replacements.
*47 300 when ordering 10 units or more
Key Features and Compatibility

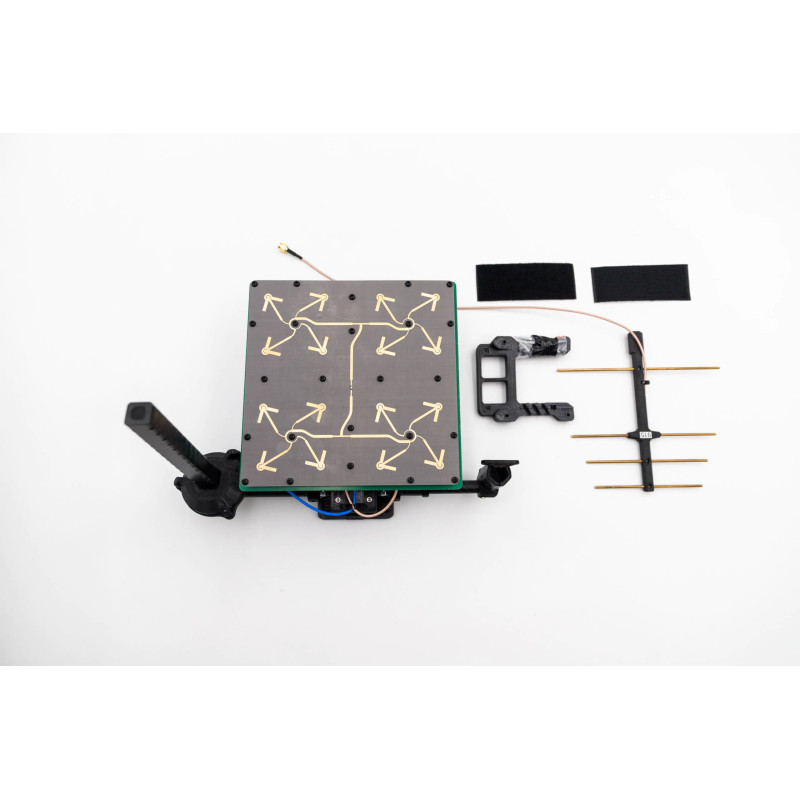

The system consists of the MARA repeater for DJI Mavic drones and an adapter module for DJI Matrice 30, equipped with additional antennas. The repeater supports popular communication modules, giving the operator flexibility in configuration: ELRS and TBS Crossfire. High-gain antennas increase signal range and stability, while their optimized placement minimizes cross-interference.
| Supported communication modules | ELRS, TBS Crossfire |
| Communication frequency with repeater | Quick-change module (735 frequency included). Supported frequencies: less than 500, 735, 750, 868, 915 MHz, 2.4 GHz* |
| Control antenna | Mini Yagi-Uda, 8 dBi gain |
| Video reception antennas | Antenna set: 21dBi patch and 14 dBi Hellix |
| FPV drone video signal reception range | 4.9 - 6 GHz |
| Control equipment communication channel | TBS Crossfire, 915 MHz |
| Video signal transmission channel to drone operator | 1200-1280 |
| Mounting method to carrier drone | Using 4 screws included in the kit |
| Power elements | 2S 21700 battery |
| Charger | Included |
| Receiver for drone operator goggles | 1200MHz video receiver included |
| Additionally included in the kit | Receiver patch antenna 5.0, two additional 2S 21700 batteries |
All kit components are selected for quick deployment: quick-change frequency module (735 MHz kit), 1200 MHz video receiver for goggles, video reception antenna set (21 dBi patch and 14 dBi Hellix), and 8 dBi Yagi-Uda control antenna. This configuration ensures reliable bidirectional communication: the control channel and video transmission channel operate in optimized ranges, reducing the risk of interference and increasing system stability in field conditions. The repeater is mounted on the carrier drone using four screws from the kit, making installation quick and secure. Power is supplied by a 2S 21700 battery; the kit also includes spare batteries and a charger for extended operation at the training ground or in the field.
Advantages of Use
- Extended range and stability of video and control signals thanks to reinforced antennas.
- Quick integration with DJI Mavic and full compatibility with Matrice 30 mounts without additional adapters.
- Ready-to-use kit for the operator: video receiver for goggles, charger, and spare batteries for continuous operation.
- Support for popular ELRS and TBS Crossfire communication modules for flexible settings and compatibility with various control systems.
Brand: Vyriy Drone. Product category: Ground Relay Stations. This repeater will become a reliable component of your unmanned platform when long operation, stable video transmission, and confident control over long distances are required.
