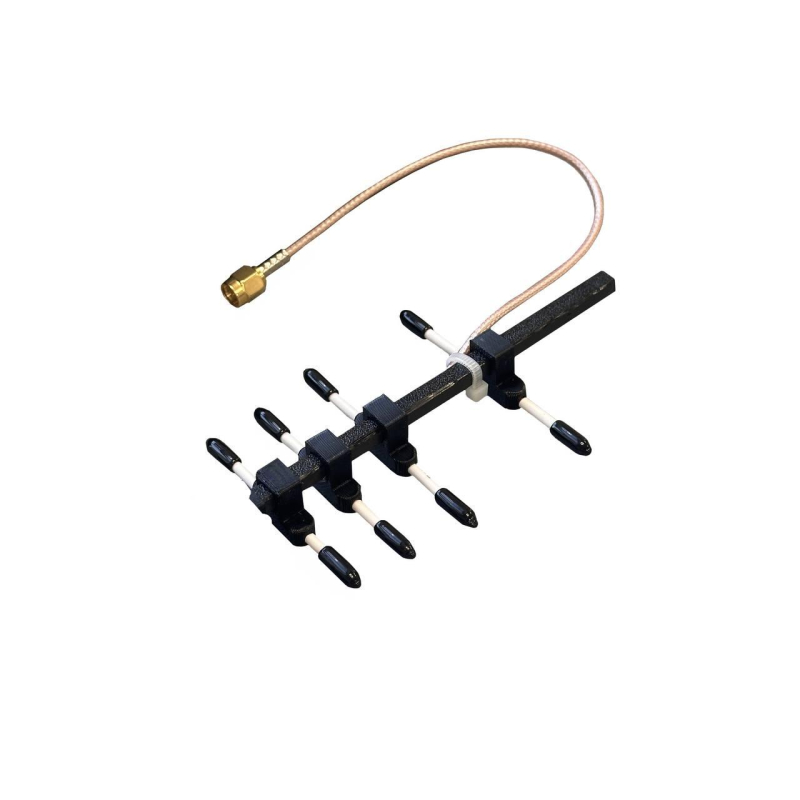

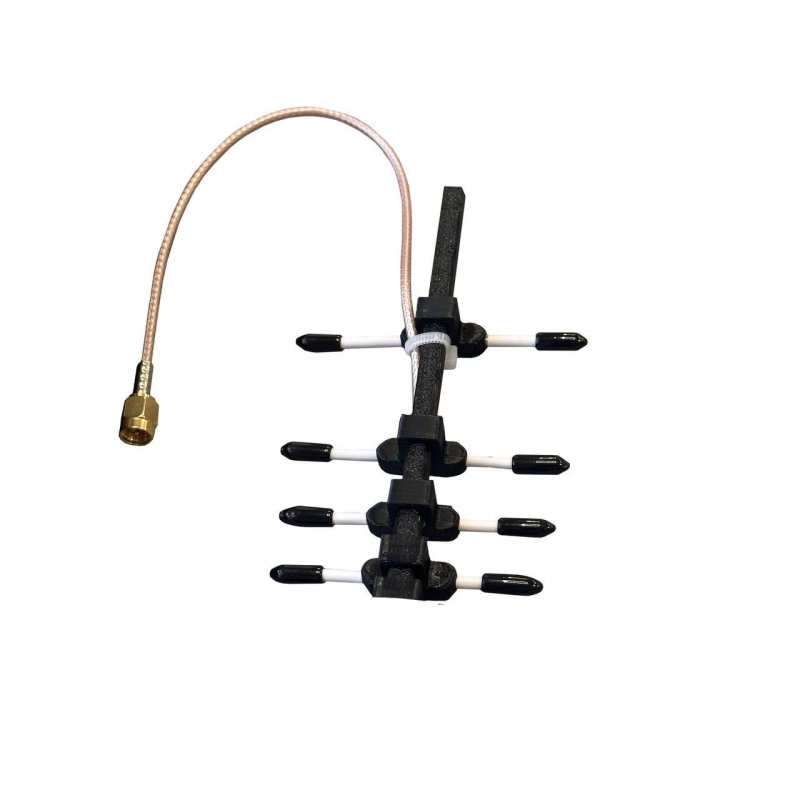

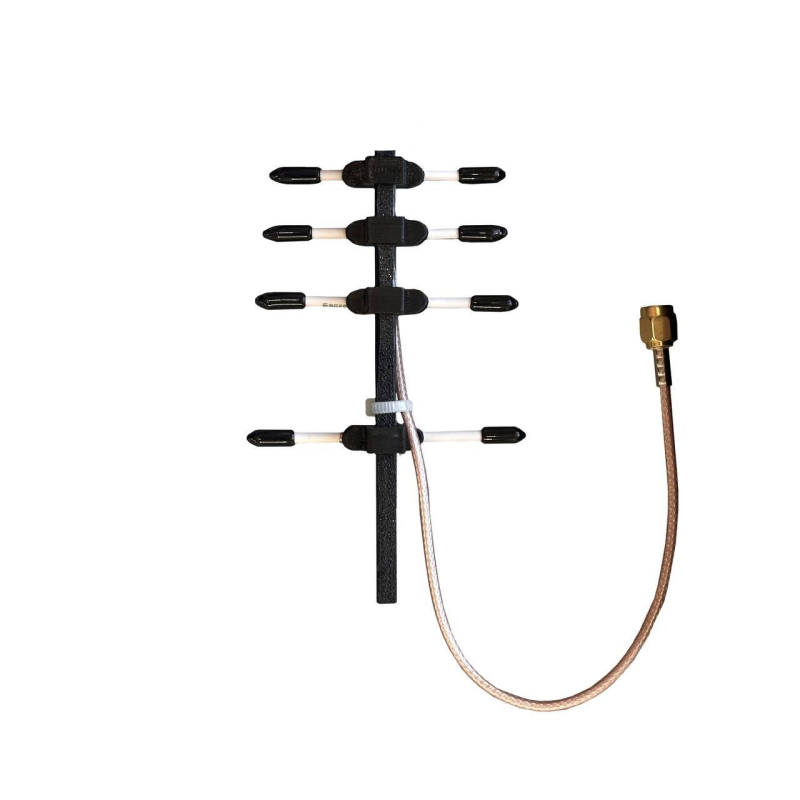

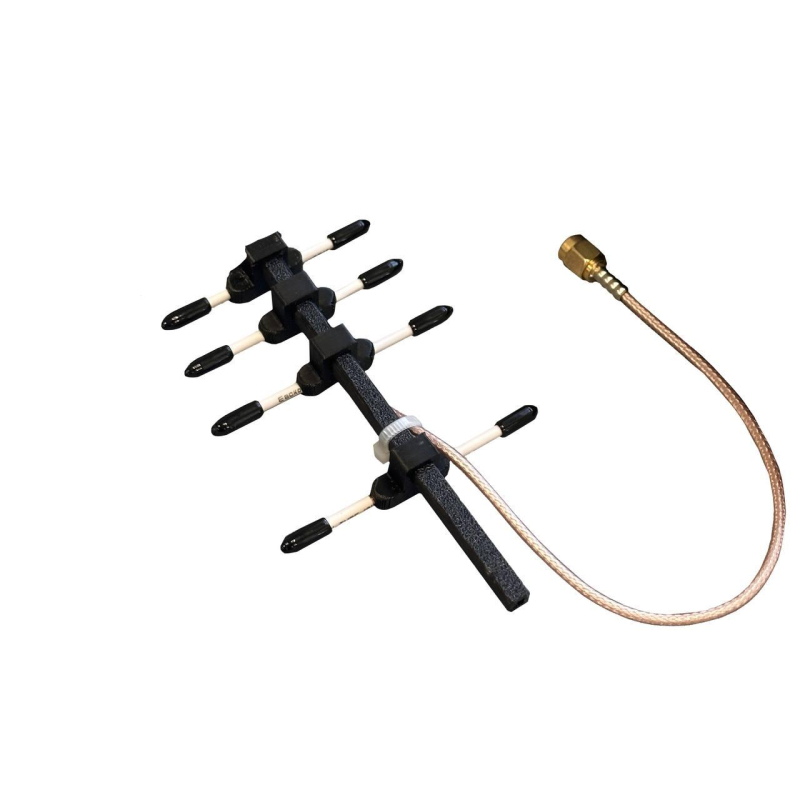

Antenna for FPV Repeater at 2.4GHz with VSWR 1.1 and 9 dBi Gain.
Lightweight and efficient Yagi antenna for use with FPV drones and repeaters at 2.4 GHz. Features 9 dBi gain and VSWR 1.1, ensuring high signal quality, stable connection, and range up to 25 km. Ideal for situations with EW or weak signals where standard antennas are insufficient. Weighs only 22 g, with convenient vertical mounting and a 25 cm cable included. Reliability confirmed by combat testing.
Technical Specifications:
1. Gain: 9 dBi
2. VSWR 1.05 at target frequency
3. Weight: 22 grams
4. Impedance: 50 Ohm
5. Material: plastic, copper
6. Default cable length: 25 cm
7. Convenient vertical mounting 5x5mm (tube)
A Yagi antenna for a repeater can be useful for drones where low antenna weight is required for extended operation of the system during a mission. Our antenna is designed specifically for these conditions.
VSWR 1.05 and 9 dBi gain can enable flights up to 25 km when the antenna is extended to increase line-of-sight range. High gain can also be beneficial in the presence of EW countermeasures, where a dipole or Moxon antenna may not provide adequate field concentration.
The 2.4GHz Yagi antenna for the repeater is manufactured by SKYNOVA engineers and tested in cooperation with the military, so when you buy antennas from us, you can be confident in the result. We work for victory!
Для антени Yagi 2.4 ГГц 9 дБі, яка налаштована на КСВ 1.1 у своєму рідному діапазоні (2400–2500 МГц), показник КСВ на частоті 2.6 ГГц буде значно вищим, зазвичай у межах 2.5–4.0 і більше
