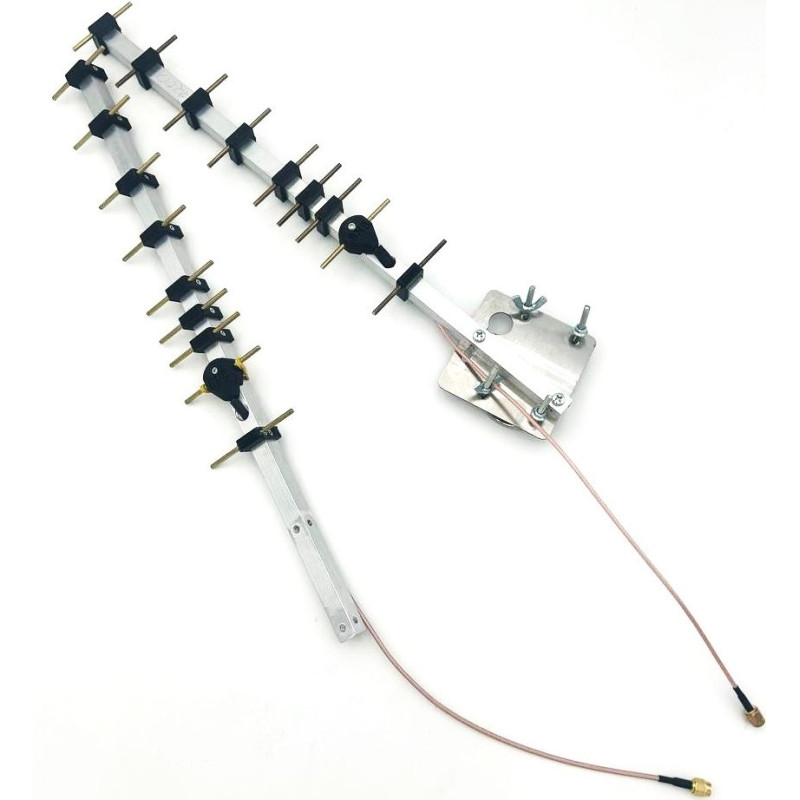

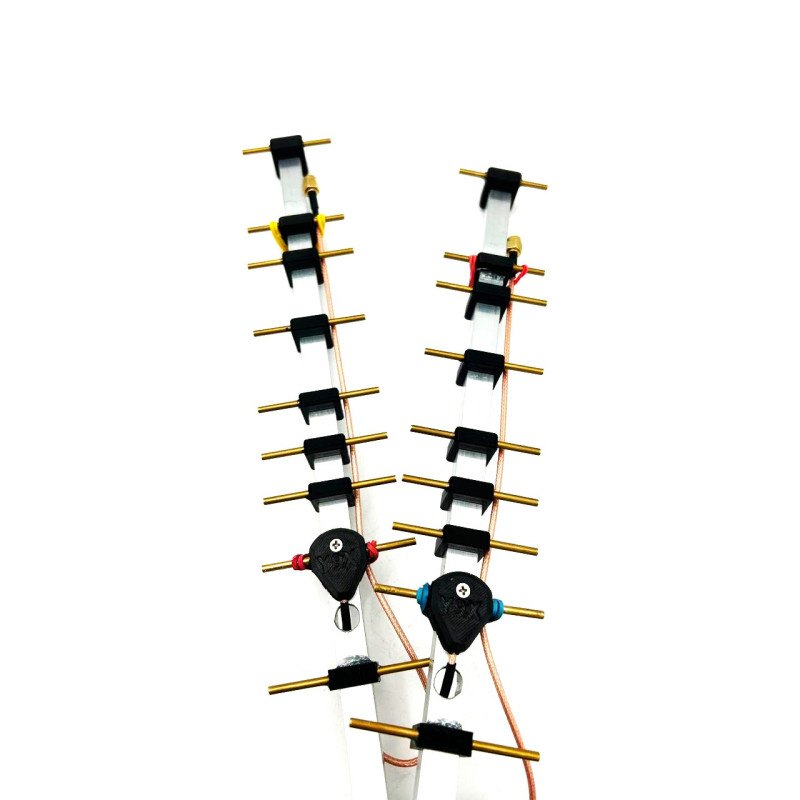

SkyReach Yagi Y9X Directional Antenna for 2.6 GHz
The Yagi Y9X directional antenna is designed for stable signal transmission at 2.6 GHz. The model features 9 elements and a standard SMA connector, making it compatible with a wide range of devices. The antenna combines a lightweight aluminum construction with high performance, making it an optimal choice for professional wireless communication solutions.
Key Features
- Model: Yagi Y9X
- Frequency: 2.6 GHz
- Number of Elements: 9
- Connector: SMA
- Manufacturer: SkyReach
- Category: Antennas > Yagi Antennas
The source data contains two gain values and two weight values, so we have provided both for completeness: the title mentions a gain of 13.4 dBi, while the description text states — 13.8 dBi. Also, the advantages listed a weight of 180 g, whereas the technical specifications indicate 170 g. Both pairs of values are present in the original and are provided here to accurately reflect all source data.
Advantages
- High Gain: 13.4 dBi (in title) and 13.8 dBi (in description) — ensures high-quality signal transmission over long distances.
- Precise Directionality: 35° beamwidth for focused transmission without unnecessary losses.
- Low VSWR: a value of 1.1 ensures minimal reflected waves and high efficiency.
- Durable Material: aluminum body is corrosion-resistant and provides longevity with minimal weight (170 g and 180 g mentioned in different parts of the description).
- Universal Connectivity: standard SMA connector and linear polarization for compatibility with many systems.
Technical Specifications
Yagi Y9X Antenna Specifications| Parameter | Value |
|---|---|
| Frequency | 2.6 GHz |
| Polarization | Linear |
| Gain | 13.4 dBi (in title), 13.8 dBi (in description) |
| Beamwidth | 35° |
| Input Impedance | 50 Ω |
| VSWR | 1.1 |
| Cable Length | 320 mm |
| Connector | SMA |
| Material | Aluminum |
| Dimensions | 370 × 60 × 23 mm |
| Weight | 170 g (in tech specs), 180 g (in advantages description) |
Recommended Applications
- Wireless communication systems requiring directionality and minimal losses.
- Radio communication and radar systems needing stable reception/transmission at 2.6 GHz.
- Telemetry and other HF projects where beam precision and low VSWR are crucial.
The SkyReach Yagi Y9X antenna is a practical solution for engineering and commercial tasks: it combines compact dimensions of 370 × 60 × 23 mm, a lightweight aluminum construction, a compatible SMA connector, and high radio frequency performance. If you need a directional antenna for operation in the 2.6 GHz band with high efficiency — this model is worth considering.
