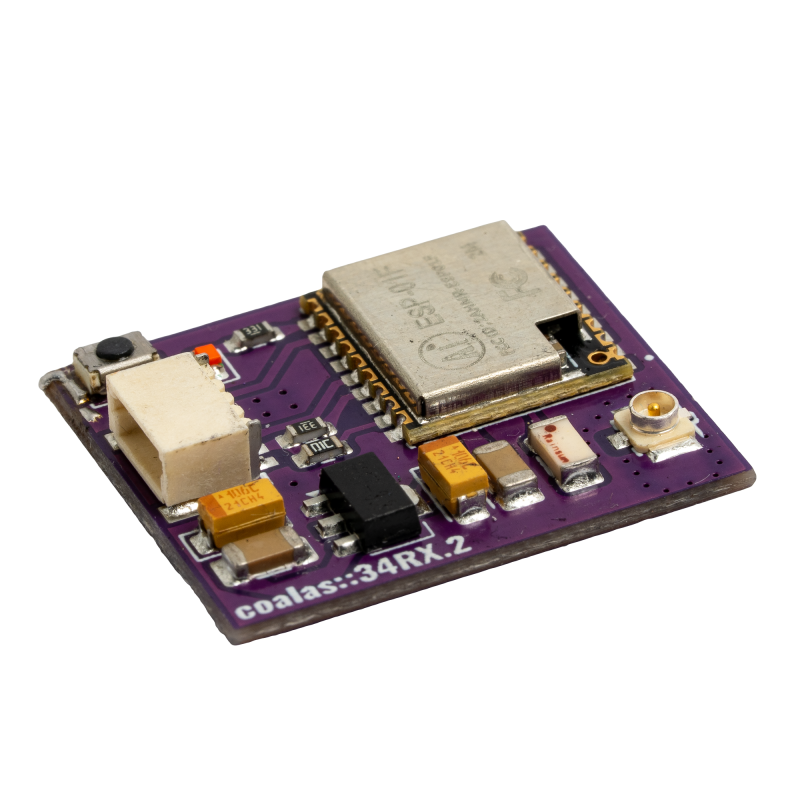

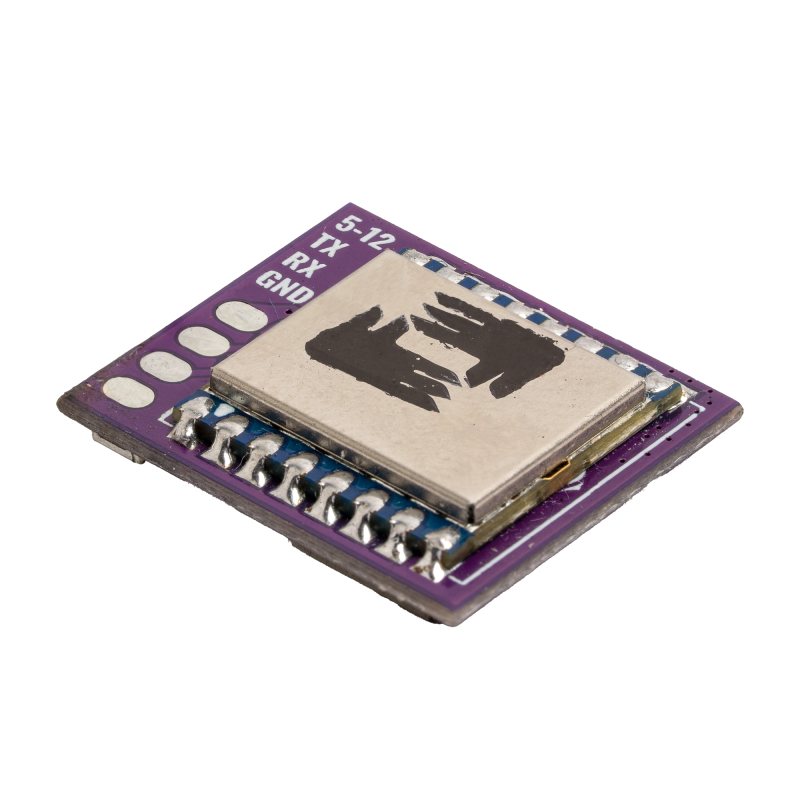

RX COALAS Receiver, 270–410 MHz, 12 W

The RX COALAS Receiver, 270–410 MHz, 12 W from Coalas systems is a high-performance airborne communication module designed for reliable use in complex radio environments. The device combines a wide frequency range, powerful output signal, and modern EW protection mechanisms, making it an excellent choice for professional applications in drones and quadcopters.

Key Features:

• Frequency Range: 270–410 MHz
• Output Power: 50 mW – 12 W
• Sensitivity: −134 dBm
• Firmware: ImpactLRS / MILELRS
• Power Supply: 5–12 V (IPEX)
• Supported Protocol: CRSF (UART)
• Power Consumption: 36 W
• Size: 23 × 20 mm

Additional Features:

• A large number of frequency-hopping spread spectrum (FHSS) presets available via the LUA menu, as well as the ability to create custom settings for optimizing operation in specific conditions.
• TURBO mode for activating maximum power via the AUX channel, allowing for quick range extension or overcoming obstacles.
• 256-bit encryption of control and telemetry packets, ensuring a high level of communication security.
• BACKPACK: synchronous TX and RX retuning, ability to operate in radio silence mode for covert operations.
• Web-flasher for convenient firmware updates via a web interface.

Communication Range:

• Operational range — up to 70 km
• Maximum range — up to 100 km

This receiver is ideal for integration into various drone and quadcopter models where a stable communication channel, jamming protection, and flexible configuration via interfaces and the LUA menu are required. Thanks to CRSF (UART) protocol support and compatibility with ImpactLRS and MILELRS, the device easily integrates with popular controllers and transmitters, providing fast and reliable telemetry and control. The 5–12 V power supply via an IPEX connector, compact dimensions of 23 × 20 mm, and 36 W power consumption make the module a universal solution for airborne systems of varying complexity.

Brand: Coalas systems

Product Type: Drones & Quadcopters > Receivers

Category: Drones & Quadcopters > Drone Components > Drone Spare Parts > Receivers
