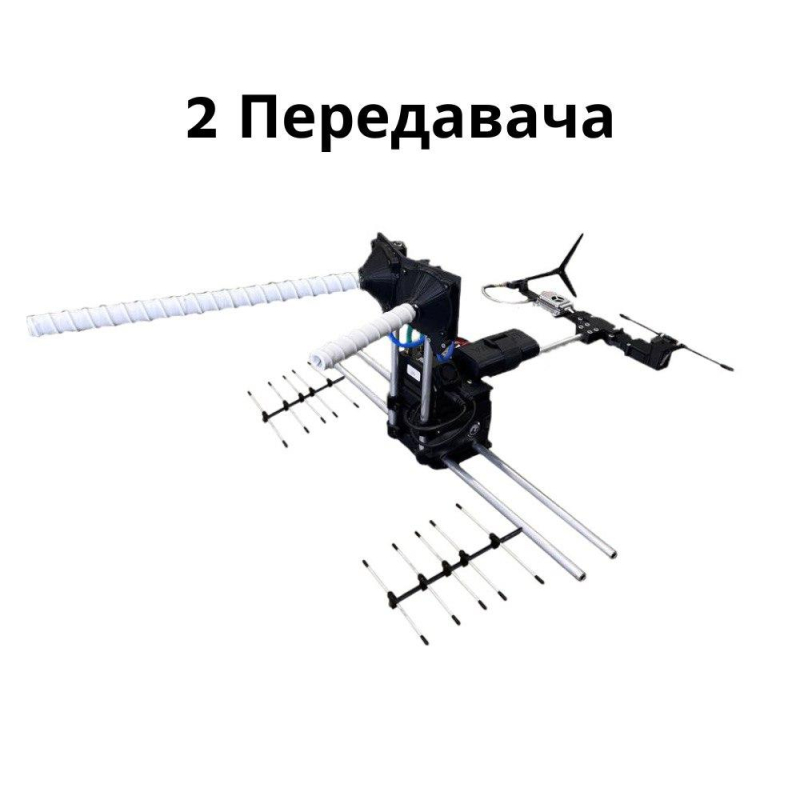

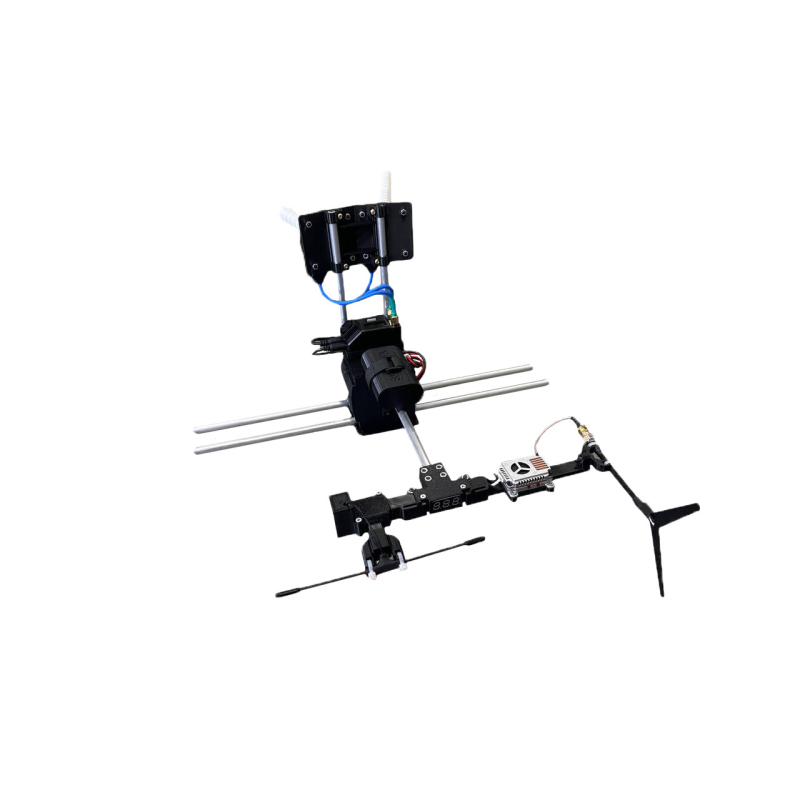

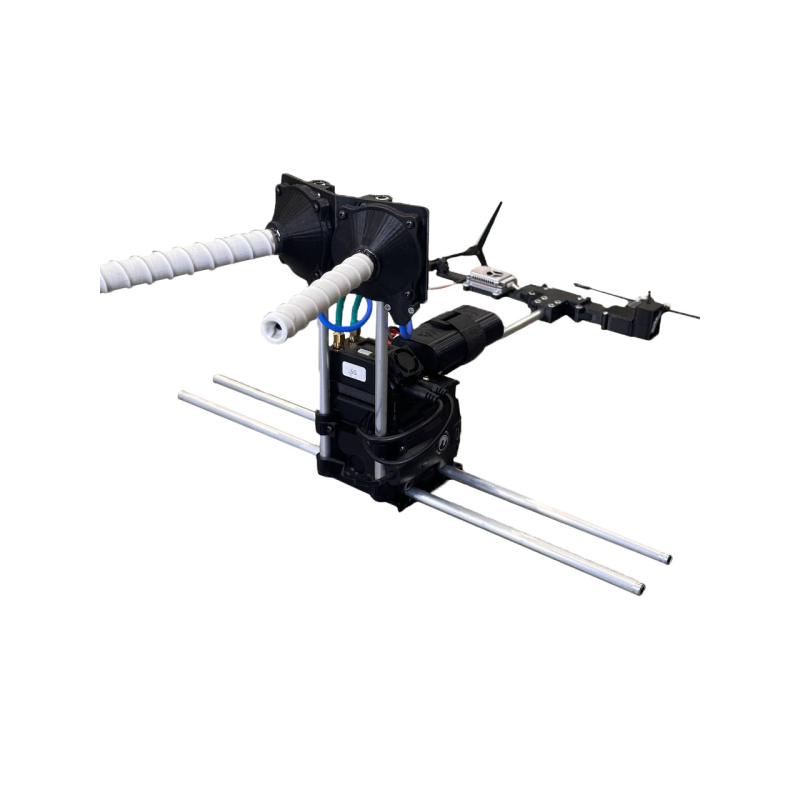

SKYNOVA Air Retranslator Double TX for DJI Matrice carrier
System components:
-
Video receiver SKYZONE Steadyview X — receives video signal from the drone
-
Control receiver ELRS (700-1000 MHz)
-
Video transmitter ReadyToSky 1.2/1.3 GHz, 2 W — transmits image to FPV goggles
-
Control transmitter Happymodel ES900TX
-
Backup/alternative transmitter TBS Crossfire Micro
Antennas included:
-
SKYNOVA Yagi 10 dBi — frequency 300-2800 MHz, VSWR 1.2
-
Log-periodic FHSS antenna 700-1000 MHz — for TBS Crossfire, VSWR 1.2
-
SKYNOVA Helix antennas:
-
17 dBi (4.9-5.9 GHz), VSWR 1.2
-
13 dBi (4.9-5.9 GHz), VSWR 1.2
-
Power supply:
-
3p battery (12.3 V) — provides power for transmission up to 2 W
-
Optional 2s3p modification — increases battery life
Advantages:
-
Double TX mode — simultaneous operation of two communication channels
-
EW resistance:
Crossfire (700-1000 MHz, 8 dBi) + conditional backup channel 2.2-2.8 GHz -
Low weight — does not reduce flight time
-
IP55 protected case: resistant to impacts, water, and dust
-
12-month warranty + service maintenance, including replacement of damaged body parts if necessary
