Product Code: 59736-yagi-2-5-2-7-ghz-50
972 грн.
Buy this product in 1 click:
Main specifications
Connector type:
RG316 (290 mm) + SMA Male
Housing type:
Mast or DIN rail mount
Weight (depends on size):
36 g
Frequency range:
2.5–2.7 GHz
Beam angle:
70° /160°
All specifications
We will deliver this product:
Payment
Description

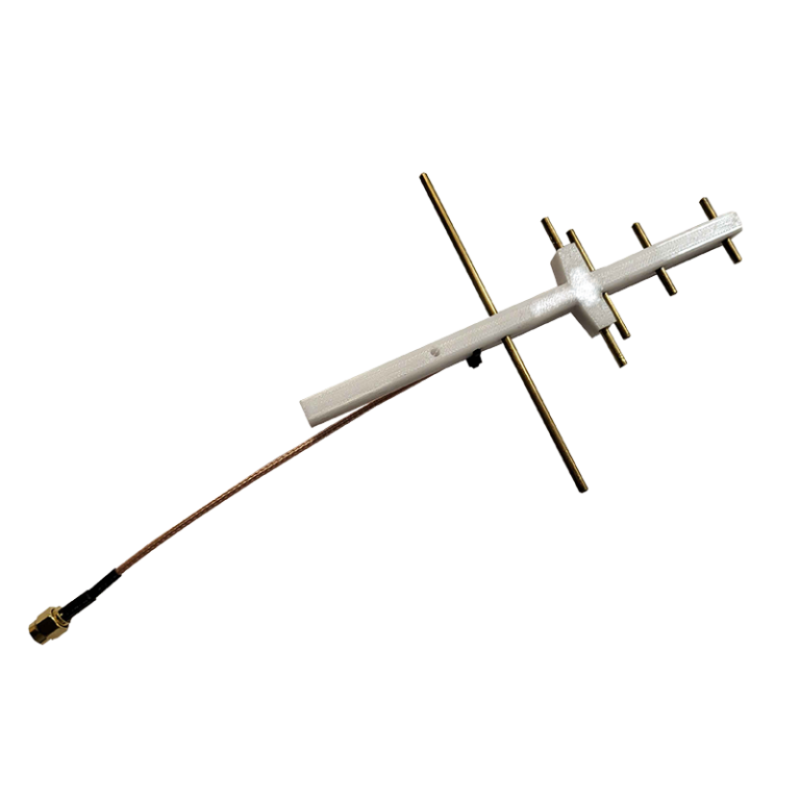

The Coalas Yagi antenna is a highly directional antenna for ground stations, providing stable communication over long distances. Thanks to its Yagi-type design, it forms a narrow angular pattern and ensures reliable operation even in difficult conditions. Equipped with an SMA connector, it supports mast or DIN rail mounting. Suitable for stationary and mobile ground systems.
It covers the upper frequencies (2.5-2.7 GHz) when using the coalas::X62 dual-band system. For simultaneous operation on both bands, coalas::YAGI-580-700.SMA must be purchased separately.
Specifications
| Band | 2.5 GHz – 2.7 GHz (VSWR < 1.4) |
| Gain | 5.3 dBi |
| Input Impedance | 50 Ohm |
| Max Power | 15 W |
| Beam Width | Horiz - 70°, Vert - 160° |
| Connector | RG316 (290 mm) + SMA Male |
| Dimensions | 160 x 115 mm |
| Weight | 36 g |
Specifications
Connector type
RG316 (290 mm) + SMA Male
Housing type
Mast or DIN rail mount
Weight (depends on size)
36 g
Size
160 × 115 mm
Antennas
Frequency range
2.5–2.7 GHz
Beam angle
70° /160°
Enhancements
5.3 dBi
