Product Code: 59738-yagi-135-175mhz
In Stock
2 500 грн.
Buy this product in 1 click:
Main specifications
Connector type:
SMA Male + RG316
Housing type:
mast / DIN rail mount
Weight (depends on size):
250 g
Frequency range:
135–175 MHz
Beam angle:
60° / 65
All specifications
We will deliver this product:
Payment
Bought together with
-80x80.jpg "Yagi Antenna 430-630 MHz Plastic 10dBi")
Yagi Antenna 430-630 MHz Plastic 10dBi
3 520 грн.
Description

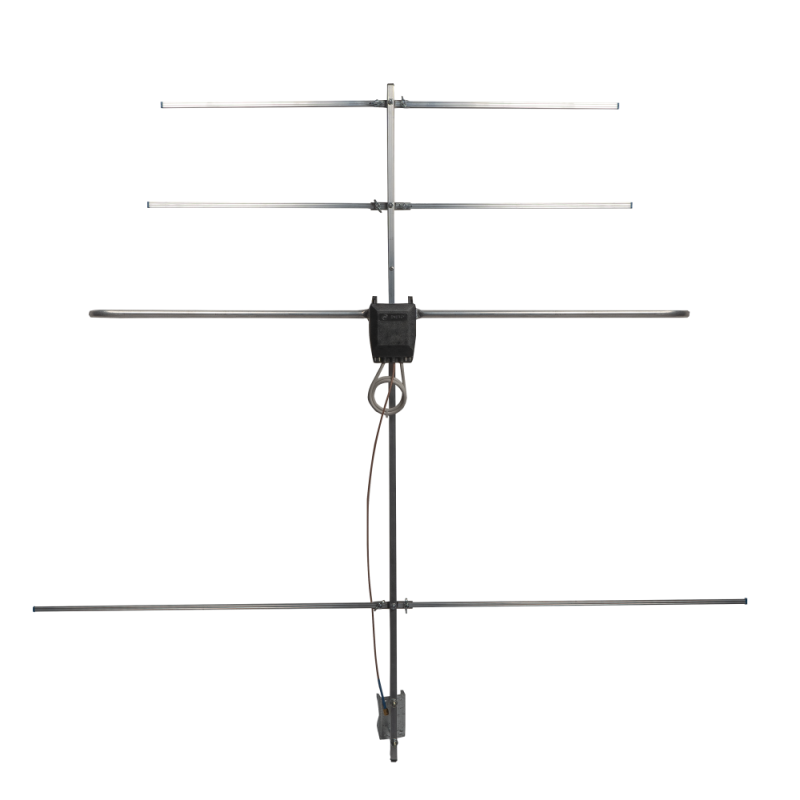

The Coalas Yagi antenna is a highly directional antenna for ground stations, providing stable communication over long distances. Thanks to its Yagi-type design, it forms a narrow angular pattern and ensures reliable operation even in challenging conditions. Equipped with an SMA connector, it supports mast or DIN rail mounting. Suitable for stationary and mobile ground systems.
Specifications
| Frequency range | 135-175 MHz (VSWR < 1.5) |
| Gain | 8 dBi |
| Input impedance | 50 Ohm |
| Angular pattern | horiz - 60°, vert - 65° |
| Connector | SMA Male + RG316 |
| Weight | 250 g |
| Mounting | Mast / DIN rail |
Specifications
Connector type
SMA Male + RG316
Housing type
mast / DIN rail mount
Weight (depends on size)
250 g
Antennas
Frequency range
135–175 MHz
Beam angle
60° / 65
Enhancements
8 dBi
