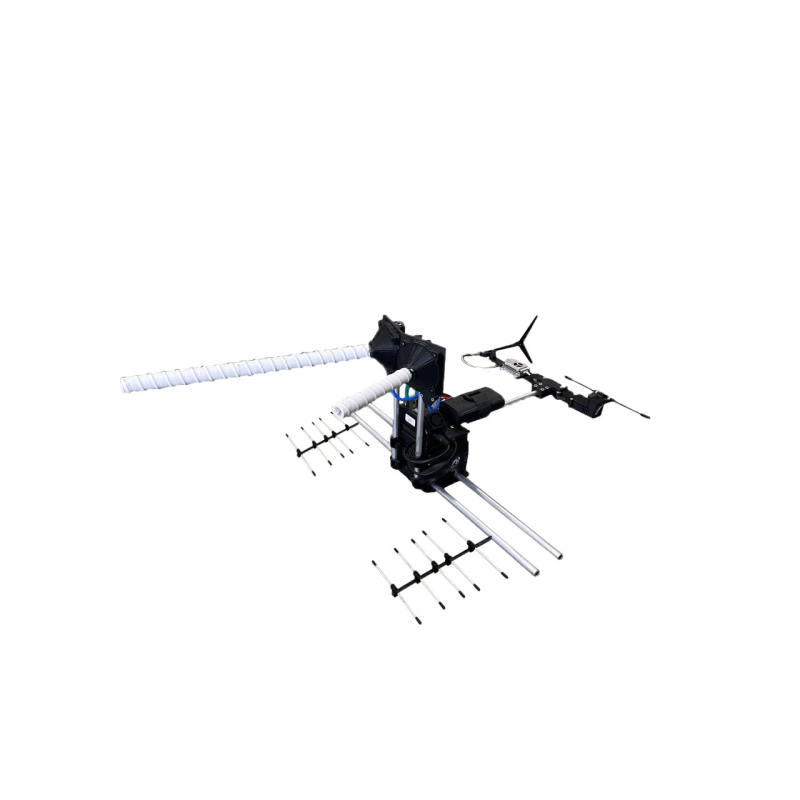

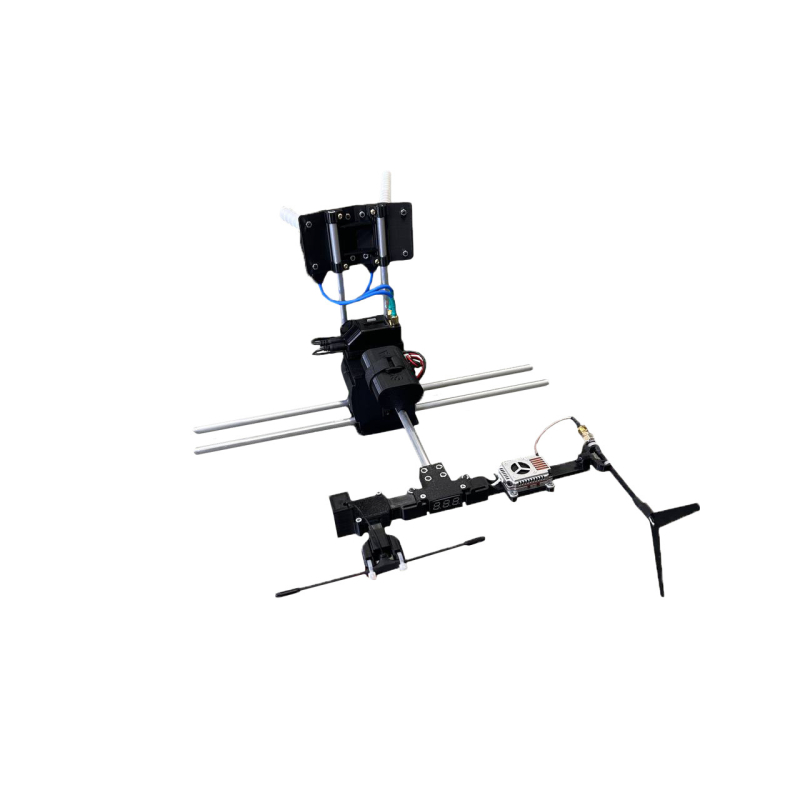

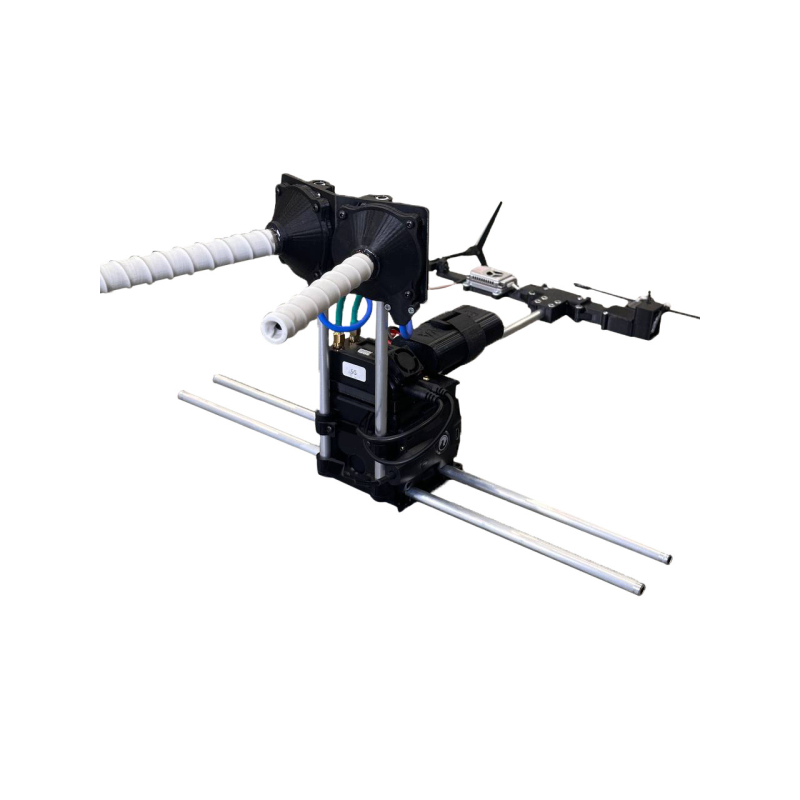

SKYNOVA Air Retranslator Double TX for Matrice carrier drone
System components:
-
Video receiver: SKYZONE Steadyview X — receives video signal from the drone
-
Control receiver: ELRS 700-1000 MHz — stable control channel over long distances
-
Video transmitter: ReadyToSky 1.2/1.3 GHz, 2W power — transmits video to goggles or ground station
-
Control transmitter: Happymodel ES900TX
-
Alternative transmitter: TBS Crossfire Micro — additional or backup control channel
Antenna equipment:
-
SKYNOVA 10 dBi Yagi antenna, frequency selectable (300-2800 MHz), VSWR 1.2
-
Log-periodic antenna for FHSS 700-1000 MHz, compatible with TBS Crossfire transmitter, VSWR 1.2
-
SKYNOVA 17 dBi Helix antenna, 4.9-5.9 GHz band, VSWR 1.2
-
SKYNOVA 13 dBi Helix antenna, 4.9-5.9 GHz band, VSWR 1.2
Power supply:
-
3p battery (12.3 V) — ensures stable operation of the transmitter at 2W power
-
Optional: modification to 2s3p for increased continuous operation time
-
System advantages:
-

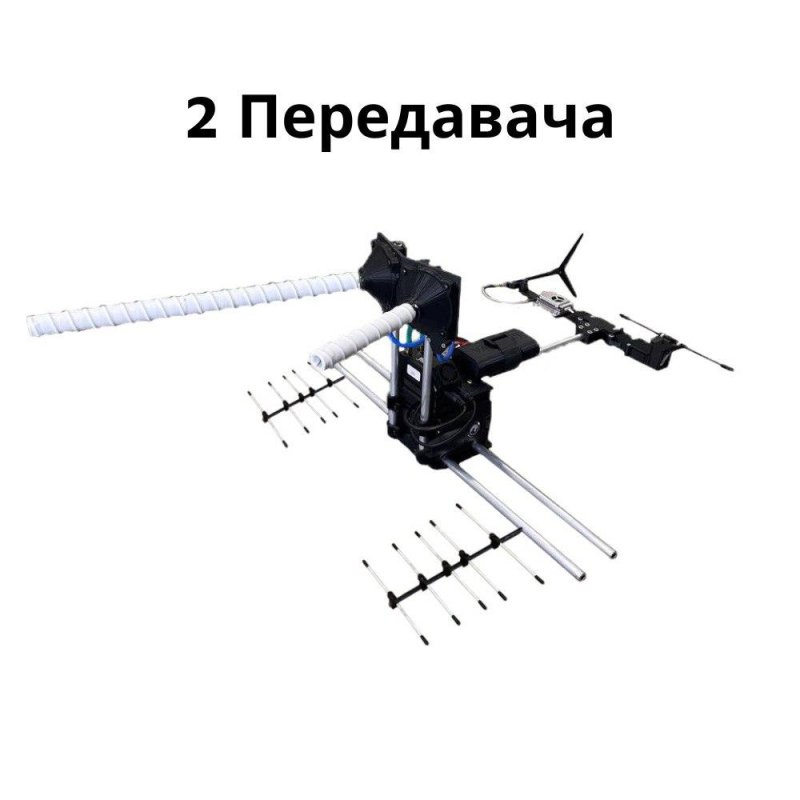

✅ Dual transmission channel (Double TX mode) — simultaneous operation of two transmitters for more reliable communication
-
✅ FHSS (700-1000 MHz) with Crossfire and 8 dBi gain + conditional additional channel in the 2.2-2.8 GHz band — provides a significant advantage in areas with active enemy EW operations
-
✅ Low system weight — contributes to increased drone flight duration
-
✅ IP55 standard protective case — shock-resistant, waterproof, and dust-proof for safe transportation
-
✅ 12-month warranty + service maintenance, including replacement of damaged housing elements upon request (in case of damage during operation)
