Product Code: FA111-KB 0005 -30 VA-111
In Stock
650 грн.
-15%
550 грн.
You save: 100 грн.
Promotion will end in:
Days
:
hours
:
minutes
:
seconds
Buy this product in 1 click:
Main specifications
Application:
Universal
Cable availability:
No
Cable Design:
Flexible
Cable type:
Coaxial
Central conductor material:
Copper
All specifications
We will deliver this product:
Payment
Bought together with
Description

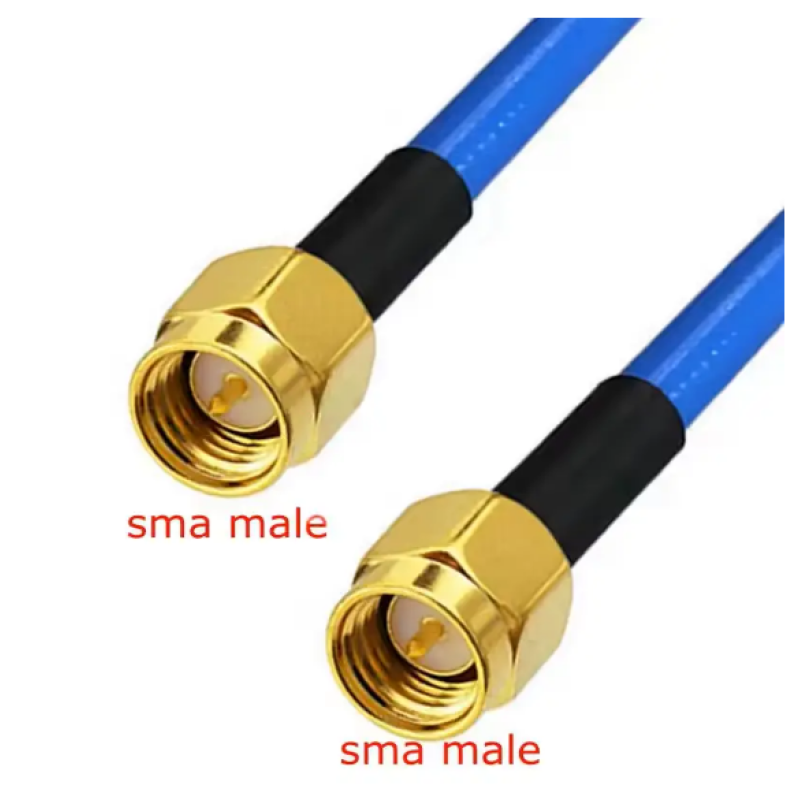

30 cm Pigtail SMA male — SMA male, straight on rigid RG-402 cable, 50 Ohm, high-frequency coaxial adapter 30 — high-frequency pigtail SMA male — SMA male on rigid RG-402 cable.
50 Ohm impedance, straight adapter for short RF connections between modules and antennas.
Key advantages
- RG-402 rigid cable
- SMA — SMA
- 50 Ohm
- Length 30 cm
Applications
- FPV modules
- Test benches
- Short RF jumpers
Specifications
| Parameter | Value |
| Type | Pigtail |
| Cable | RG-402 |
| Connectors | SMA male — SMA male |
| Length | 30 cm |
| Impedance | 50 Ohm |
Specifications
Application
Universal
Cable availability
No
Cable Design
Flexible
Cable type
Coaxial
Central conductor material
Copper
Constant distribution
71
Core material
Copper
Execution of 1 screen
Wire
Insulation material
PTFE
Length in package
30
Maximum operating temperature
125
Minimum bend radius
12.5
Minimum operating temperature
-50
Mount type
External
Nominal diameter of the central conductor
0.51
Nominal diameter with sheath
4.2
Nominal diameter with shield
3.58
Nominal shell wall thickness
0.31
Number of Cores
1
Packaging
Skein
Protection Material
Metal
Protection Type
Braid
Purpose
For Communication Systems
Screen availability
Yes
Screen material 1
Copper
Shell color
Blue
Shell material
FEP
Weight
0.015
Working capacity, max
95
