Product Code: FA123-2615400383-123
In Stock
1 300 грн.
Buy this product in 1 click:
Main specifications
Housing type:
spiral
Polarization:
RHCP/LHCP
Frequency range:
4.9–6.0 GHz
Beam angle:
37°
Enhancements:
15 dBi
All specifications
We will deliver this product:
Payment
Bought together with
Directional Yagi Antenna Y9X 2.2 GHz with 13.4dBi Gain, 9 Sections SMA
2 500 грн.
2 000 грн.
Antenna HELIX Lite 5.8/15
2 650 грн.
2 400 грн.
Log-periodic Antenna for FPV Video Control 1.7-2.7 GHz SMA Aeronetix
1 200 грн.
860 грн.
Description

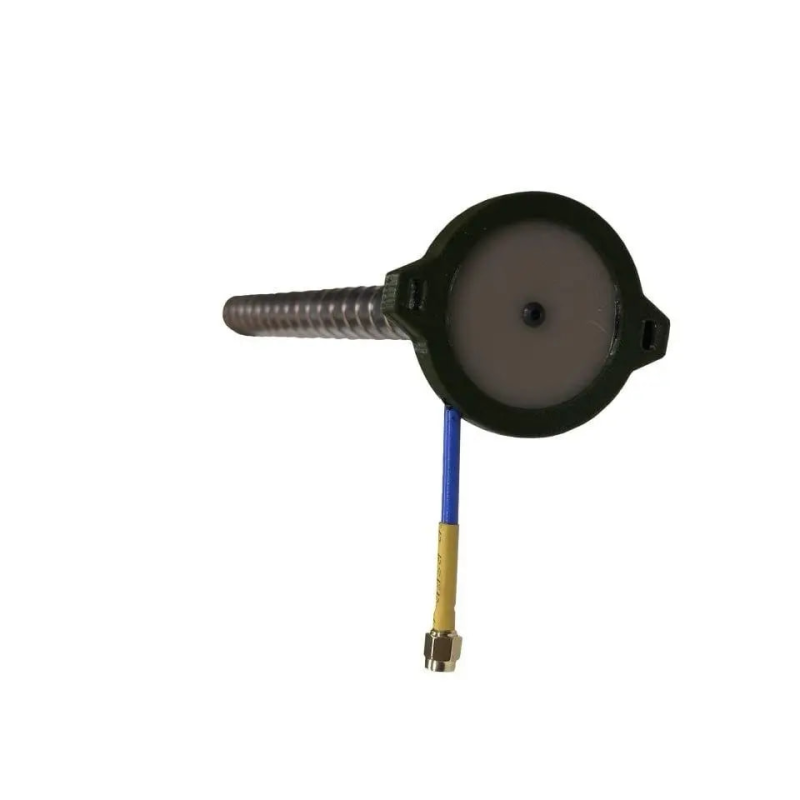

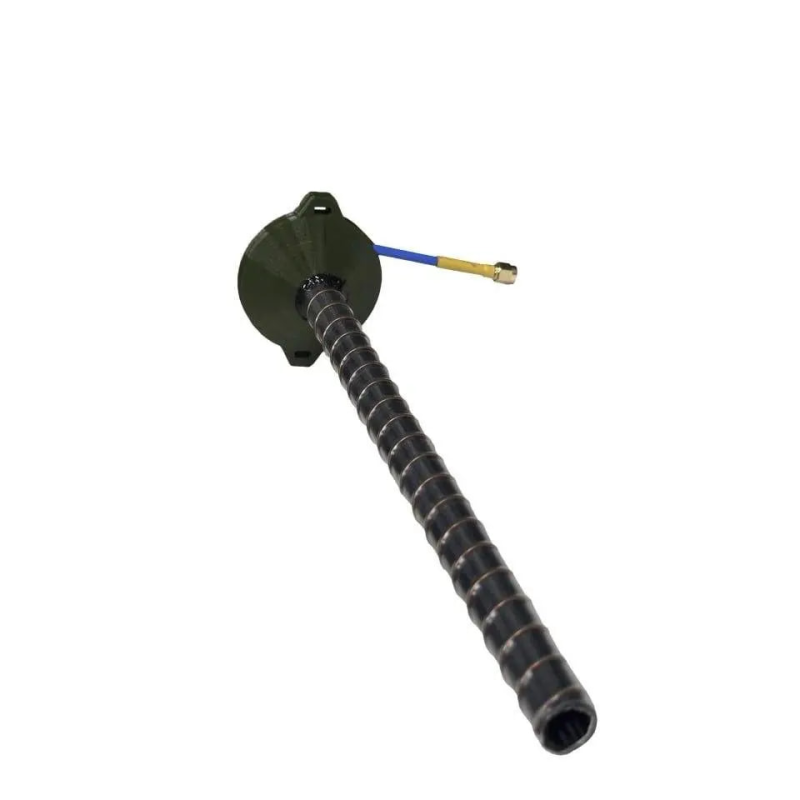

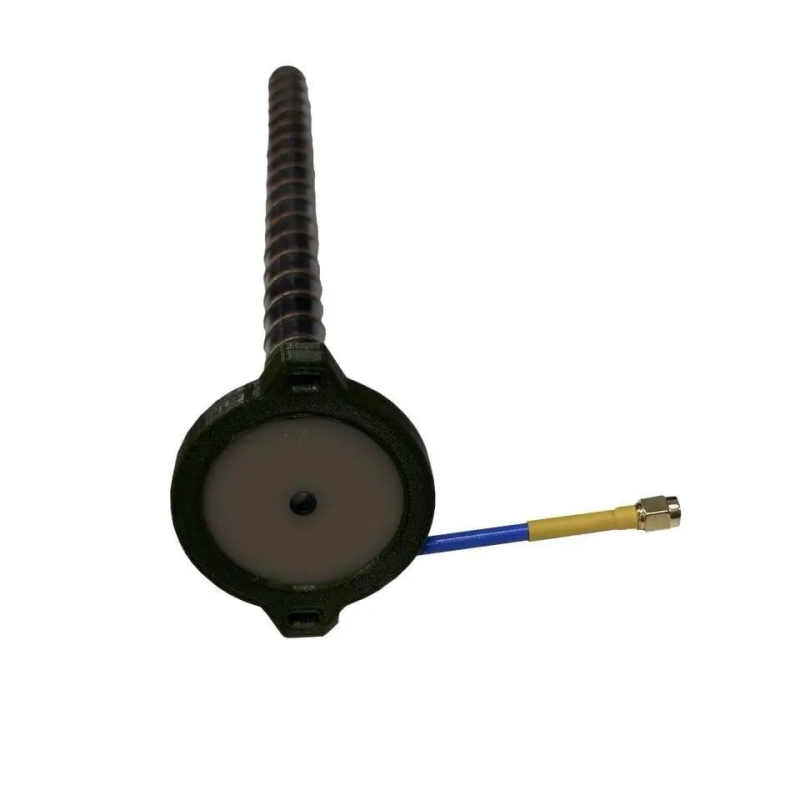

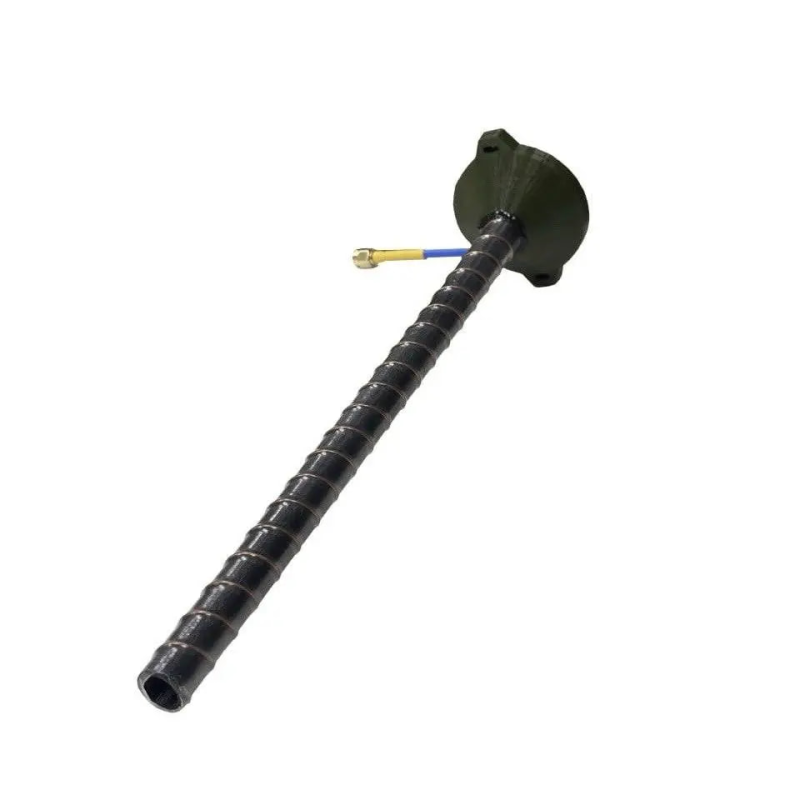

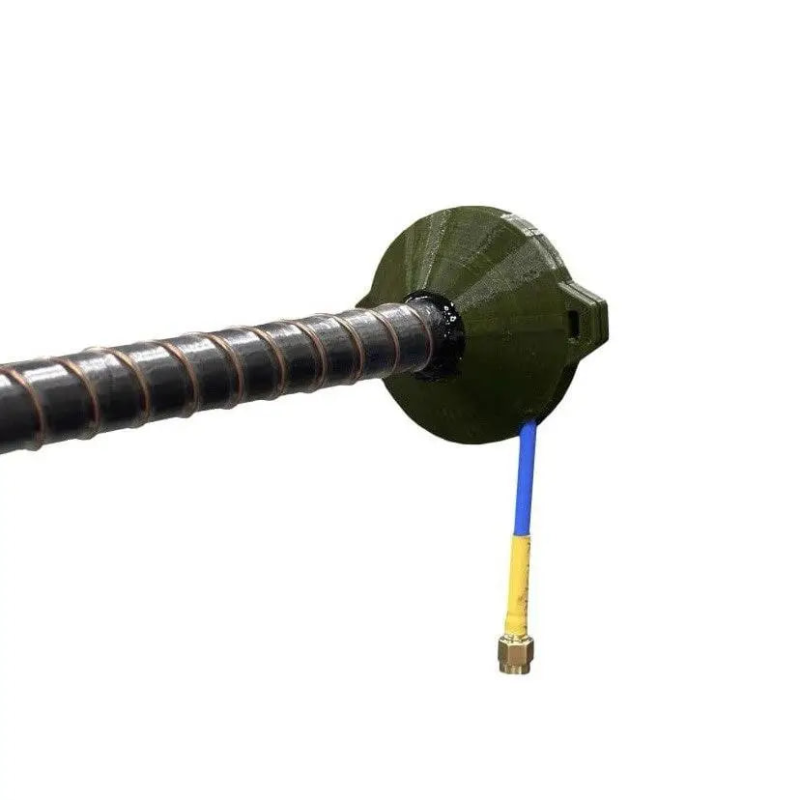

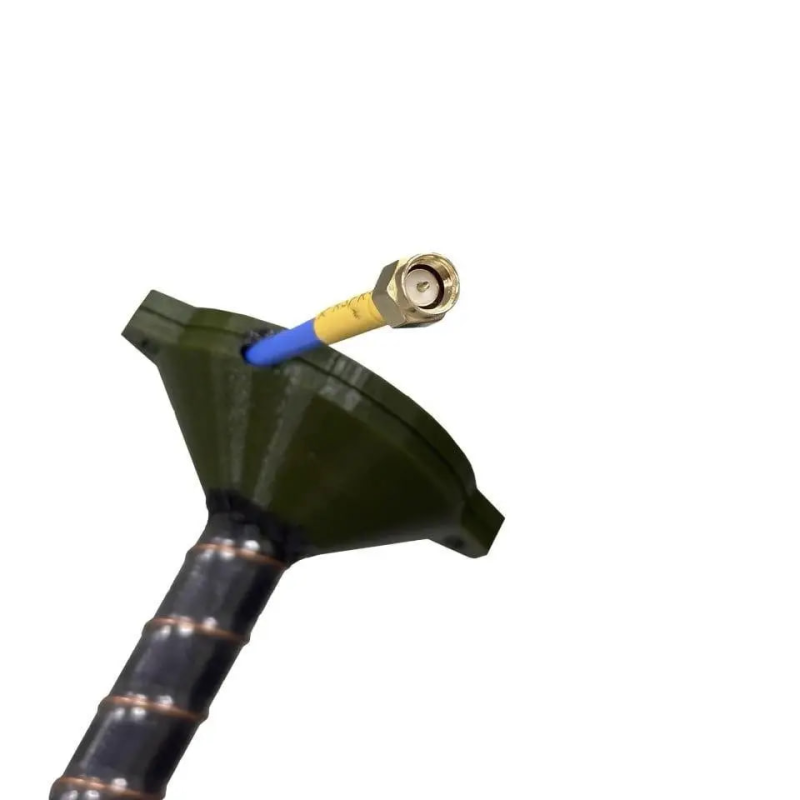

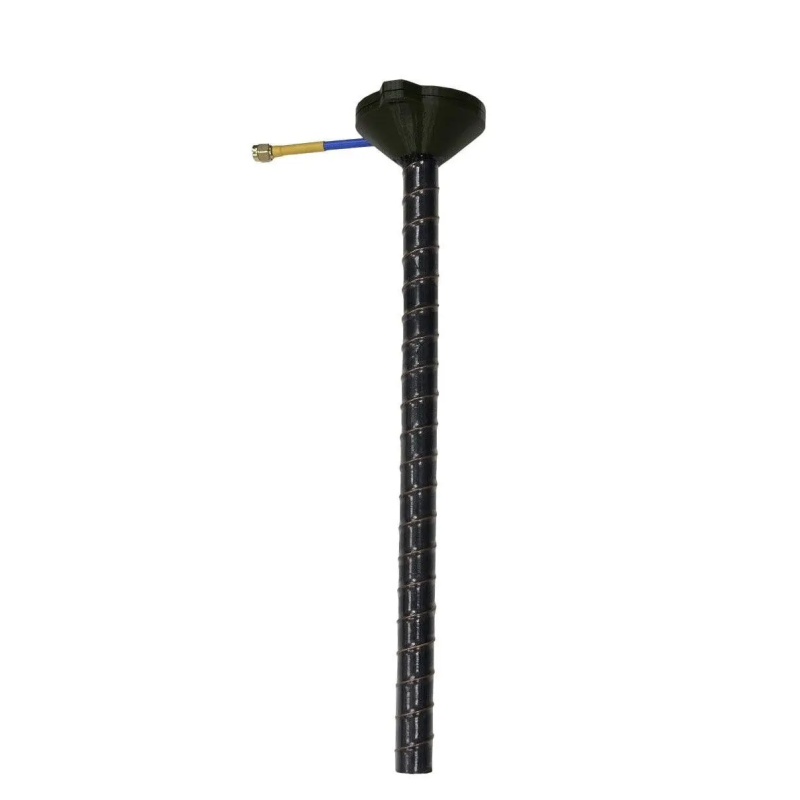

SKYNOVA 16-turn Helix (Helical) Antenna for the Armed Forces and Drones
Ideal for radio communication at 4.9-6.0 GHz!
Advantages of this antenna:

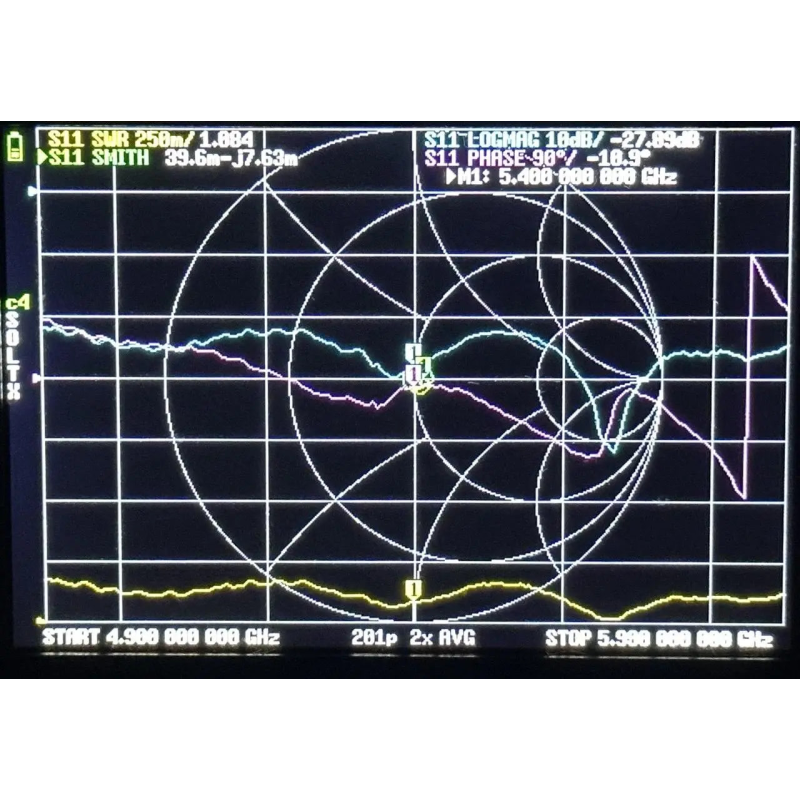

- Wide operating range:
- 4.9-5.9 GHz (VSWR 1.1)
- 4.0-6.0 GHz (VSWR 1.3)
- 15 dBi gain for stable signal over long distances.
- RHCP polarization by default, LHCP available upon request.
- Compact size: Main screen (reflector) — 50 mm.
- Beamwidth of 37° — ensures excellent wave directivity.
The Helix antenna is a powerful solution for the armed forces and FPV to ensure stable and long-range communication. We manufacture antennas for any frequency and specific requirements.
Why this antenna?
- Suitable for drones and radio communication over long distances.
- Reliability and durability even in challenging conditions.
Optimal for use by the Armed Forces and in industrial applications!
Custom manufacturing available
Ideal for drones
Enhanced signal stability
Specifications
Housing type
spiral
Polarization
RHCP/LHCP
Size
50 mm
Antennas
Frequency range
4.9–6.0 GHz
Beam angle
37°
Enhancements
15 dBi
