Product Code: 59733-580-700-50
2 100 грн.
Buy this product in 1 click:
Main specifications
Connector type:
RG316 (800 mm) + SMA Male
Housing type:
Mast or DIN rail mount
Weight (depends on size):
390 g
Frequency range:
580–700 MHz
Beam angle:
40°
All specifications
We will deliver this product:
Payment
Description

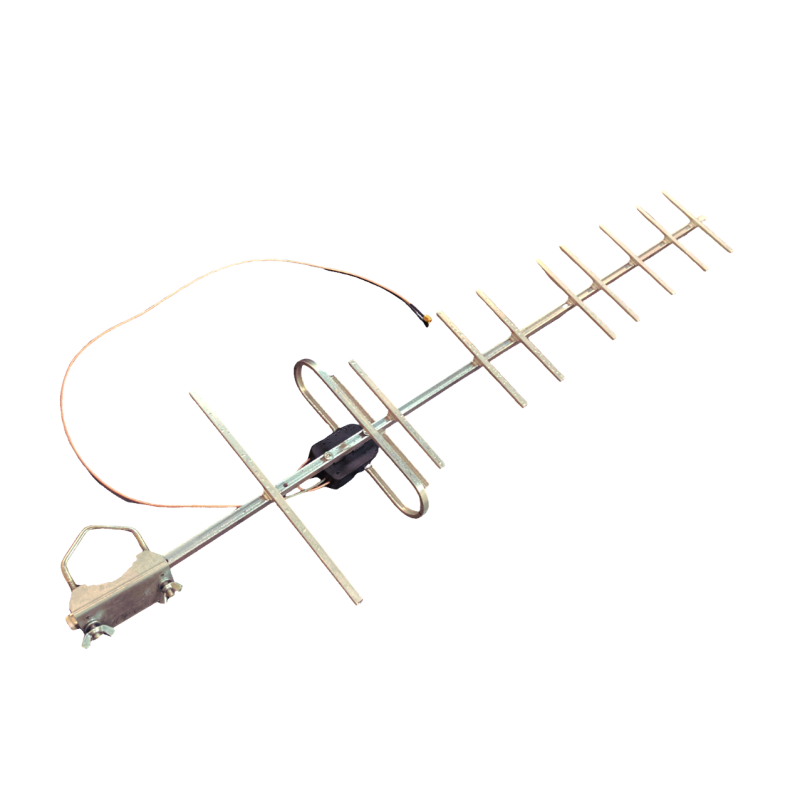

The Coalas Yagi antenna is a highly directional antenna for ground stations, providing stable long-range communication. Thanks to its Yagi-type design, it forms a narrow angular pattern and ensures reliable operation even in challenging conditions. Equipped with an SMA connector, it supports mast or DIN rail mounting. Suitable for stationary and mobile ground systems.
It covers lower frequencies (580-700 MHz) when used with the coalas::X62 dual-band system. For simultaneous operation on both bands, coalas.yagi_2.5-2.7 must be purchased separately.
Specifications
| Band | 580 MHz – 700 MHz (VSWR < 1.5) |
| Gain | 14 dBi |
| Input Impedance | 50 Ohm |
| Max Power | 35 W |
| Beamwidth | Horiz - 40°, Vert - 40° |
| Connector | RG316 (800 mm) + SMA Male |
| Dimensions | 1000 x 250 mm |
| Weight | 390 g |
Specifications
Connector type
RG316 (800 mm) + SMA Male
Housing type
Mast or DIN rail mount
Weight (depends on size)
390 g
Size
1000 × 250 mm
Antennas
Frequency range
580–700 MHz
Beam angle
40°
Enhancements
14 dBi
