REW08 EW Jammer, 8 Bands, 200-5800 MHz, Kalmius Tech

REW08 from Kalmius Tech is a professional vehicle-mounted electronic warfare jammer designed for reliable tactical radio channel blocking across a wide frequency range. The device features a compact plastic casing or an option with a metal frame, an active cooling system, and a powerful power supply for stable operation under intense load.

Description and Purpose

The REW08 is designed for installation inside a vehicle cabin, with the option of extending the antenna system to the roof via coaxial extensions. This configuration allows for convenient equipment placement while achieving maximum antenna group effectiveness in tactical applications. The device is suitable for specialized and tactical operations requiring flexible and broadband signal jamming.

Key Specifications

• Frequency Range: 200-5800 MHz
• Number of Jamming Channels: 8
• Tactical Range: 50-150 m (depending on operating conditions)
• Power Supply: 12 V vehicle electrical system (maximum current up to 80 A), or from an external PS12 charging station (sold separately)
• Power Consumption: up to 100 W per channel

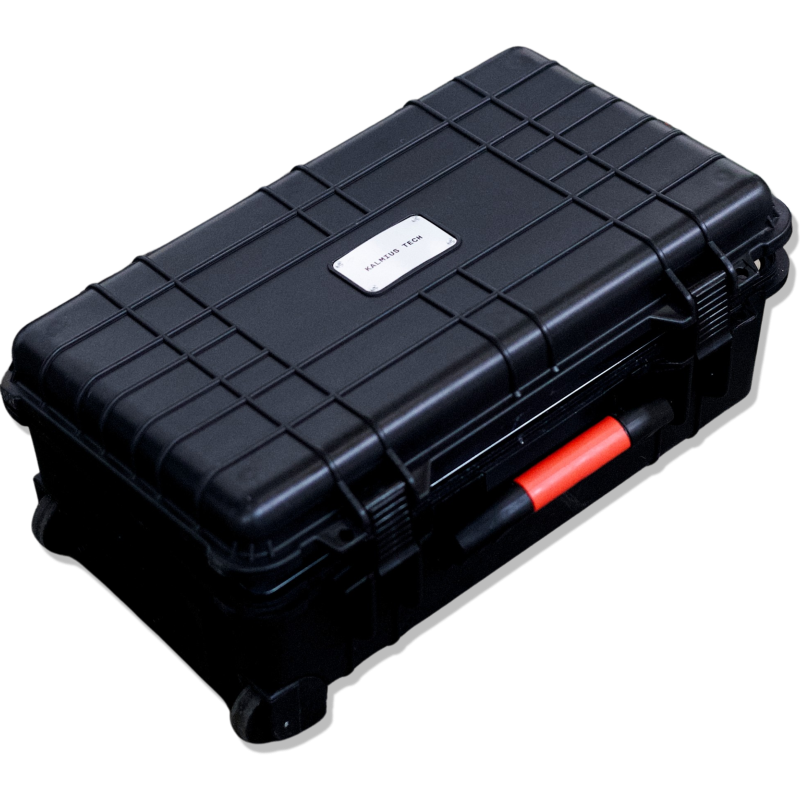

• Casing: Plastic or metal
• Weight: 15 kg
• Cooling: Active, to ensure reliable thermal management during intensive operation

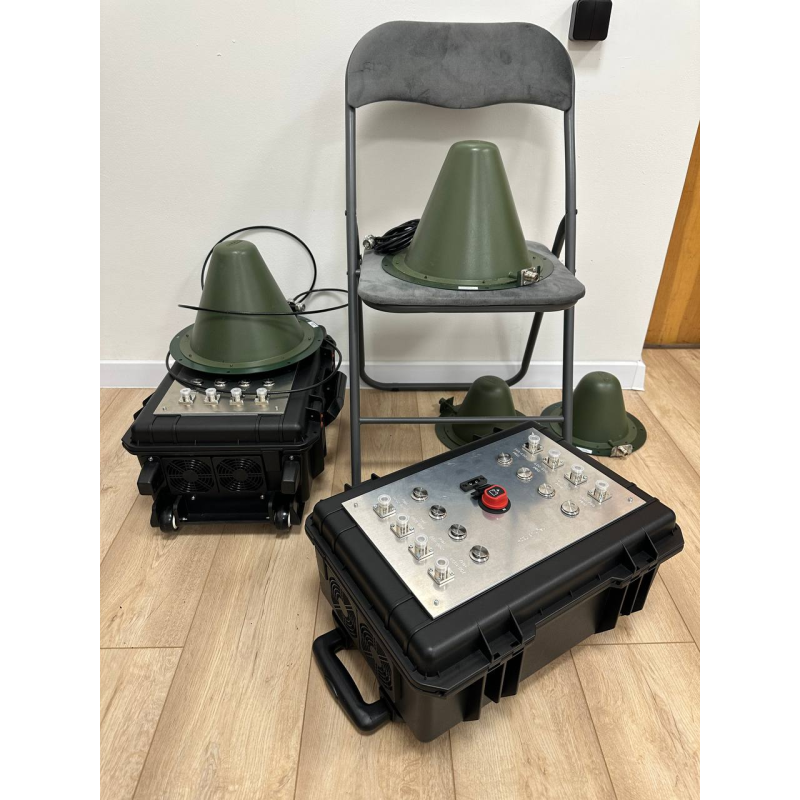

Package Contents

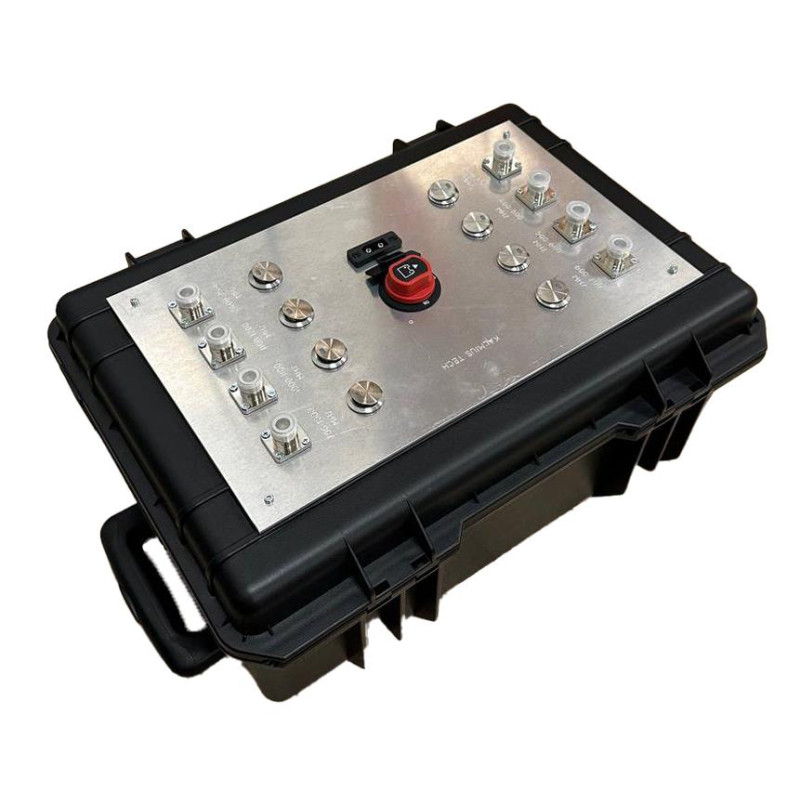

• Radio jamming and control unit, 1 pc.
• Power cable with terminals and alligator clips, 1 pc., 3 m long.
• Remote power disconnect switch, 1 pc., 2 m long.
• Antennas with magnetic and/or screw mounting: cloverleaf or quadrifilar, 1 pc. per channel.
• Coaxial antenna extensions, 1 pc. per channel, 2.5 m long.
• All necessary cables and mounting hardware for connecting one channel are included.

The REW08 provides broadband jamming covering frequencies from 200 to 5800 MHz and has 8 independent channels for creating a tactical jamming zone. The tactical range of 50 to 150 meters depends on the antenna type, terrain conditions, and power settings. For stable operation at maximum loads, active cooling is provided, and power parameters require a properly selected cable and reliable terminals, especially at currents up to 80 A.

Installation: The device is designed for placement inside the cabin with external quadrifilar (or other) antennas and coaxial extensions for routing to the vehicle roof. This approach ensures ease of installation and maximum antenna group effectiveness. If necessary, an external PS12 power supply, sold separately, can be used for stationary connection.

The REW08 from Kalmius Tech is an optimal solution for those requiring reliable blocking of a wide range of radio communications within a radius of up to 150 meters. The device belongs to the category: EW Jammers > Vehicle-Mounted EW Jammers.
