Dome EW Jammer Bulba 1.0

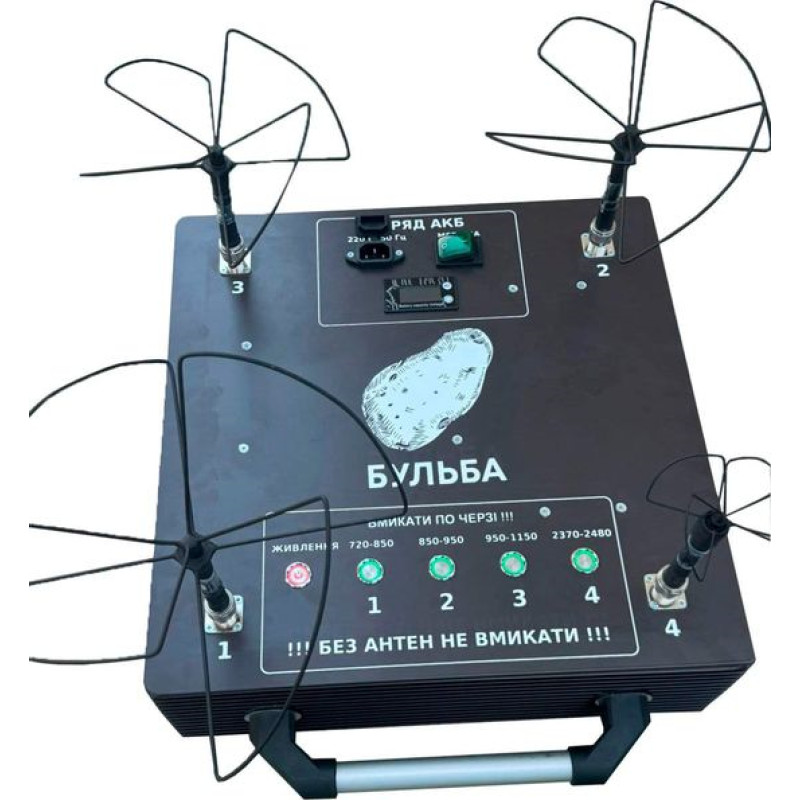

Dome EW Jammer Bulba 1.0 is a mobile four-channel anti-drone system from the Bulba brand, designed for reliable perimeter protection and neutralization of unmanned aerial vehicles at a distance of 200-300 m. The device combines mobility and power and is available in two mounting options: vehicle-mounted and trench-mounted, ensuring flexibility of use in various tactical scenarios.
Description and Key Features
This is a compact yet powerful device: a mobile four-channel ANTI-drone system with the ability to connect up to 4 jamming channels of choice. The casing is entirely aluminum with external heat dissipation for reliable cooling and durability during intensive use. The device supports various antenna types — "Clover," "Quad-Filament," and directional antennas — to adapt directionality and coverage area to a specific tactical task.
Mounting and Power
- Two versions: vehicle-mounted and trench-mounted.
- The vehicle-mounted version operates from the vehicle's internal electrical system (powered by the car's network), allowing for quick deployment of the system on transport.
- The trench-mounted version is equipped with a built-in 220 V charging unit and a 380 Wh LiFePo4 battery, providing autonomous operation at full load for up to 60 minutes.
Technical Specifications
| Parameter | Value |
|---|---|
| Power Supply | built-in 220 V charging unit and 380 Wh LiFePo4 battery, designed for autonomous operation at full load for up to 60 minutes (trench-mounted); vehicle-mounted version operates from the vehicle's internal electrical system |
| Antenna Types | "Clover", "Quad-Filament", directional antennas |
| Weight | 15 kg (trench-mounted); 8 kg (vehicle-mounted) |
| Minimum Autonomous Operation Time | up to 60 minutes |
| Emission Power | from 50 W per band |
| Range | 200-300 m |
| Jamming Channels (Bands) | 200-300 MHz; 300-400 MHz; 400-500 MHz; 500-600 MHz; 600-720 MHz; 720-850 MHz; 850-950 MHz; 950-1150 MHz; 1100-1280 MHz; 1560-1620 MHz; 2370-2470 MHz |
Advantages and Application Scenarios
- Rapid deployment both on transport and in a trench — provides mobile and stationary protection for objects.
- High power on each band (from 50 W) guarantees reliable suppression of UAV control signals at a distance of 200-300 m.
- Various antenna types allow adjusting directionality and coverage area according to terrain and tactical tasks.
- Aluminum casing with enhanced heat dissipation increases the device's resilience during intensive use and prevents overheating.
The Dome EW Jammer Bulba 1.0 is ideal for protecting military facilities, training grounds, headquarters, temporary bases, and other high-risk areas for enemy UAVs. This is a reliable product from the Bulba brand, combining mobility, power, and broad functionality. The device weighs 15 kg for the trench-mounted version and 8 kg for the vehicle-mounted version, allowing for easy transport and integration of the system into various platforms.
Additional information: mobile four-channel ANTI-drone system, up to 4 jamming channels of choice, full aluminum casing with external heat dissipation, two versions — vehicle-mounted and trench-mounted, vehicle-mounted operates from the car's network, trench-mounted has 220 V charging and a 380 Wh LiFePo4 battery, autonomy up to 60 minutes, supports "Clover," "Quad-Filament," and directional antennas, power from 50 W in each band. Belongs to the category: EW Jammers > Trench EW Jammers.
