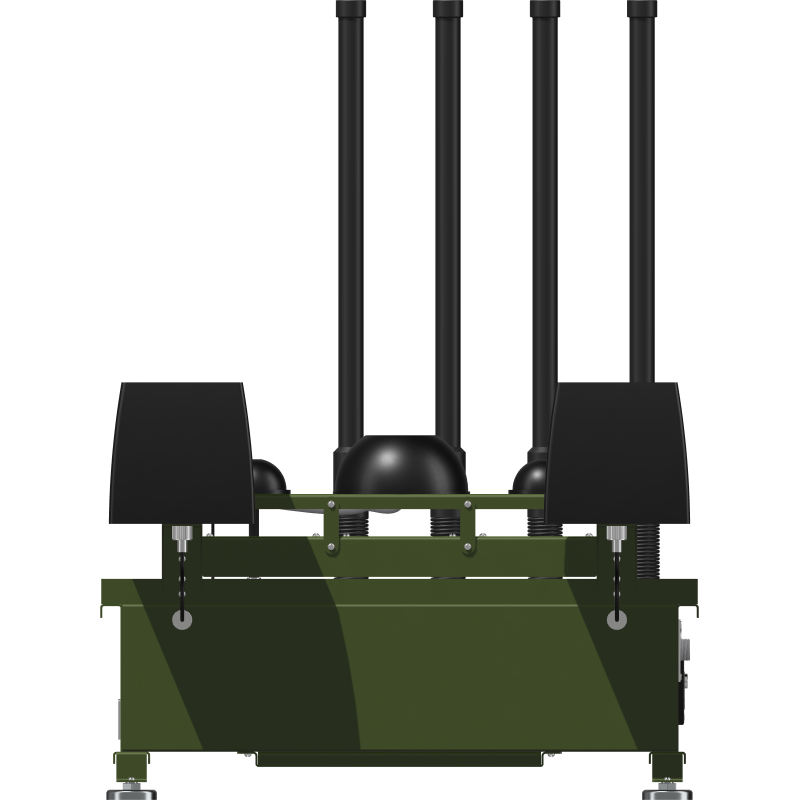

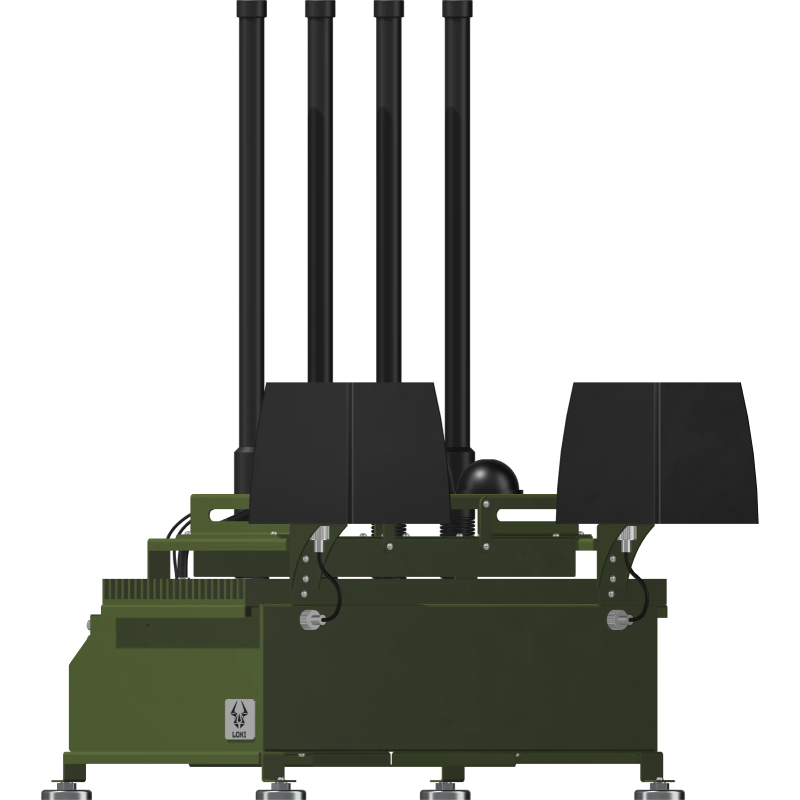

Universal EW Jammer «Odin XL-9» with nine antennas

The universal anti-drone EW jammer «Odin XL-9» is a compact and modular protective device in a box form factor, designed for mounting on a vehicle roof or placement in a trench or dugout. The device is engineered for effective protection of equipment, vehicles, and positions from FPV drones by jamming radio frequencies across a wide spectrum. Its design features magnetic attachment to a vehicle, autonomous power supply, and individual antenna configuration.

Description and Purpose

The system jams signals in the range of 300 to 5850 MHz with the ability to configure for adjacent wider ranges from 200 MHz. Under typical conditions, «Odin» ensures the disruption of drone-to-operator communication at a distance of up to 500 m, while the technical specifications indicate an effective range of up to 350 m (assuming a distance of 3000 m between the drone and the operator). The model features a modular configuration: the number of antennas is selected according to the task, and the required frequency sub-band can be chosen for each antenna.

Technical Specifications

• Frequency Range: 200 to 5850 MHz. Selectable sub-bands: 200-300 MHz, 300-400 MHz, 400-500 MHz, 500-610 MHz, 610-720 MHz, 720-840 MHz, 840-950 MHz, 950–1050 MHz, 1050–1200 MHz, 1200–1350 MHz, 1350–1500 MHz, 2400-2500 MHz, 5150-5350 MHz, 5725-5850 MHz.
• Output Power: 50 W per antenna (sum of powers by number of antennas; example: 3 antennas = 50 W * 3 = 150 W). Maximum total power up to 250 W.
• Effective Range: 350 m (specified in characteristics); in general description up to 500 m depending on deployment conditions and obstacles.
• Internal Battery Capacity: 35,000 mAh.
• Average Output Power: 47 dBm.
• Power Supply: DC 12V–24V (on-board), AC 110–240V (mains).
• Operating Temperature: -25°C to +85°C.
• Kit Weight: 12 kg (housing + antennas).
• Technology: GaN (Gallium Nitride semiconductor technology) — high efficiency, less heat generation, and compact size.
• Cooling: Dual active cooling for stable operation under load.
• Protections: Reverse polarity protection.
• Control: Wireless remote control up to 3,000 meters; includes a remote for vehicle cabin installation and a separate remote control.
• Mounting: Magnetic mount for vehicle installation.
• Monitor and Diagnostics: Built-in diagnostic monitor for monitoring performance and parameters.
• Antenna Control: Power switches for each specific antenna, connectors for antenna connection.
• Manufacture: Ukraine.

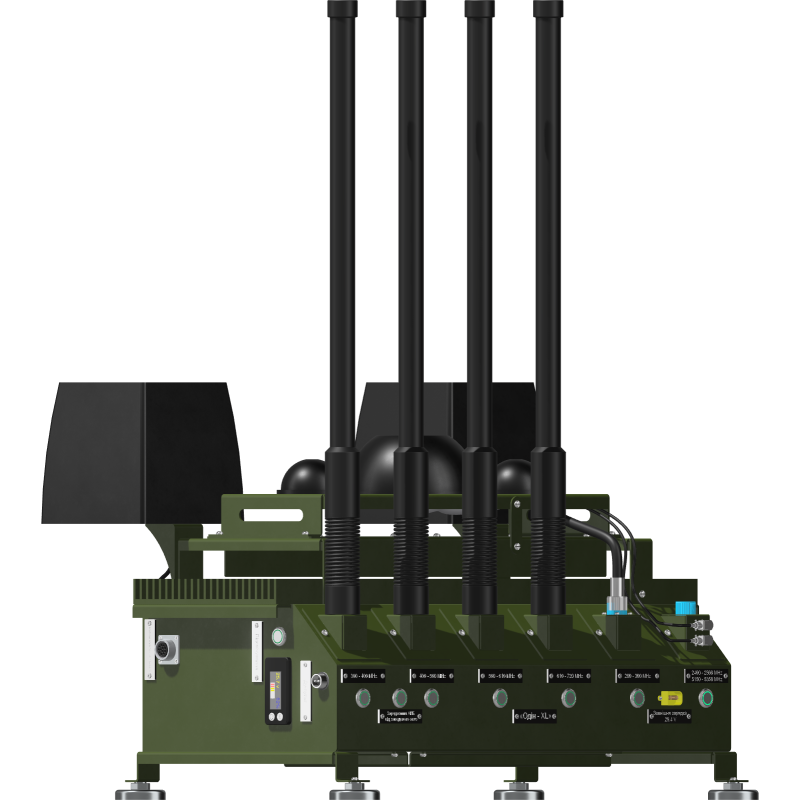

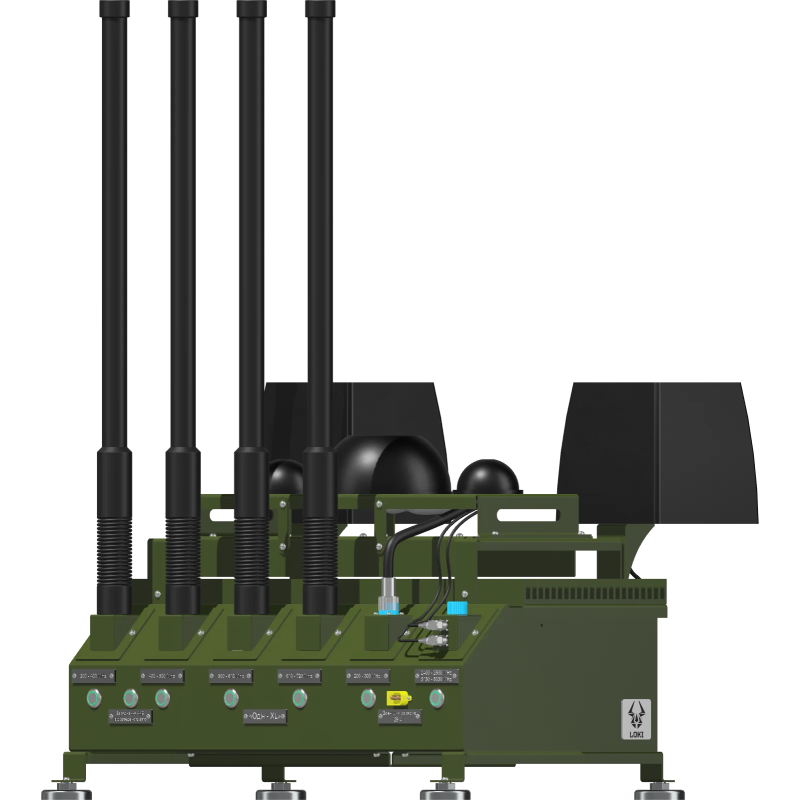

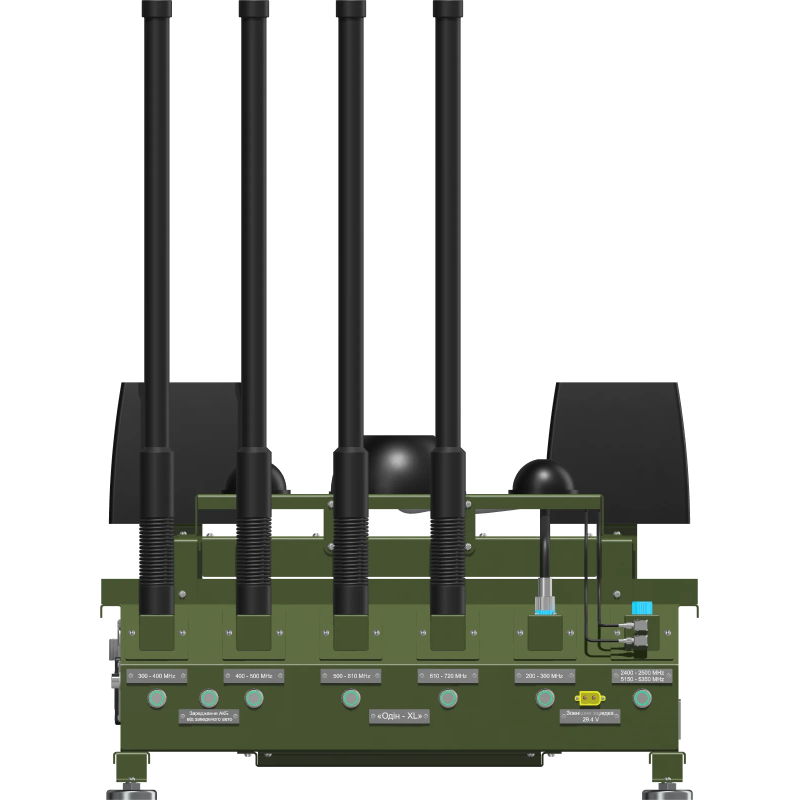

Functional Elements and «Front» Panel

• 1. 4-magnet mount for vehicle installation.
• 2. External charging connector — 29.4V.
• 3. Switch from battery to external charging.
• 4. Power buttons for each individual antenna.
• 5. Active housing cooling.
• 6. Connectors for antenna connection.
• 7. Connector for remote controls.

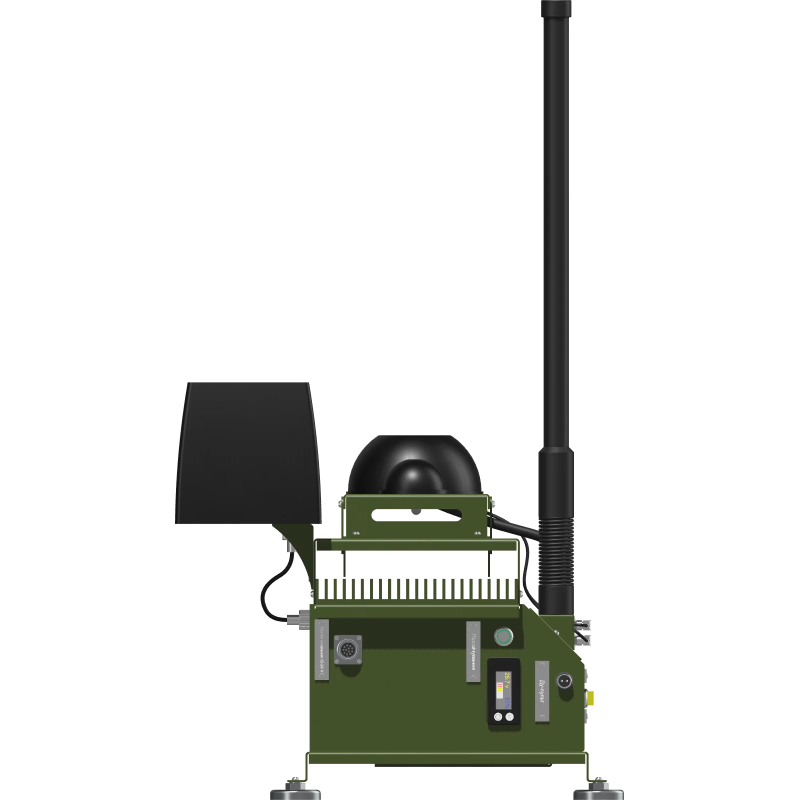

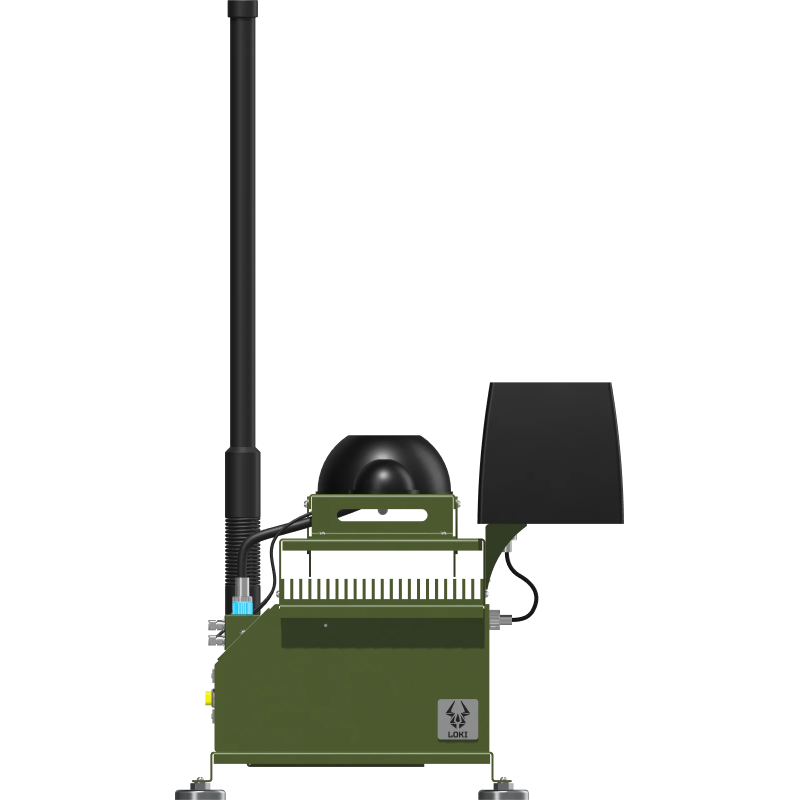

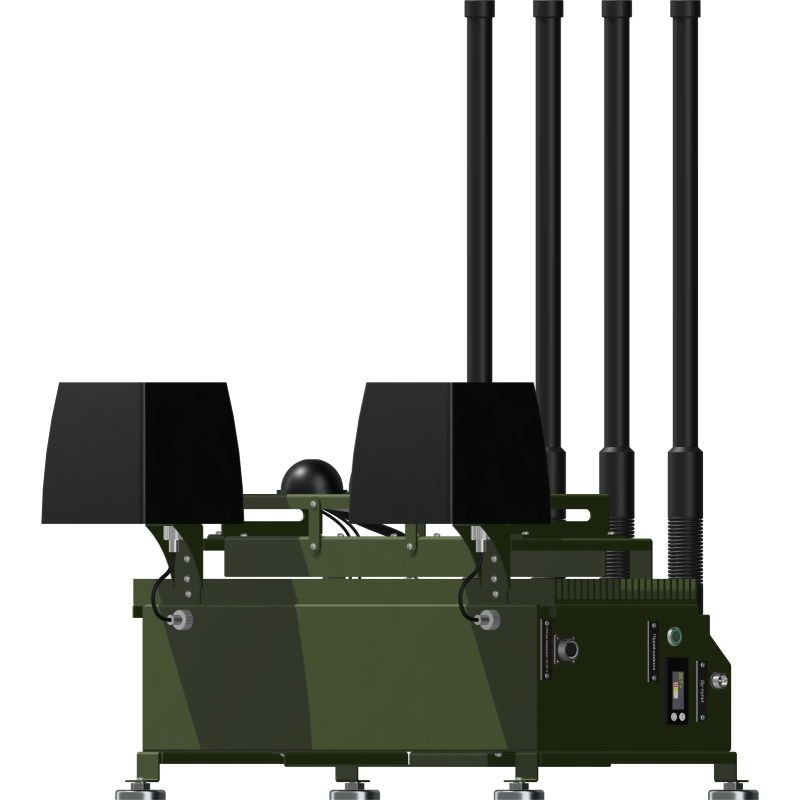

Other Control Elements

• 1. Diagnostic monitor for monitoring system parameters and status.
• 2. 12–24 V power connector for connection to the on-board network.
• 3. Backlight and operating mode indication.

«Odin-3» Package Contents

• 3 antennas (ability to choose the number of antennas according to needs; any of the possible ranges can be selected for each antenna).
• Control remote — remote for installation in the vehicle cabin (1 pc.).
• Remote control (RC) — up to 3,000 meters (1 pc.).
• Power cable — cable for connection to the on-board network.
• «Odin» system in assembled state (1 pc.).
• Battery pack — power supply unit for the on-board battery (1 pc.).
• Documentation — passport and user manual (1 set).

The product description also includes photos of the system and spare parts: images of the kit with installed antennas, control remote, power cable, additional battery, and fast charger. Additional accessories may not be included in the standard package and are offered separately.

The model allows selecting the necessary frequency ranges for each antenna and configuring the system for specific tasks; its modular architecture and magnetic mounting ensure quick integration on vehicles, and autonomous power options make the system suitable for both field and stationary operating conditions. This makes «Odin» an optimal solution in the EW jammer category for operational protection against FPV drones.

Manufacturer: Loki. Brand in product data: Asgard Defence Technologies. Product type: EW jammers. Country of manufacture: Ukraine.
