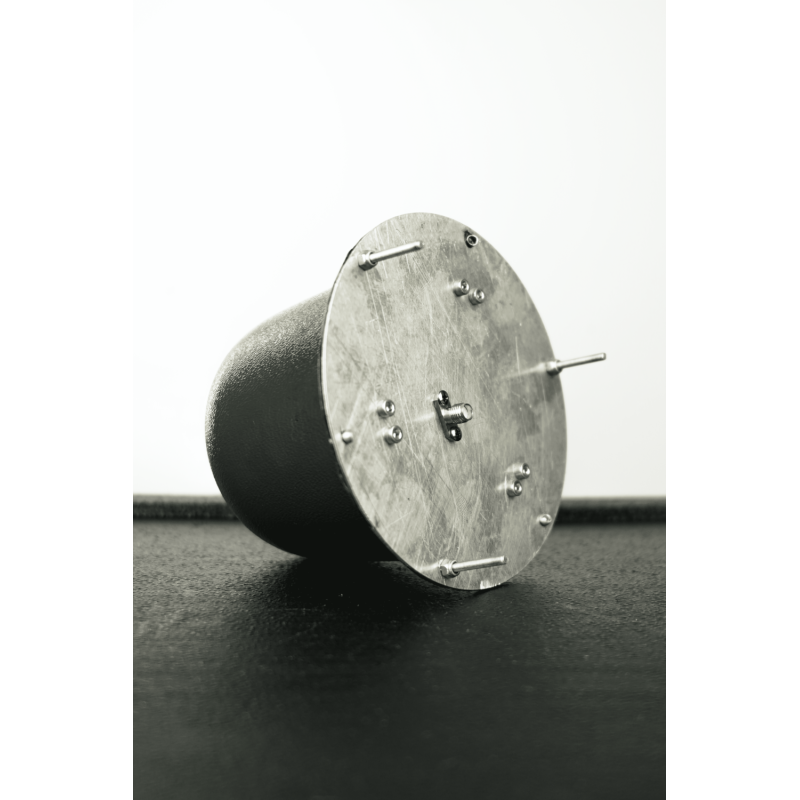

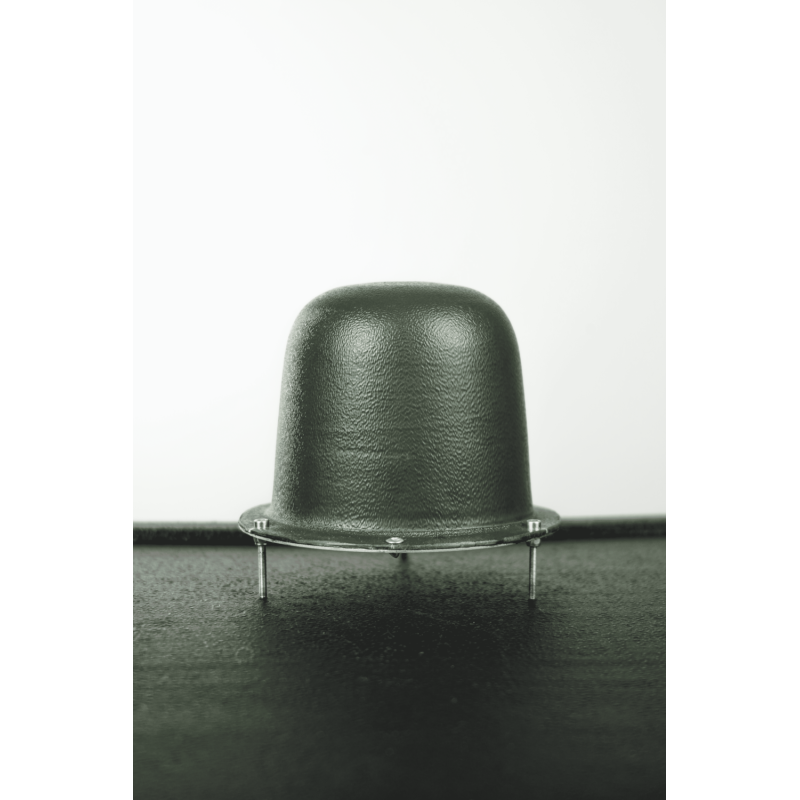

Directional Antenna «Harpina» 5.8 GHz BlueBird
The Harpina 5.8 GHz directional antenna from BlueBird is a professional circularly polarized module specifically optimized for operation in the 5.8 GHz (5800 MHz) frequency band. The antenna's design combines high directivity and compact dimensions, allowing it to effectively shape the radiation pattern for targeted impact on enemy transceiver circuits.
The antenna is available in left-hand or right-hand circular polarization options, enabling system adaptation to specific communication or jamming tasks. With a gain of up to 10.5 dBi and power handling of 50–60 W, the device ensures stable operation even under intense electromagnetic interference.
Purpose: The «Harpina» 5.8 antenna is designed for integration into electronic warfare (EW) systems and is effective for suppressing communication channels of unmanned aerial vehicles operating in the 5.8 GHz band, particularly models similar to DJI Mavic. It is developed for use in various integration configurations:
- mobile systems,
- stationary systems,
- vehicle-mounted options,
- tactical cases and other platforms requiring reliable directional action against drones.
Key Features
Nominal frequency range: 5800 MHz. Operating band at SWR < 2: 4900 – 6100 MHz. SWR value less than 1.8. Antenna impedance: 50 Ohm. Radiation pattern: single-lobe along the axis with main lobe width at –3 dB (HPBW) — 55°. Connector: SMA female. Element materials: reflector — aluminum, copper, ABS. Operating temperature range: from -40℃ to +80℃. Antenna weight — 80 g. Dimensions: width — 120 mm, height — 88 mm.
Specifications:
| Parameter | Value |
|---|---|
| Nominal frequency range | 5800 MHz |
| Operating band (SWR < 2) | 4900 - 6100 MHz |
| SWR | < 1.8 |
| Polarization type | Circular (left or right) |
| Impedance | 50 Ohm |
| Gain | up to 10.5 dBi |
| Radiation pattern | single-lobe along the axis; main lobe width at -3 dB (HPBW) — 55° |
| Connector | SMA female |
| Element material | reflector — aluminum, copper, ABS |
| Temperature range | -40℃ ~ +80℃ |
| Weight | 80 g |
| Dimensions | width — 120 mm, height — 88 mm |
The «Harpina» 5.8 GHz antenna is an optimal solution for EW integrators who require a compact, robust, and directional antenna with high gain and selectable polarization. It ensures reliable operation across a wide temperature range and features a standard SMA female connector for easy connection to existing transceiver systems. Thanks to its parameters, this antenna is suitable for tasks where precise directivity, high efficiency, and resistance to external influences are crucial.
Manufacturer: BlueBird. Product category: EW > Quadrifilar Antennas
