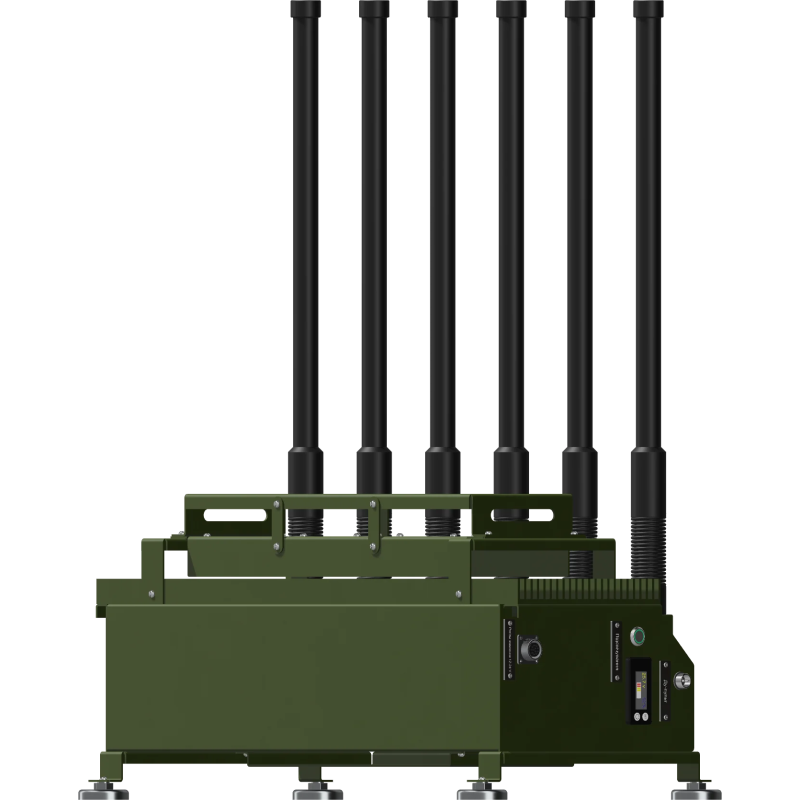

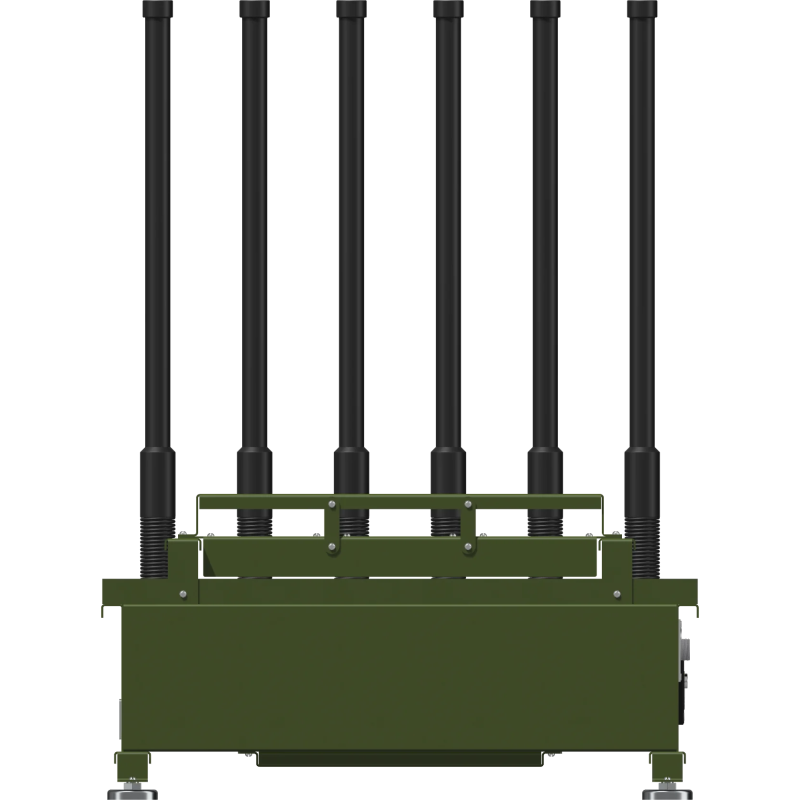

Universal Odin XL-6 EW Jammer with Six Antennas
The Odin anti-drone system from the Loki brand is a universal box-shaped complex that can be mounted on a vehicle roof or placed in a trench (dugout) to protect equipment, vehicles, and positions. Brand/supplier: Asgard Defence Technologies. Manufactured in: Ukraine. Product type: EW Jammers > Trench EW Jammers.
General Description of Operation and Capabilities
The system provides blocking and jamming of FPV signals and drone control channels. According to the manufacturer, the initial description states blocking in the 300-5850 MHz range, while detailed specifications provide a range from 200 to 5850 MHz with the ability to select specific sub-bands. The device ensures effective signal jamming at a distance of up to 500 m (basic estimate) and has a stated effective operating distance of approximately 350 m given a distance of 3000 m between the drone and the drone operator. The complex is equipped with a remote control that operates up to 3,000 meters, allowing the device to be controlled from a remote position. A monitor for diagnosing performance and characteristics is included in the kit.
Ranges and Sub-bands
- Frequency range: the description states blocking 300-5850 MHz; the list of characteristics states — from 200 to 5850 MHz.
- Selectable sub-bands: 200-300 MHz, 300-400 MHz, 400-500 MHz, 500-610 MHz, 610-720 MHz, 720-840 MHz, 840-950 MHz, 950–1050 MHz, 1050–1200 MHz, 1200–1350 MHz, 1350-1500 MHz, 2400-2500 MHz, 5150-5350 MHz, 5725-5850 MHz.
Technical Specifications
- Output power per antenna: 50 W per antenna (total output power depends on the number of antennas, e.g., 3 antennas = 50 W * 3 = 150 W).
- Maximum power: up to 250 W.
- Average output power: 47 dBm.
- Effective operating distance: ~350 m (given a distance between the drone and the drone operator of — 3000 m), the basic description states up to 500 m.
- Battery capacity: 35,000 mAh.
- Power supply: DC 12V-24V (autonomous power) and AC 110-240V (mains power).
- Operating temperature: from -25 to +85 °C.
- Kit weight: 12 kg (housing + antennas).
- Semiconductor technology: GaN — improved efficiency, lower heat dissipation, and more compact size.
- Cooling: dual active cooling.
- Protection: reverse polarity protection.
- Wireless control: up to 3,000 meters.
- Mounting: magnetic car mount.
- Monitor: performance and characteristics diagnostics.
- Antenna control: antenna switches for individual antenna deactivation.

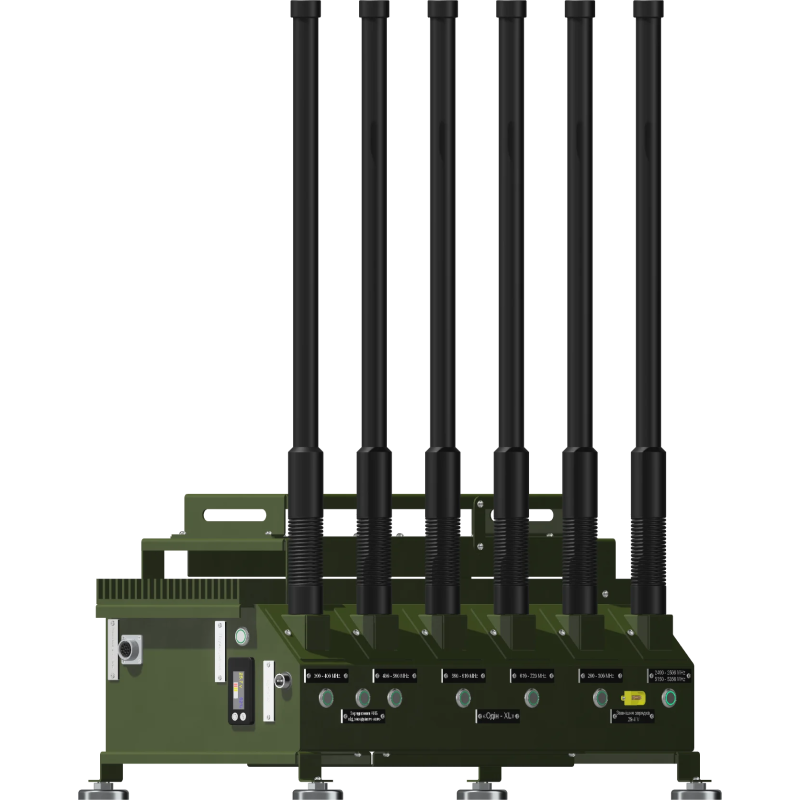

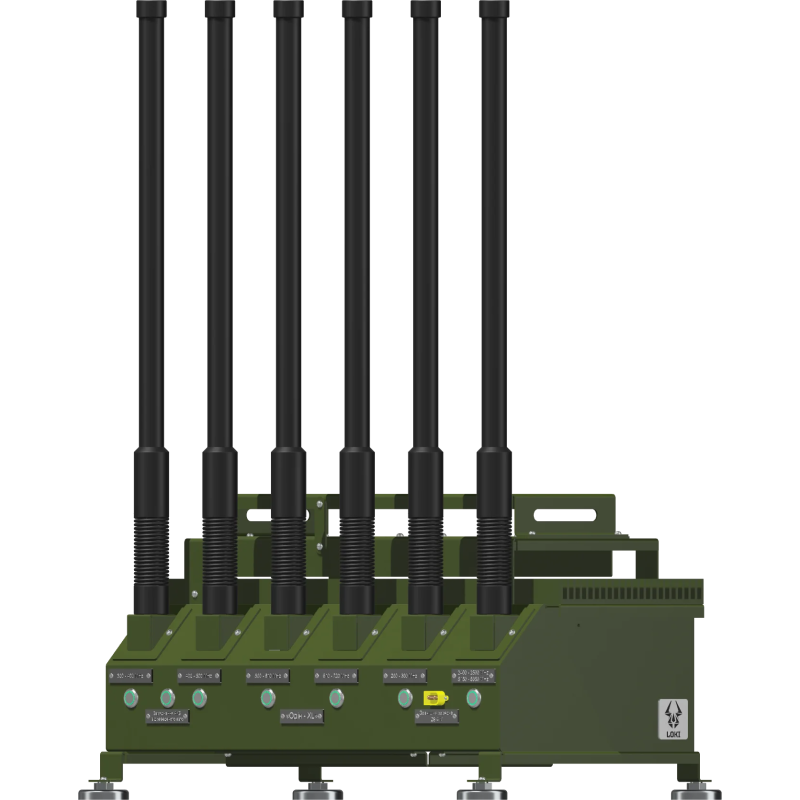

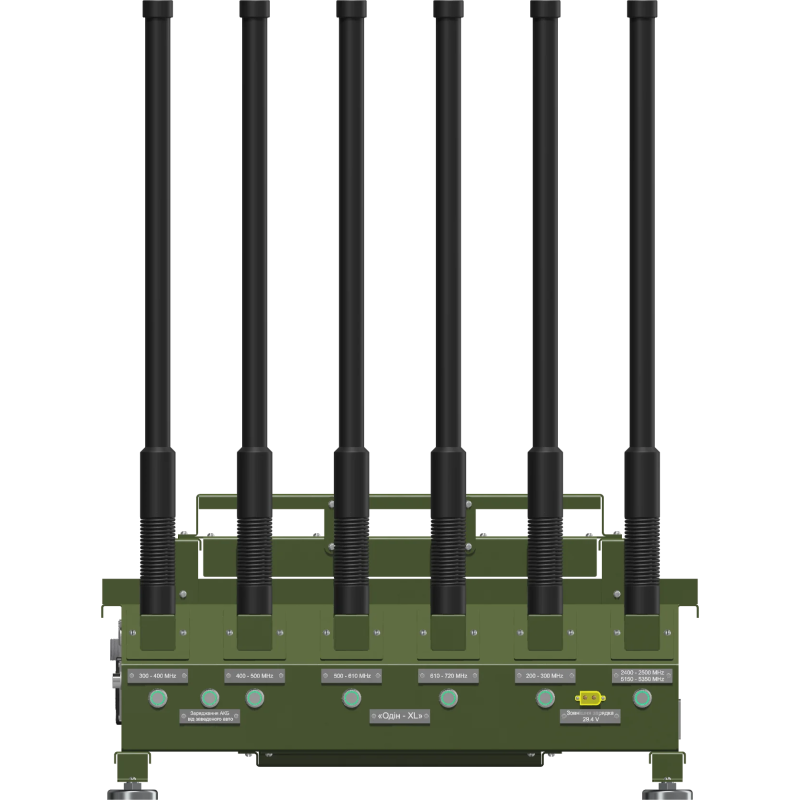

Front Panel and Housing Elements
- 1. 4-magnet car mount
- 2. External charging - 29.4
- 3. Switch from battery to external charging
- 4. Power buttons for each individual antenna
- 5. Active cooling
- 6. Antenna connectors
- 7. Remote control connector

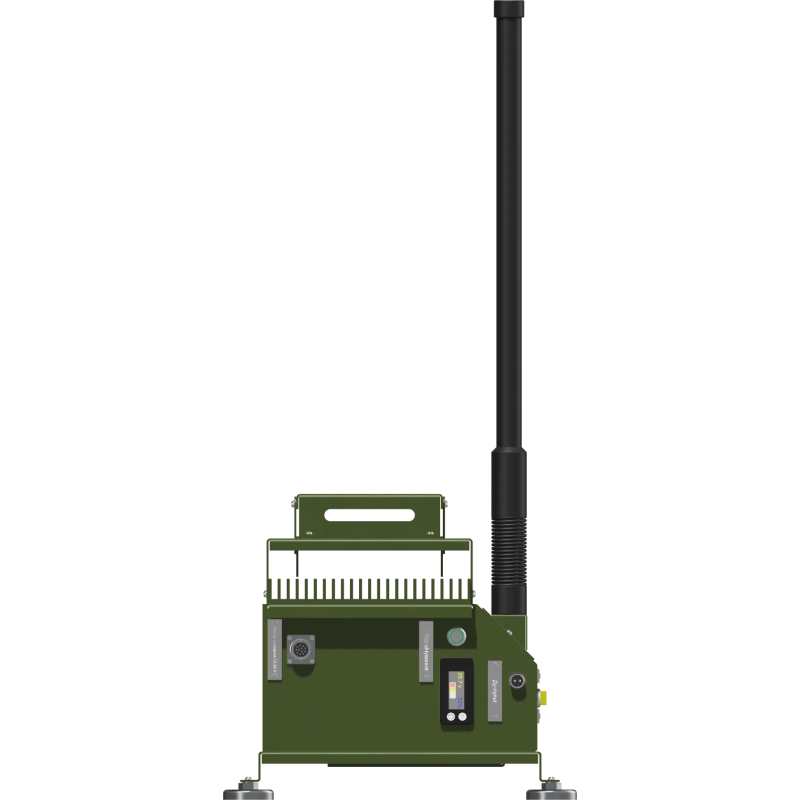

Control Panel and Indication
- 1. Diagnostic monitor
- 2. 12-24 V power connector
- 3. Backlight and indication
Kit Contents (example of "Odin-3" kit)
- 3 antennas — possibility to choose the number of antennas depending on needs; any of the possible ranges can be selected for each antenna.
- Control panel — power control panel for installation in the car cabin — 1 pc.

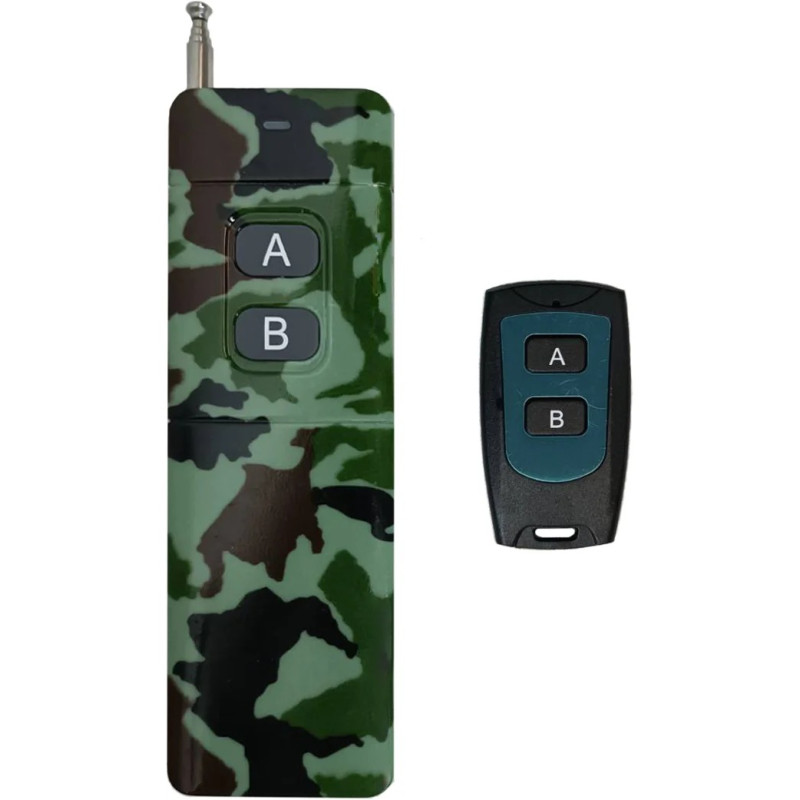

- Remote control — power remote control, operates up to 3,000 meters — 1 pc.
- Power cable — cable for connection to the vehicle's electrical system.
- Odin complex — assembled complex — 1 pc.
- Battery pack — power supply unit for the onboard battery — 1 pc.
- Documentation — passport and user manual — 1 pc.
The original description also included photographs of the complex, components, control panel, an additional battery (not included in the standard kit), and a fast charger (not included in the standard kit). All technical parameters and the list of equipment specified by the manufacturer have been preserved in the text.
System purpose: protection against FPV drones, equipment and position security, quick installation on a vehicle with magnetic mounting, remote control, and system status diagnostics.
Description brand: Loki. Supplier/brand in product data: Asgard Defence Technologies. Product type: EW Jammers.
