EW Jammer "Pantsyr" 8 Frequencies Nebokray

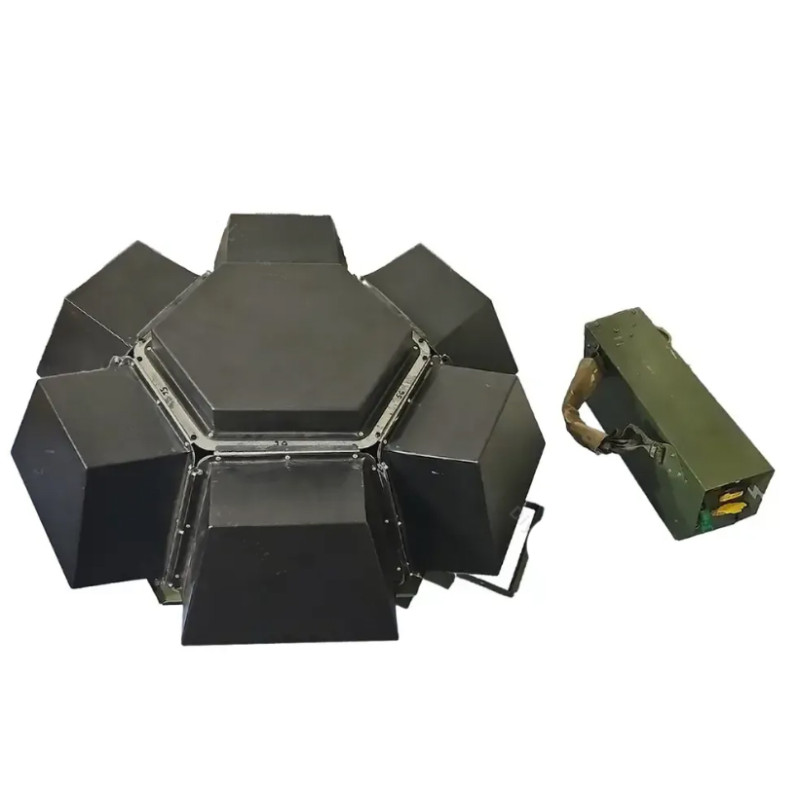

The multi-purpose EW system Pantsyr 8 Frequencies Nebokray is designed for effective protection against DJI, AUTEL, and various FPV kamikaze drones. The device is adapted for use as mobile cover on vehicles or armored vehicles, as well as for guarding stationary positions or during the movement of field groups. The system combines interference generation modules, a detachable antenna, and multiple power modes for flexible operation in field conditions.

NATO Stock Number: 5865-61-017-9095. Technical Specifications: ТУ У 26.3-45162226-001:2024.

Capabilities and Application Scenarios

The system provides selective blocking of drone remote control radio channels with the ability to adjust to the required frequencies. A constructive feature is that the antenna can be detached from the body and positioned separately for increased mobility and effectiveness. This allows the EW jammer to be used in various tactical scenarios:

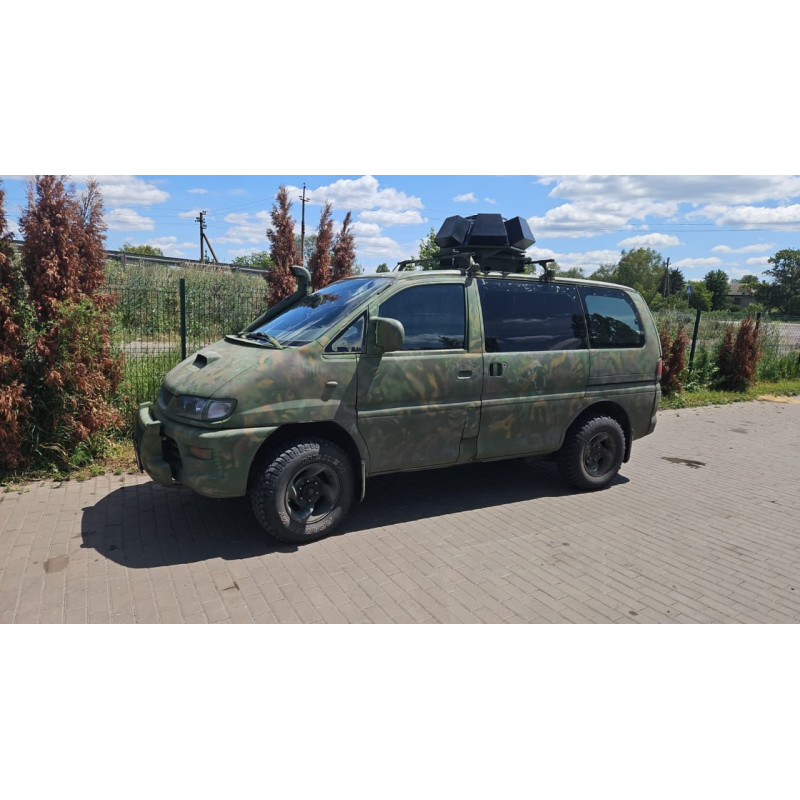

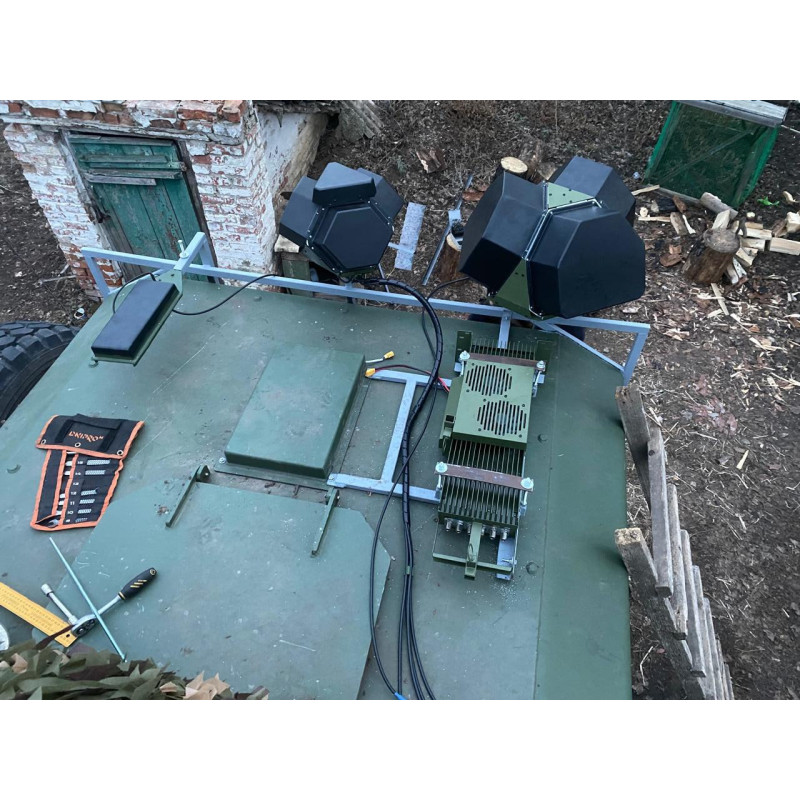

• protecting vehicles and armored vehicles by mounting the antenna on the roof;

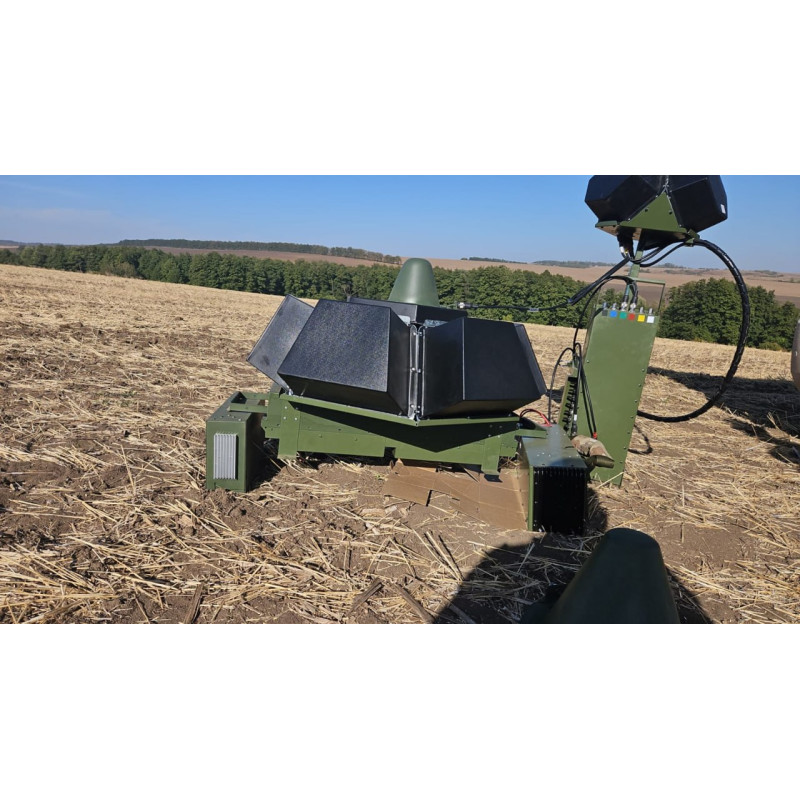

• placing the antenna near defensive positions for local cover;
• using a portable version in a backpack during assault operations;
• enabling individual frequencies or all simultaneously for flexible control of the suppression spectrum.

Power supply allows operation from a 28V, 80A power unit with the ability to charge from a 220V AC network and from 12–24V DC voltage. With continuous use for blocking 6 bands, the operating time on a single battery charge is at least 1 hour. In different modes, the actual battery life can range from ≈65 minutes to 3 hours.

The total output power of the system is stated as 300 W (permissible deviation −5%), while the interference power at the generator output is 630 W, and power consumption does not exceed 900 W. The range of electronic suppression varies depending on conditions and can reach from 50 to 500 meters, with a maximum effective range of up to 500 m under optimal antenna placement and ground station power.

Technical Specifications

Notes: the text provides characteristics regarding output and consumed power (300 W total output power with a permissible deviation of −5% and 630 W interference power at the generator output), battery operating time, which can range from ≈65 minutes to 3 hours in different modes, as well as operating frequency ranges from 400 to 1500 MHz and 2400–5800 MHz. The system is compatible with various operating scenarios and is designed for use in field conditions.

Manufacturer: Nebokray. Product category: EW jammers, including vehicle solutions for UAV protection.
