Wideband Receiver 4900-5999MHz "God's Eye" — StingBee

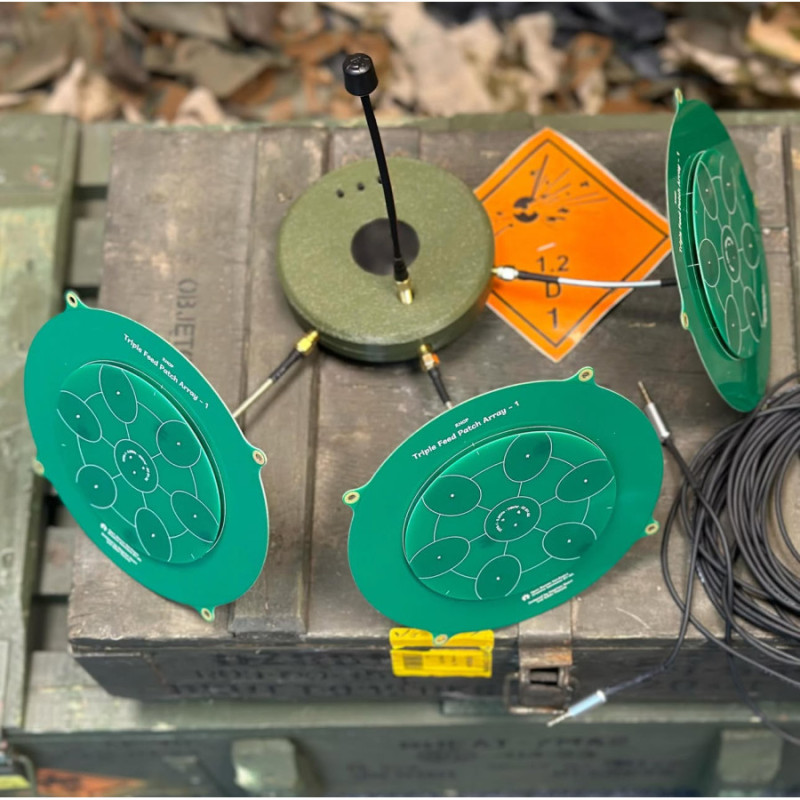

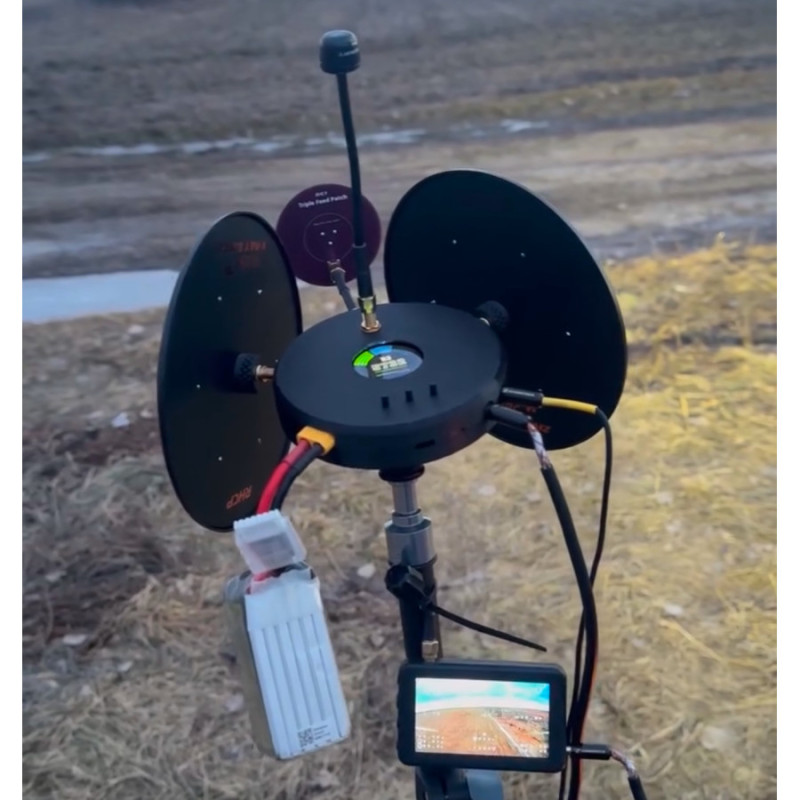

Introducing the StingBee "God's Eye" wideband analog video receiver, designed for stable signal reception in the 4900–5999 MHz range. The device is ideal for use in ground stations and as a repeater for FPV drones, ensuring reliable and continuous video communication thanks to the integration of four receiver modules in one housing.
This receiver offers practical functionality for quick flight preparation and stable video viewing: it is equipped with 4 antennas, significantly reducing the risk of losing video communication with the drone; it has a channel scanner for instant active signal search; it supports manual frequency input for fine-tuning; and it provides a convenient menu exit for quick return to viewing.
ATTENTION: the device operates at a voltage of 4.8V to 16.8V and is not compatible with 6S batteries.
Calibration is simple and intuitive. Before starting calibration, it is recommended to disconnect the antennas. Step-by-step calibration instructions:
- 1. Disconnect all antennas;
- 2. Press the middle button to enter the menu;
- 3. Press the right button, go to settings, select the calibration item, and start the process;
- 4. Wait for calibration to complete, following the on-screen prompts.
Below is the analog VTX frequency table in its original form for quick channel selection and band/channel orientation:
| Band | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
| A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| F | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| R | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
| D | 5362 | 5399 | 5436 | 5473 | 5510 | 5547 | 5584 | 5621 |
| U | 5325 | 5348 | 5366 | 5384 | 5402 | 5420 | 5438 | 5456 |
| O | 5474 | 5492 | 5510 | 5528 | 5546 | 5564 | 5582 | 5600 |
| L | 5333 | 5373 | 5413 | 5453 | 5493 | 5533 | 5573 | 5613 |
| H | 5653 | 5693 | 5733 | 5773 | 5813 | 5853 | 5893 | 5933 |
| Х | 4990 | 5020 | 5050 | 5080 | 5110 | 5140 | 5170 | 5200 |
Key Features of God's Eye
- Power / Voltage: 4.8V–16.8V
- Consumption: 600mA @ 5V
- Frequency: 4900–5999 MHz
- Sensitivity: -96 dBm
- Bands: RaceBand, Band A, B, E, L, H, X
- Antenna Connectors: 4x standard SMA (not RP-SMA)
- Power Connectors and Interfaces: XT60 (male), 2x 3.5 mm 4-pin jack, USB Type-C; servo output
- Display: 1.28" color RGB TFT display
- Control: 3 buttons
- Modes: Diversity
- Updates: integrated USB for updates
- Calibration: high/low; Radar mode — automatic search for enemy and friendly UAVs
Brand: StingBee. Product Type: Drones and Quadcopters > Transmitters.
This description contains all technical details and operating recommendations for the StingBee "God's Eye" wideband receiver, making it an excellent choice for FPV pilots seeking a reliable and functional receiver with multi-band support, a user-friendly interface, and firmware update capability via USB.
