The "Grets 5ML" vehicle-mounted EW jammer from BlueBird is an innovative mobile device for reliable suppression of FPV drones in the 350-700 MHz range. The device is designed for installation on vehicles and stationary poles, providing targeted and simultaneous action in five separate bands, which increases the likelihood of blocking communication between the drone and the pilot in difficult conditions.

Description and Functions

The new "Grets 5ML" vehicle-mounted EW jammer is specifically designed to combat FPV unmanned aerial vehicles. The device has five separate jamming bands that can be activated individually or simultaneously, providing flexibility of use and high efficiency in various tactical situations. The EW jammer is designed for operational protection of convoys, important objects, and personnel from aerial threats.

Frequency Bands

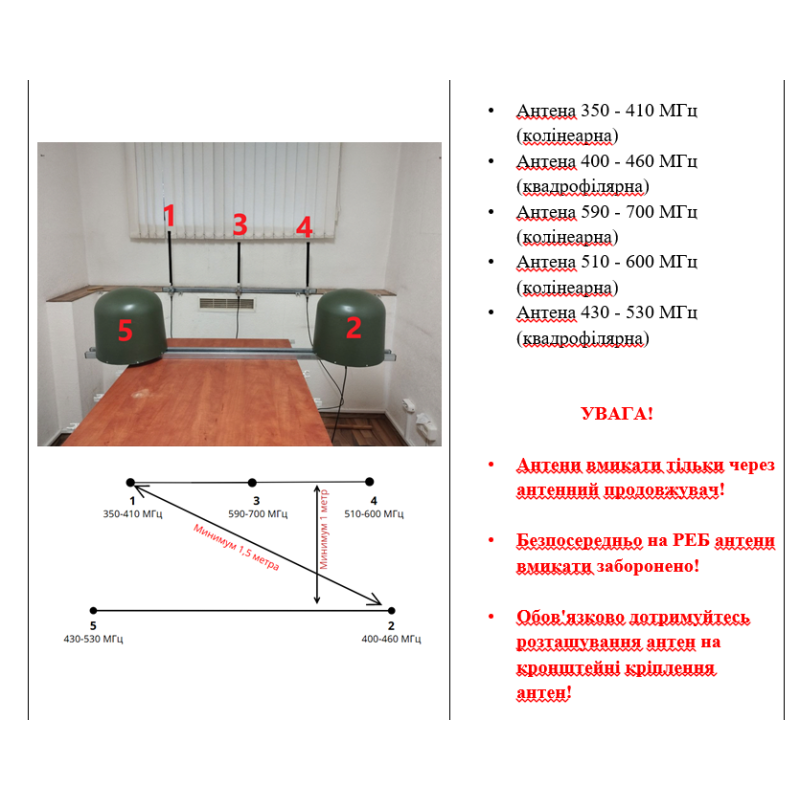

• 350-410 MHz (collinear antenna)
• 400-460 MHz (quadrifilar)
• 450-530 MHz (quadrifilar)
• 500-580 MHz (collinear antenna)
• 575-700 MHz (collinear antenna)
• Collinear and quadrifilar antennas have been tested in real conditions and have shown reliability and effectiveness

Technical Specifications

• Frequency range: 350-700 MHz
• Power supply: 220 V

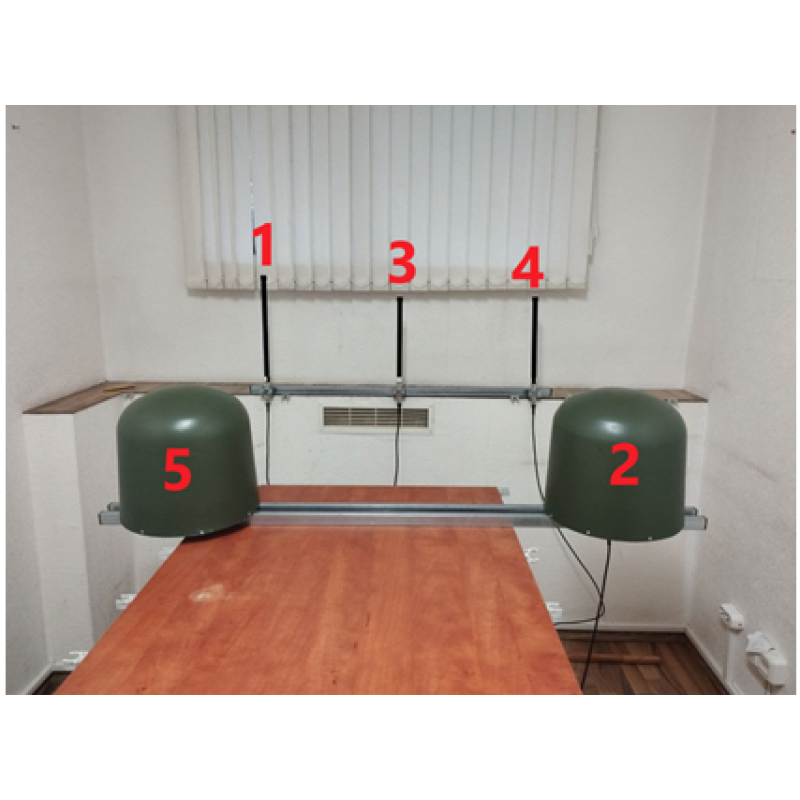

• Number of antennas: 5 pcs (2 quadrifilar + 3 collinear)
• Bracket for mounting 5 antennas on a vehicle or stand: 1 pc
• Connecting cables for each band: 5 pcs, 2 m each
• Housing size: 350×230×140 mm
• Total length when assembled: 830/630 mm
• Antenna length: 600/400 mm
• Total power: (50+50+50+50+50) W
• Power consumption: up to 750 W
• Effective range: from 70 m to 400 m, depending on the distance to the enemy pilot, FPV drone frequency, and other factors
• EW jammer weight without battery: 12 kg

Package Contents

• 1. EW jammer device
• 2. 5 antennas (2 quadrifilar + 3 collinear)
• 3. 220 V power cable
• 4. Bracket for mounting 5 antennas on a vehicle or stand
• 5. Antenna unit patch extension cable for each band (5 pcs, 2 m each)
• 6. User manual: "Grets 5ML"

Optional Elements

• Springs for antenna mounting on a vehicle: 3 pcs
• Remote control: 1 pc
• Other antenna types: upon request

Application and Advantages

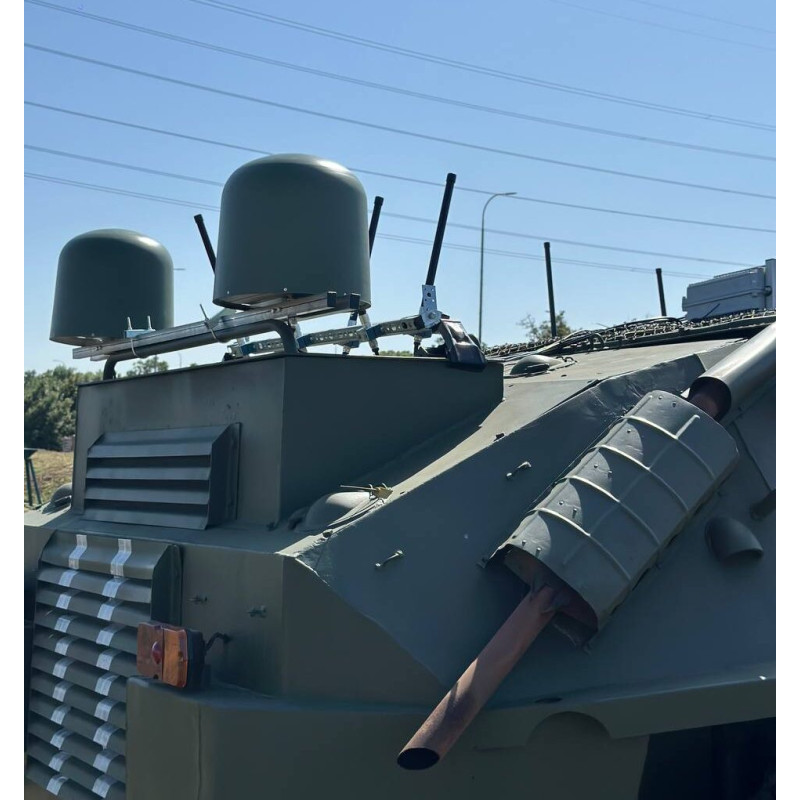

The "Grets 5ML" vehicle-mounted EW jammer from BlueBird combines the mobility of vehicle mounting with high efficiency thanks to five jamming bands. With the ability to control individual bands and simultaneously activate all channels, the operator gets a tool for flexible response to FPV drone threats in various tactical scenarios. Reliable collinear and quadrifilar antennas, a set of 2 m cables for each band, and a mounting bracket make the system ready for rapid deployment.

The product belongs to the category: EW Jammers > Vehicle-mounted EW Jammers. Manufacturer: BlueBird. Model name: "Grets 5ML" Vehicle-mounted EW Jammer.
