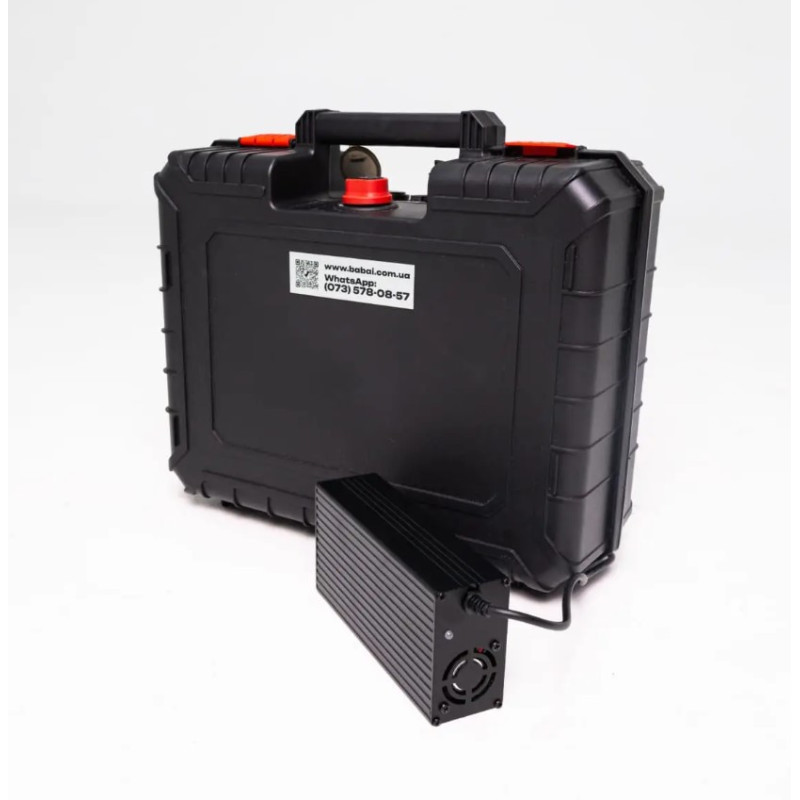

Babai 40 Ah EW Jammer Battery is a mobile power source designed to power electronic warfare equipment, repeaters, communication devices, and other field equipment. Manufacturer: Babai. The device combines high energy capacity, cell protection, and fast charging capabilities, making it an optimal solution for autonomous and stationary use in challenging conditions.
The battery capacity is 896 Wh (40 Ah), the maximum voltage at full charge is 25.2 V, and the minimum operating voltage (cutoff at 5%) is 19.6 V. This ensures a stable power supply when operating power-intensive systems. The maximum discharge current is 80 A, allowing powerful consumers to be connected without voltage drop.

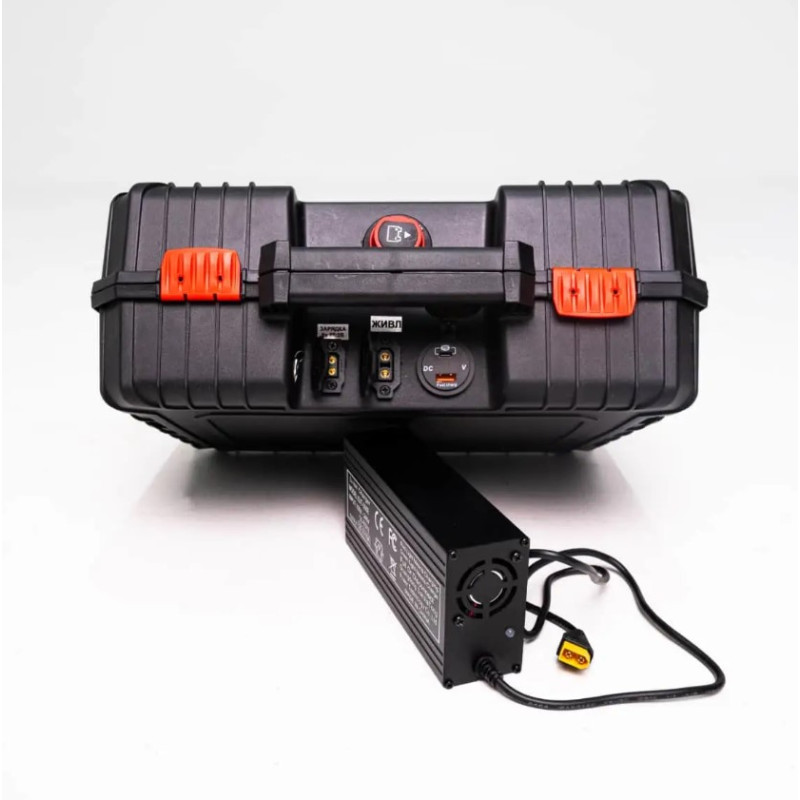

For rapid energy recovery, CC/CV charging mode is used with a nominal current of 15 A (RMS) and a maximum charging current of 35 A (MAX), which allows the battery to be charged in approximately 2–3 hours under optimal conditions. The housing includes a voltage indicator, as well as ports for charging mobile devices — USB and Type-C (optional), allowing the battery to serve as a universal charging station in the field.
Device dimensions: 384×335×144 mm, weight — 6.9 kg, ensuring convenient transportation and placement in stationary positions or mobile points. The battery is adapted to operate in a wide temperature range: operating range — from -20 °C to +50 °C, charging temperature — from 0 °C to +50 °C, which guarantees reliable operation in both frost and high temperatures.

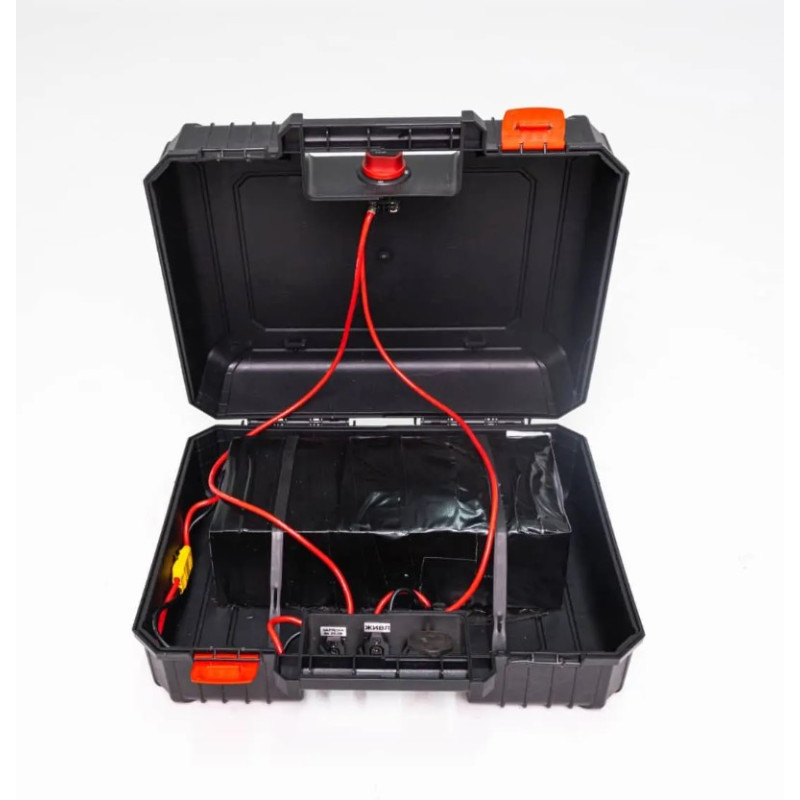

Safety and durability are ensured by the built-in BMS system, which controls charging and discharging processes, protecting cells from overheating, overcharging, and deep discharge. This significantly extends battery life and reduces the risk of failure in the field.
The battery comes with the necessary equipment for quick connection and operation: cables with XT60 and XT90 connectors, a 25.2 V / 10 A charger, and an operating manual. The presence of a complete power supply unit and cables allows the device to be used "out of the box" without additional purchases.
Specifications
| Parameter Name | Value |
|---|---|
| Maximum Voltage (100% charge) | 25.2 V |
| Minimum Voltage (cutoff at 5%) | 19.6 V |
| Battery Capacity | 40 A / 896 W |
| Discharge Current | 80 A |
| Charging Current | 15 A (RMS) / 35 A (MAX) |
| Case Size | 384×335×144 mm |
| Weight | 6.9 kg |
| Charging Method | CC / CV |
| Charging Temperature Range | 0 - 50 °C |
| Operating Temperature Range | -20 - +50 °C |
| Power Supply Included | 25.2 V / 10 A |
| Warranty | 6 months |
| Country of Manufacture | Ukraine |
Advantages and Features
High energy capacity: 896 Wh (40 Ah) allows for long operation even under heavy load.
Fast charging: support for up to 35 A allows the battery to be restored in 2–3 hours, which is important for intensive use.
Versatility: voltage indicator and USB/Type-C ports for charging mobile devices make the battery practical in field operations.
Reliability and safety: integrated BMS protects cells from overheating, overcharging, and deep discharge.
Climatic endurance: operating range from -20 °C to +50 °C guarantees stable operation in extreme conditions.
Package Contents:
- EW Jammer Battery — 1 pc.

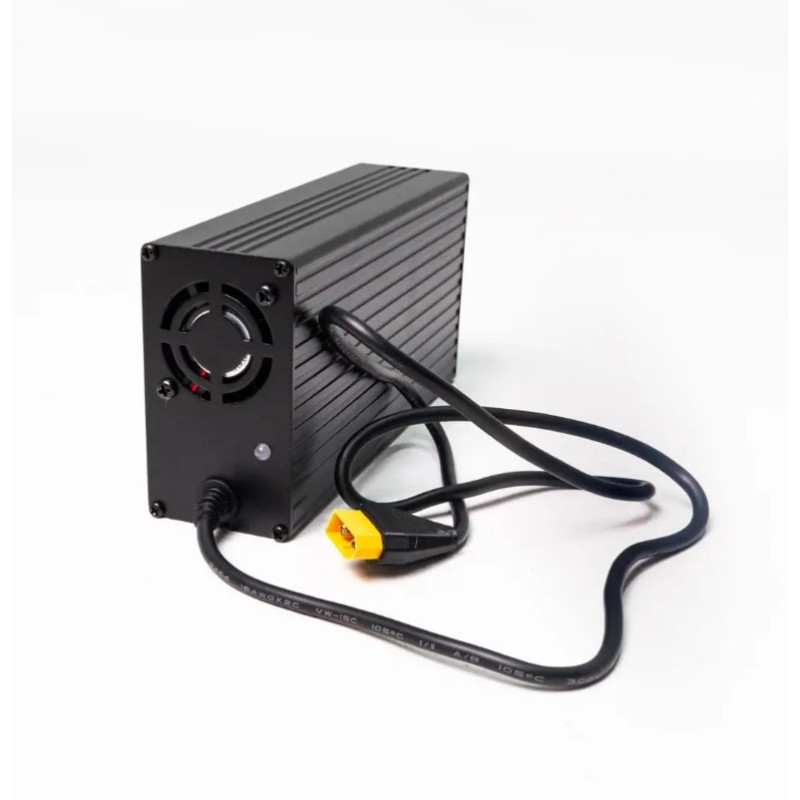

- Charger (25.2V 10A) — 1 pc.
- Power cables with XT60 and XT90 connectors — 1 pc.
- Operating manual — 1 pc.
Warranty and Service: The device is manufactured in Ukraine. The warranty period for the device is 6 months; in some cases and under certain operating conditions, a warranty for up to 12 months may be provided. We provide local technical support and service.
Thanks to the combination of high reliability, autonomy, and energy efficiency, the Babai EW jammer battery is ideal for powering mobile and stationary EW systems, ensuring stable operation of critical equipment in field and stationary conditions.
